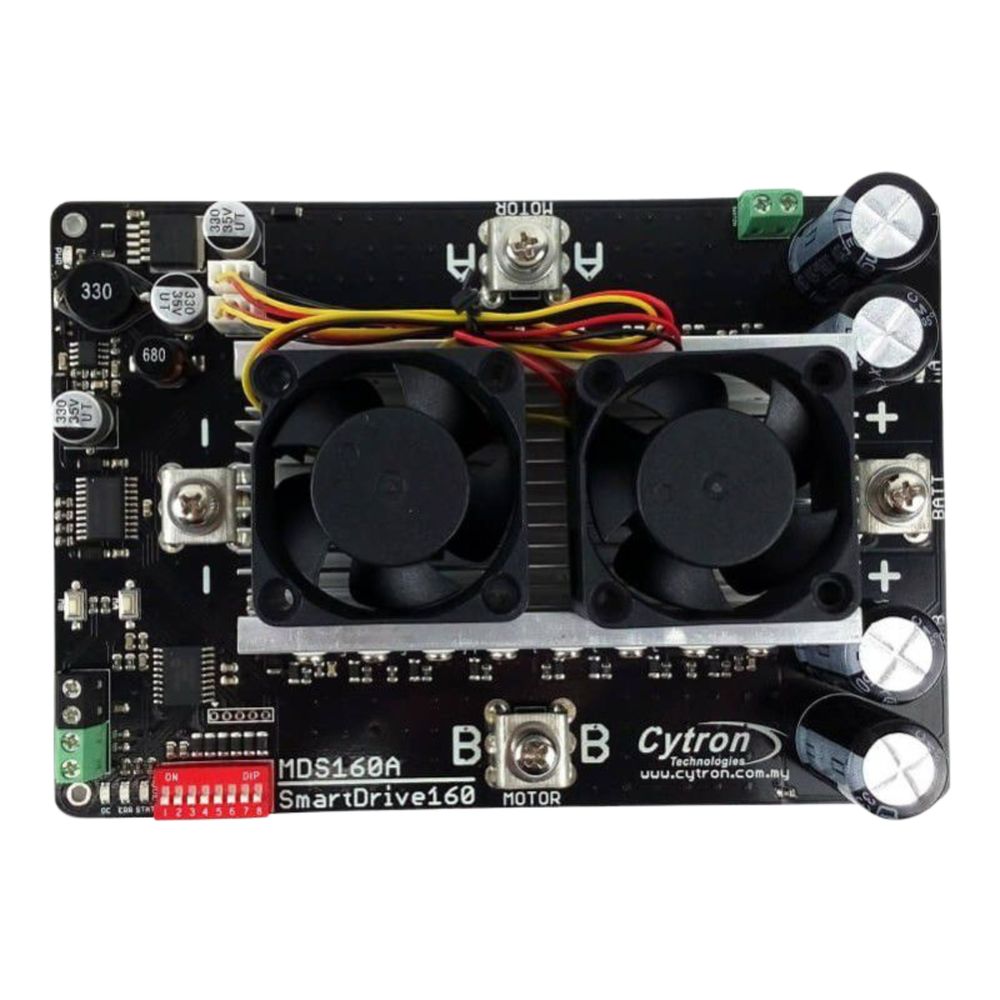

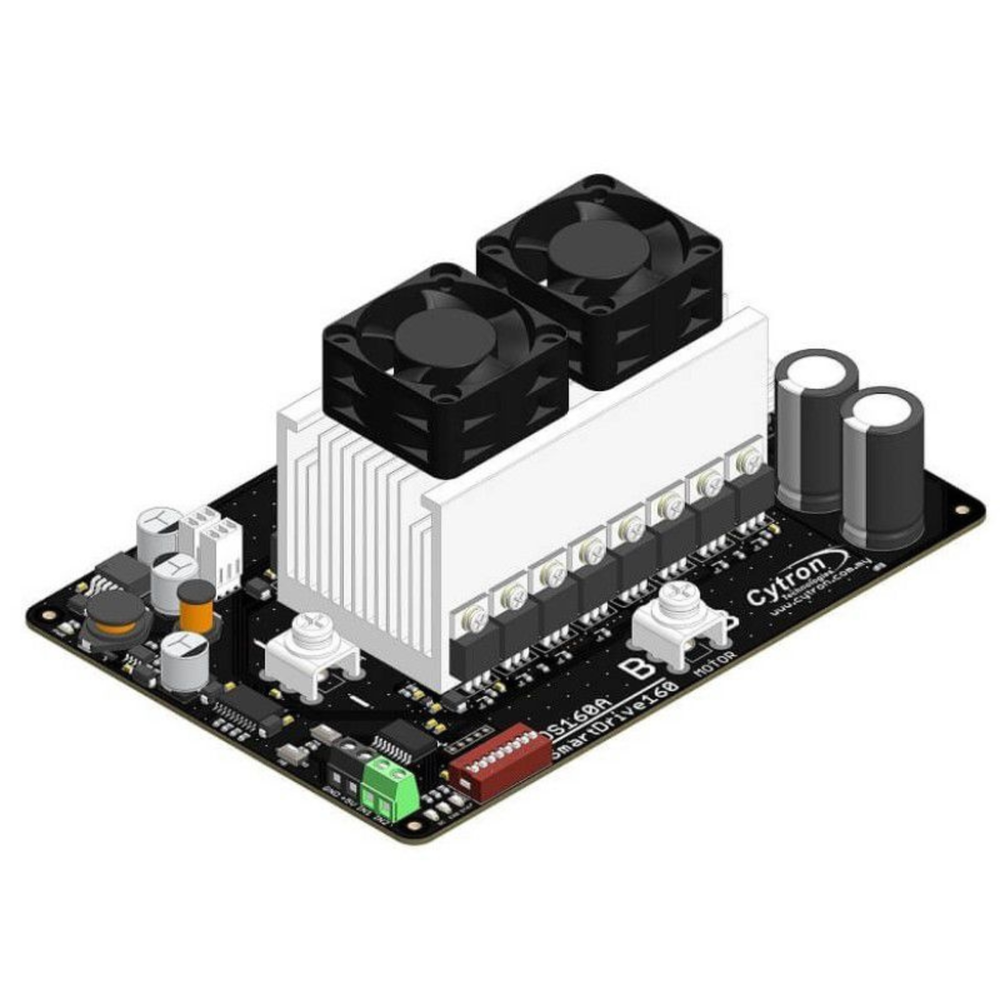

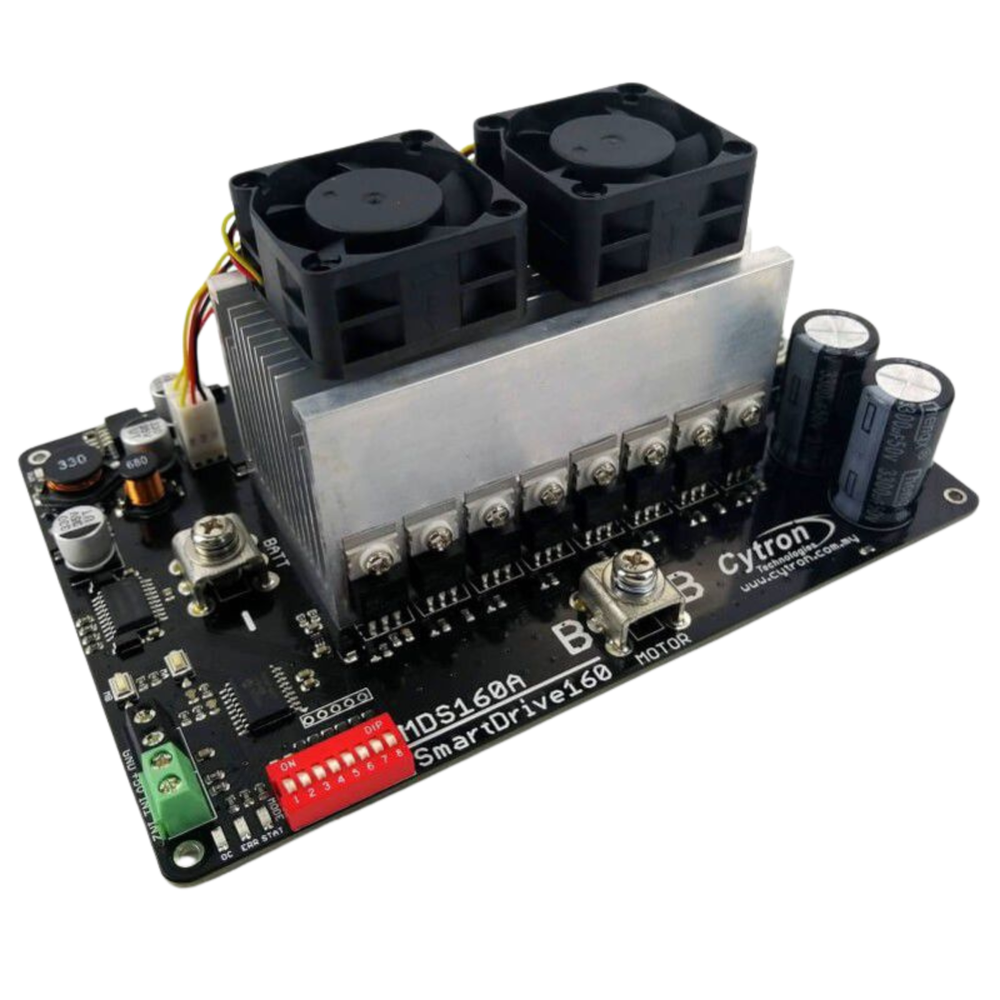

Cytron MDS160A 160Amp 8V–28V DC Motor Driver
Let us know!
We'll try to match the price for you
Couldn't load pickup availability
The Cytron MDS160A 160Amp 8V–28V DC Motor Driver is a high-power, smart motor controller built for demanding applications such as AGVs, combat robots, industrial conveyors, heavy-duty mobile robots, and high-torque motion systems.
With its massive 160A continuous output, support for 8V–28V motors, and silent 16 kHz MOSFET switching, this motor driver ensures smooth, efficient, and reliable operation under extreme loads. It is designed for makers, engineers, and industrial projects that require a robust DC motor controller capable of delivering serious power.
Powered by smart onboard firmware, the Cytron MDS160A offers multiple input modes, including RC, PWM+DIR, Analog, and UART, making it highly flexible for different control setups. It provides intelligent safety features such as thermal protection, regenerative braking, and temperature-based current limiting.
You can also pair two MDS160A units for plug-and-play differential-drive robotics. Whether you're creating a powerful robot or building custom industrial automation, the Cytron MDS160A delivers the strength, stability, and smart control needed for high-performance motor applications.
| Specification | Details |
|---|---|
| Brand | Cytron |
| Model | MDS160A |
| Motor Type | Brushed DC Motor |
| Input Voltage | 8V – 28V |
| Continuous Current | 160A |
| Peak Current | 190A (1 min), 175A (2 min) |
| PWM Frequency | 16 kHz (silent MOSFET switching) |
| Switching Technology | Full MOSFET solid-state |

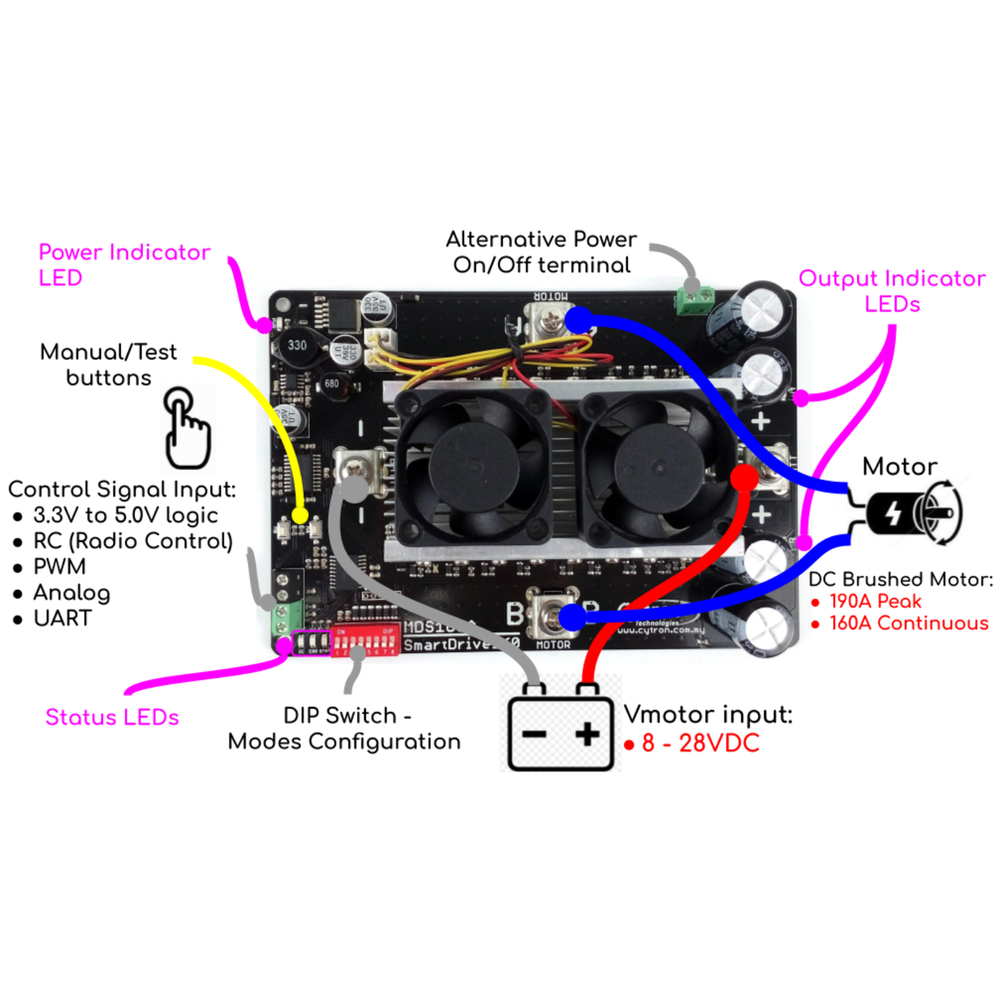

| Control Modes | RC, Analog, PWM+DIR, UART (Serial) |
| Smart Features | Thermal protection, current limiting, regenerative braking |
| Onboard Controls | Manual test buttons |
| Recommended Wire Gauge | 8 AWG heavy-duty cable |
| Dimensions | 122 mm × 178 mm × 75 mm |
