Cytron Maker UNO Microcontroller Board for Arduino Education

Cytron Maker UNO Microcontroller Board for Arduino Education

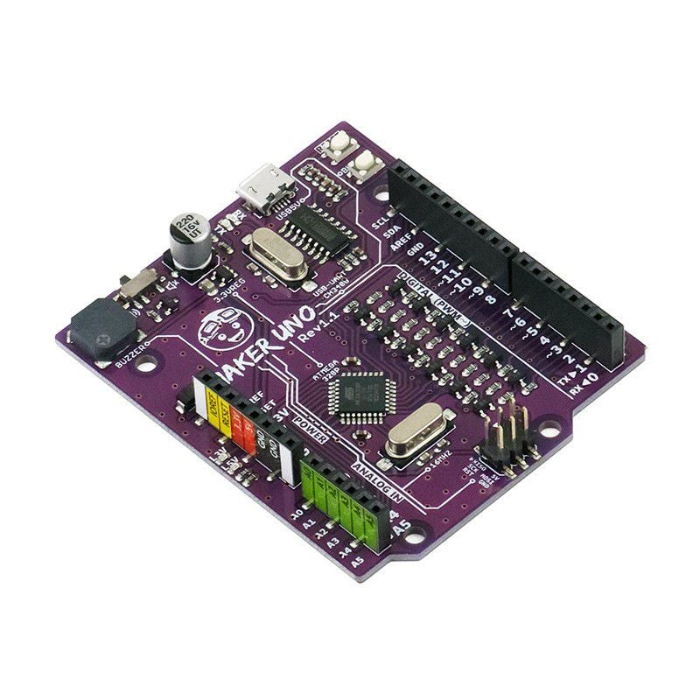

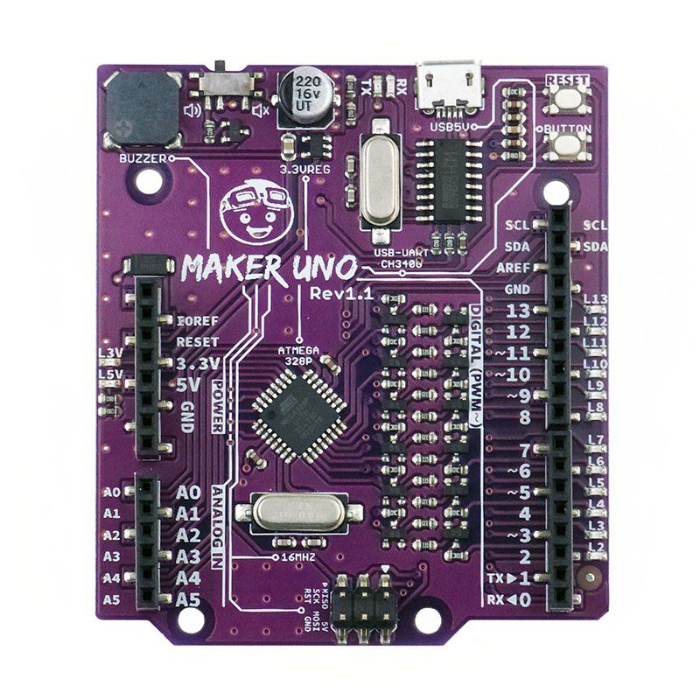

The Cytron Maker UNO is an Arduino-compatible board crafted specifically for Arduino education and ideal for students, educators, and makers. Designed to simplify the learning process, this microcontroller development board comes packed with built-in components like 12 LEDs, a piezo buzzer, and a push button—making it easy to dive into coding and electronics right out of the box.

Unlike conventional Arduino boards, the Maker UNO board eliminates the need for an external circuit setup, helping beginners focus on learning and creating without getting overwhelmed.

It supports the Arduino UNO R3 framework and is fully programmable via the Arduino IDE, ensuring compatibility with existing example codes and libraries. With onboard LED indicators for each pin, troubleshooting becomes intuitive and efficient.

The Cytron Maker UNO is more than just a board—it's the perfect tool to ignite the maker spirit and start building with confidence.

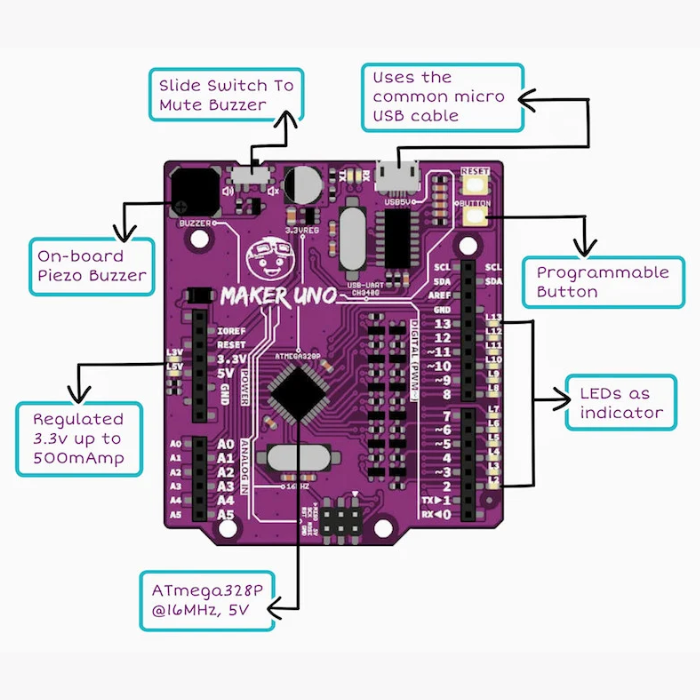

Features:

• SMD ATmega328P microcontroller (the same microcontroller used in Arduino UNO) with the Optiboot (UNO) bootloader

• The CH340 facilitates USB programming.

• Input voltage: USB 5V via computer, power bank, or regular USB adapter.

• Piezo buzzer will function as a simple audio output
• ISP 6-Pin Header

• R3 Shield Compatible

• LED array with 5V, 3.3V, TX, RX, and all digital pins.

• Utilize the USB Micro-B socket.

• Purple PCBs!

Additional Features:

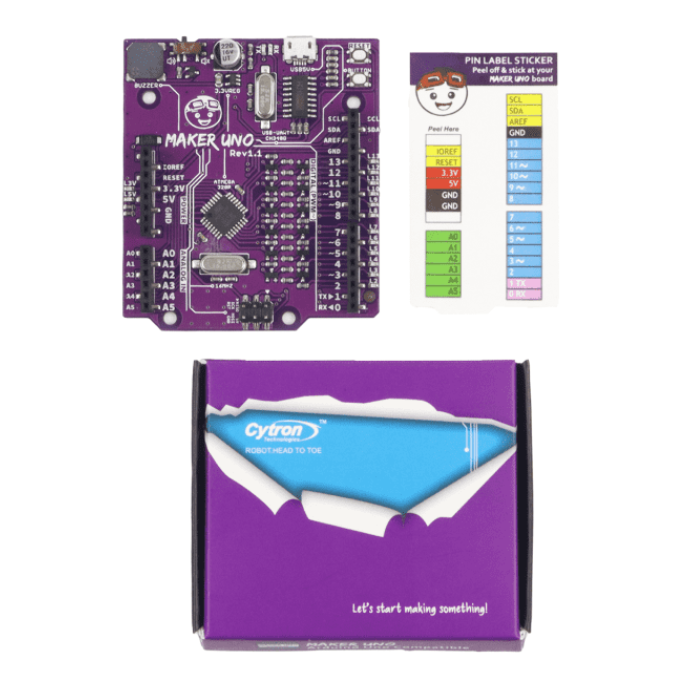

• One of the most impressive aspects of the official Arduino Uno is the label printed on the pin headers. It saves us a significant amount of time when connecting the I/O pins to an external circuit. So, we provide a set of these label stickers for pin headers with each Maker UNO! (Please keep in mind that you must peel off the stickers and put them to your Maker UNO on your own.)

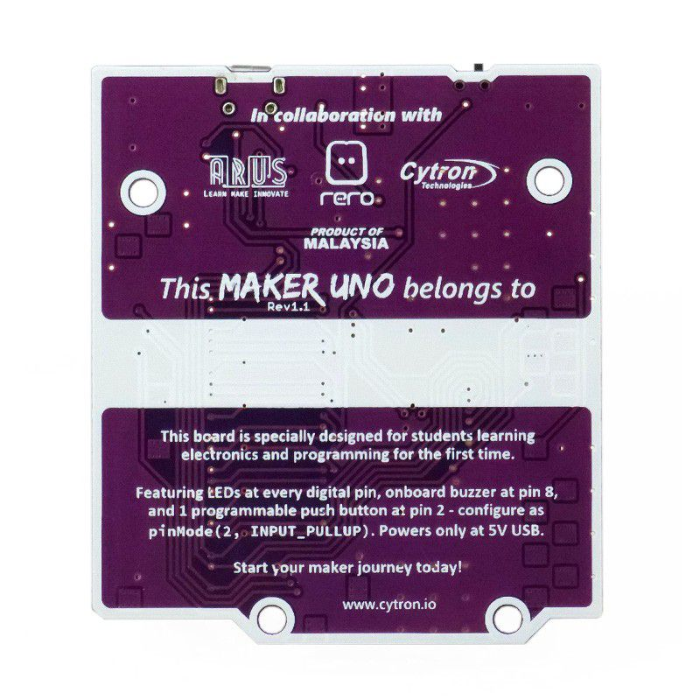

• Students consistently get their boards messed up. Maker UNO allows you to write your name on the board. Problem is solved! Do not throw away your box! There is a small aperture on the box where you may plug the USB cable, allowing you to retain your Maker UNO safely in its original box with no additional casing necessary.

Package Includes:

• 1 x Cytron Maker UNO Microcontroller Board for Arduino Education

Specifications:
