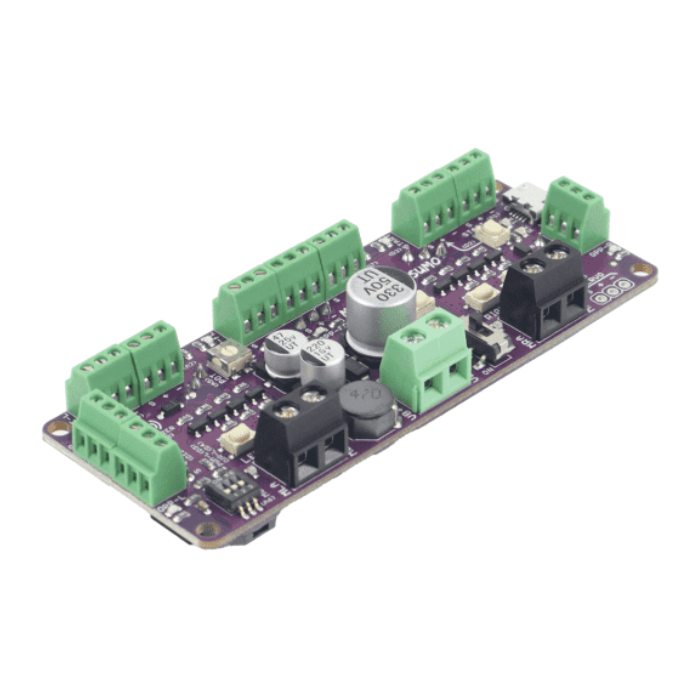

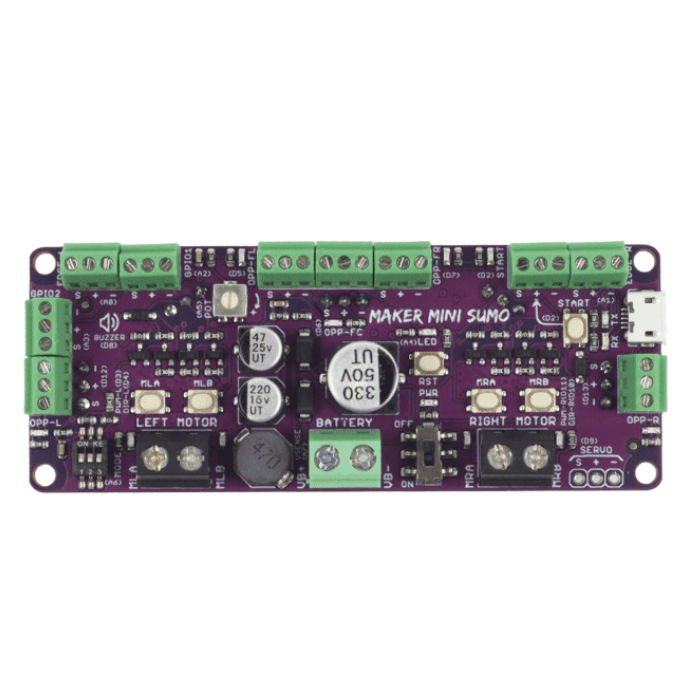

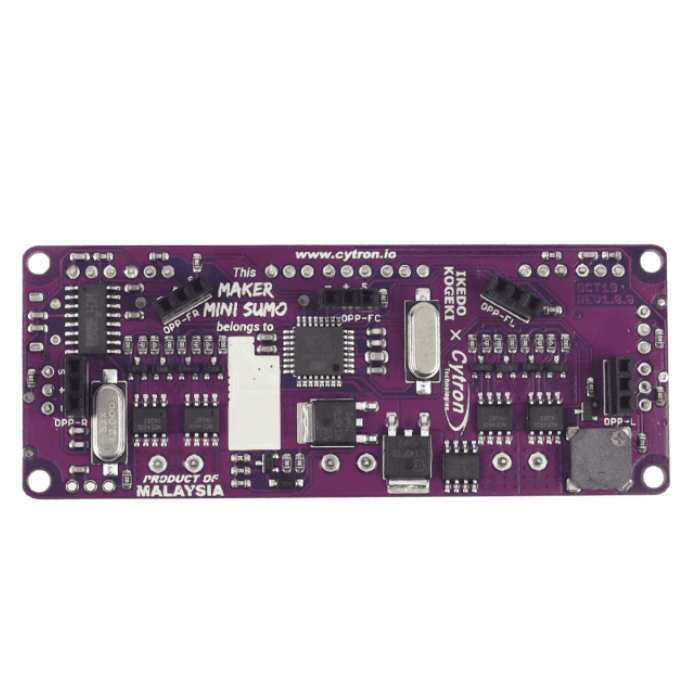

Cytron Maker Mini Sumo Development Board for Robot
The Cytron Maker Mini Sumo Development Board is a compact, reliable, and competition-ready controller specifically designed for building Sumo robots.
Whether you're a beginner entering your first match or a seasoned competitor in international robot contests, the Maker Mini Sumo Board offers a hassle-free solution with minimal electronic setup.
This Cytron Sumo Robot Controller features a unique shock-proof on/off circuitry that ensures your robot remains powered even if the slide switch gets disconnected, preventing unexpected resets during intense moments.
Built with performance and reliability in mind, the Cytron Maker Mini Sumo board is the perfect choice for anyone looking to create a competitive edge in Sumo robot events.

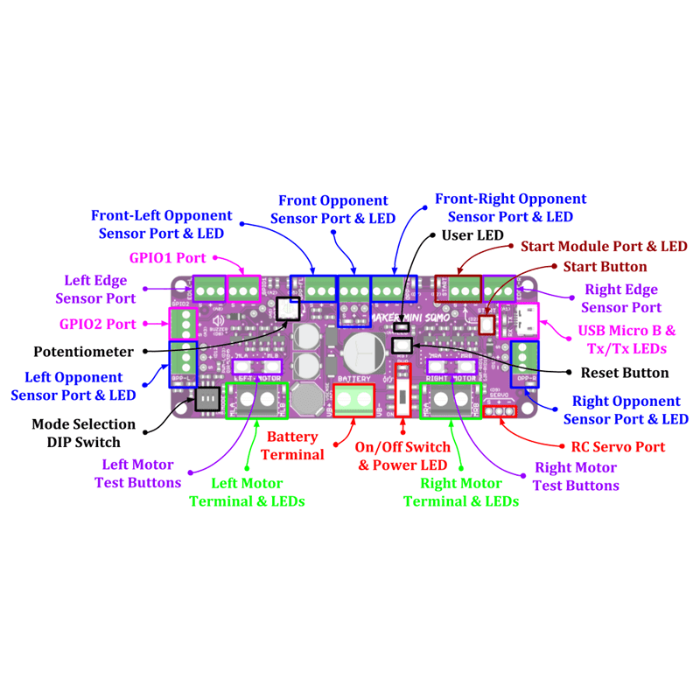

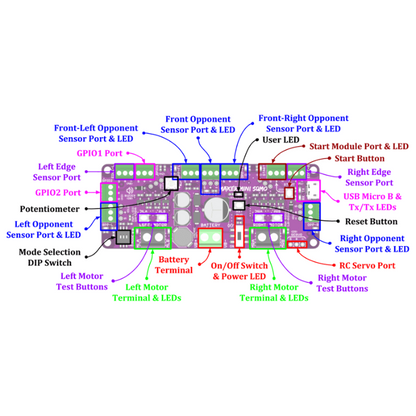

Features:
- Arduino Nano/Uno compatible (powered by the ATMEGA328P).
- Reverse polarity protection on Vin.
- Shock-resistant on/off switch with MOSFET latching circuit.
- The battery voltage can be accessed programmatically.
- Switching regulator for +5V reduces heat while increasing efficiency.
- Test buttons and motor status LED.
- 5 Opponent Sensor Inputs (Digital) with LED state indicators.
- 2 edge sensor inputs (analog/digital).
- 2 General Purpose Input Output (Analog/Digital Input, Digital Output).
- Start Module Input (Digital), with LED and an inbuilt start button.
- Servo output.
- A programmable LED.
- Onboard potentiometer.
- Mode Selection DIP Switch (3 Ways).
- Piezo buzzer (can play a melody).
