Cytron Advanced Auto-Calibrating Line Sensor

Cytron Advanced Auto-Calibrating Line Sensor

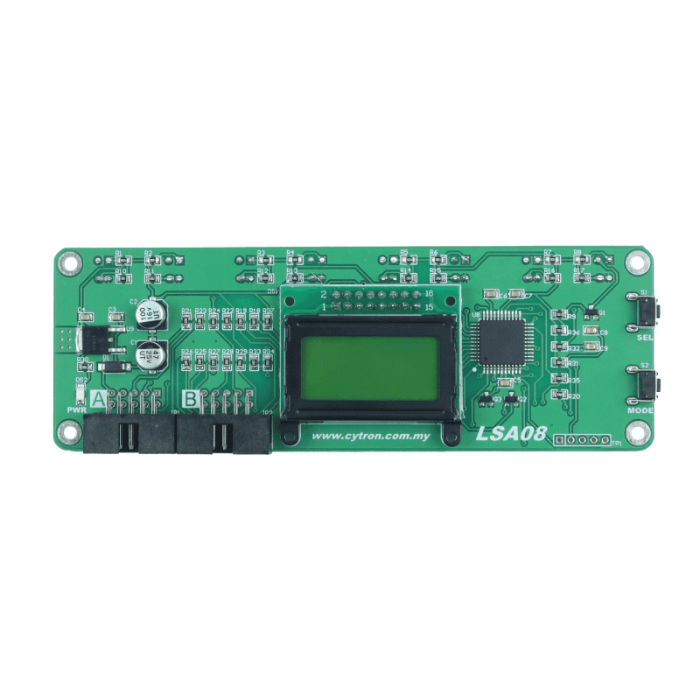

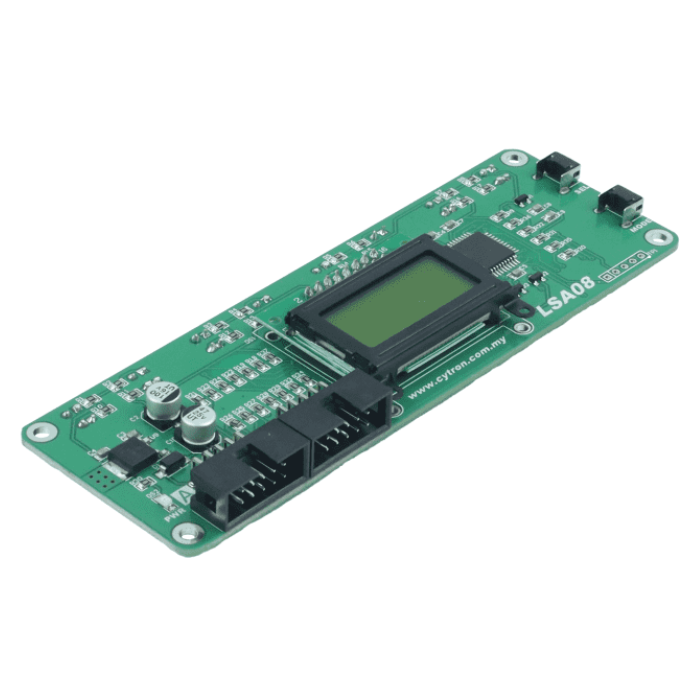

The Cytron Advanced Auto-Calibrating Line Sensor, also known as the Cytron Sensor Module LSA08, is a high-performance solution for any robotics or embedded application requiring precise line tracking.

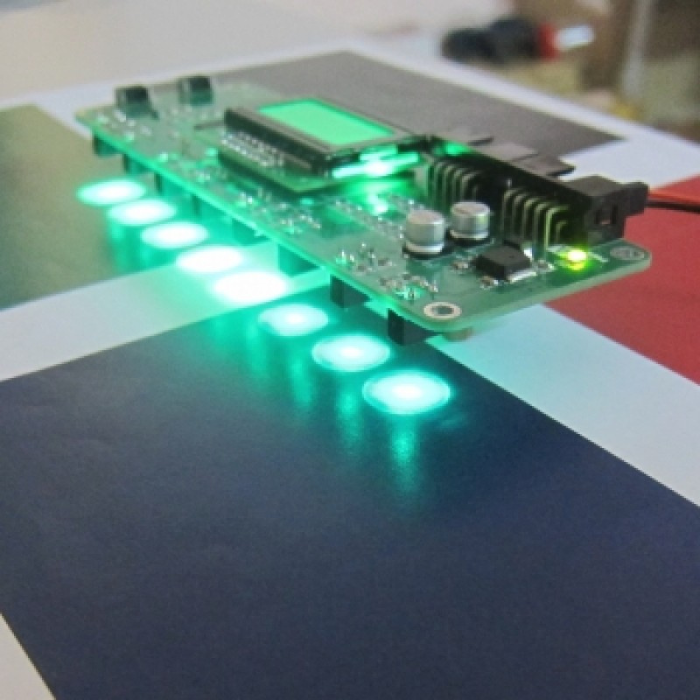

Featuring 8 pairs of sensors, this Auto-Calibrating Line Sensor is engineered to adapt to different colored surfaces, including Red, Green, Blue, White, Black, and Gray. Its super bright green LEDs enhance detection capabilities across various brightness levels, making it versatile and reliable in dynamic environments.

The LSA08 supports multiple output modes—digital (8-bit parallel), UART serial, and analog—to ensure compatibility with a wide range of microcontrollers and systems. Whether you are building a DIY robot or developing an industrial automation solution, the Cytron Line Sensor offers the accuracy, adaptability, and ease-of-use you need.

Features:

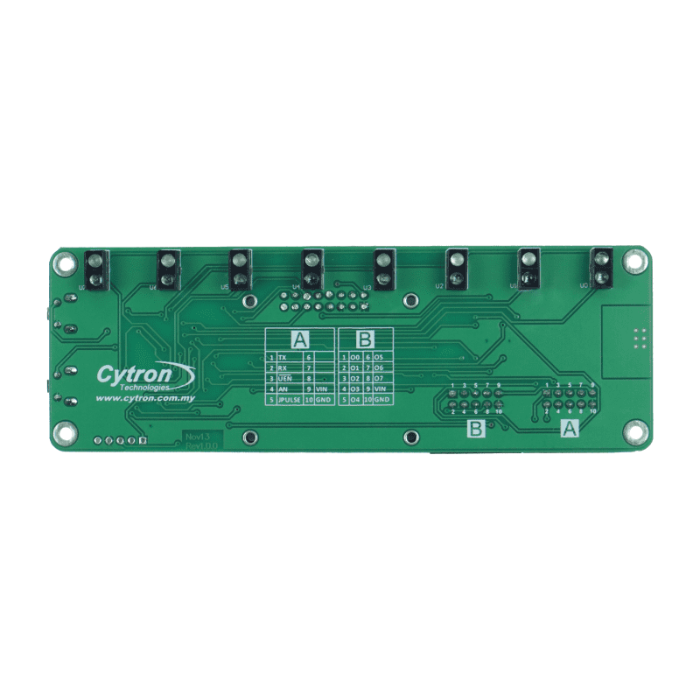

• 8 sensor pairs, 16mm apart.
• 12 volts input power
• The LSA08 features an on-board mode and select button for quick setting, as well as three output modes (digital, UART, and analog).
• The LCD display unit displays the analog values of eight sensors, together with a bar chart and line position.
• Simple Auto-Calibration function for the line-following surface.
• Junction Pulse (JPULSE) for detecting and counting junctions.
• Power polarity protection
• Low current usage (usually 26 mA).
• Works with shiny or reflective surfaces.
• Refresh rate is up to 200 Hz.

Package Includes:

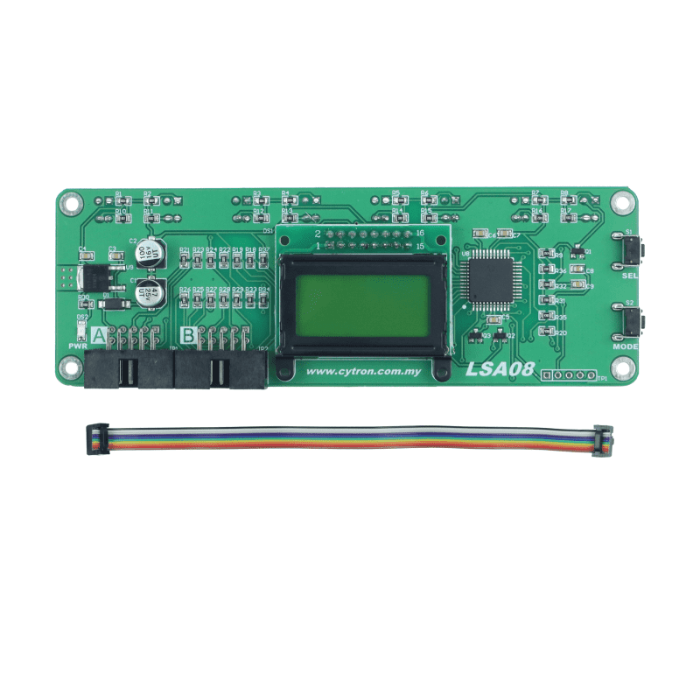

• 1 x Cytron Advanced Auto-Calibrating Line Sensor
