CP2102 USB 2.0 to TTL UART Serial Converter Module - Buy Online in India

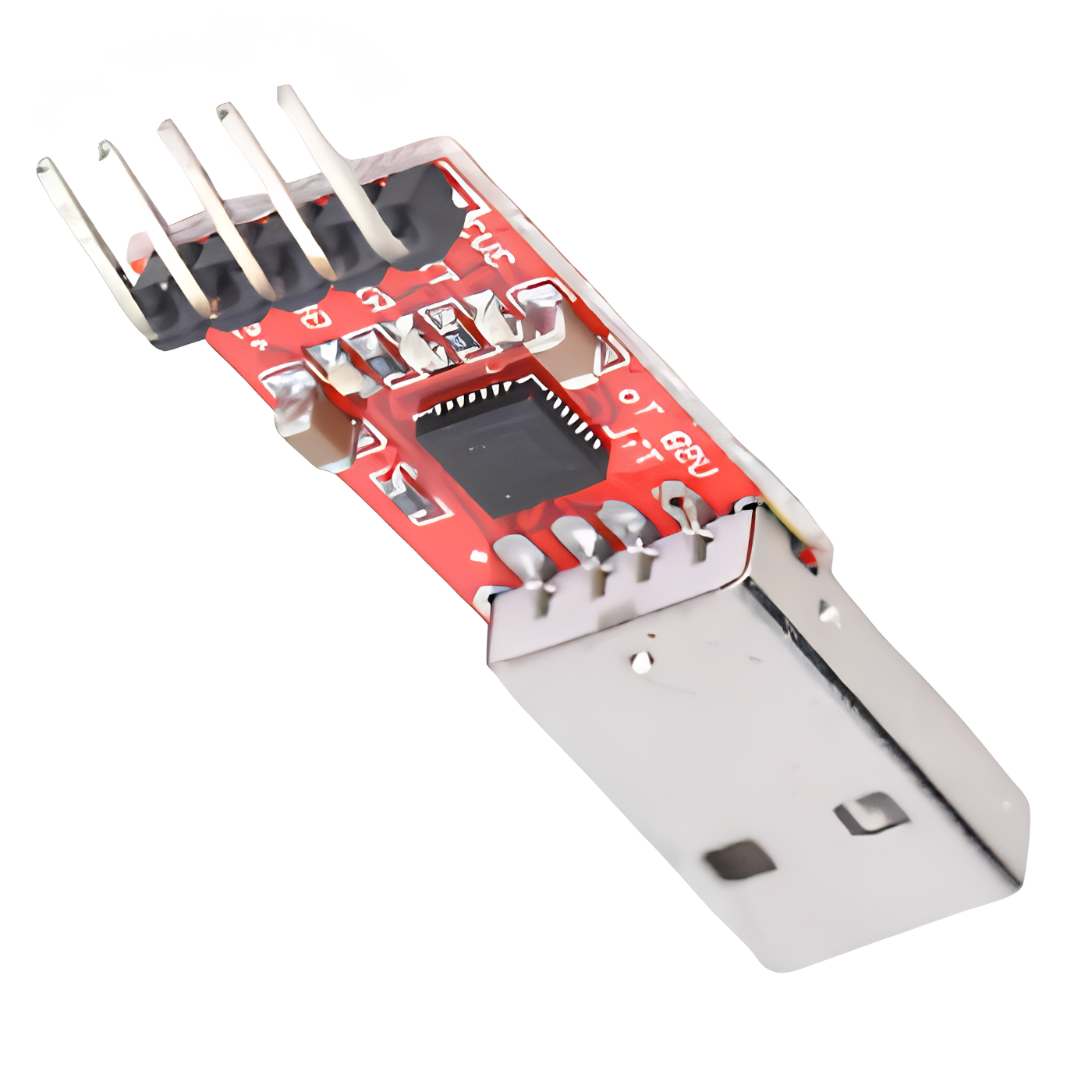

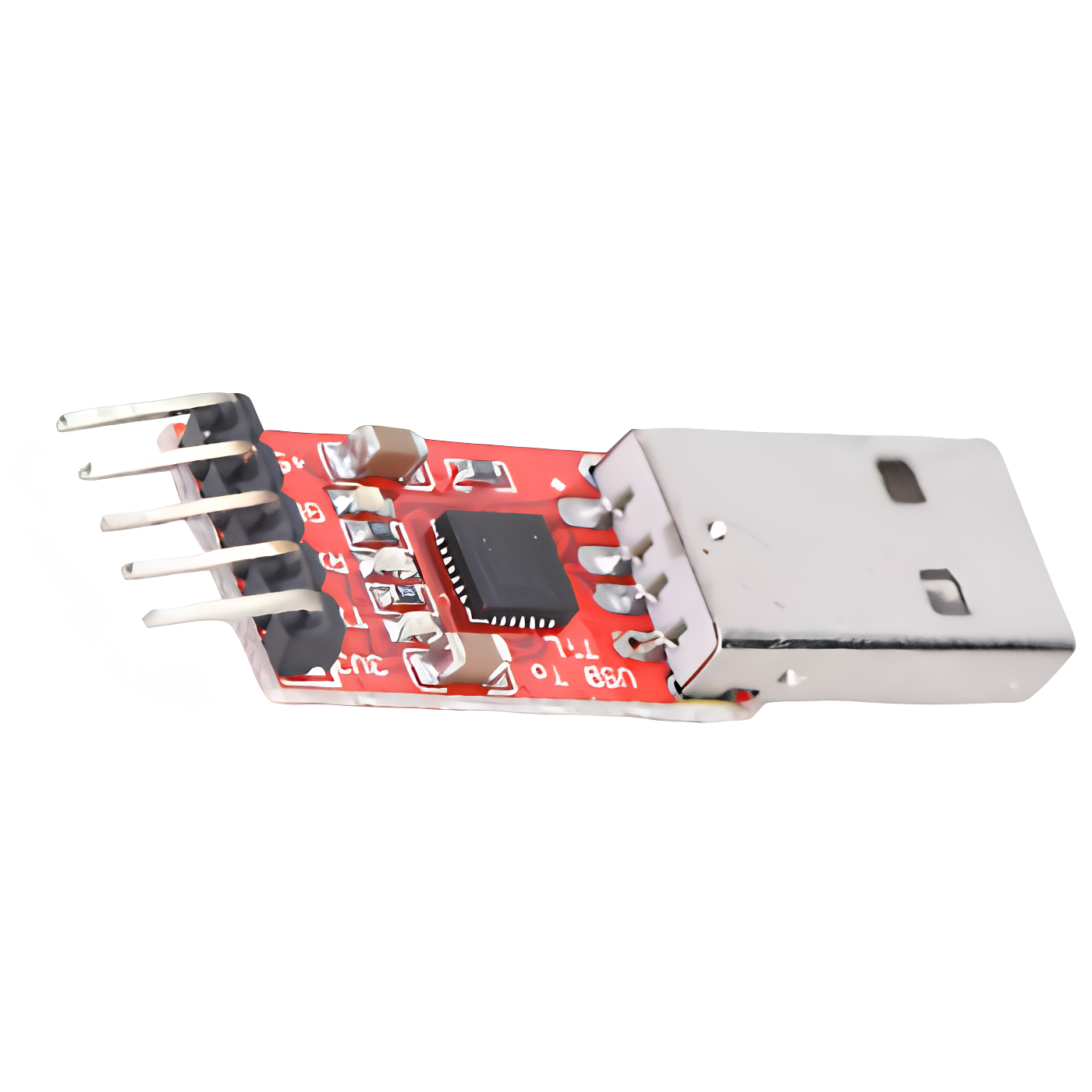

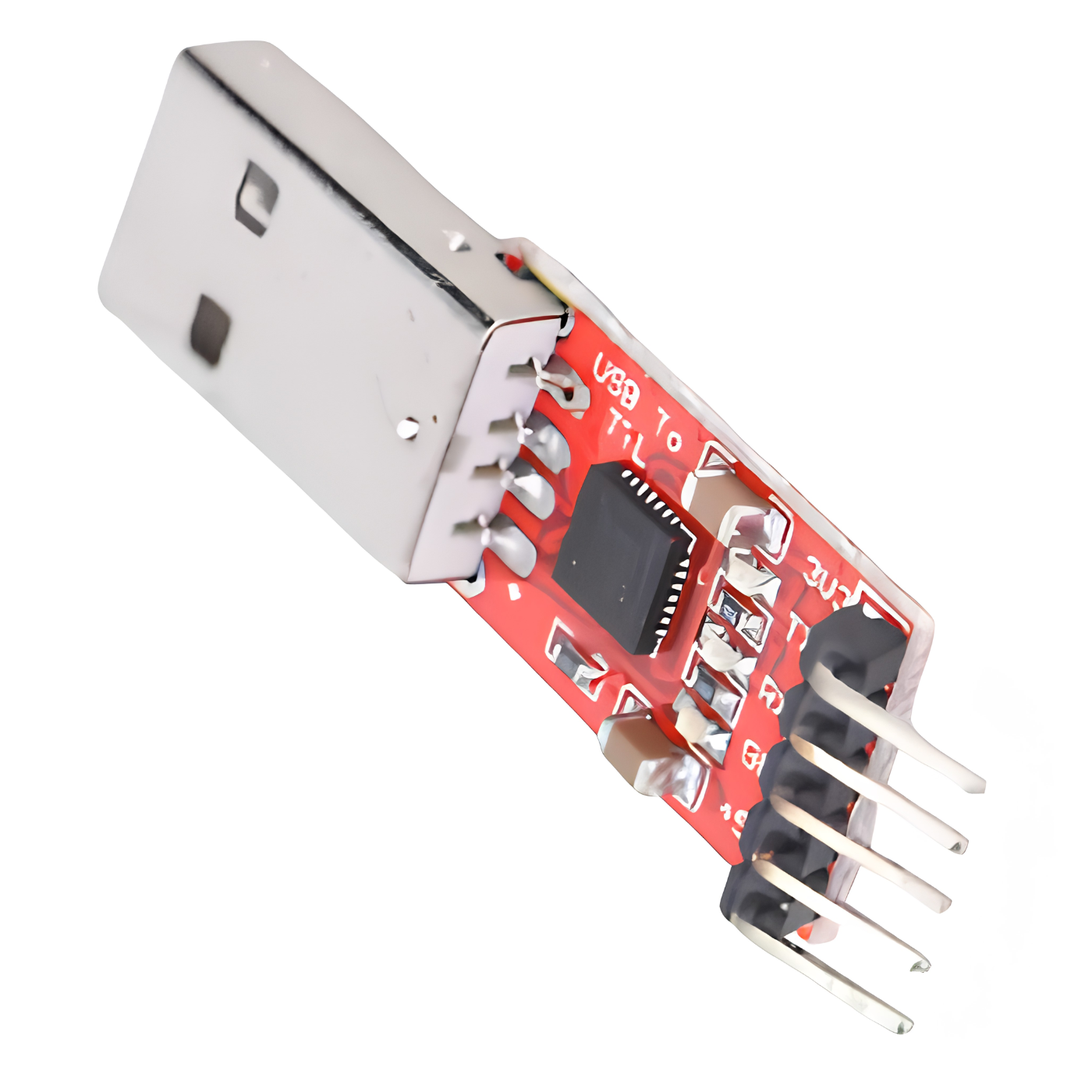

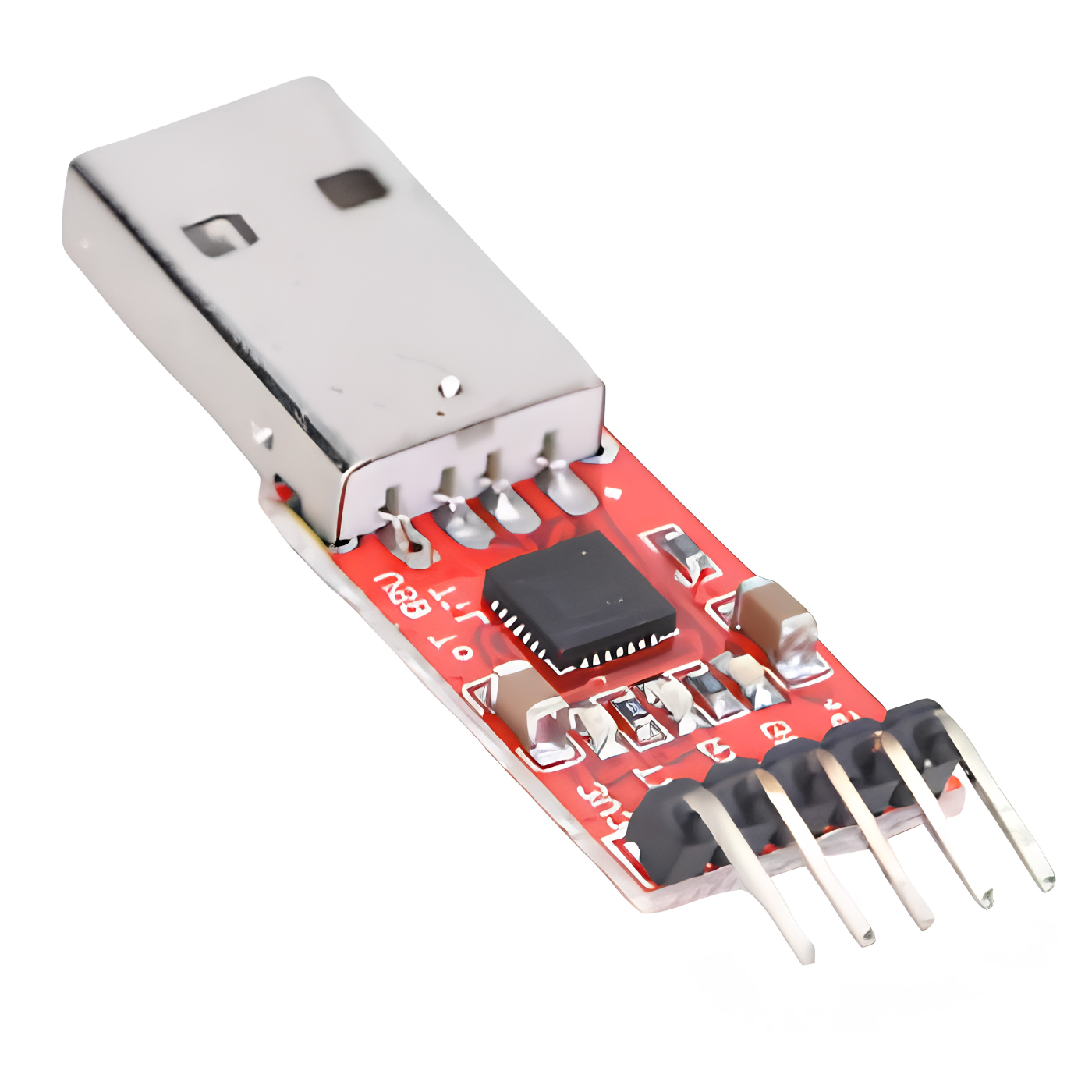

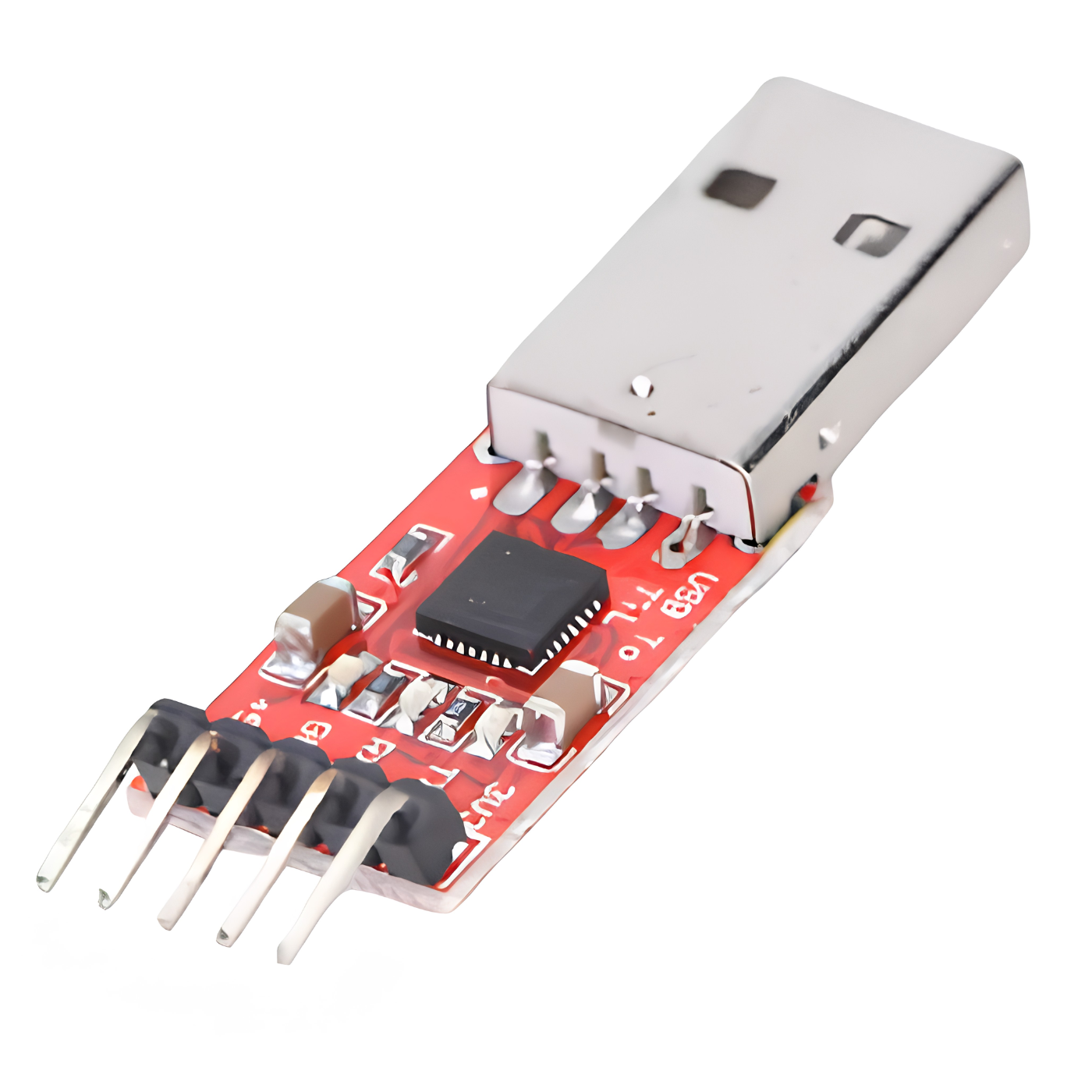

CP2102 USB 2.0 to TTL UART Serial Converter Module
- Rs 116/-
- Rs 116/-
-
Rs 199/-
- 42%
Save Rs 83/-
RC REWARDS
Earn
1
RC Coin
on this order
Incl. GST (No Hidden Charges)
Found a better price?
Let us know!
We'll try to match the price for you
Please hurry! Only 43 left in stock
SKU:
TIFDC0105
Couldn't load pickup availability
CP2102 USB 2.0 to TTL UART Serial Converter Module
CP2102 USB 2.0 to TTL UART Serial Converter Module
CP2102 USB 2.0 to TTL UART Serial Converter Module
The CP2102 USB 2.0 to TTL UART Serial Converter Module is a compact USB-to-UART bridge designed to establish serial communication between a computer and TTL-based electronic devices. Based on the Silicon Labs CP2102 chipset, the module integrates the USB transceiver, UART controller, oscillator, and EEPROM into a single device, requiring minimal external components while providing reliable serial communication.
The module is compliant with the USB 2.0 Full-Speed specification and supports communication speeds ranging from 300bps to 1.5Mbps. It features a standard USB Type-A connector on one side and a 6-pin TTL interface consisting of 3.3V, 5V, TXD, RXD, GND, and RST on the other, making it suitable for programming, debugging, firmware uploading, and serial communication with compatible microcontrollers and embedded systems.
Designed for developers, students, and embedded engineers, the CP2102 USB to TTL UART Serial Converter Module supports hardware and X-On/X-Off handshaking, USB suspend states, and line break transmission. Its compact form factor and broad operating temperature range make it suitable for laboratory, educational, industrial, and prototyping environments.
Features:
• Built around the stable and reliable Silicon Labs CP2102 USB-to-UART bridge chipset.
• Complies with the USB 2.0 Full-Speed specification with data rates up to 12Mbps.
• Supports UART baud rates from 300bps to 1.5Mbps.
• Features a standard USB Type-A male connector for PC connectivity.
• Provides a 6-pin TTL interface with 3.3V, RST, TXD, RXD, GND, and 5V connections.
• Includes a 640-byte transmit buffer for serial data transmission.
• Supports hardware and X-On/X-Off flow control.
• Supports event character handling and line break transmission.
• USB suspend state support is available through dedicated suspend pins.
• Provides a 3.3V output capable of supplying up to 50mA to external circuits.
• Provides a 5V output capable of supplying up to 100mA to external circuits.
• Operates across a temperature range of -40°C to +85°C.
Package Includes:
- 1xCP2102 USB 2.0 to TTL UART Serial Converter Module
Specifications:
| Parameter | Value |
| Chipset | CP2102 |
| Product Type | USB to TTL UART Serial Converter Module |
| USB Interface | USB 2.0 |
| Communication Interface | UART TTL Serial |
| Output Interface | TTL |
| Application | Arduino, STC Download Cable, Serial Communication |
