- The micro usb module supports baud rates from 300bps ~ 1Mbps between the communication format.
- The CP2102 micro usb module also supports operating systems like windows 8.1 / 7 / vista / xp / 98, Mac OS-X / OS-9, Linux USB.
- It is designed with a beautiful appearance and 6 pin connectors compatible with arduino.
- It features DTR trigger signal output for Pro mini ATMEGA328P and other board download traffic.

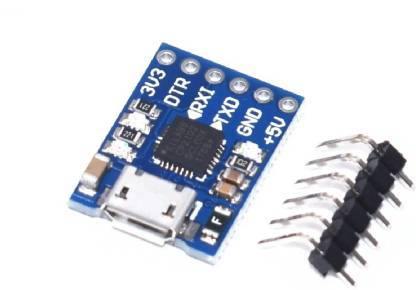

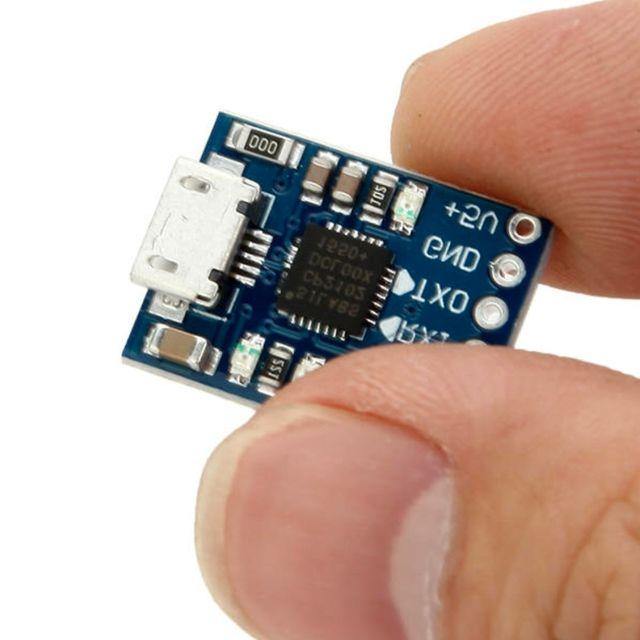

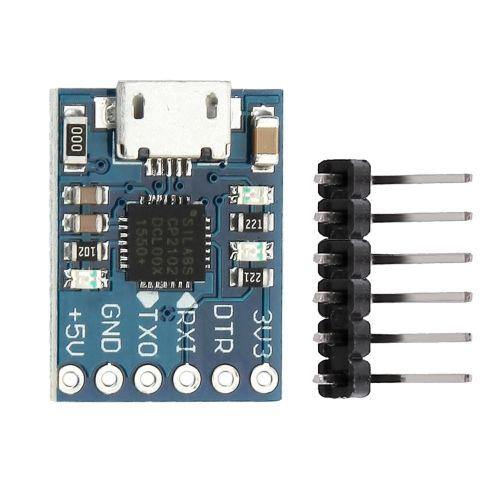

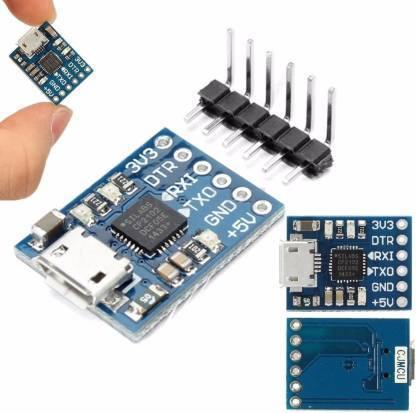

CP2102 Micro USB Module
The original chip CP2102, generate COM port after installing the driver. then the standard input MICRO MINI-USB cable connected to the computer USB interface, with 3.3V and 5V two power output with a resettable fuse. The CP2102 micro usb module compatible with arduino has a beautiful appearance and support a wide range of baud rates and operating systems including Windows XP and Linux.
Package Includes:
- 1 x CP2102 Micro USB Module
Specifications
| Model Number | CP2102 MICRO USB to UART TTL Module 6Pin Serial Converter |
| Type | Microcontroller Board |
| ROHS Compliant | Yes |
| Dimensions | 2 x 2cms |
| Weight | 5 grams |
