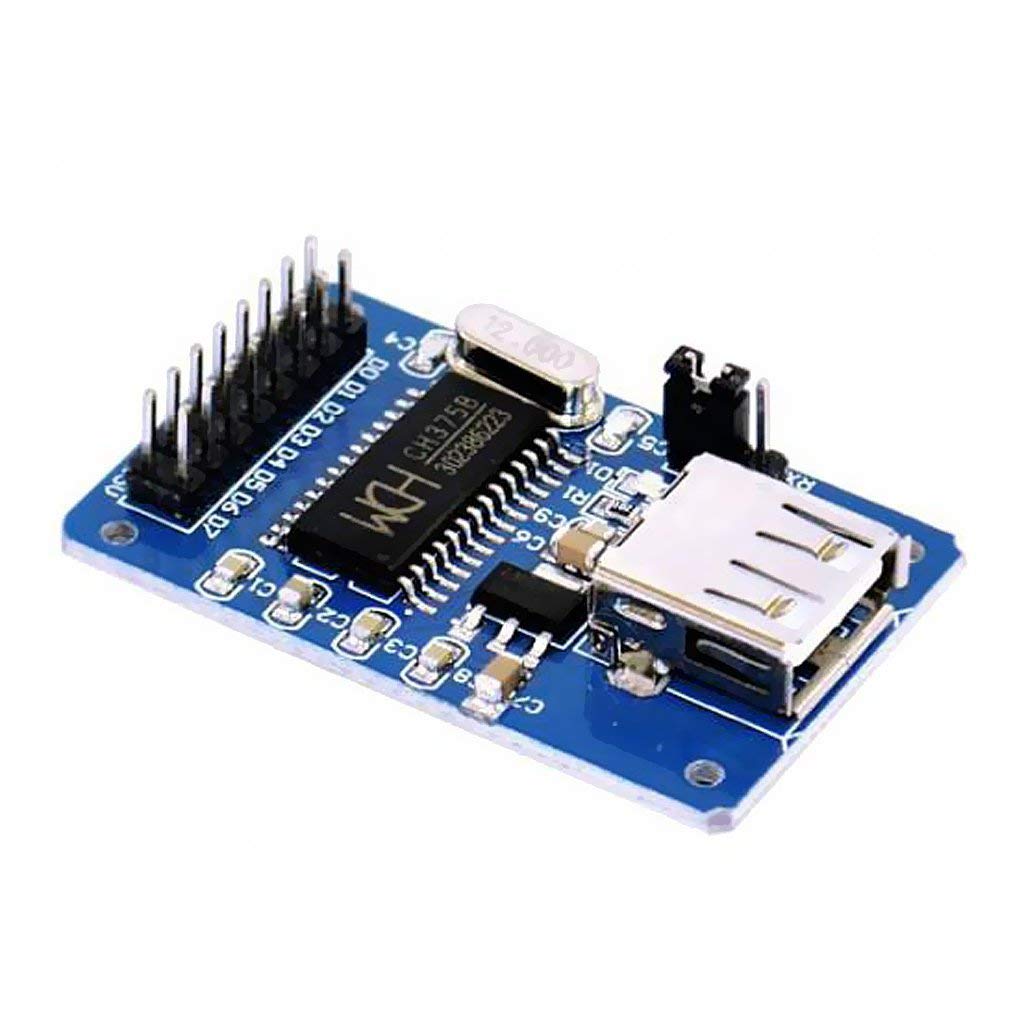

CH375B U Disk Read Write Module
The CH375B U Disk Read Write Module is fully compatible with CH372, CH375. The CH375 firmware has a built in dedicated protocol processing Mass-Storage and can be directly used as the basic unit of reading and writing in sectors USB storage devices.
The CH375 dis read module integrated with a 8-bit data bus and read, write, chip and provides serial communication via serial input, serial output, and interrupt output monolithic/DSP/MCU/MPU connected. With the help of 2 x 8 connectors it can be easily mounted on a MCU.
Features:
- USB Host and Device Modes: Supports both USB-HOST and USB-DEVICE/SLAVE modes.
- Data Bus: 8-bit data bus with control lines for reading, writing, chip selection, and interrupt output.
- Communication Interfaces: Provides serial communication via serial input, serial output, and interrupt output.
- File Management: Capable of creating, writing, reading, appending, and deleting data from USB storage devices.
- Compatibility: Supports common USB storage devices like USB flash drives, USB hard drives, and USB card readers.
- Power Supply: Integrated with an onboard 3.3V LDO, providing up to 800mA current.
- Connector: 2×8 connector for easy mounting with microcontrollers (MCU).
- Operating Modes: Jumper selectable for parallel or serial mode operation.
- USB Status Indicator: Onboard LED indicator for USB status.
- Crystal Oscillator: Equipped with a 12 MHz crystal for stable operation
Applications:
- Microcontroller Projects: Used to add USB storage capabilities to microcontroller-based projects.
- Data Logging: Ideal for applications that require storing data logs on USB flash drives.
- Embedded Systems: Integrates USB storage functionality into embedded systems.
- Firmware Updates: Allows for easy firmware updates via USB flash drives.
- File Management: Enables file creation, reading, writing, and deletion on USB storage devices.
- Portable Devices: Adds USB host capabilities to portable electronic devices.
- Educational Projects: Used in educational settings to teach students about USB communication and data storage
Features of CH375B U Disk Read Write Module
| Model |
CH375B U Disk Read Write Module |
| Connectors |
2×8 connector |
| Oscillator |
12 MHZ crystal |
| Communication |
serial input, serial output, and interrupt output monolithic |
| Dimensions |
5 x 3 x 1 cms |
| Weight |
0.5 grams |
