- General-purpose medium-power PNP transistor
- Suitable for switching and amplifier applications
- Three-layer silicon planar construction
- Amplifies the collector current based on the base current variation
- Reliable performance for general electronic circuits
- Model: CK100 Transistor by CDIL

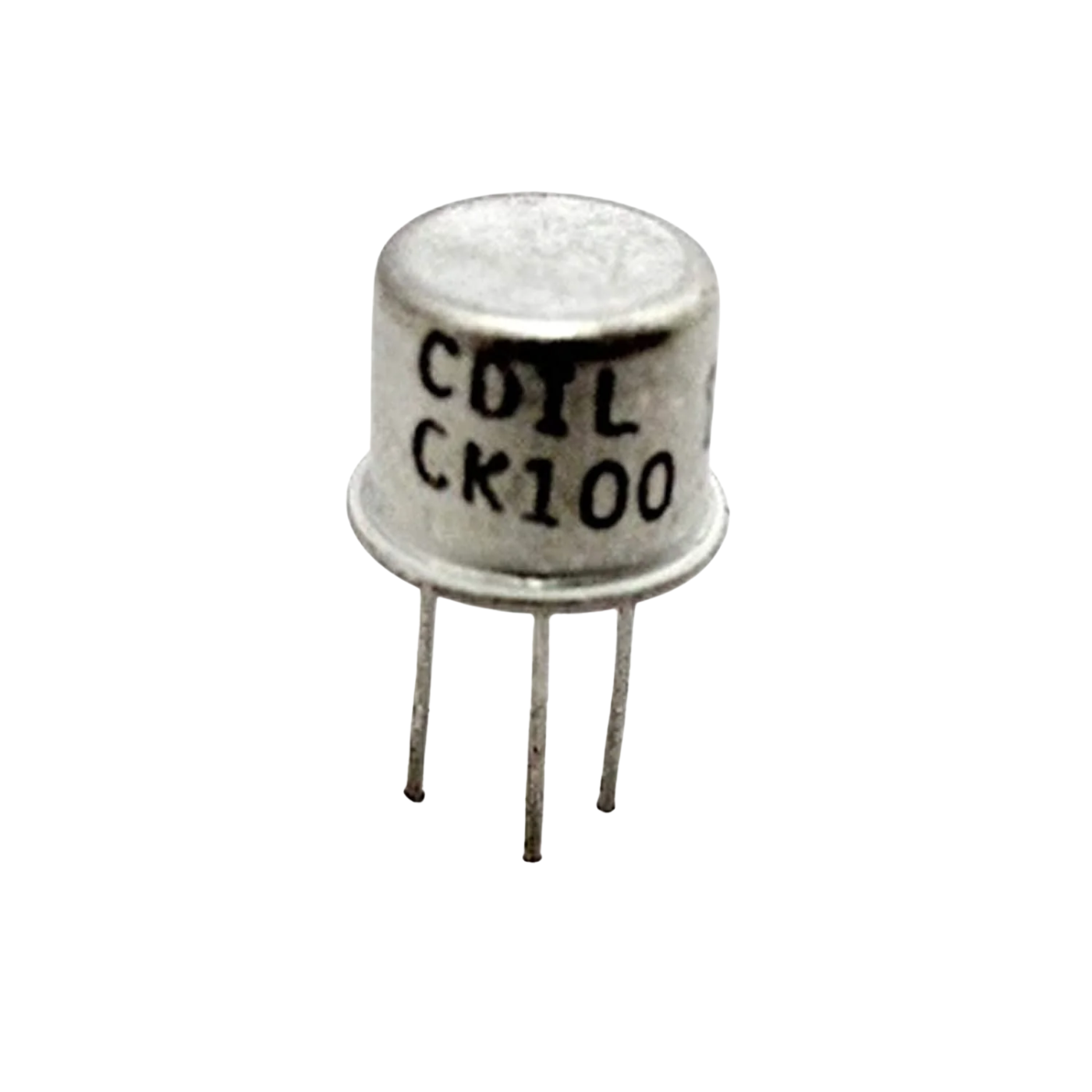

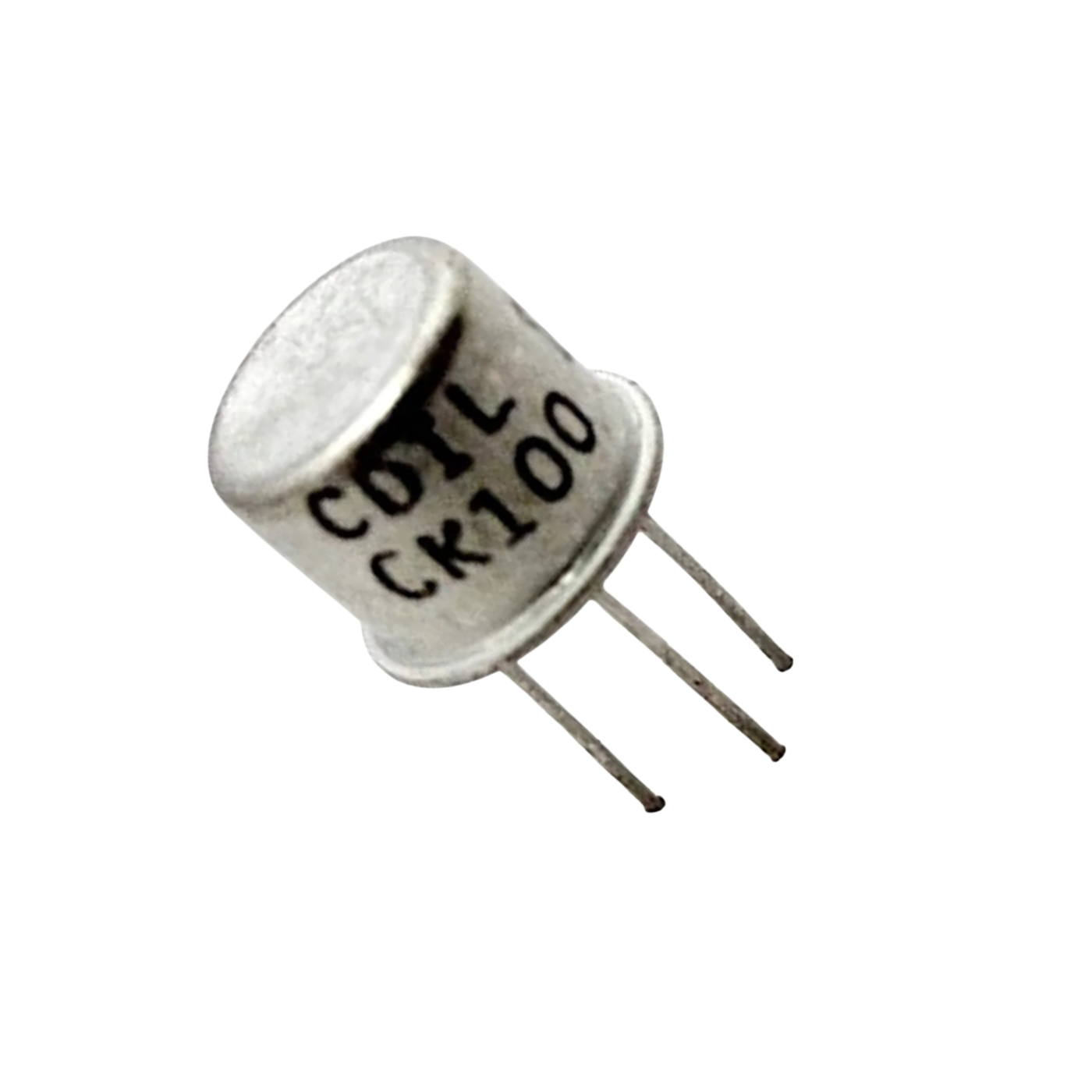

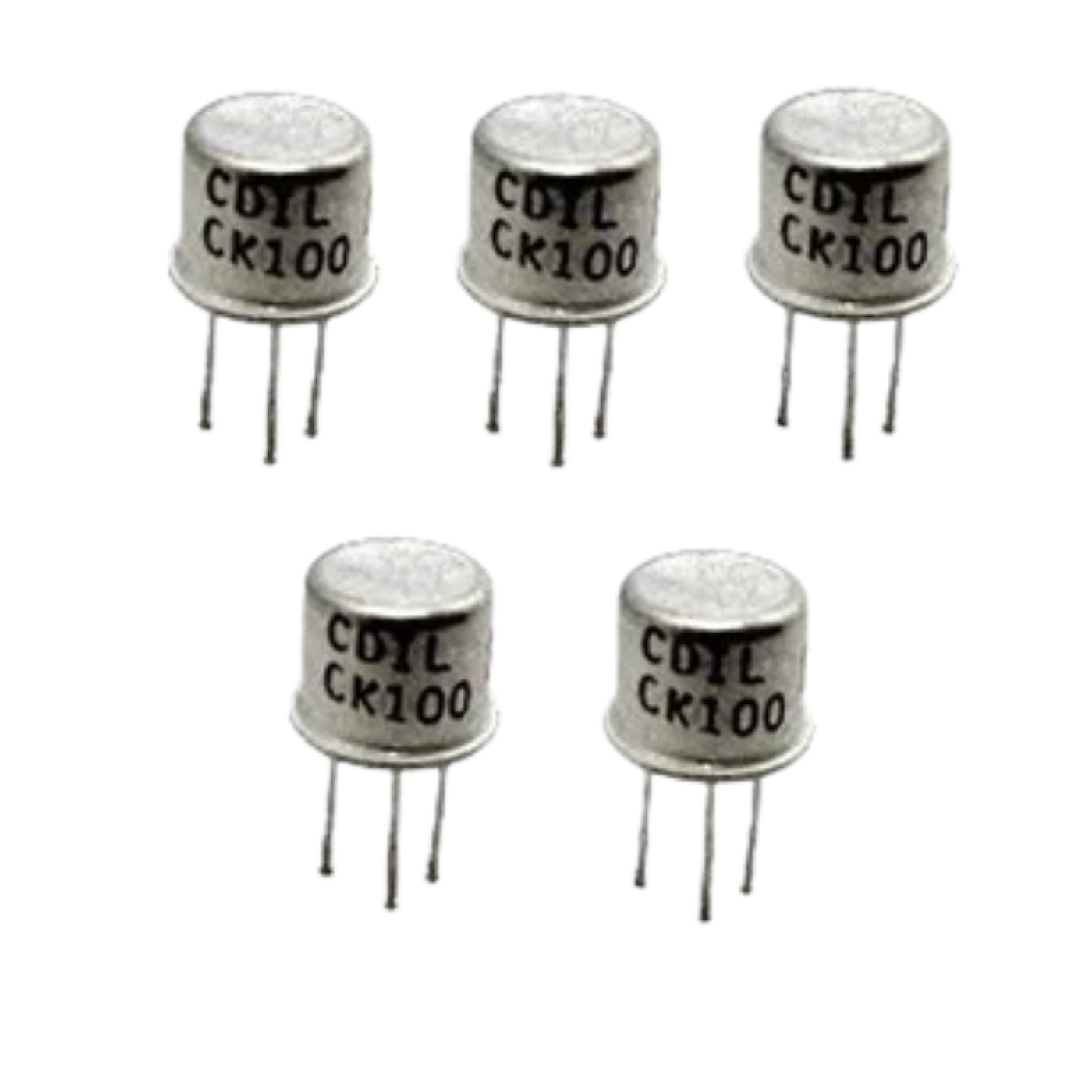

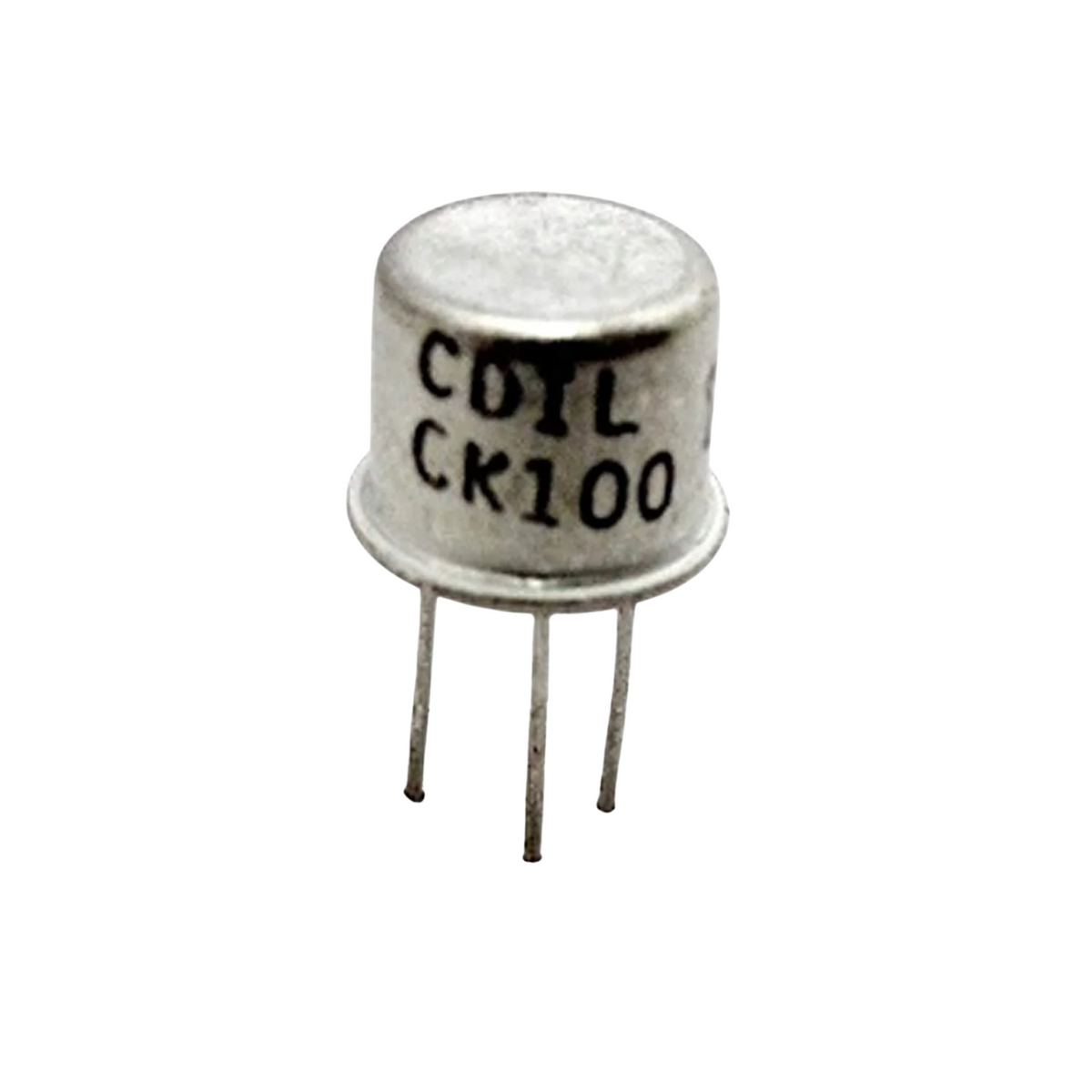

CDIL CK100 PNP Silicon Planar Power Transistor
The CK100 Transistor by CDIL is a versatile, general-purpose medium power PNP silicon planar transistor designed for both switching and amplifier applications.
Built with a robust three-layer construction, it operates efficiently within its working range, where the collector current (IC) is directly influenced by changes in the base current (IB) for a given collector-emitter voltage (VCE).
This allows for consistent and reliable amplification in a wide variety of electronic circuits. Known for its dependable performance, the CK100 is widely used in hobby electronics, educational projects, and industrial applications requiring a medium power transistor solution.
Features:
- High Ruggedness.
- Simple driving requirements.
- The highly secure operating location
- For minimal distortion complementary designs.
- Easy to transport and handle.
Applications:
- General-purpose switching and amplification.
- General Purpose Medium Power Transistor
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
Found a better price?
Let us know!
We'll try to match the price for you
Package Includes:
- 1 x CDIL CK100 PNP Silicon Planar Power Transistor
Specifications:
| Parameter | Value |
|---|---|
| Transistor Polarity | PNP |
| Collector?Emitter Voltage (VCEO) | 50V |
| Collector?Base Voltage (VCBO) | 60V |
| Continuous Collector Current (Ic) | 1A |
| Emitter Base Voltage (VEBO) | 5V |
| Power Dissipation (Pd) | 800mW |
| Operating Temperature Range | -65°C to 200°C |
| Output Capacitance (Cobo) | 20pF |
| DC Current Gain (hFE) | 40–300 |
