C828 2SC828 NPN TO92 Through Hole Transistor - Pack of 5
C828 2SC828 NPN TO92 Through Hole Transistor - Pack of 5
C828 2SC828 NPN TO92 Through Hole Transistor - Pack of 5

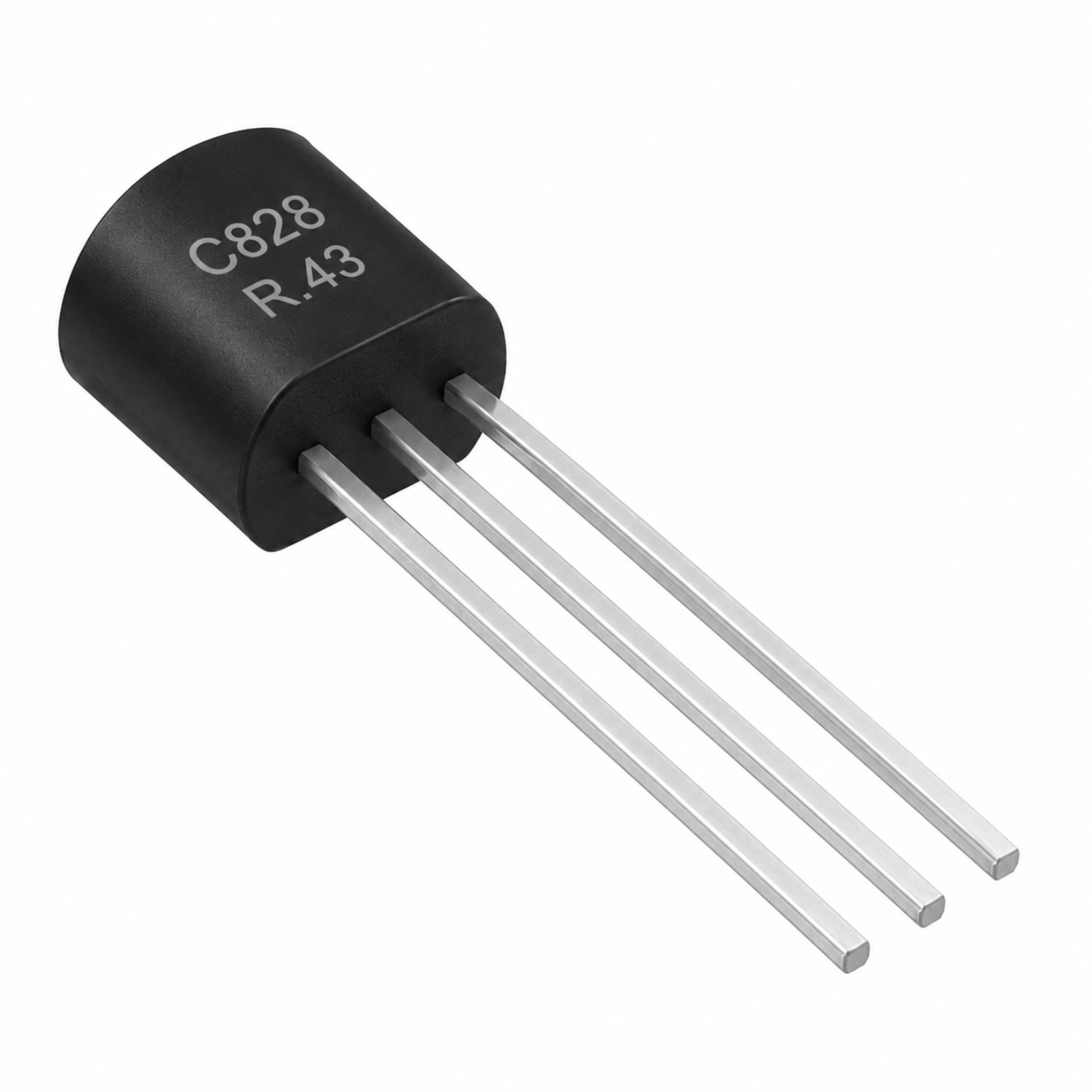

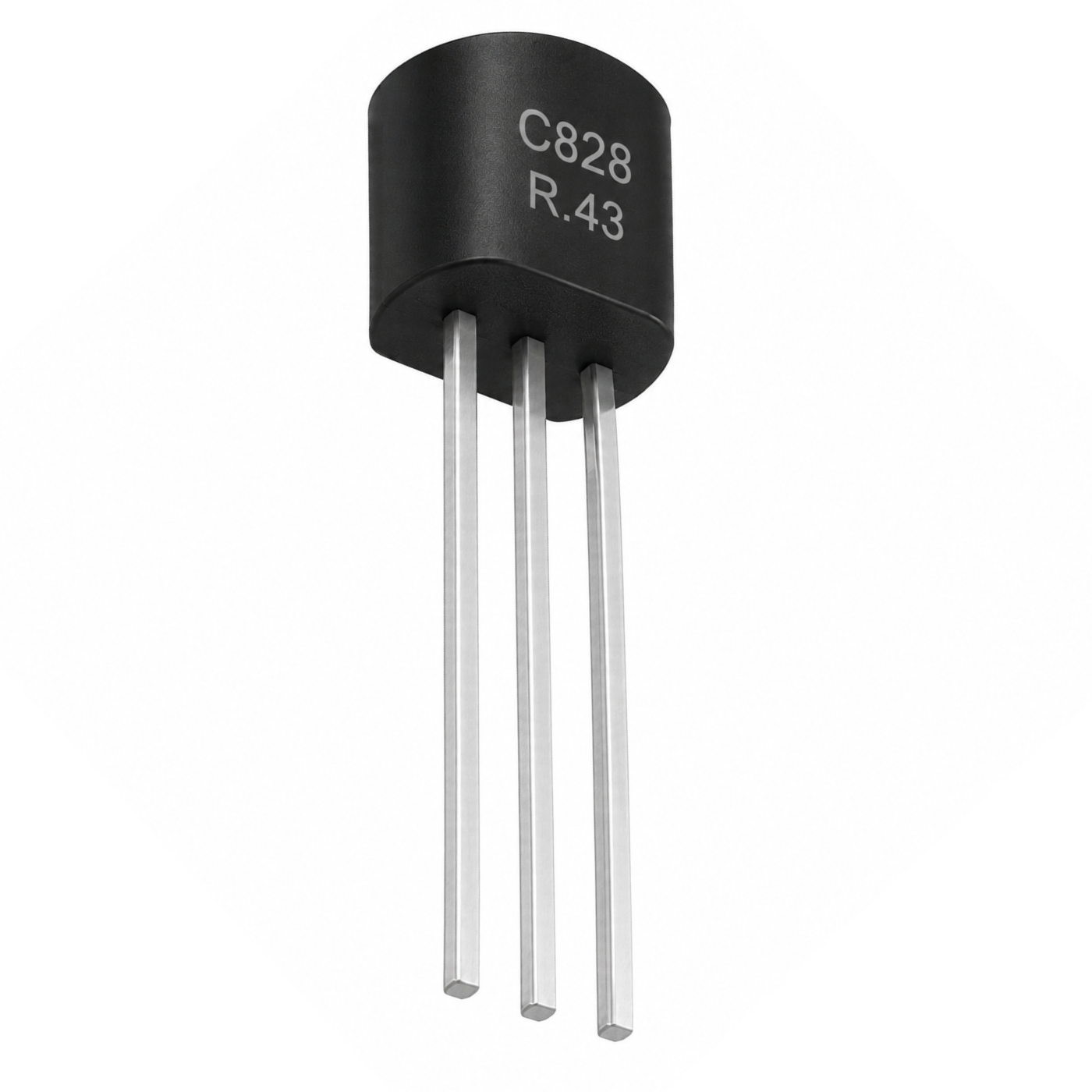

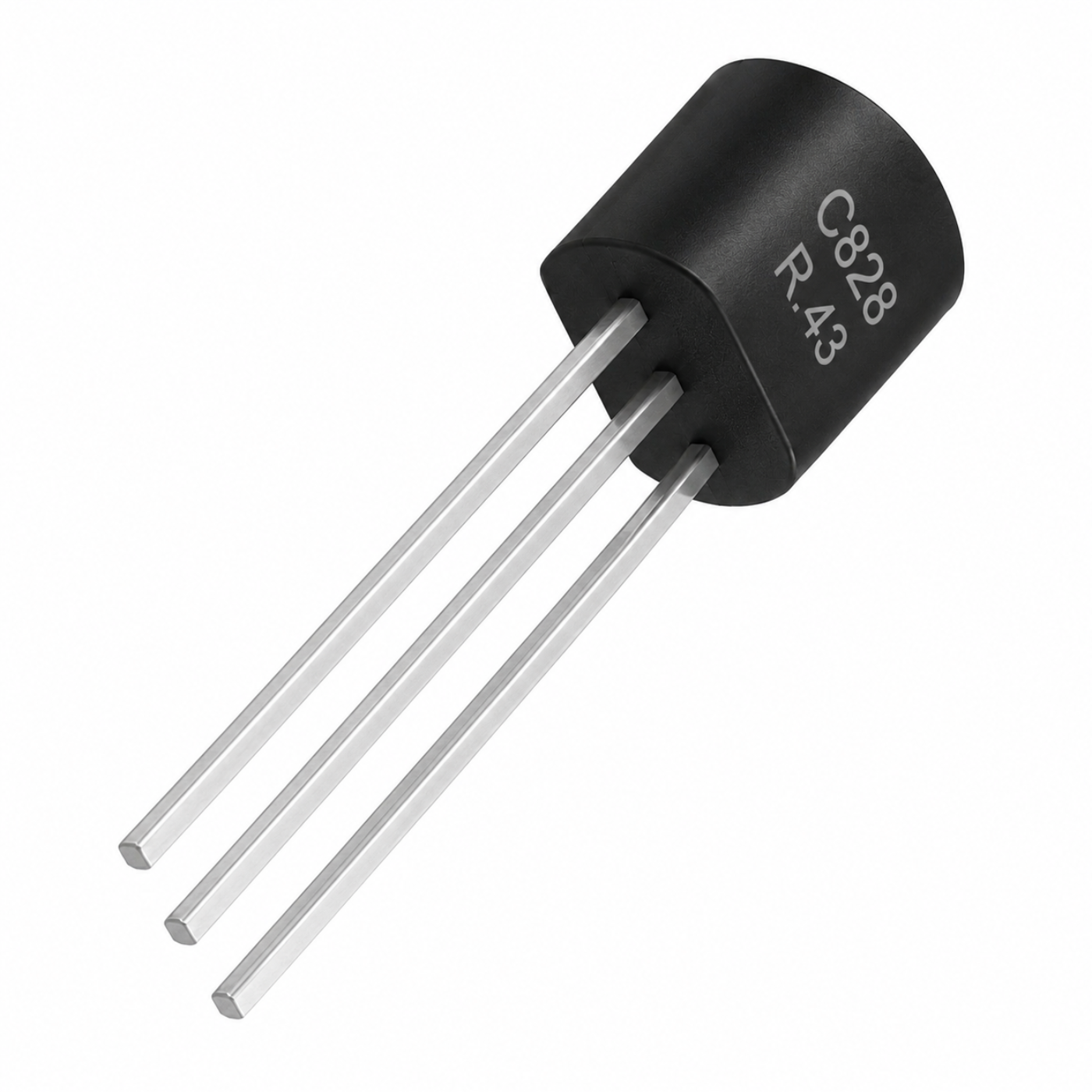

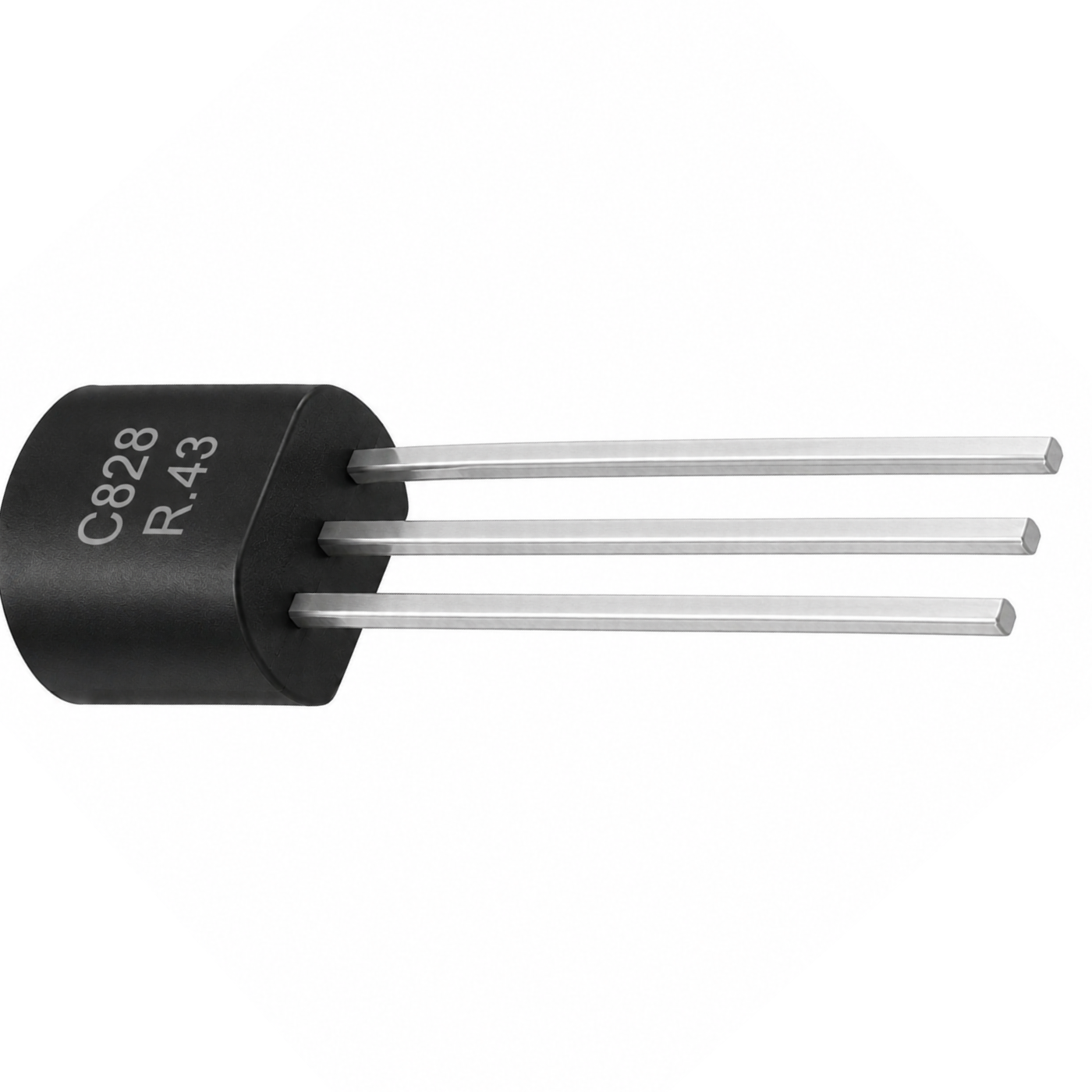

The C828, also known as the 2SC828, is a general-purpose NPN Bipolar Junction Transistor (BJT) designed for switching and audio frequency (AF) amplifier applications. Packaged in the compact TO-92 plastic package, it is suitable for through-hole PCB assembly and is commonly used in consumer electronics, audio equipment, educational projects, and general electronic circuit designs.
Designed as a silicon epitaxial planar transistor, the C828 provides reliable performance in low-power signal amplification and switching circuits. Its compact size and stable electrical characteristics make it suitable for analog and digital electronic applications where dependable NPN transistor operation is required.
The transistor supports a collector-emitter voltage of 25V and a maximum collector current of 50mA. It is available in gain classifications (Q, R, and S) based on DC current gain, allowing designers to select an appropriate device for different amplification requirements. The TO-92 package simplifies installation, soldering, and replacement during prototype development and production assembly.
Features:
- General-purpose NPN Bipolar Junction Transistor (BJT).
- Silicon epitaxial planar transistor construction.
- Designed for switching and AF amplifier applications.
- Compact TO-92 plastic package.
- Collector-emitter voltage (VCEO) rated at 25V.
- Collector-base voltage (VCBO) rated at 30V.
- Supports collector current up to 50mA.
- Power dissipation of 400mW.
- Available in Q, R, and S DC gain classifications.
- Suitable for consumer electronics, educational projects, and general-purpose circuit designs.
Package Includes:

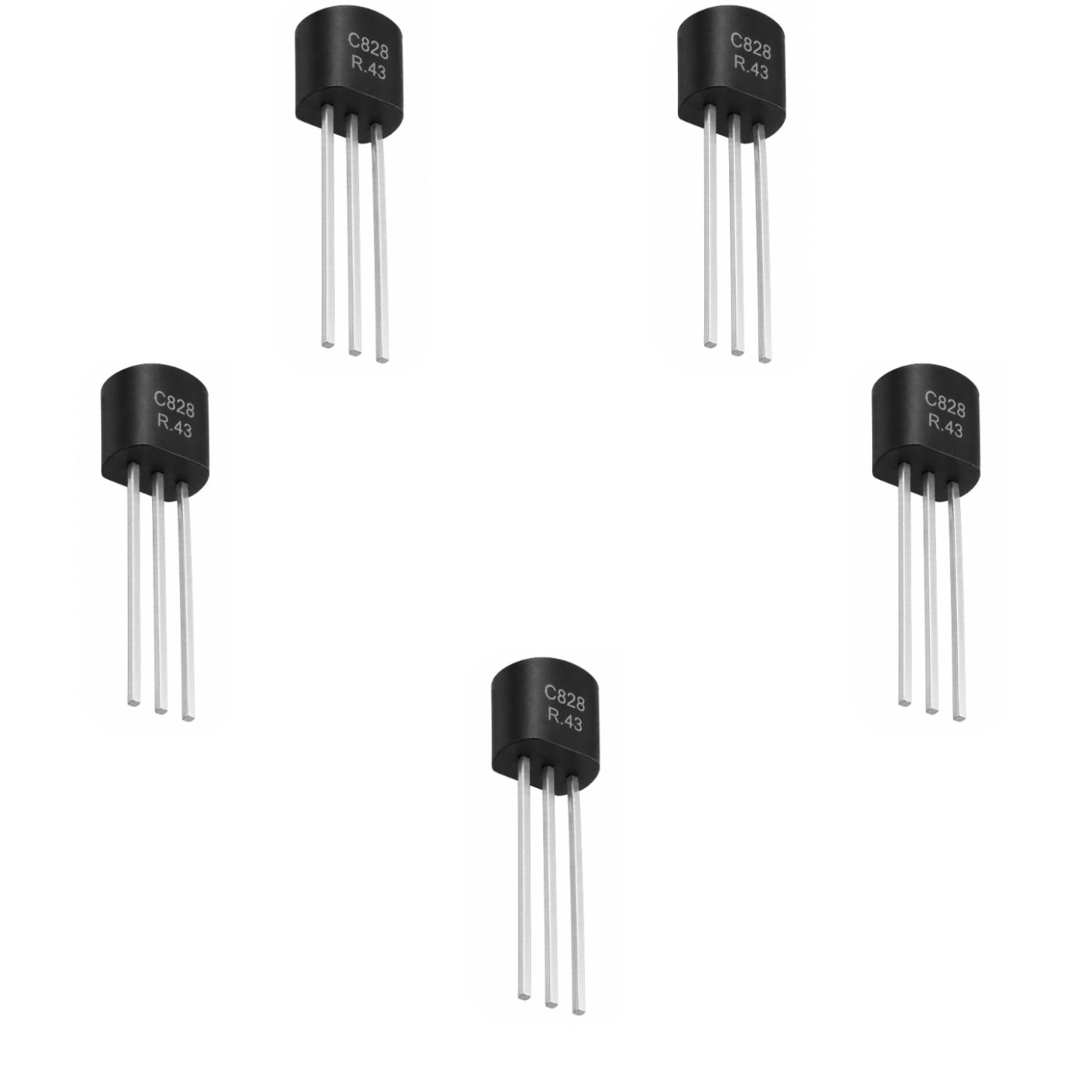

- 5xC828 (2SC828) NPN Bipolar Junction Transistor (TO-92)
Specifications:
| Specification | Details |
|---|---|
| Product Name | C828 (2SC828) Transistor |
| Transistor Type | NPN Bipolar Junction Transistor (BJT) |
| Construction | Silicon Epitaxial Planar |
| Package | TO-92 |
| Collector-Emitter Voltage (VCEO) | 25V |
| Collector-Base Voltage (VCBO) | 30V |
| Emitter-Base Voltage (VEBO) | 7V |
| Collector Current (IC) | 50mA |
| Power Dissipation (Ptot) | 400mW |
| Mounting Type | Through Hole |
| Package Type | TO-92 Plastic Package |
| Applications | Switching, AF Amplifier |
