M5 Stack

M5 Stack BUS Module

M5 Stack BUS Module

Low stock: 2 left

Regular price Rs. 399
Regular price Rs. 417 Sale price Rs. 399
Sale Sold out 4% off Best Price Guaranteed
You save Rs. 18
Incl. GST (No Hidden Charges)
Currently, people are actively checking out this product.
Submit your Bulk Enquiry Here

Contact form

  • High-Quality Construction
  • Compatible with M5 core
  • Number of holes: 200
  • Hole Size: 0.039" 1mm (CNC Drilled)
  • Hole Pitch: 0.1 in - (2.54 mm)
Also checkout M5 Stack Development Kits, Sensors&Hats, Cameras and Modules collection

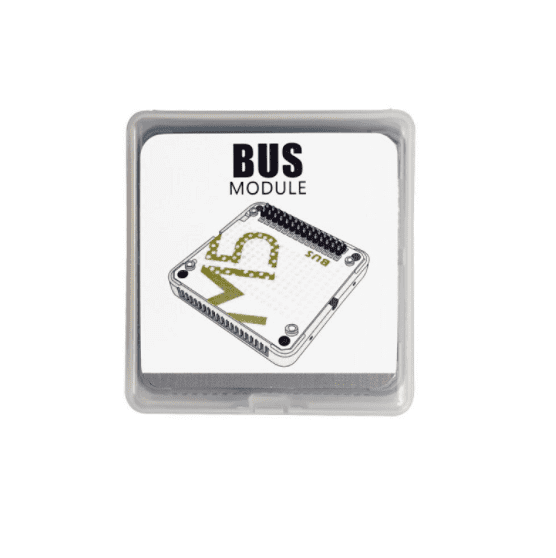

M5 Stack BUS Module

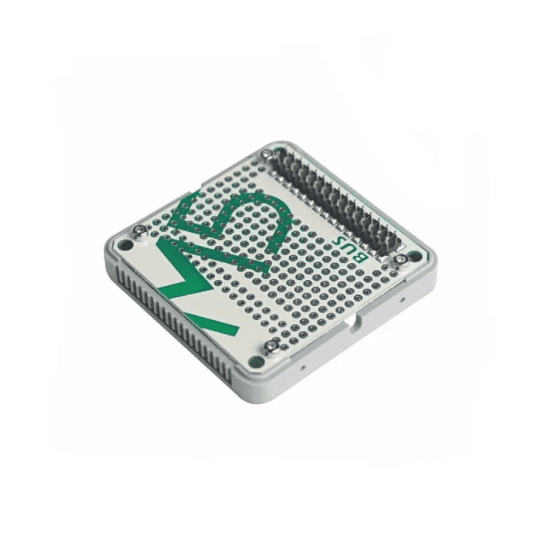

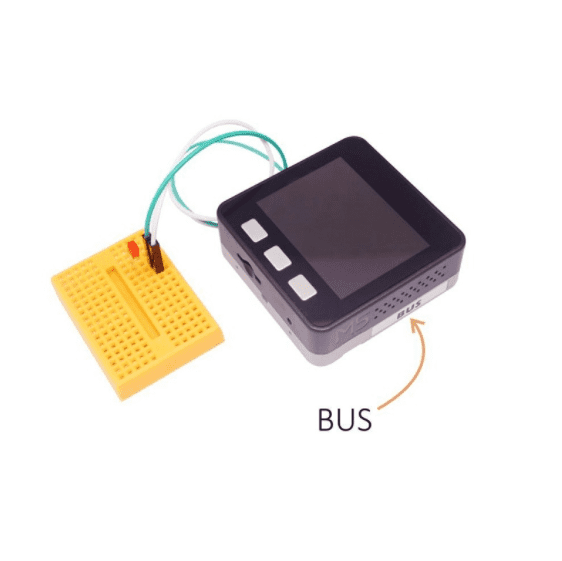

BUS allows you to add your own custom circuit design to the universal prototype perboard so it could interact with the M5Core via M-BUS.

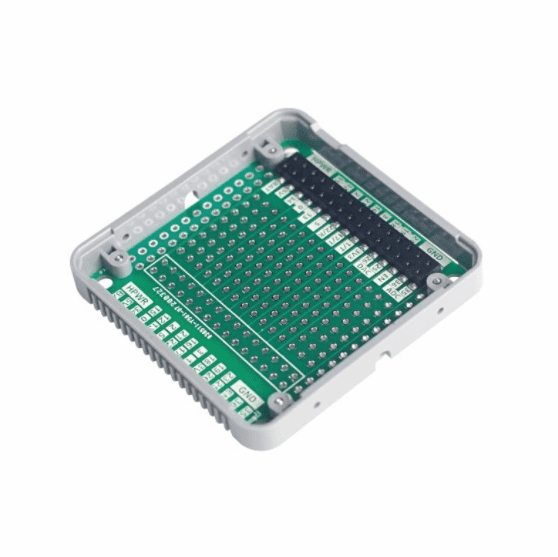

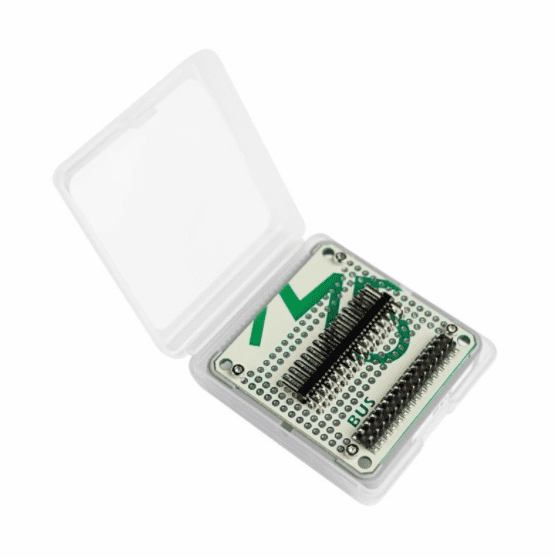

Just like other M5modules, BUS can connect with other layers through M-BUS, while in this module, we've extended the M_BUS pin to pin to the other side of the board. You might need to cut off the fence on the side to be able to expose the pins. We've included a 2*15 90 degrees pin set in the package.

Also check Guide Rail for M5 Base. It features a spring-type buckle structure and multiple M3 screw holes for flexible installation

Package Includes:

1x M5 Stack BUS Module

Specifications:

Dimensions 54 x 54 x 13mm
Weight 23gm
