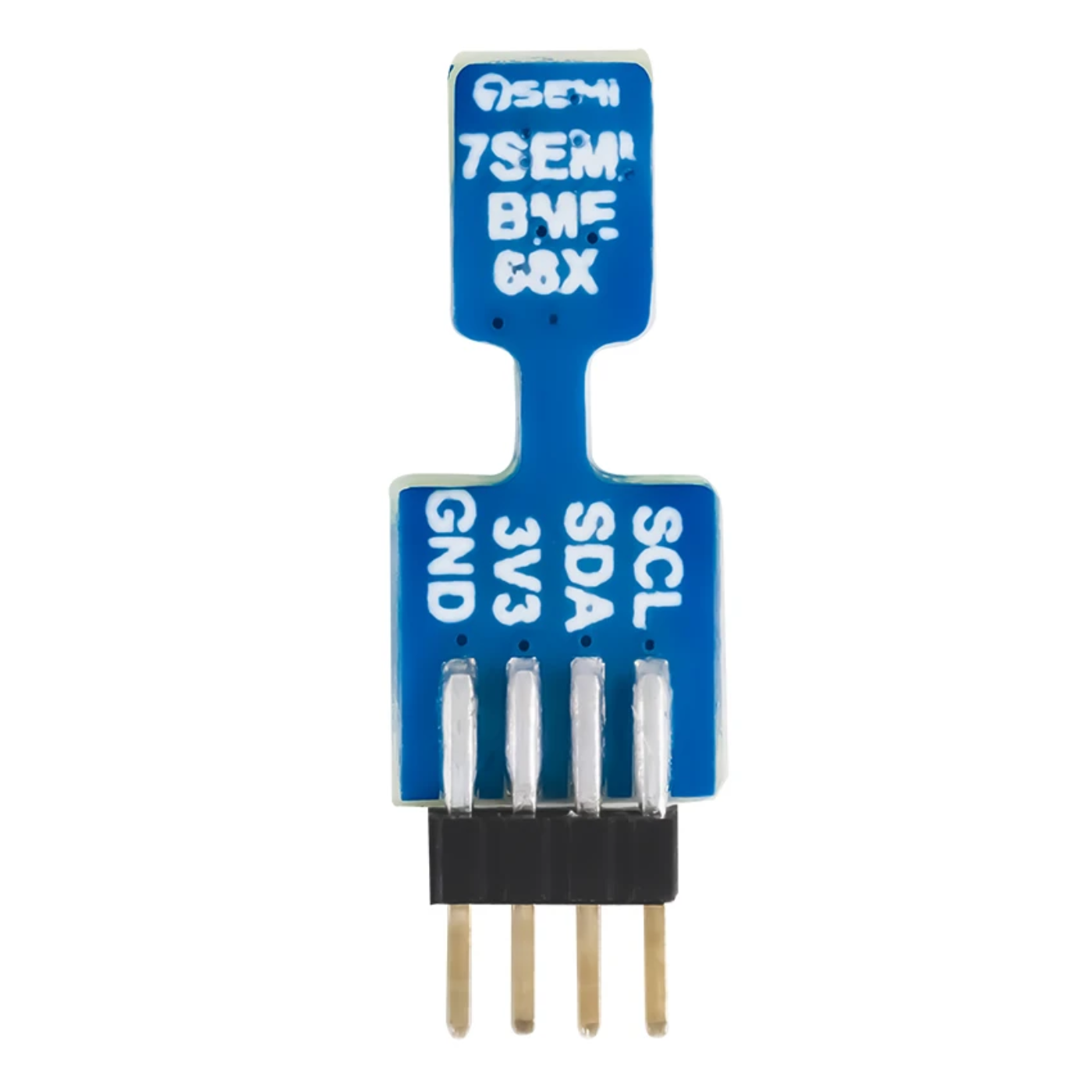

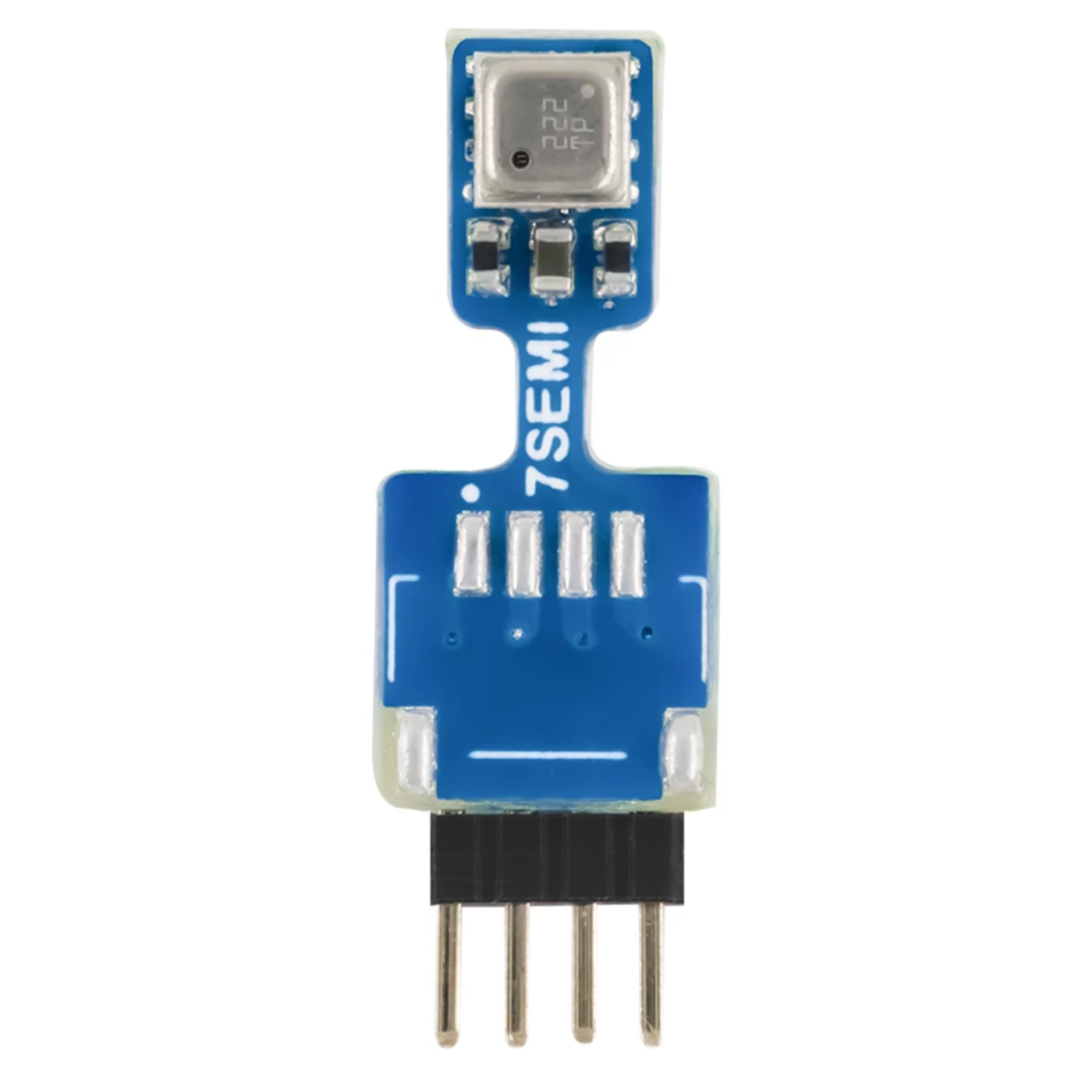

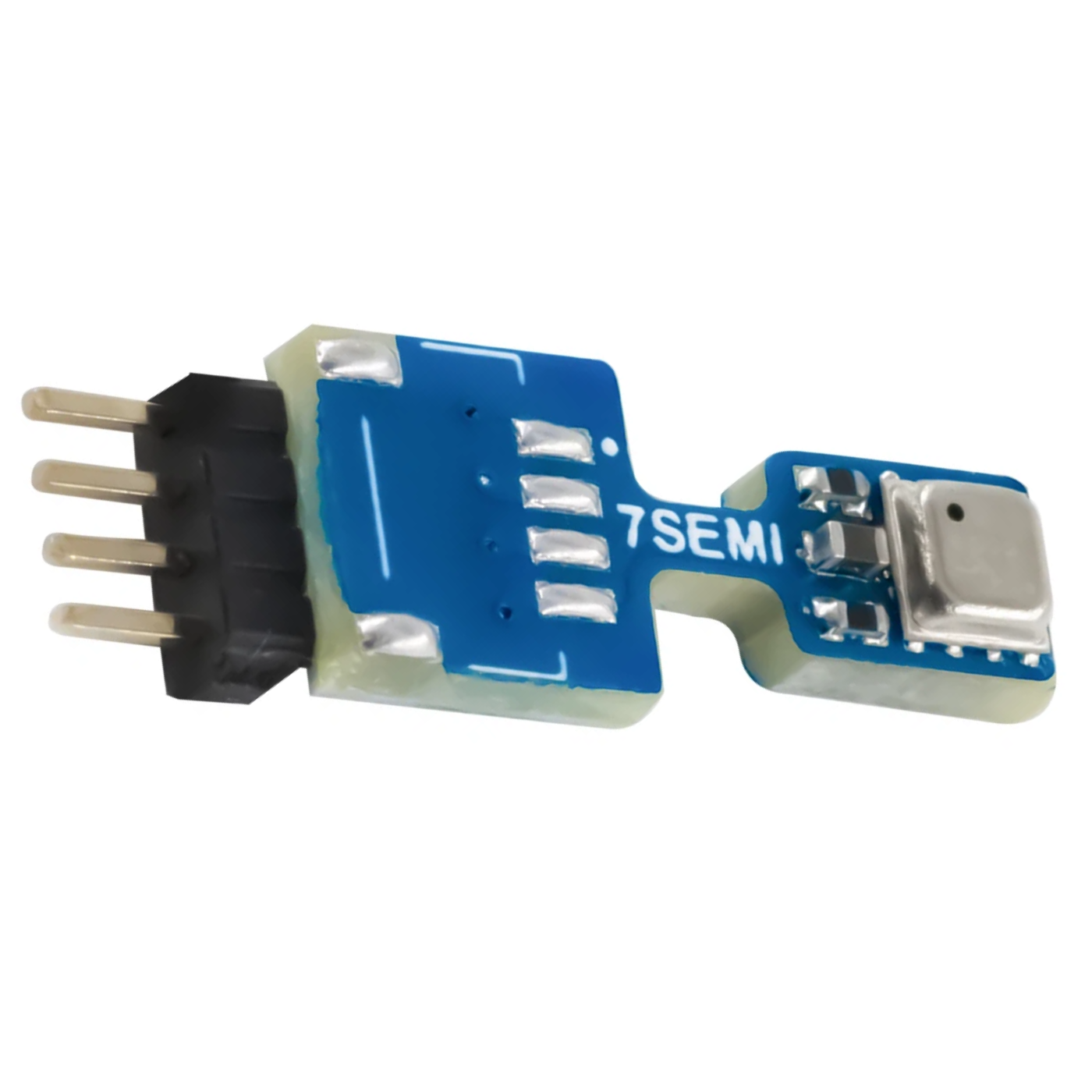

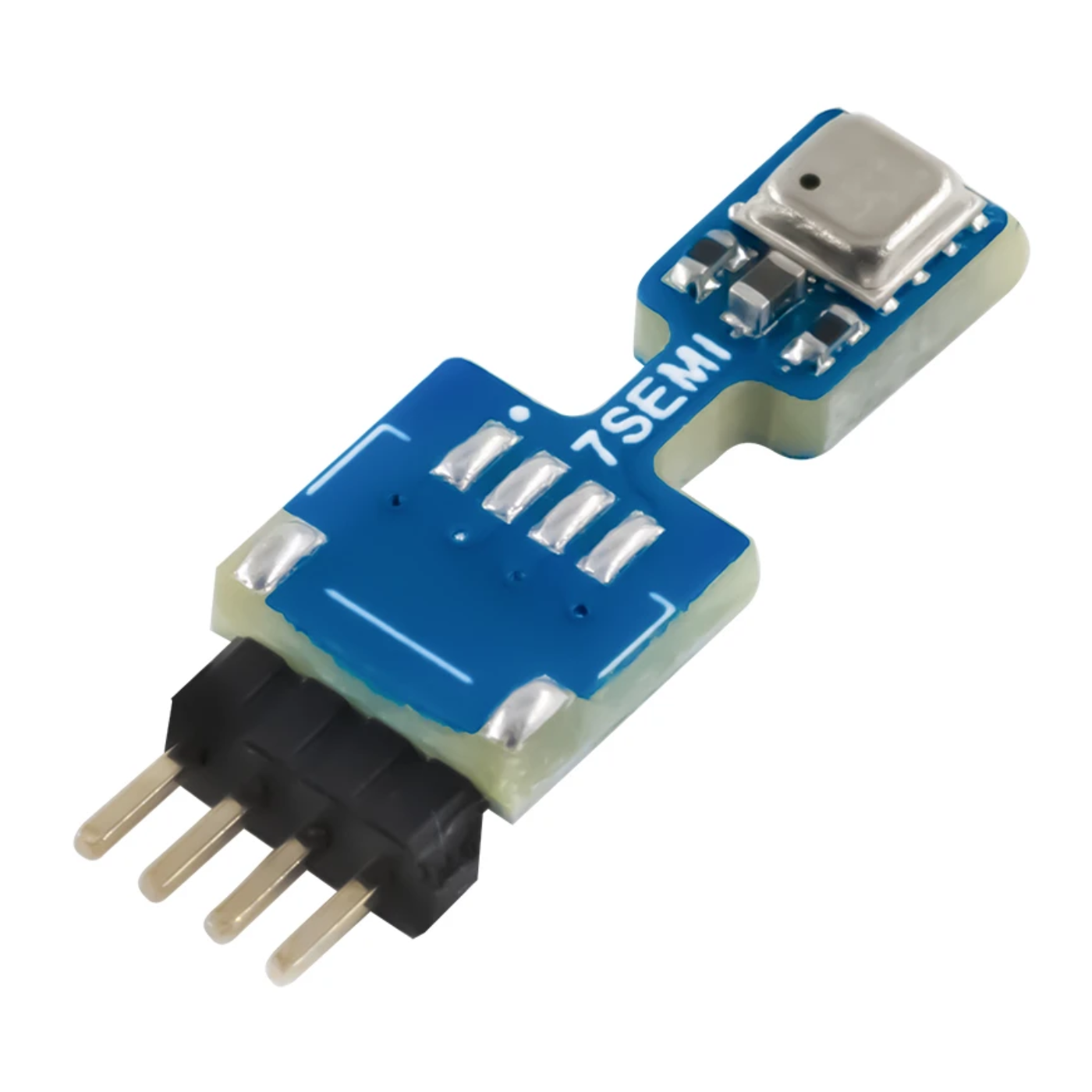

BME688 Environmental Sensor Breakout Board with 1.27mm Pitch Header
Let us know!
We'll try to match the price for you
We’ll notify you once the product is back in stock.
For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below
Couldn't load pickup availability
The BME688 Environmental Sensor Breakout Board with 1.27mm Pitch Header is a compact and versatile environmental sensing solution built around Bosch’s BME688 sensor. It can measure temperature, humidity, barometric pressure, and gas concentrations, making it useful for a wide range of environmental monitoring and IoT applications.
The small breakout board is designed for projects where PCB space is limited, while the 1.27mm pitch header provides a convenient way to connect it to compatible development boards and embedded systems. With support for I2C and SPI interfaces, the BME688 sensor breakout can be easily integrated with microcontrollers and other host platforms.
It is well suited for air-quality monitoring, smart home devices, industrial environmental monitoring, weather and climate projects, and environmental research, offering a practical way to add multiple sensing capabilities to compact electronics projects.
| Specification | Details |
|---|---|
| Operating Voltage | 3.3V |
| Pressure Range (Full Accuracy) | 300–1100 hPa |
| Humidity Range | 0–100% RH |
| Temperature Range | -40°C to 85°C |
| Interface | I2C |
| Gas Sensor – F1 Score for H₂S Scanning | 0.92 |
| Gas Sensor – Standard Scan Speed | 10.8 s/scan |
| Gas Sensor – Electric Charge for Standard Scan | 0.18 mAh (5 scans ≈ 1 min) |
| Gas Sensor – Response Time (T 33–63%) | <1 s (for new sensors) |
| Humidity Sensor – Response Time (T 0–63%) | 8 s |
| Humidity Sensor – Accuracy Tolerance | ±3% RH |
| Humidity Sensor – Hysteresis | ≤1.5% RH |
| Pressure Sensor – RMS Noise | 0.12 Pa (equiv. to 1.7 cm) |
| Pressure Sensor – Sensitivity Error | ±0.25% (equiv. to 1 m at 400 m height change) |
| Pressure Sensor – Temperature Coefficient Offset | ±1.3 Pa/K (equiv. to ±10.9 cm at 1°C temperature change) |
