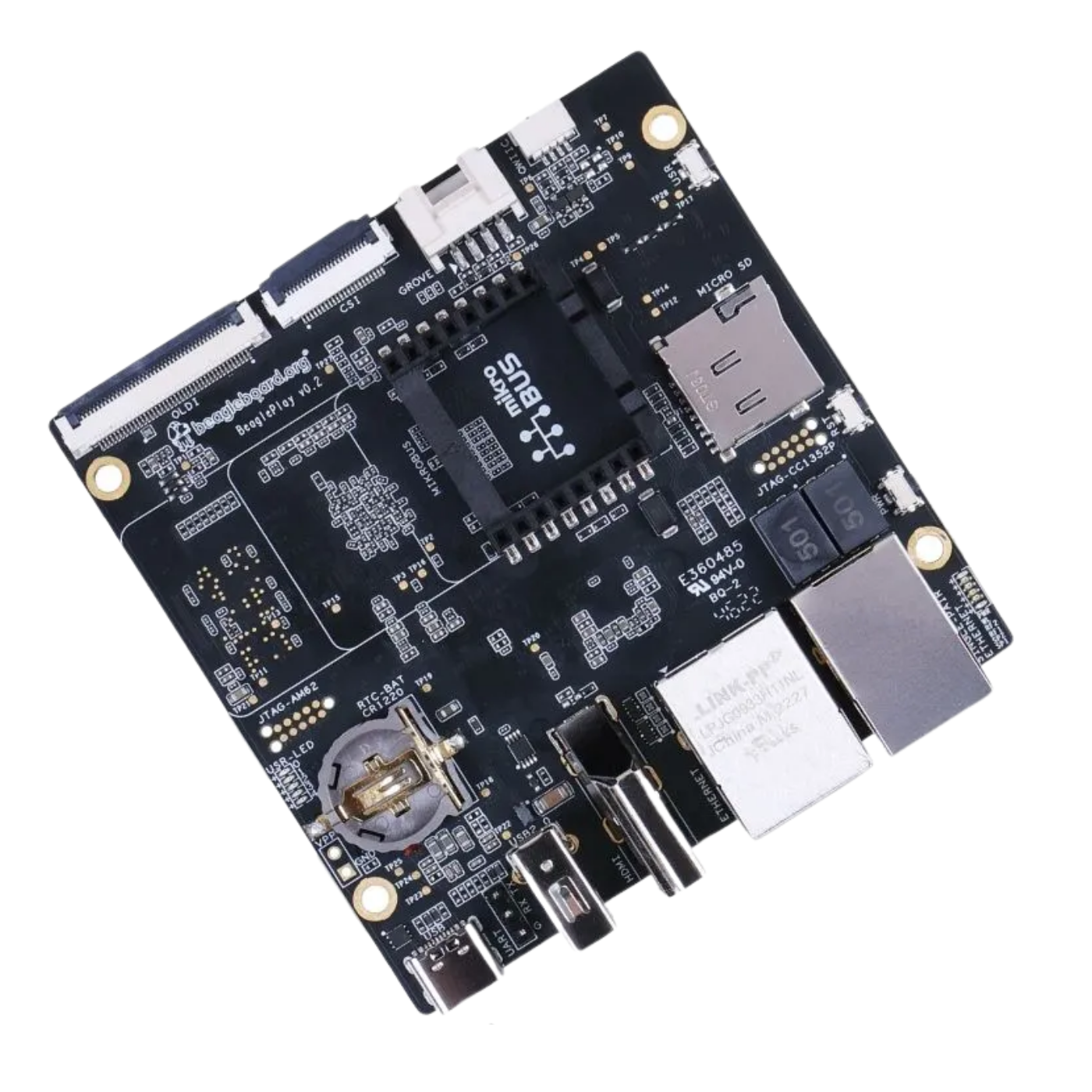

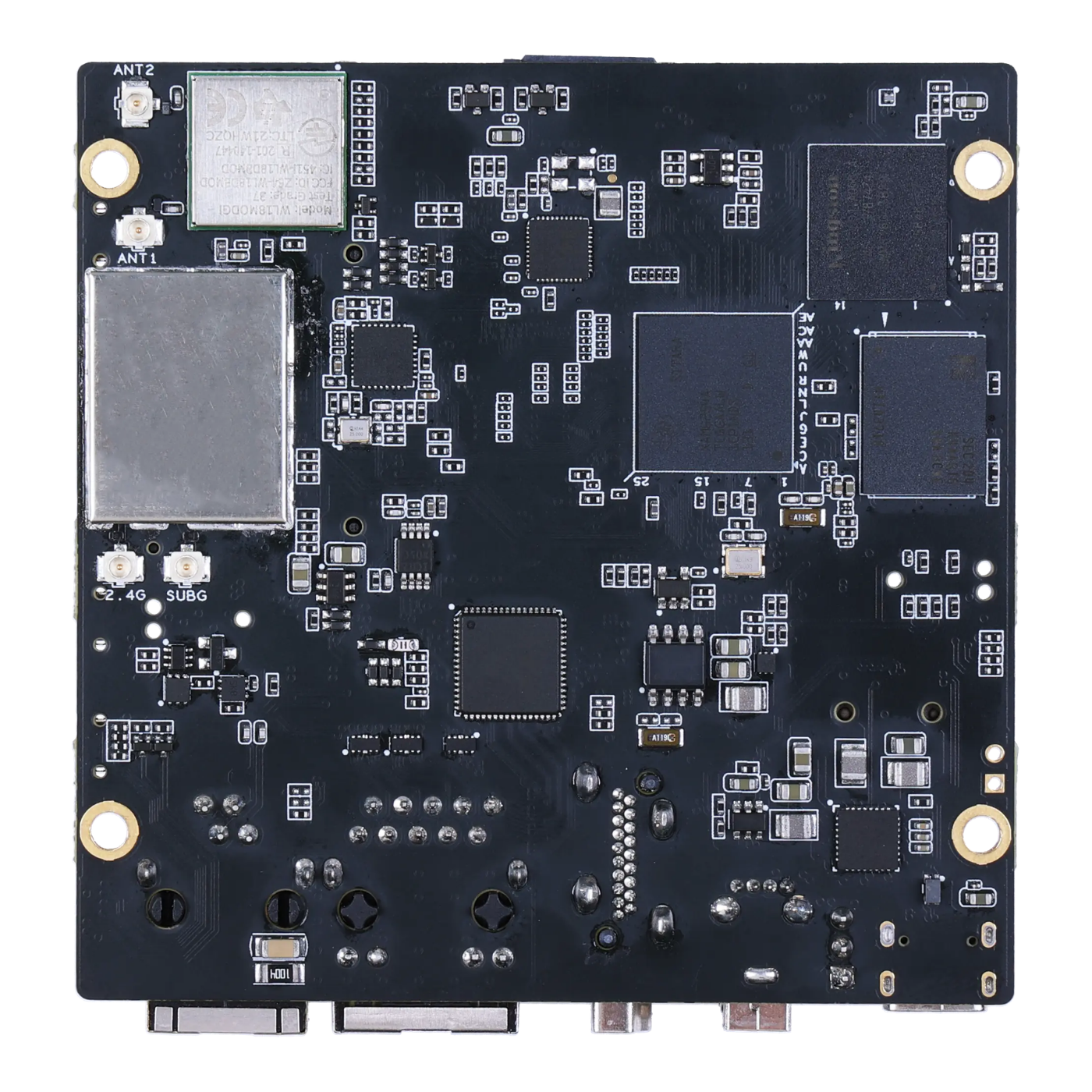

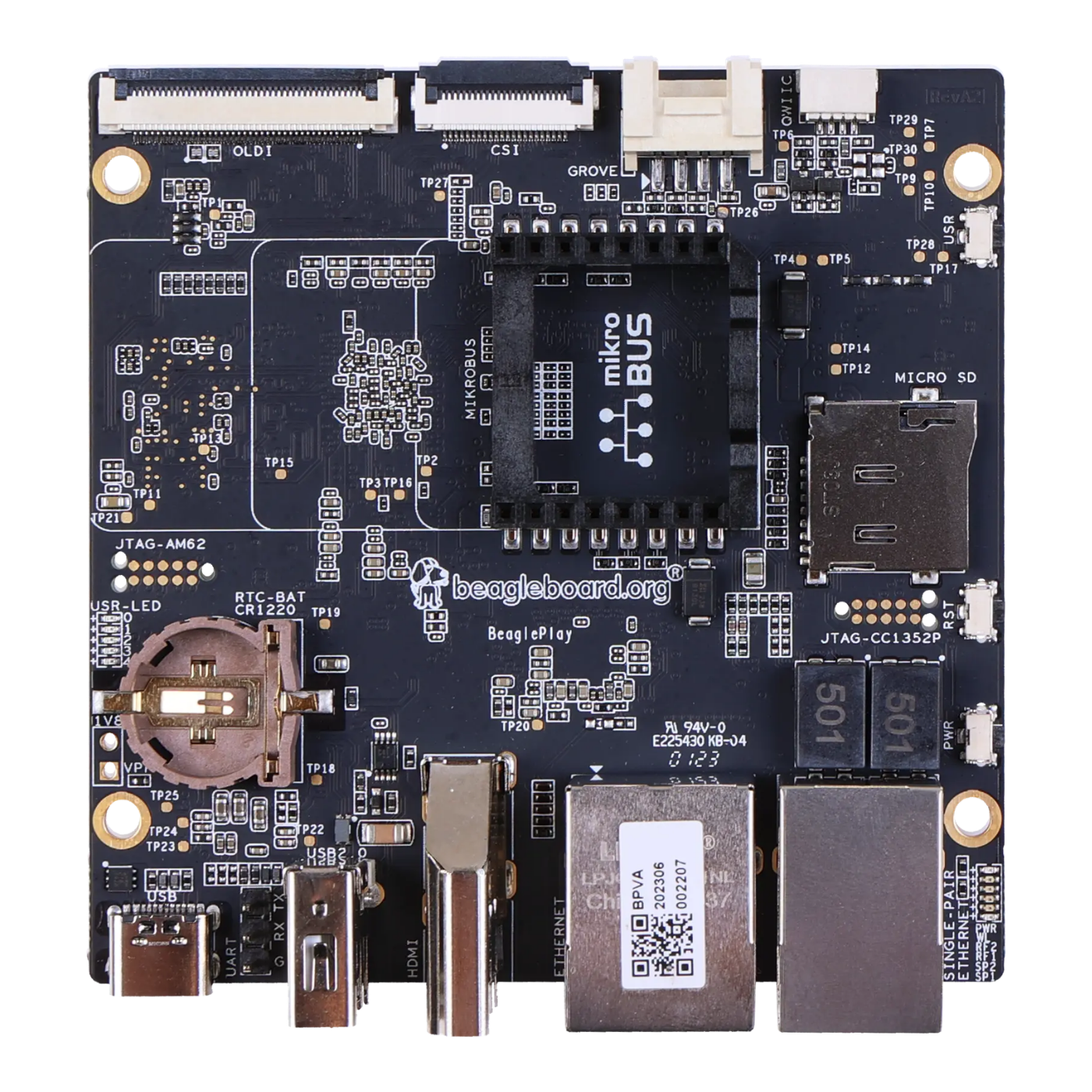

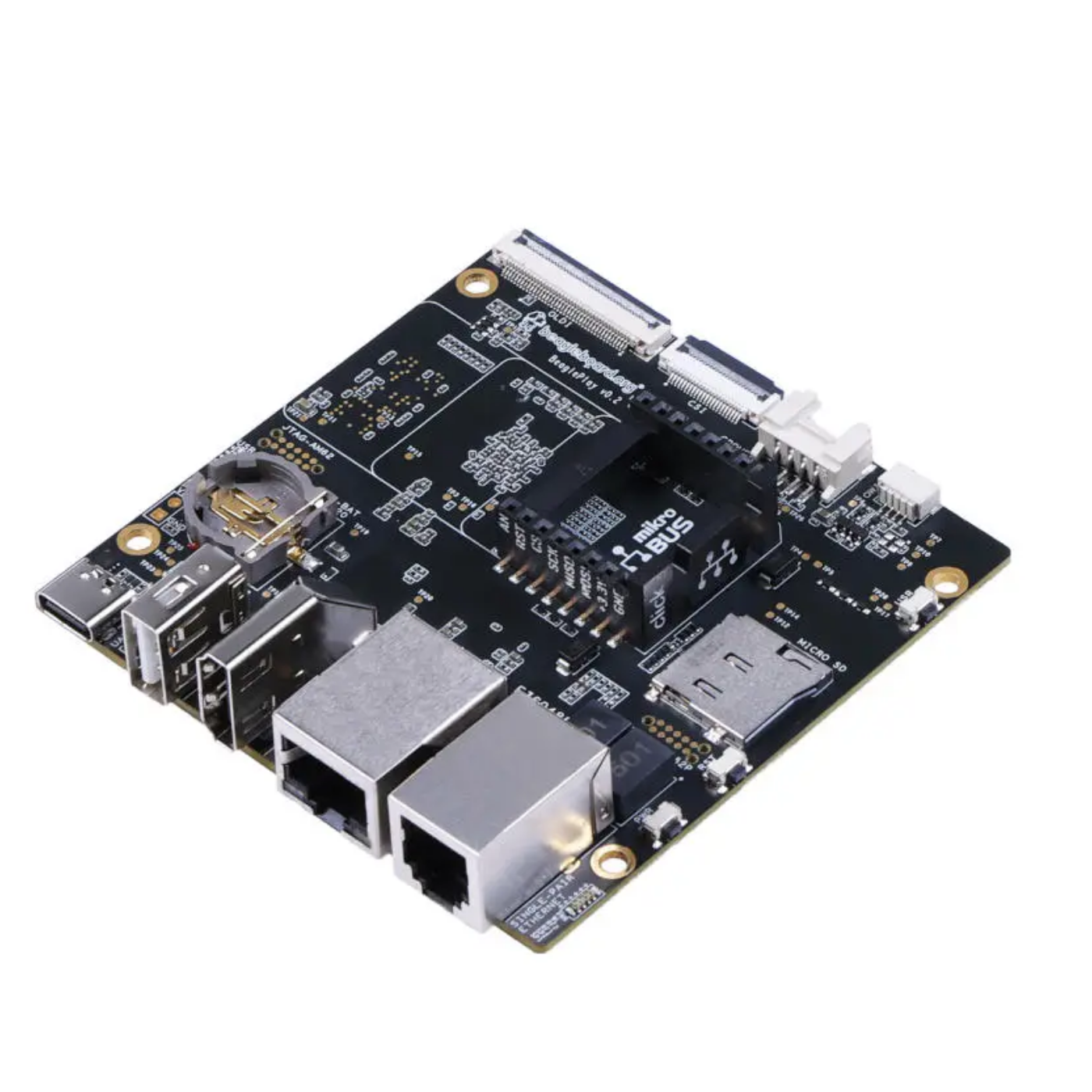

BeaglePlay – Embedded Development & Evaluation Board

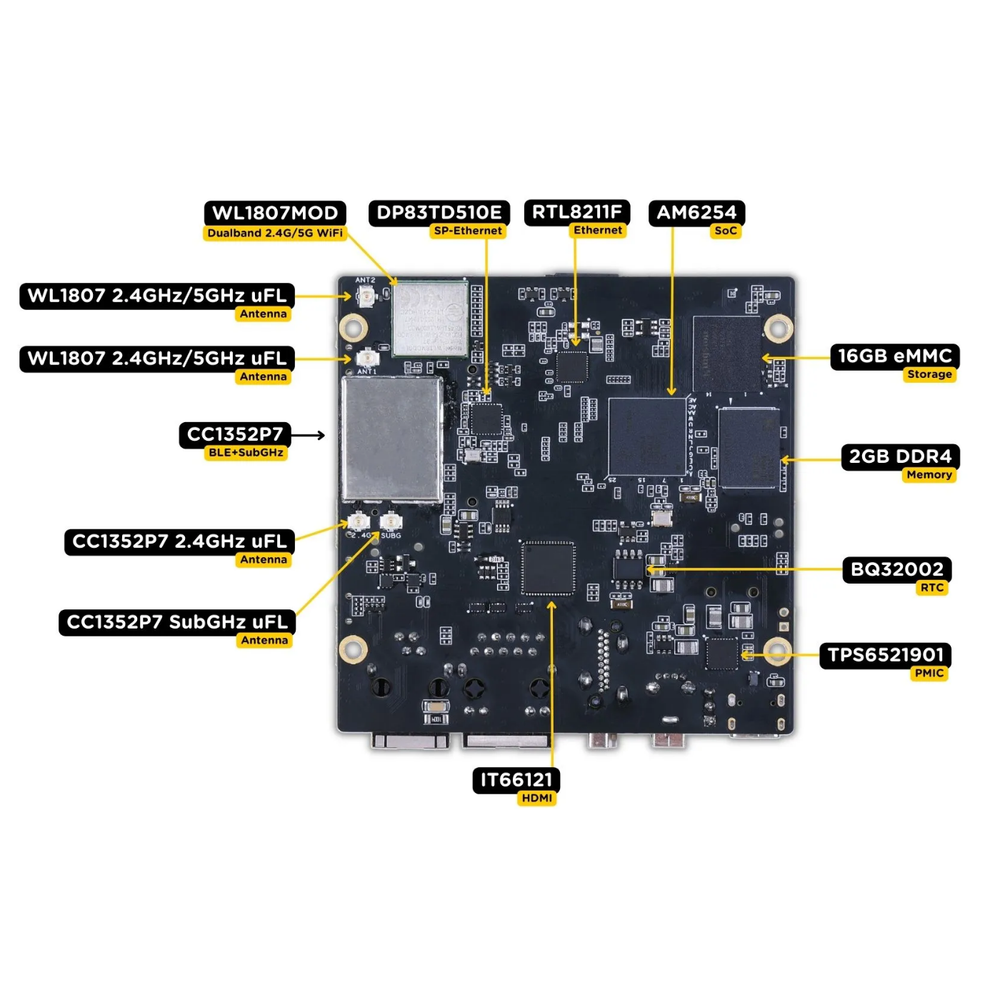

BeaglePlay is an open-source embedded development and evaluation board designed to make Linux-based embedded system development easier and more connected. It is built around the Texas Instruments AM6254 Sitara processor, featuring a quad-core 64-bit Arm Cortex-A53 processor subsystem operating at up to 1.4 GHz, along with an Arm Cortex-M4F MCU and PRU subsystem for embedded and real-time applications.
The board includes 2GB DDR4 RAM and 16GB eMMC storage, providing a practical platform for application development, prototyping, and evaluation. For connectivity, BeaglePlay offers 2.4GHz and 5GHz Wi-Fi, BeagleConnect Sub-GHz wireless, 1Gb/s Gigabit Ethernet, and 10Mbit 10BASE-T1L single-pair Ethernet with Power over Data Line (PoDL).

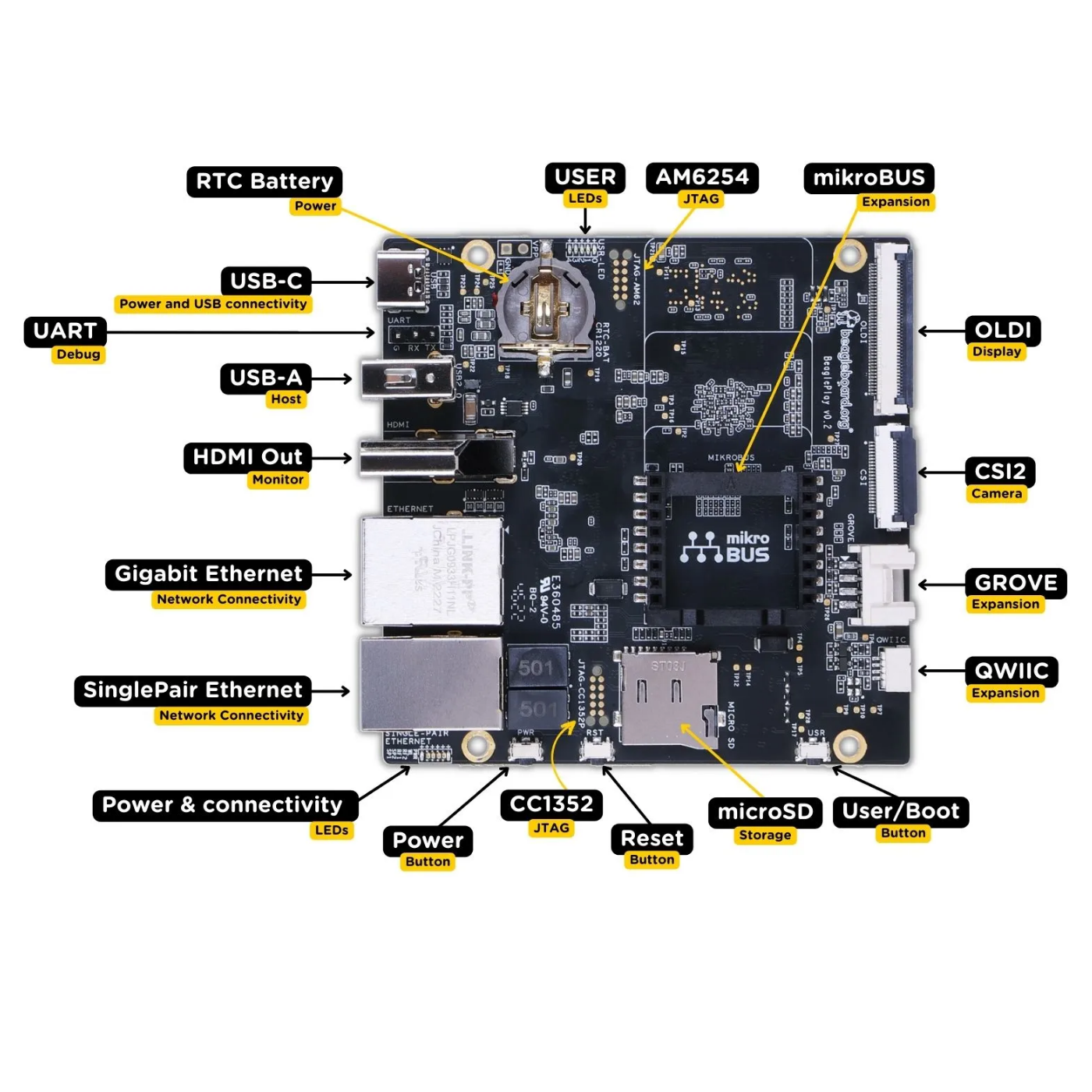

It also provides a full-size HDMI output, USB 2.0 Type-A host port, USB-C power and connectivity port, microSD support, and expansion interfaces including Grove, mikroBUS, QWIIC, MIPI CSI-2 camera, and OLDI display.
With support for Debian Linux and a wide ecosystem of sensors, actuators, displays, and connectivity modules, the BeaglePlay development board is well suited for IoT development, industrial automation gateways, human-machine interfaces (HMI), digital signage, BeagleConnect sensor gateways, and embedded Linux projects.
Features:
TI AM6254 processor with quad-core 64-bit Arm Cortex-A53 up to 1.4 GHz.
2GB DDR4 RAM and 16GB eMMC for reliable application processing and storage.
It's good and excellent at its price range ad works correctly. But the thing confusing in this is that the pins markings I got confused which pin is shutdown and which pin is gpio... It's just written x and e . Soo it's kinda confusing but it a good product from what I have tested
