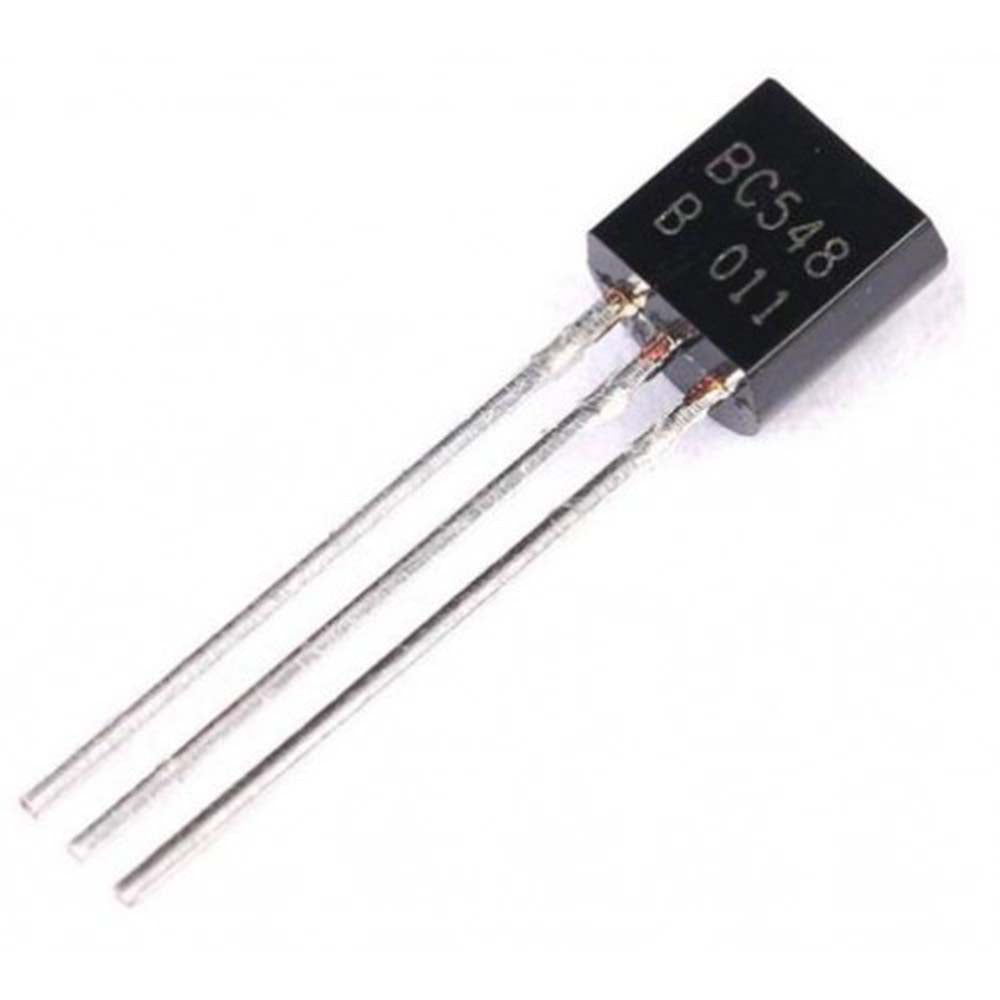

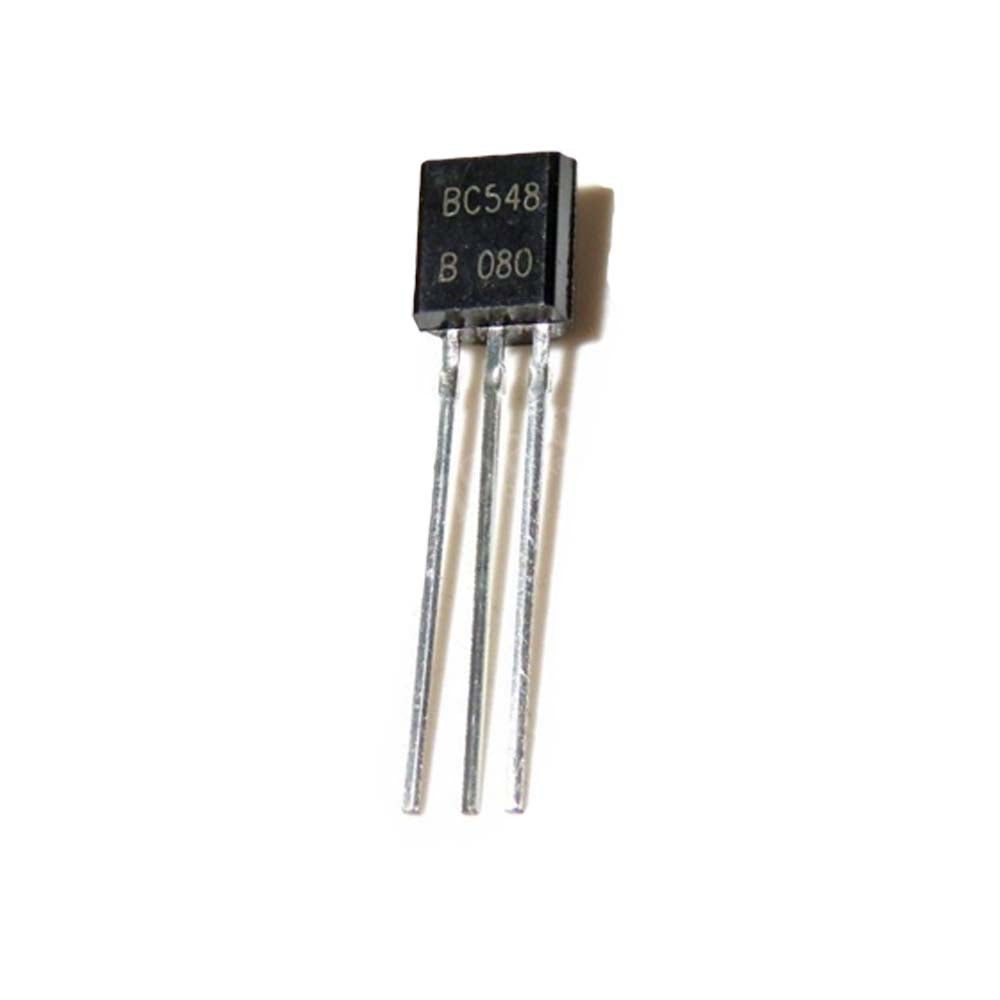

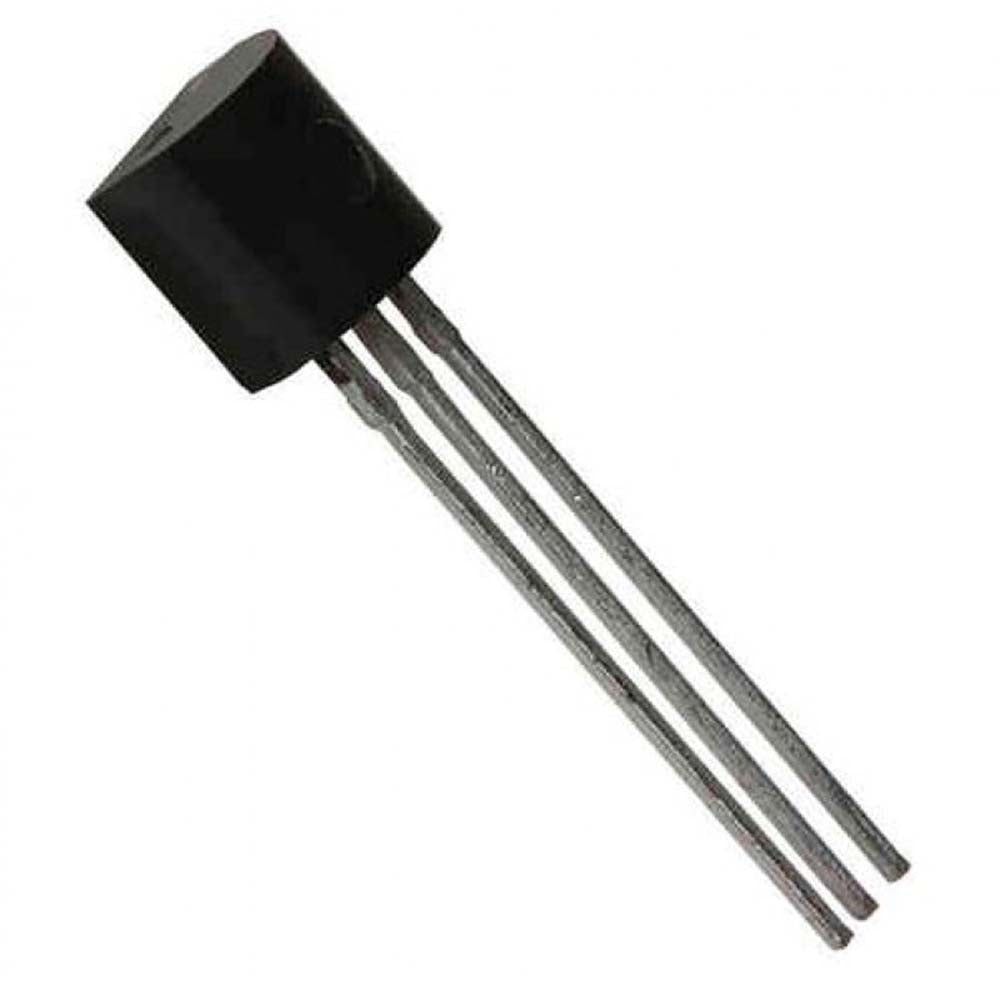

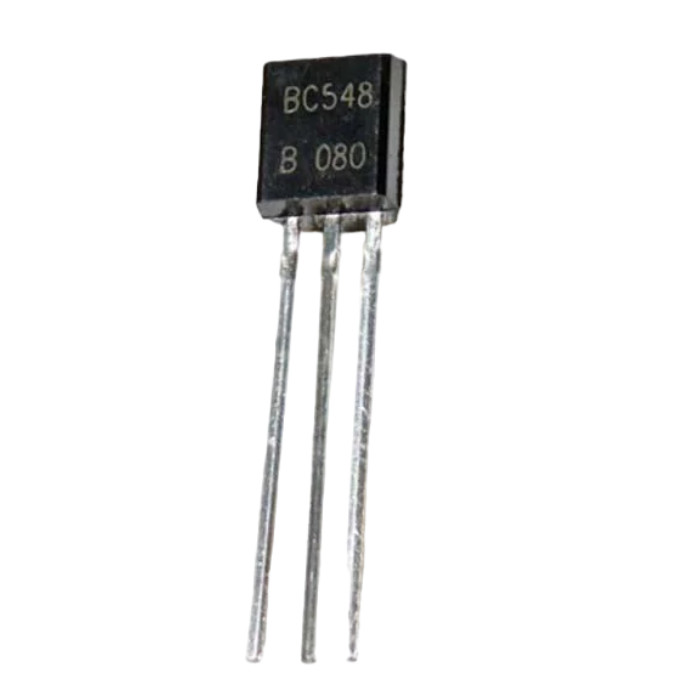

BC548 NPN Transistor (Pack of 5)
BC548 NPN Transistor (Pack of 5)
Out of stock
Regular price
Rs. 12
Regular price
Rs. 19
Sale price
Rs. 12
Unit price
per
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Couldn't load pickup availability
BEST COUPON FOR YOU
FLAT ₹ 100/- OFF
RC100
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- BC548 is a semiconductor device used to amplify or switch electronic signals and electrical power.
- It is composed of semiconductor material usually with at least three terminals for connection to an external circuit.
- A voltage or current applied to one pair of the transistor's terminals controls the current through another pair of terminals.
BC548 NPN Transistor (Pack of 5)
A BC548 transistor is a negative-positive-negative (NPN) transistor that is used for many purposes. Together with other electronic components, such as resistors, coils, and capacitors, it can be used as the active component for switches and amplifiers. Like all other NPN transistors, this type has an emitter terminal, a base or control terminal, and a collector terminal.
In a typical configuration, the current flowing from the base to the emitter controls the collector current. A short vertical line, which is the base, can indicate the transistor schematic for an NPN transistor, and the emitter, which is a diagonal line connecting to the base, is an arrowhead pointing away from the base.
Read our blog explaining the bc 547 transistor pinout, which provides comprehensive information about the BC547 transistor, covering its basic knowledge, pin configuration, features, working states, circuit diagrams, and applications.
Package Includes:

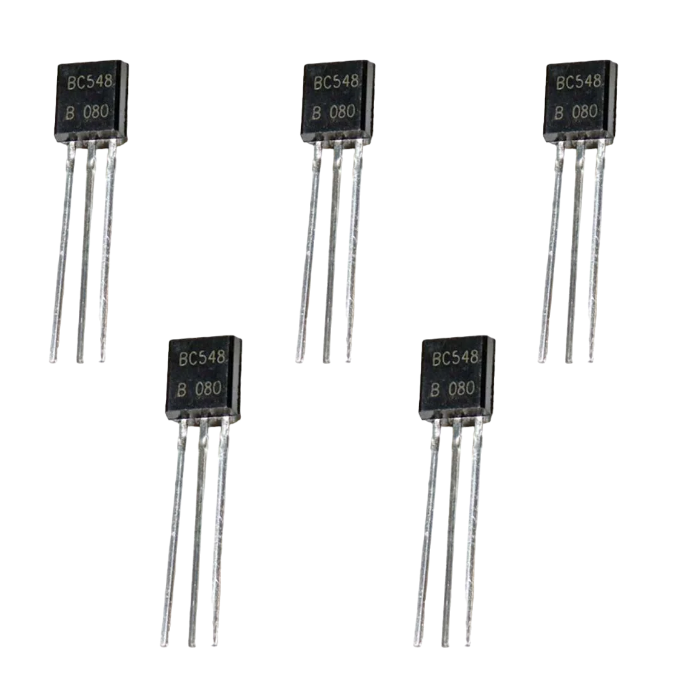

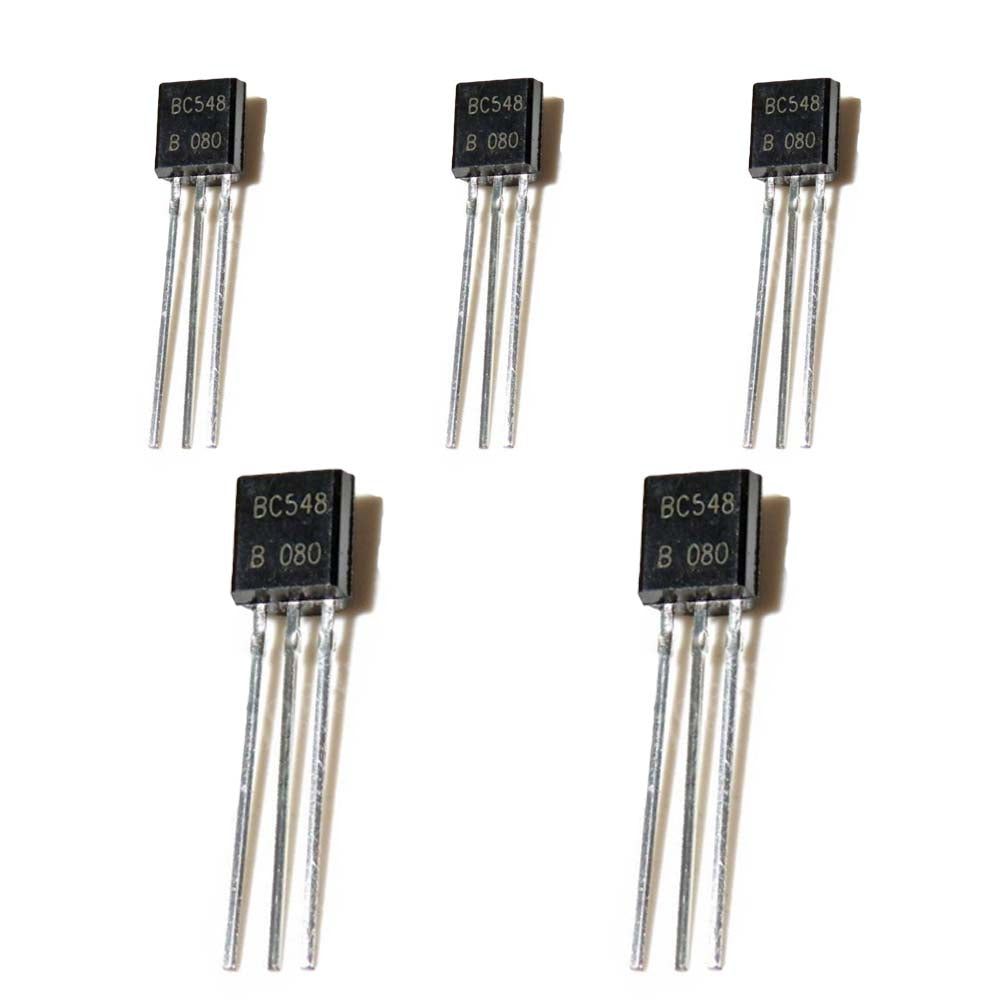

- 5 x BC548 NPN Transistor
Specifications
| Transistor Polarity | NPN |
| Collector-Base Voltage (VCBO) | 30VDC |
| Emitter-Base Voltage (VEBO) | 6VDC |
| Continuous Collector Current (IC) | 100mA |
| Output Capacitance (Cobo) | 4.5pF |
| Transition Frequency (fT) | 300MHz |
| Power Dissipation (PD) | 625mW |
| Dimensions | 5 x 4 x 3cms |
| Weight | 5 grams |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
Found a better price?
Let us know!
We'll try to match the price for you
1. What is transistor BC548?
- BC548 transistor is a NPN bipolar junction transistor in which the collector and emitter are open when the base pin is at ground and will get closed when a signal is provided to base pin.
2. What is the difference between BC547 and BC548?
- Bc547 transistor have Collector-Emitter Voltage of 50V while BC548 has 30V. BC547 have 100mA Collector Current rating whereas BC548 has 100mA. The DC Current Gain of BC548 and BC548 ranges from 110 To 800 hFE.
3. Is NPN a BC548?
- A BC548 transistor is a multipurpose negative-positive-negative (NPN) transistor.
4. How do I use BC548 as a switch?
- High value current can be given at the base of the transistor, which will makes a path for the collector current to go through the base towards the emitter. Transistor can be used as a switch if driven into the saturation region with enough base current.
