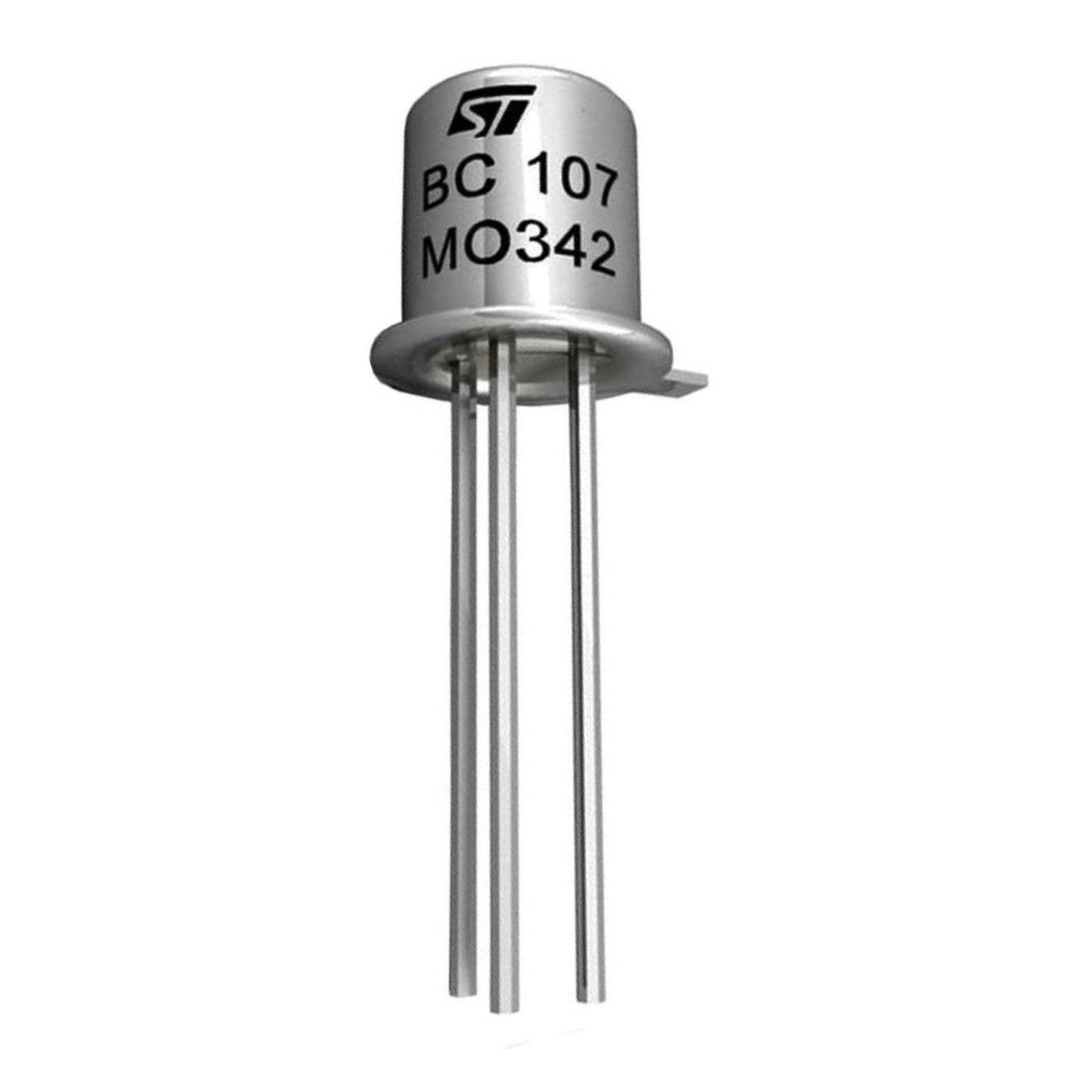

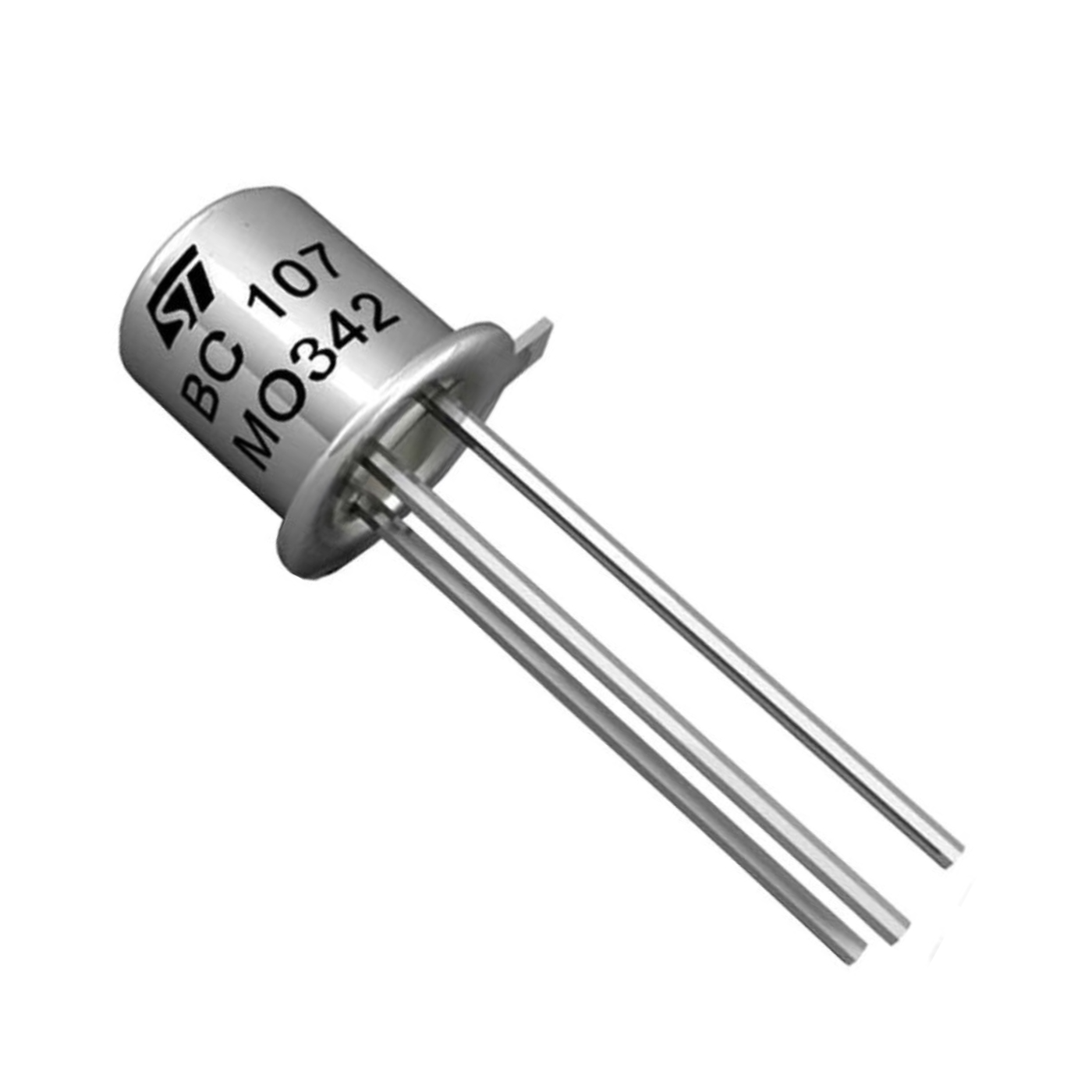

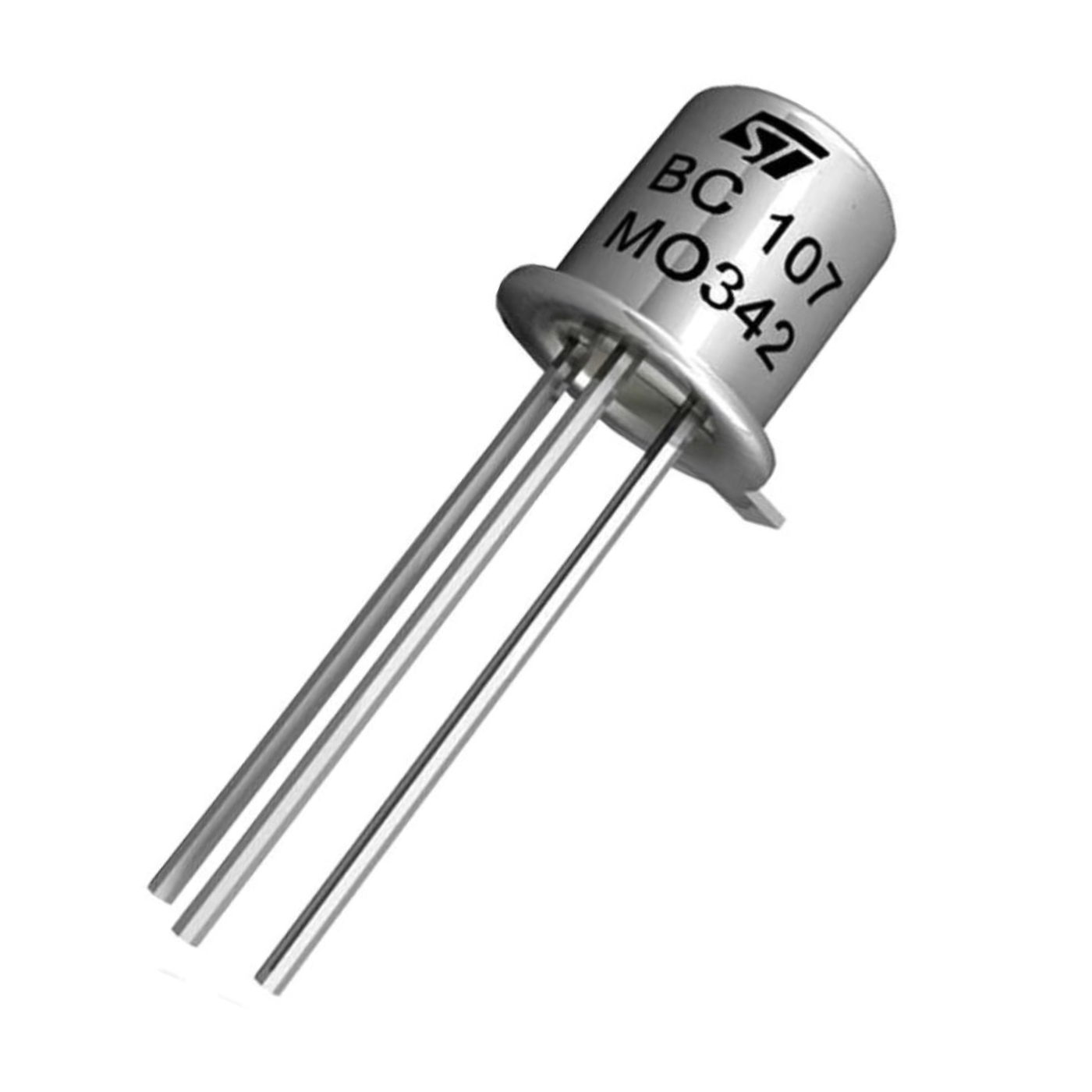

BC107 NPN General Purpose Transistor Metal can package
Couldn't load pickup availability
The BC107 transistor is a general-purpose NPN semiconductor device designed for amplification and switching applications.
Packaged in a robust metal can, the BC107 offers excellent reliability and stability for use in a wide range of electronic circuits.
It works by using a small input voltage or current at one pair of terminals to control a larger current flow at another pair, allowing it to amplify signals effectively.
This makes it an essential component for hobbyists, students, and professionals building analog or digital circuits.
Whether used individually or as part of integrated systems, the BC107 transistor remains a versatile and dependable choice for electronics enthusiasts.
| Parameter | Value |
|---|---|
| Transistor Polarity | NPN |
| Collector–Base Voltage (VCBO) | 50 V |
| Collector–Emitter Voltage (VCEO) | 45 V |
| Emitter–Base Voltage (VEBO) | 6 V |
| Continuous Collector Current (IC) | 0.2 A |
| Output Capacitance (Cobo) | 4.5 pF |
| Transition Frequency (fT) | 150 MHz |
| DC Current Gain (hFE) | 110 – 450 |
| Operating Temperature Range | -65 – 200 °C |
| Power Dissipation (PD) | 1 W |
| Packaging Weight | 4 g |
| Packaging Dimensions (L × W × H) | 1 × 1 × 2 cm |
