Bambu Lab H2S AMS Combo 3D Printer – Robocraze

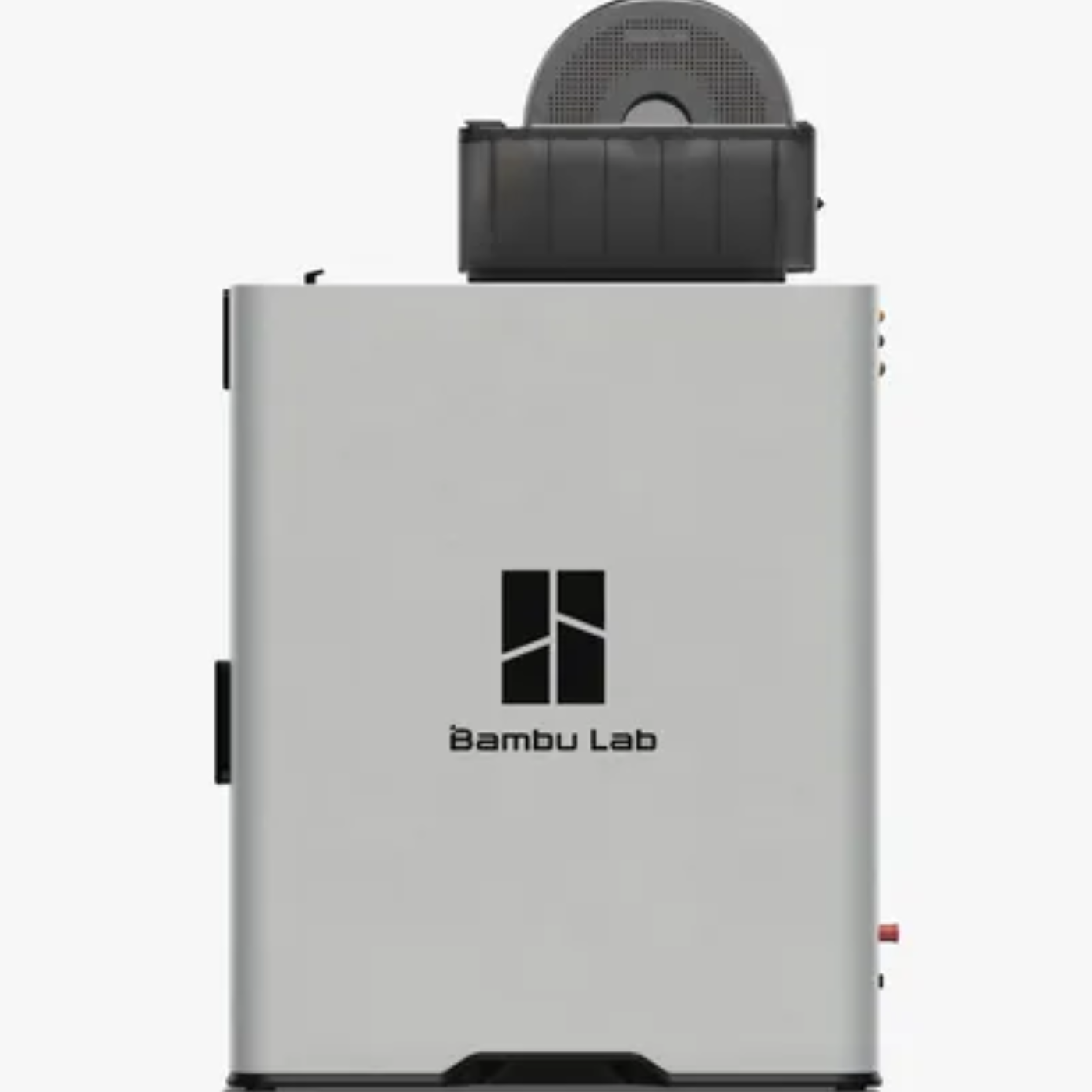

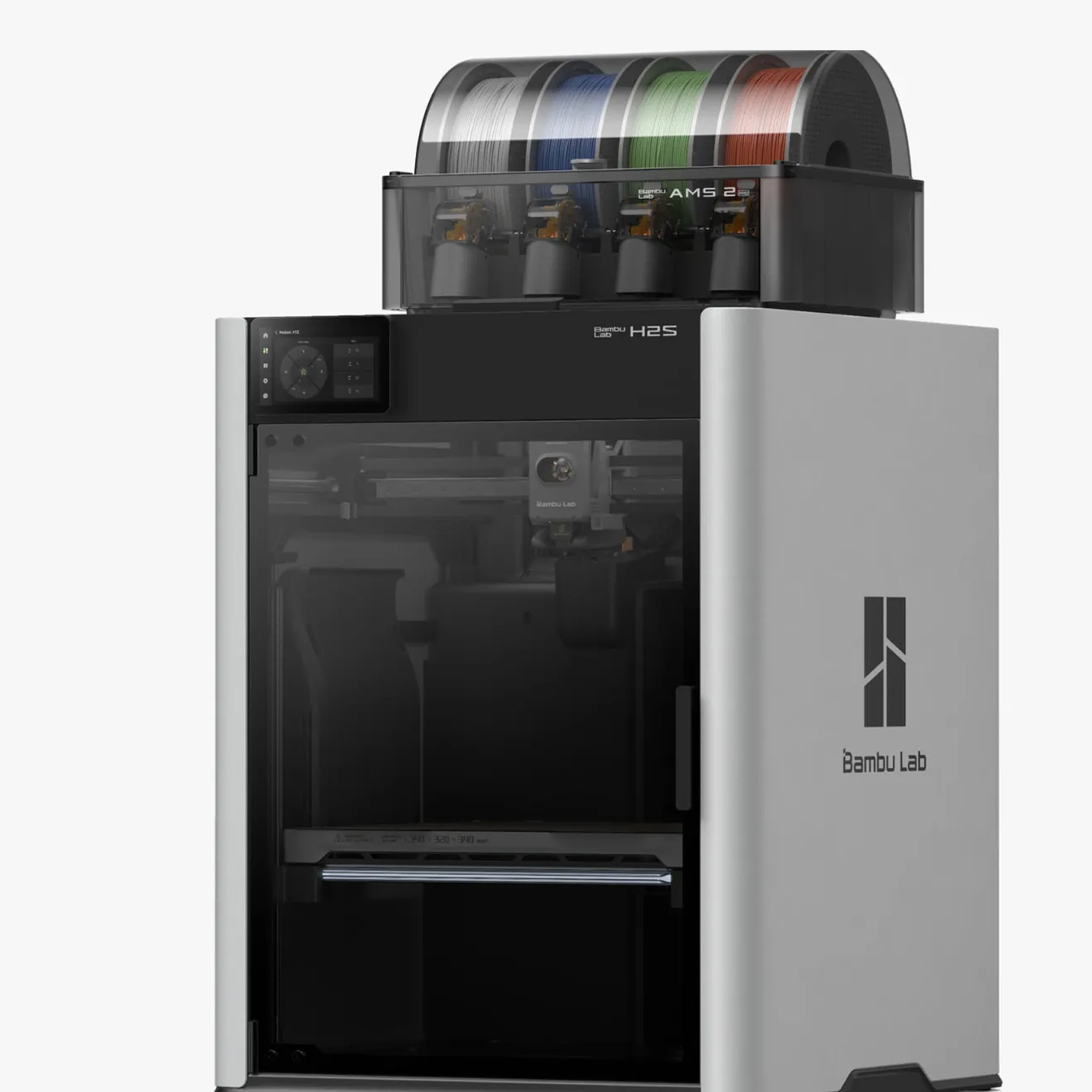

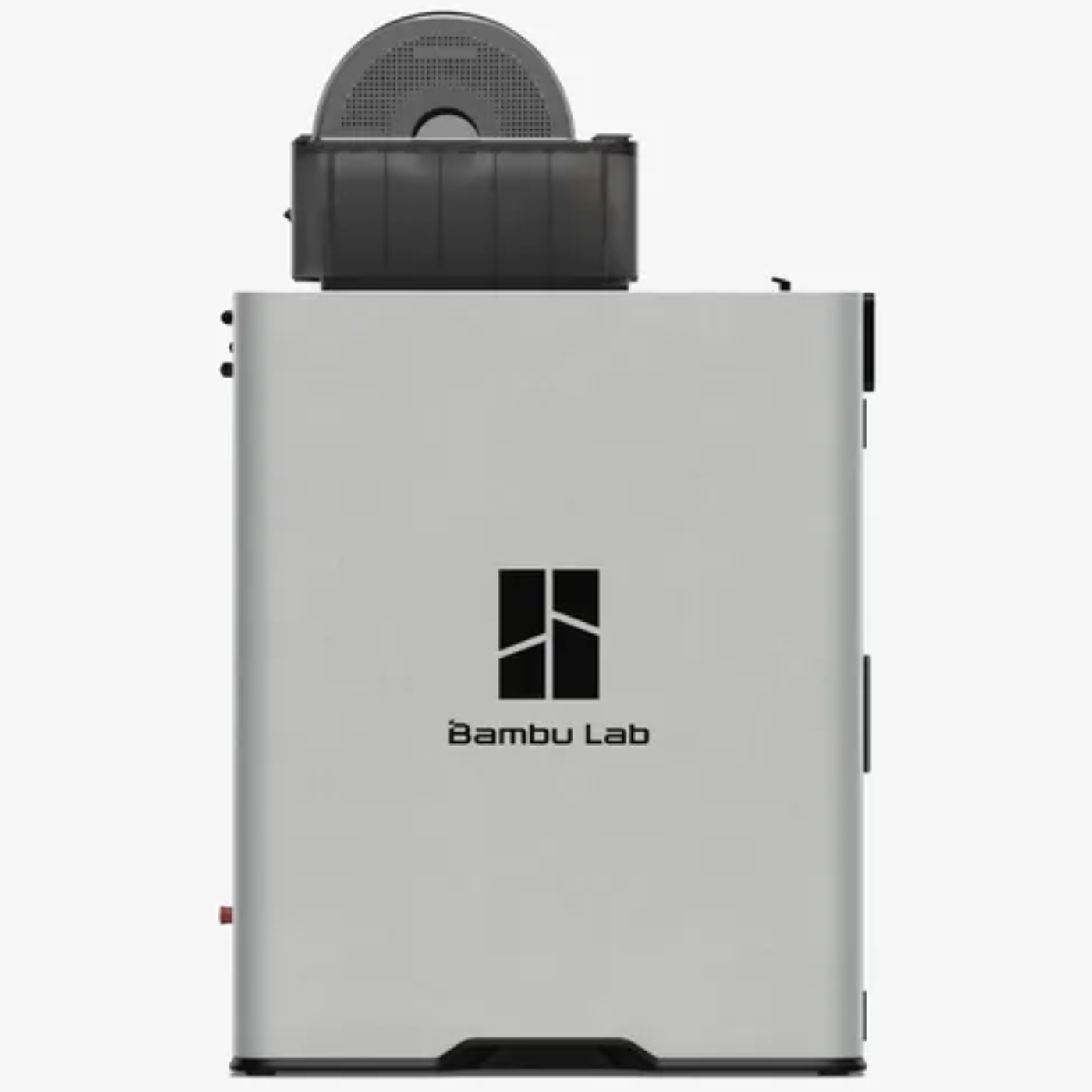

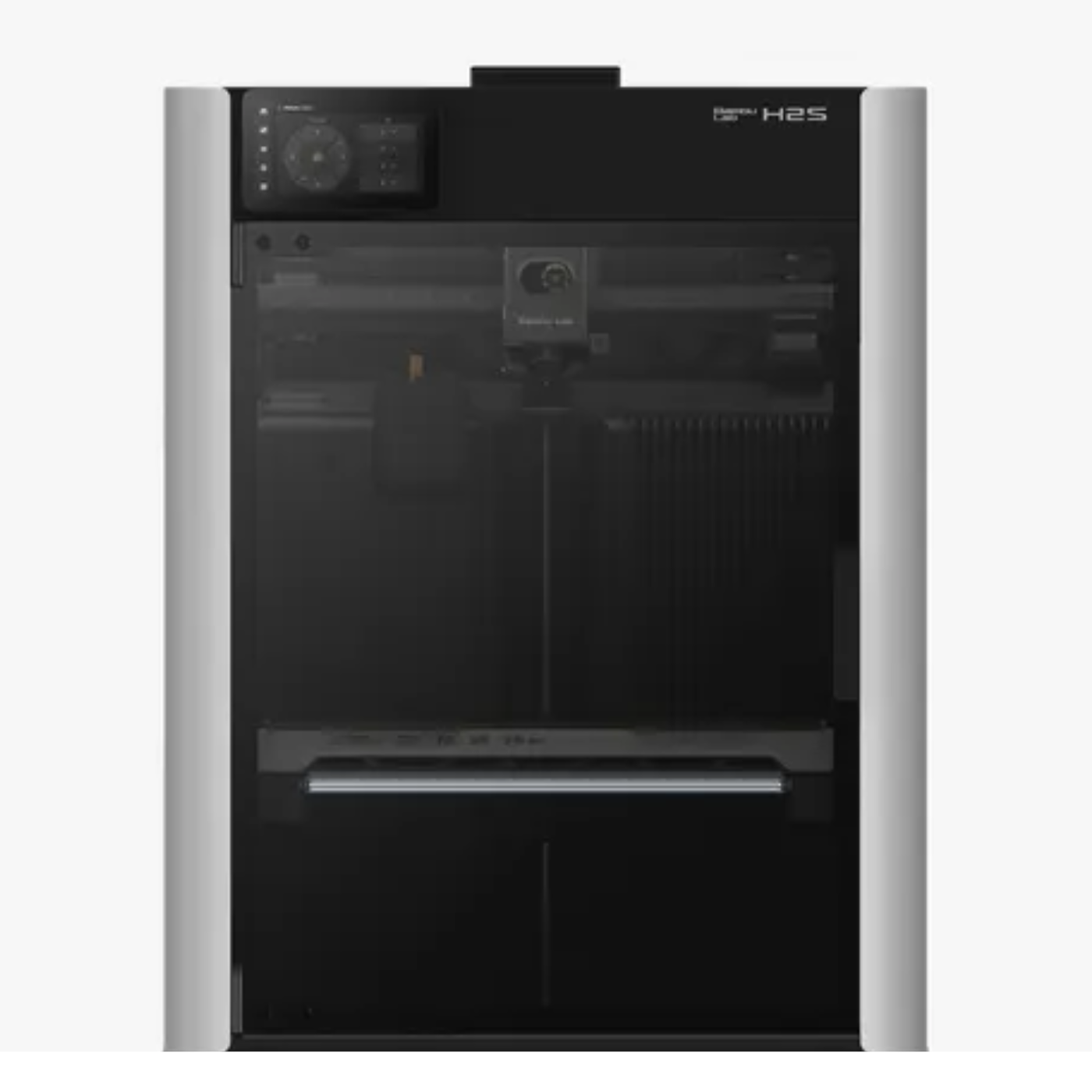

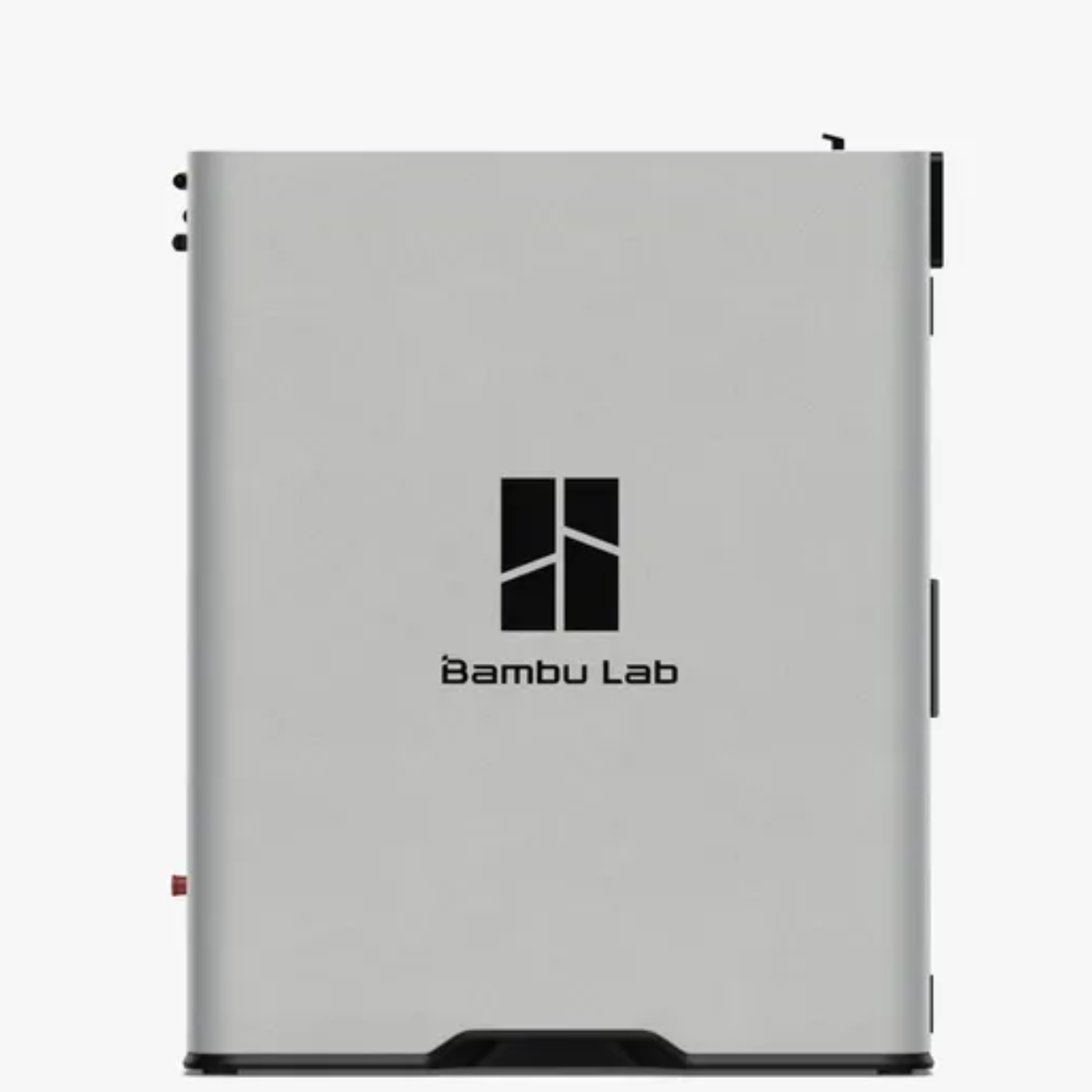

Bambu Lab H2S AMS Combo 3D Printer

The Bambu Lab H2S 3D Printer is a high-performance FDM 3D printer designed for fast, accurate, and reliable printing, making it suitable for professionals, makers, and educational use. It features an advanced high-speed motion system with a sturdy enclosed frame for stable operation, automatic calibration for easy setup, and intelligent filament management for smooth multi-material printing.

With smart connectivity, real-time monitoring, and user-friendly software, the H2S delivers consistent high-quality results while significantly reducing print time and manual effort.

Ready for Engineering Filaments

Equipped with a 350°C hotend and a 65°C actively heated chamber, it accommodates the complete range of Bambu filaments from PLA and PETG to PC and PPA. The H2S features closed-loop fan control and accurate thermal management, which reduces warping and deformation while enhancing layer adhesion. Construct large, high-performance components that are both functional and robust.

Even Surfaces, Crisp Edges

H2S employs the sensing functionality of its servo motor on the extruder along with high-resolution eddy current sensors located on the nozzle to accurately regulate extrusion. This is achieved by measuring the pressure at the nozzle and calibrating the PA parameters for each filament, which enhances surface smoothness and edge sharpness.

Precision in Motion

Active Vibration Compensation effectively mitigates micro-vibrations and resonance instantaneously, facilitating superior print quality at increased speeds.

Closed-Loop Feedback, Real-Time Control

Bambu Lab's exclusive PMSM servo system facilitates a resistance and position sampling rate of 20 kHz, allowing for the dynamic modulation of electromagnetic torque vectors. This system stabilizes the extrusion process and actively identifies grinding or clogs in real time.

Each Potential Risk Has Its Own Detector

Utilizing AI-powered real-time monitoring, the vision system identifies clumping, spaghetti, and purge chute blockages as they occur, thereby assisting in averting print failures before they commence. This identical vision system also facilitates advanced functionalities such as Live Spatial Alignment, which enables accurate calibration of lasers and cutting, as well as Vision Encoder technology that improves positional precision.

Pre-Flight Checklist by AI

Before each operational cycle, the H2S vision system commences a thorough pre-flight checklist: Chamber Integrity Scan – identifies debris on the complete print surface. Hardware Configuration Audit – quickly recognizes build plate characteristics.

3D Printing & Laser Cutting. 3 Modes, All-in-One

The H2S supports multiple operating modes for optimal performance across applications: in high-temperature printing, the sealed chamber circulates internal air through the air filter and heater to maintain stable conditions, enabling large engineering components to be printed without distortion; in low-temperature printing, the top vent opens to allow cool air intake with filtered exhaust, making it ideal for PLA and PETG without opening the door while improving overhangs and bridging; for laser cutting and engraving, the top vent and filter switch flap open to efficiently direct fumes to the ventilation system, ensuring a safe and clean workspace.

Maximum Volume. Maximum Productivity.

With a build volume of 340×320×340 mm³, the H2S offers the largest print space among all Bambu Lab printers. Your Vision. Fully Realized in One Print.

Top Speed. More Reliable Than Ever

The Bambu Lab H2S delivers high-speed, high-quality printing with its PMSM servo extrusion system providing 67% more extrusion force, toolhead speeds up to 1000 mm/s, and acceleration up to 20,000 mm/s² to cut print time by up to 30%. It is a compact, production-ready all-in-one platform with built-in safety features, cloud and offline connectivity, quick-swap nozzles, ultra-quiet operation below 50 dB, a rigid all-metal body, automated air venting, RFID filament sync, and support for cutting, engraving, and drawing.

Features:

• The H2S provides a large print volume of 340 × 320 × 340 mm³, making it suitable for printing big and complex parts.
•  It supports multi-color 3D printing, allowing users to create detailed and visually rich models.
• The closed-loop servo motor extruder ensures precise and consistent filament extrusion.
• An optional 10W laser and cutting module enables laser cutting and engraving on the same machine.
• The 5μm resolution optical motion calibration delivers highly accurate positioning and smooth motion control.
•  A 350°C nozzle combined with a 65°C actively heated chamber supports high-temperature and engineering-grade filaments.
•  The full filament path AI detection system continuously monitors filament flow to prevent print failures.
•  The printer operates within a voltage range of 100–120 V.
• To connect more than one AMS unit, including AMS 2 Pro or AMS HT, a 4-in-1 PTFE adapter (FAZ013-N) is required.
