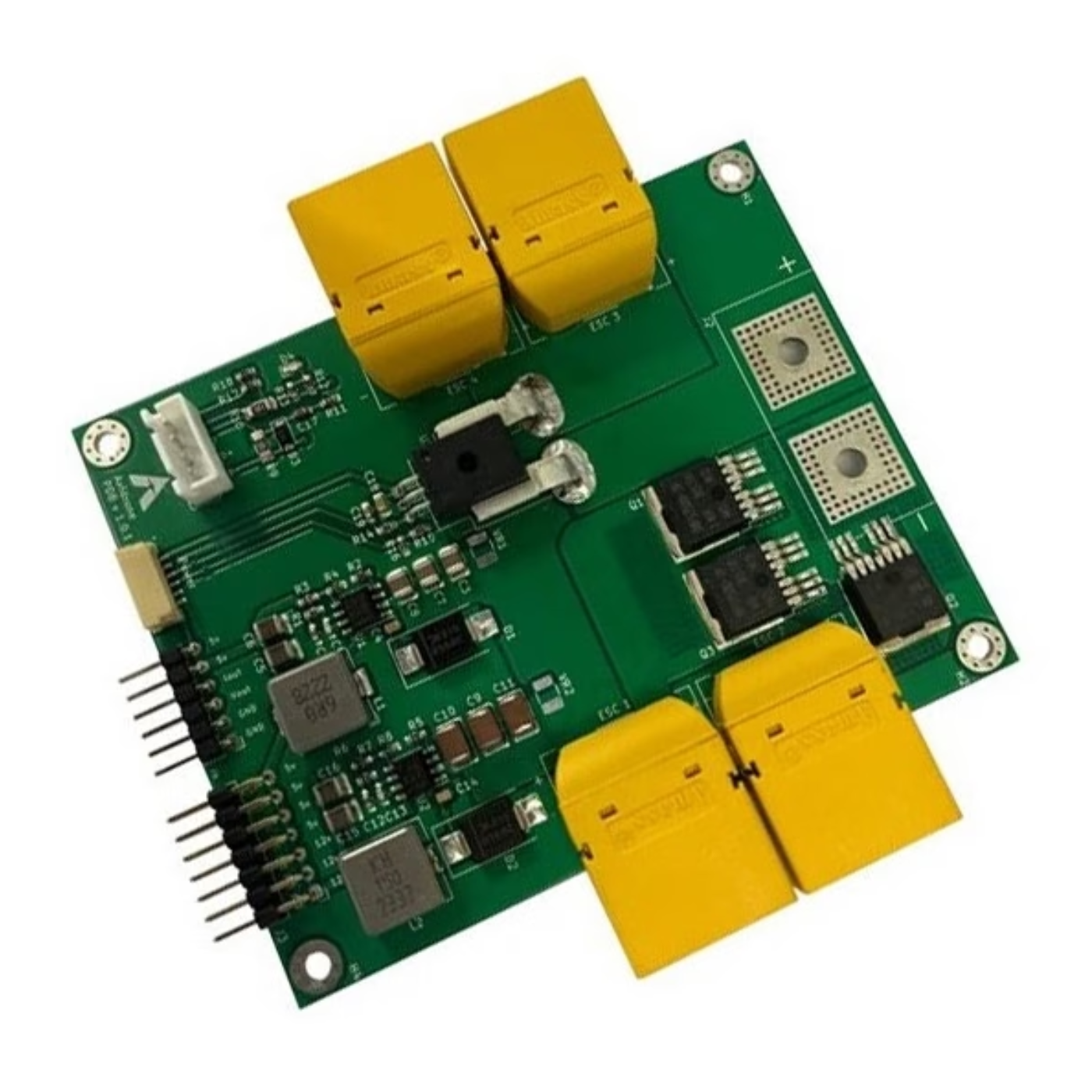

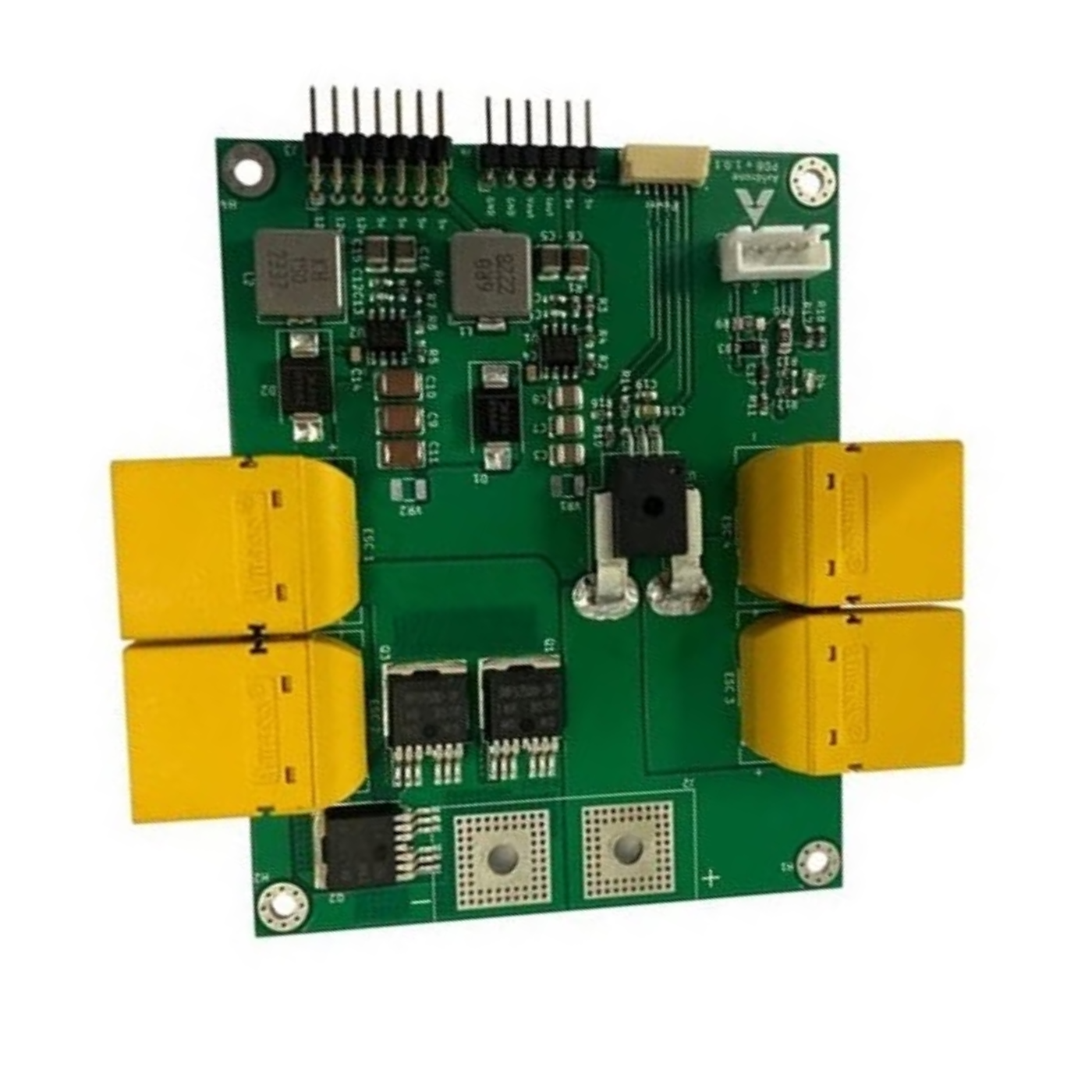

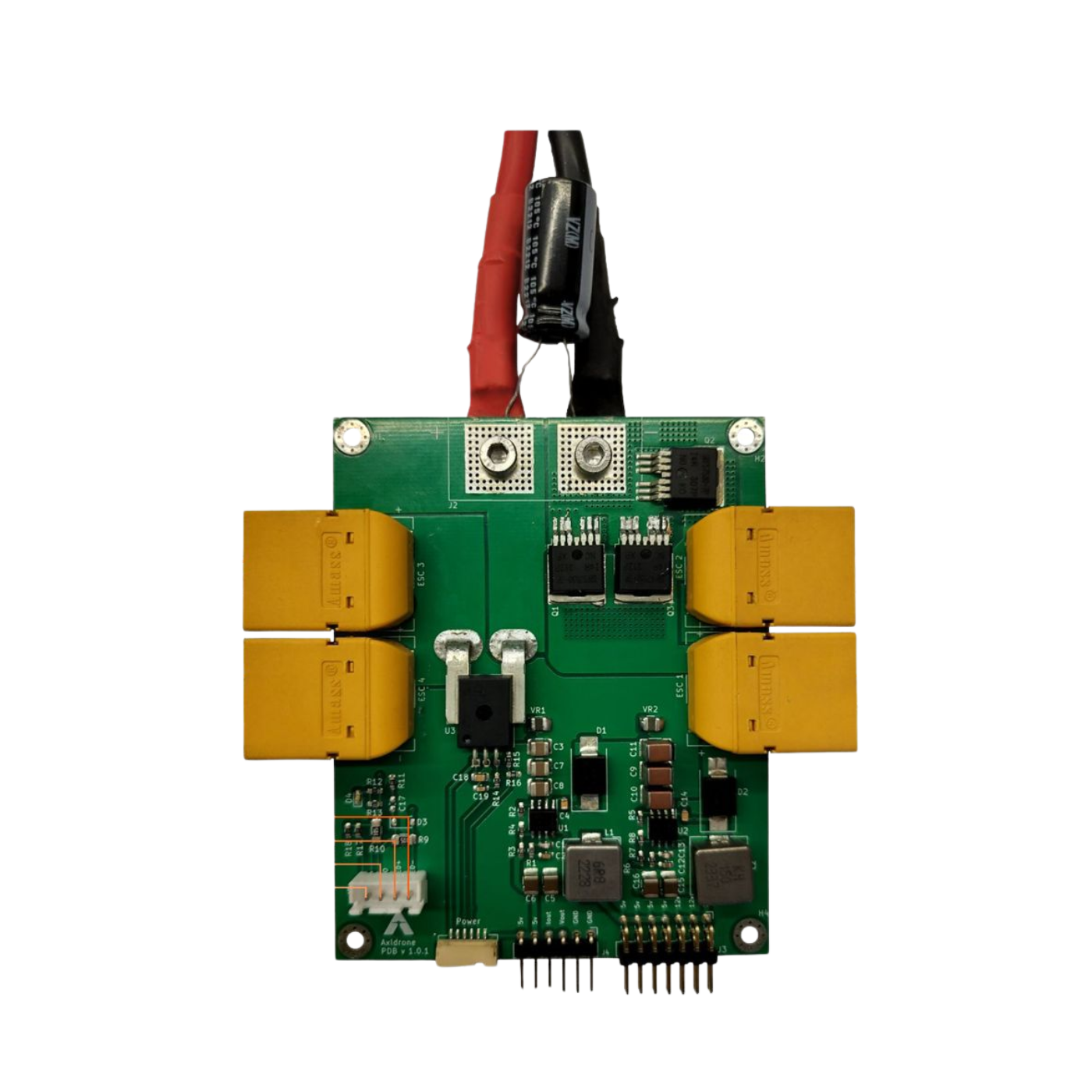

The Axldrone 60V 200A Power Distribution Board (PDB) is designed to deliver efficient and reliable power management for high-power drone systems and other demanding electronic applications. Supporting battery inputs from 15V to 48V, this drone power distribution board features four XT90 connectors to distribute power from the battery to electronic speed controllers (ESCs) and motors, with current handling up to 200A. It also provides regulated 12V and 5V outputs to power compatible electronic components and onboard systems.
The integrated current and voltage sensors allow real-time monitoring of current up to 200A and voltage up to 60V, helping users track power consumption during operation. Whether you're building a multirotor UAV, a heavy-duty drone, or a custom robotics project, the Axldrone 60V 200A PDB offers a practical solution for high-current power distribution and electrical system monitoring.
| Specification | Details |
|---|---|
| Item Type | Power Distribution Board |
| Connector Type | XT90, SM06B, Header Pin |
| Input Voltage | 60V |
| Maximum Current | 200A |
| Current Sensor | 200A Maximum Current Sensor |
| Power Output | 12V, 5V |
| Switch Type | MOSFET Switch |
| Current Sensor Input | ACS770 |
| Battery Support | Up to 14S |
| Length | 105 mm |
| Width | 105 mm |
