ARM-JTAG-20-10 Plug-in Adapter for JTAG 20-Pin to 10-Pin with 20 cm Cable - 7Semi - Buy Online in India

ARM-JTAG-20-10 Plug-in Adapter for JTAG 20-Pin to 10-Pin with 20 cm Cable - 7Semi

Rs. 464
Rs. 599
Rs. 464
Save Rs. 135
(-23%)
Incl. GST (No Hidden Charges) Found a better price?
Please hurry! Only 6 left in stock
SKU: TIFAC0200
  • Converts 20-pin (0.1") JTAG to 10-pin (0.05") JTAG interface.
  • Ideal for ARM microcontrollers with small 10-pin connectors.
  • Compatible with ARM-USB-OCD, ARM-USB-TINY, and Segger JLINK.
  • Follows official ARM JTAG layout for maximum compatibility.
  • Includes 20 cm ribbon cable (0.05" pitch).
  • Compact size: 25mm x 25mm.
BEST COUPON
RC100
COPY CODE
When you shop for ₹ 2,500 required. Applicable at Checkout.
*Coupons are not applicable on Original Boards and Kits

Free shipping on Orders Above Rs 499/-

Technical Support & Easy Returns

Same Day Shipping

Earn RC Coins on Every Purchase

Cash on Delivery Available

Robocraze Academy Limited Time Offer

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here
Enter the Captcha
Reload
Robocraze Academy Limited Time Offer
ARM-JTAG-20-10 Plug-in Adapter for JTAG 20-Pin to 10-Pin with 20 cm Cable - 7Semi
ARM-JTAG-20-10 Plug-in Adapter for JTAG 20-Pin to 10-Pin with 20 cm Cable - 7Semi
Rs. 599 Rs. 464
ARM-JTAG-20-10 Plug-in Adapter for JTAG 20-Pin to 10-Pin with 20 cm Cable - 7Semi
ARM-JTAG-20-10 Plug-in Adapter for JTAG 20-Pin to 10-Pin with 20 cm Cable - 7Semi
ARM-JTAG-20-10 Plug-in Adapter for JTAG 20-Pin to 10-Pin with 20 cm Cable - 7Semi
ARM-JTAG-20-10 Plug-in Adapter for JTAG 20-Pin to 10-Pin with 20 cm Cable - 7Semi

ARM-JTAG-20-10 Plug-in Adapter for JTAG 20-Pin to 10-Pin with 20 cm Cable - 7Semi

Rs. 599 Rs. 464
Description

ARM-JTAG-20-10 Plug-in Adapter for JTAG 20-Pin to 10-Pin with 20 cm Cable - 7Semi

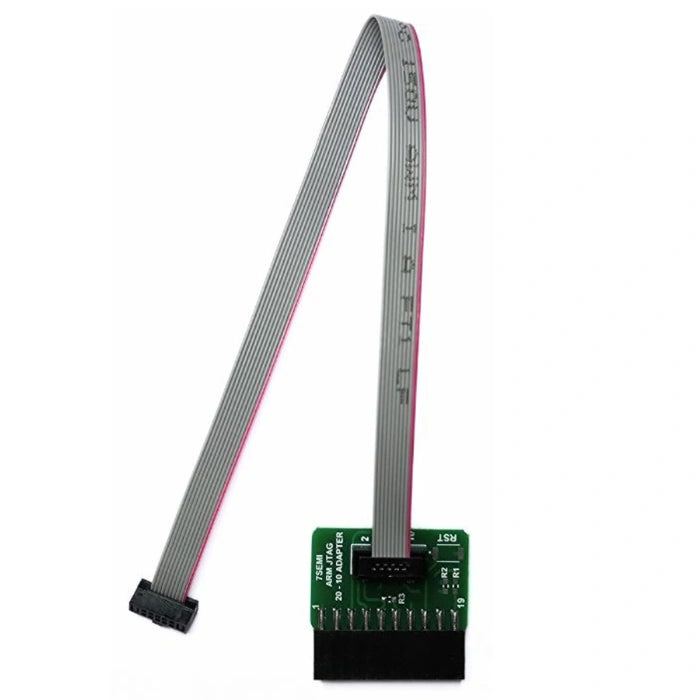

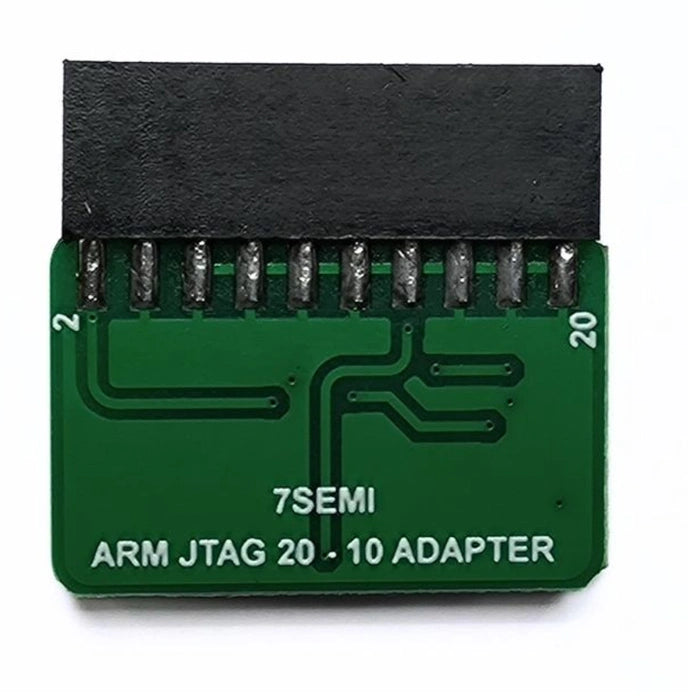

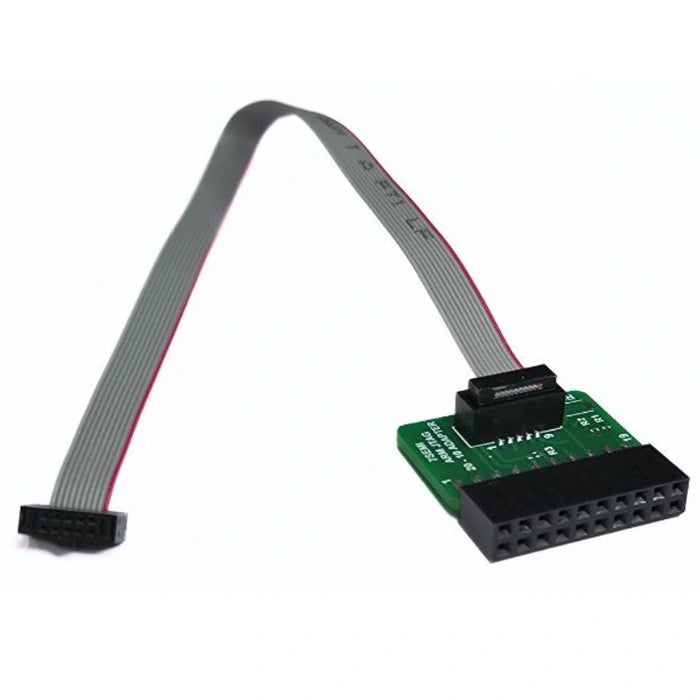

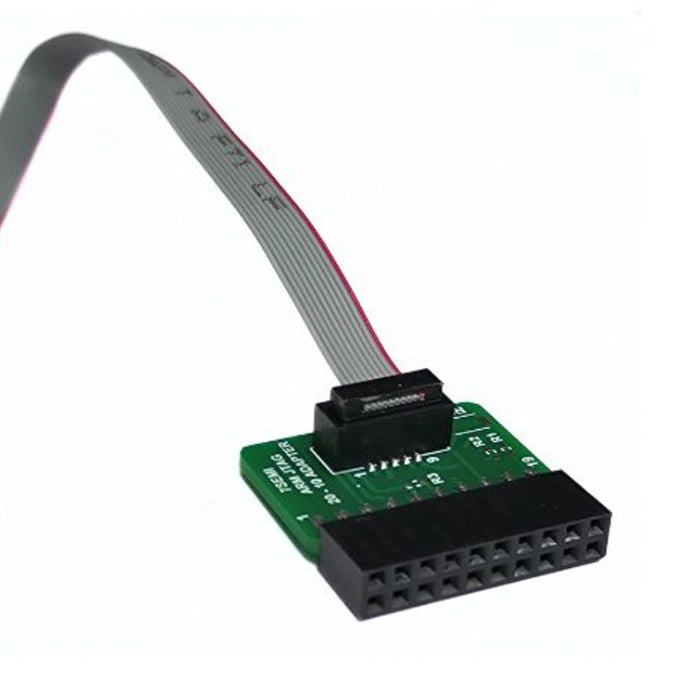

The 7Semi ARM-JTAG-20-10 Plug-in Adapter simplifies ARM microcontroller programming and debugging by converting the standard 20-pin JTAG (0.1") interface to a compact 10-pin (0.05") layout. Ideal for development boards with smaller connectors, this adapter ensures compatibility with a wide range of JTAG and SWD programmers/debuggers including ARM-USB-OCD, ARM-USB-TINY, and Segger JLINK.

Following the official ARM JTAG standard pinout, this adapter guarantees reliable signal integrity and consistent operation across various platforms. With a compact size of 25x25 mm and a 20 cm ribbon cable, it offers flexibility for use in tight spaces or densely packed boards. Whether you're a developer working on embedded systems or a hobbyist working with constrained hardware, this adapter delivers convenience and compatibility in a robust form factor.

Features:

  • Interface Conversion: Enables smooth adaptation from larger 20-pin headers to smaller 10-pin headers.
  • Wide Compatibility: Works with a variety of ARM JTAG/SWD debuggers and programmers.
  • Official Standard Layout: Designed following the ARM standard JTAG pinout.
  • Compact and Durable: Small 25mm x 25mm footprint for ease of use in tight spaces.
  • Flexible Connectivity: Comes with a 20 cm, 0.05" pitch ribbon cable for versatile installation.
Specifications

Package Includes:

  • 1 x 7Semi ARM-JTAG-20-10 Plug-in Adapter

Specifications:

Specification Details
Brand 7Semi
Input Connector 20-pin (0.1" pitch) JTAG
Output Connector 10-pin (0.05" pitch) JTAG
Compatibility ARM-USB-OCD, ARM-USB-TINY, Segger JLINK, and other JTAG/SWD programmers
Standard Follows official ARM JTAG layout
Dimensions (LxWxH) 2.7 x 2.5 x 0.5 cm
Weight 9 gm
Cable Length 20 cm (0.05" pitch ribbon cable)
