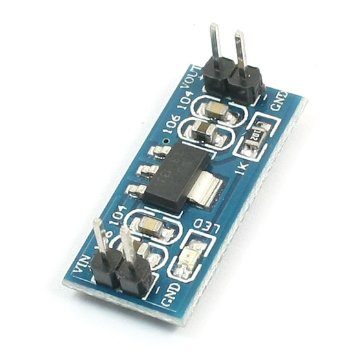

AMS1117 3.3V Power Supply Module
AMS1117 3.3V Power Supply Module
Regular price
Rs. 14
Regular price
Rs. 30
Sale price
Rs. 14
Unit price
per
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Product will be SHIPPED TODAY, if ordered within 10 hours and 50 minutes.
Couldn't load pickup availability
BEST COUPON FOR YOU
FLAT ₹ 100/- OFF
RC100
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- This is AMS1117 3.3V Power Supply Module
- Onboard AMS1117 chip for voltage regulation
- Onboard power indicator with a red LED to indicate power is on
- Output voltage interface for easy connection in experiments

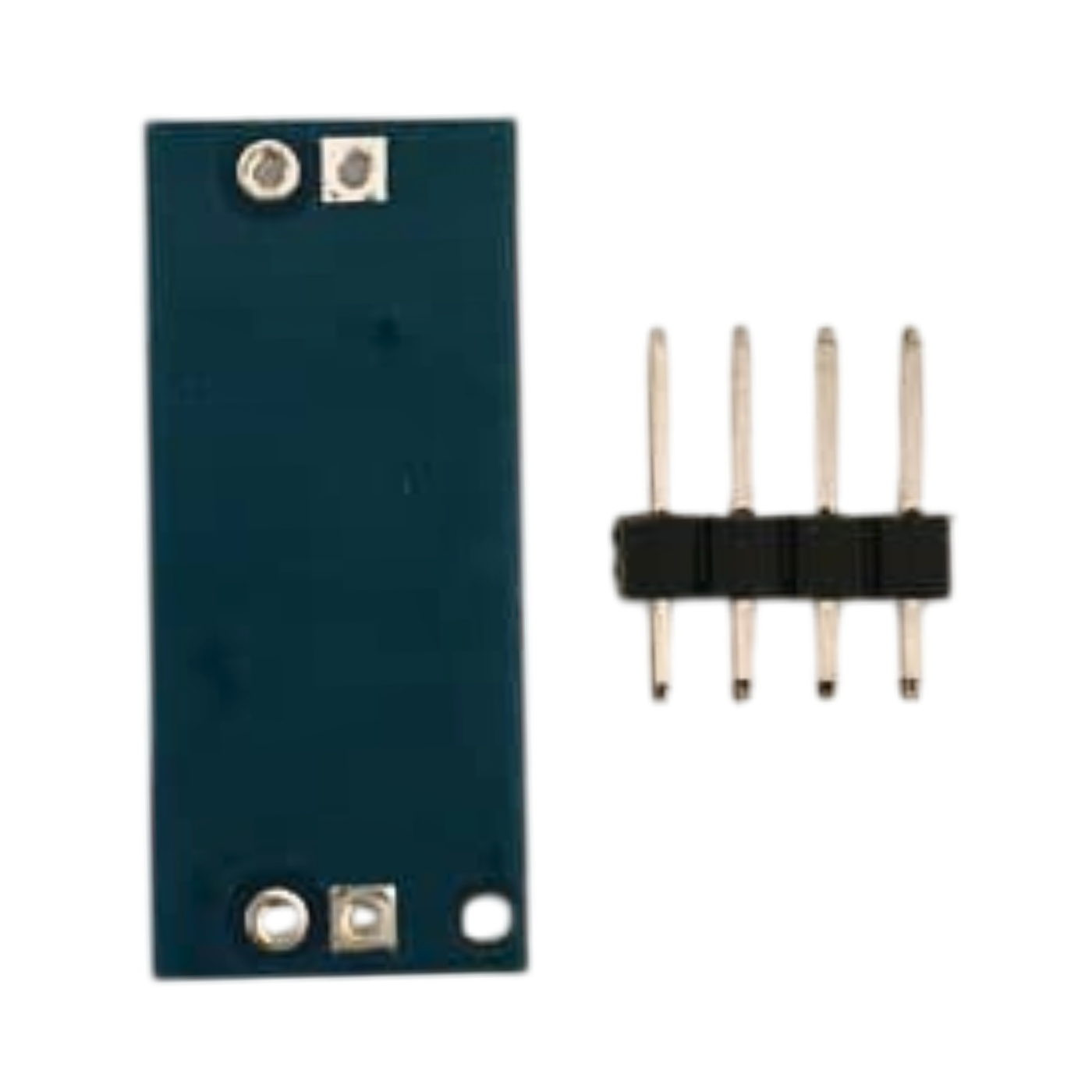

- Specially designed two-pin mounting holes for easy fixing on the expansion board
- Small and compact size with a 4Pin Type and breadboard-friendly design
- Dual-panel design with a nice layout for easy use in SCM project designs and power management for computer motherboards, graphic cards, LCD monitors, and LCD TVs.
AMS1117 3.3V Power Supply Module
The AMS1117 3.3V Power Supply Module is convenient to use voltage regulator with high safety performance and multiple power expansion interfaces. The module is suitable for electronic devices such as SCM project design that needs a 3.3V power supply. It is a simple Dual-panel design and the Input-output uses the 2 Pin single row pin for easy connection.

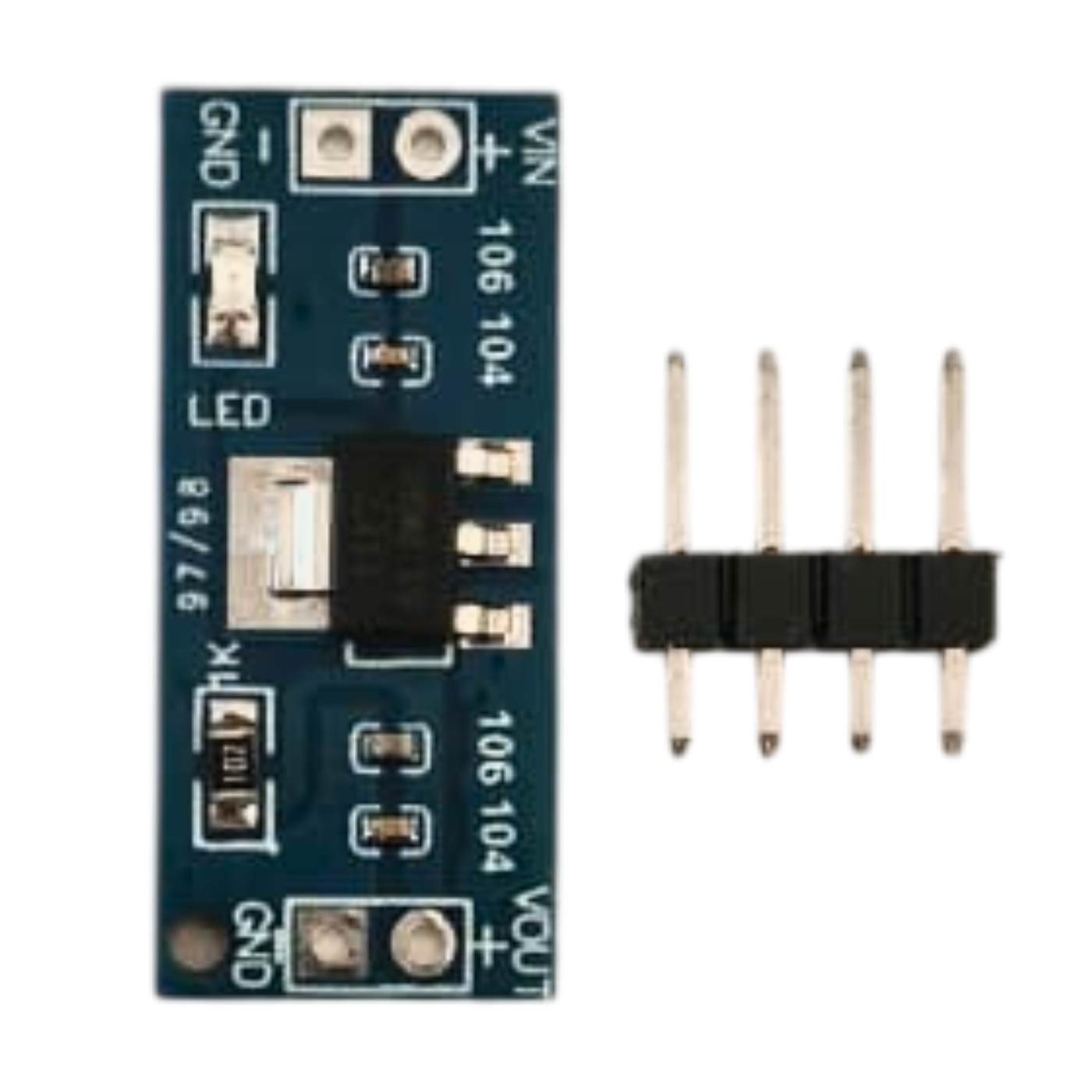

This power supply module features an Onboard AMS1117 chip, and an Onboard power indicator to indicate power is turned on (Red LED). Specially designed two-pin mounting holes can be directly fixed on the whole expansion board for experiments.
Features
- Onboard AMS1117 chip.
- Onboard power indicator to indicate power is turned on: Red LED.
- Output voltage interface, connection to facilitate the experimental.
- Specially designed two pin mounting holes, can be directly fixed on the whole expansion board for experiments.
- Small Compact Size, 4Pin Type, Breadboard Friendly.
- 2P single row pin input and output for easy connection
- Dual-panel design, the layout is nice
Applications:
- Power Management for Computer Mother Board, Graphic Card.
- Power Management for LCD Monitor and LCD TV.
Package Includes:
- 1 x AMS1117 3.3V Power Supply Module
Specifications:
| Power Supply | 3.3V - 800mA |
| Model | AMS1117 |
| Dimensions | 3 x 2 x 1cms |
| Weight | 5 grams |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
People Also Buy
AMS1117 5V Step-Down Power Supply Module
Regular price
Rs. 18
Regular price
Rs. 29
Sale price
Rs. 18
Unit price
per
Incl. GST (No Hidden Charges)
Sale
220V 5000W SCR Voltage Regulator
Regular price
Rs. 370
Regular price
Rs. 499
Sale price
Rs. 370
Unit price
per
Incl. GST (No Hidden Charges)
Sale
18650 12V 10A Lithium Protection Board
Regular price
Rs. 63
Regular price
Rs. 79
Sale price
Rs. 63
Unit price
per
Incl. GST (No Hidden Charges)
Sale
Found a better price?
Let us know!
We'll try to match the price for you
1. What is AMS1117 3.3 V?
The AMS1117 3.3V is a voltage regulator with low dropout, specifically created to furnish a steady 3.3V output voltage. It has the ability to regulate an extensive spectrum of input voltage, commonly ranging from 4V to 15V. This voltage regulator series, known as the AMS1117, can deliver a maximum output current of 1A, while also exhibiting a notably low standby current. It is frequently employed in electronic circuits to establish a reliable voltage source for microcontrollers, sensors, and other elements that necessitate an unvarying voltage supply.
2. What is the function of AMS1117?
The AMS1117 is classified as a linear voltage regulator that serves to regulate voltage flow from the input to the output of a circuit. It is capable of providing a maximum output current of 1A and can function as either an adjustable or fixed voltage regulator. This regulator is composed of three pins, with the output voltage being adjustable or configurable through one of the pins. Operating as a low dropout three-terminal regulator, the AMS1117 has a dropout of 1.3V at 1A load current and boasts an extremely low standby current of 2mA.
3. What is the use of AMS1117?
The AMS1117 is a linear voltage regulator utilized in electronic circuits to manage voltage flow from the input to the output of the circuit. This device is obtainable in a 3-pin format and offers both variable/adjustable and fixed voltage options. Comparable to the LM317, the AMS1117 can be implemented in equivalent circuits and is frequently employed in battery charging applications. In particular, it functions as a fixed 3.3V surface mount voltage regulator that has the capability to supply a current output of up to 1A.
