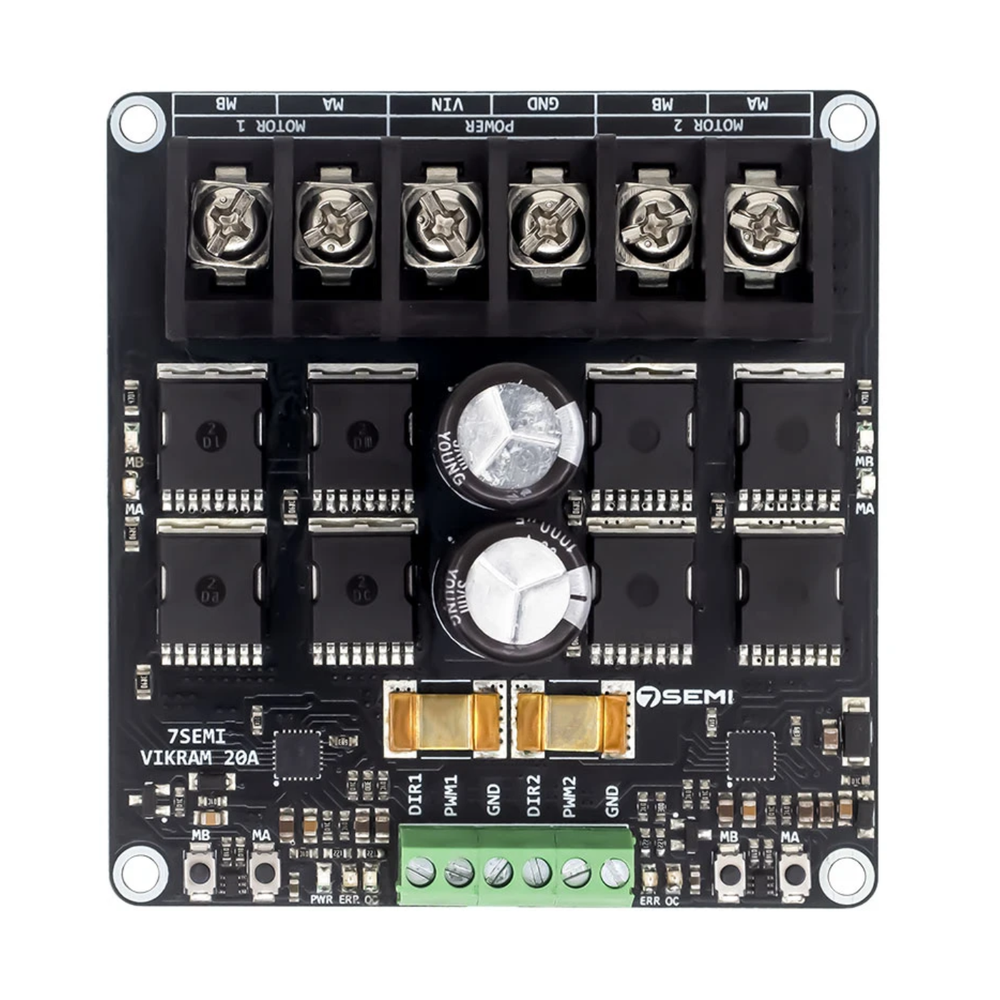

The 7Semi Vikram 3020D 7V-32V 20A Dual-Channel Brushed DC Motor Driver is a high-current dual-channel DC motor driver designed to control two brushed DC motors independently. With a wide 7V to 32V operating voltage range and support for up to 20A current, it can handle a variety of high-power motor applications.
Each motor channel features dedicated direction and PWM control, allowing precise control over motor speed and rotation. This makes the module a practical choice for differential-drive robots, AGVs, robotic vehicles, automated machinery, industrial actuators, and motion-control systems.
Its dual-channel design simplifies the control of two motors from a single motor driver module, making it suitable for robotics, automation, and other projects that require reliable and flexible brushed DC motor control.
| Specification | Details |
|---|---|
| Product Category | Dual-Channel Motor Driver |
| Operating Supply Voltage (VIN) | 7V to 32V DC |
| Continuous Current Rating | 20A per channel |
| Peak Current Rating | 80A per channel, must not exceed 1 second |
| Maximum PWM Frequency | 20 kHz |
| Thermal Shutdown Limit | 120°C |
| Control per Channel | Direction and PWM |
| Logic Input Voltage | 3.3V & 5V DC |
| Dimensions | 74 × 71 × 26.34 mm |
