7Semi Vikram 3020 20A 7V-32V DC Single Channel Motor Driver -Motors & Mechanical -Motor Driver -Robocraze

7Semi FREE SHIPPING BEST PRICE GUARANTEED

7Semi Vikram 3020 20A 7V-32V DC Single Channel Motor Driver - Buy Online in India

Name: 7Semi Vikram 3020 20A 7V-32V DC Single Channel Motor Driver
Brand: Robocraze
SKU: TIFMC0343
Price: 1367 INR
Availability: InStock

7Semi Vikram 3020 20A 7V-32V DC Single Channel Motor Driver

Rs 1,367/-

- 23%

Rs 1,367/-

~~Rs 1,765/-~~

Save Rs 398/-

🪙

RC REWARDS Earn 13 RC Coins on this order

Incl. GST (No Hidden Charges)

Please hurry! Only 2 left in stock

Quantity:

Free Delivery Above ₹999

Technical Support & Easy Returns

Same-Day Shipping (Order by 3 PM on Business Days)

Earn RC Coins on Every Prepaid Order

COD Available on Order Value Between ₹500 to ₹3,000

SKU: TIFMC0343

7Semi Vikram 3020 supports up to 20A output for driving a single brushed DC motor.
Operates with a 7V–32V DC motor supply, suitable for a variety of motor-control applications.
Independently controls one brushed DC motor with dedicated direction and PWM control.
PWM input enables smooth and adjustable DC motor speed control.
Supports forward and reverse motor rotation for flexible motion-control projects.
Ideal for differential-drive robots, AGVs, industrial actuators, and other high-current motor applications.

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here

First Name *

Last Name *

Email *

Phone *

+91

Company / Client

GST *

Materials List

File(s) size limit is 20MB. Max 3 files.

Choose Categories * (select one or more)

Select Categories

STEM Kits Development Boards Electronic Components Drone 3D Printers/Pens Sensors Batteries & Power Supply Tools & Instruments

Enter the Captcha *

Reload Captcha

7Semi Vikram 3020 20A 7V-32V DC Single Channel Motor Driver

~~Rs 1,765/-~~ Rs 1,367/-

Quantity:

7Semi Vikram 3020 20A 7V-32V DC Single Channel Motor Driver

~~Rs 1,765/-~~ Rs 1,367/-

Description
Specifications
Additional Resources
Warranty
Shipping & Return

Description

7Semi Vikram 3020 20A 7V-32V DC Single Channel Motor Driver

The 7Semi Vikram 3020 20A 7V–32V DC Single Channel Motor Driver is a high-current brushed DC motor driver module designed to control a single DC motor reliably in demanding applications. With support for a 7V to 32V DC motor supply and up to 20A current handling, it is suitable for high-power robotics, automated guided vehicles (AGVs), industrial actuators, and other motion-control systems.

The module provides dedicated direction and PWM control, allowing users to easily manage motor rotation and achieve adjustable speed control. Its single-channel design makes it a practical choice for projects requiring independent control of a powerful DC motor, including mobile robots, automation equipment, and custom motor-control systems.

Protection Features:

When an output fault or excessive motor current is detected, Overcurrent Protection (OCP) guards the power stage.
When the supply voltage drops below the necessary operating level, VM Undervoltage Lockout (UVLO) stops unstable motor activity.
When the module hits the 120°C thermal shutdown limit, Thermal Shutdown (TSD) turns off the motor.

Features:

Brushed DC motor driver with a single channel
Individually powers one brushed DC motor.
Forward and backward motor control in both directions
20A constant output current
DC motor power supply range: 7V to 32V
Maximum PWM control frequency of 20 kHz
Discrete H-bridge power stage with high current

Specifications

Package Includes:

1 x Motor driver module (MD-10125)
1 x JST connector cable

Specifications:

Product Category	Single Channel Motor Driver
Continuous Current Rating	20A
Peak Current Rating	60A (must not exceed 1 second)
Maximum PWM Frequency	20 kHz
Thermal Shutdown Limit	120°C

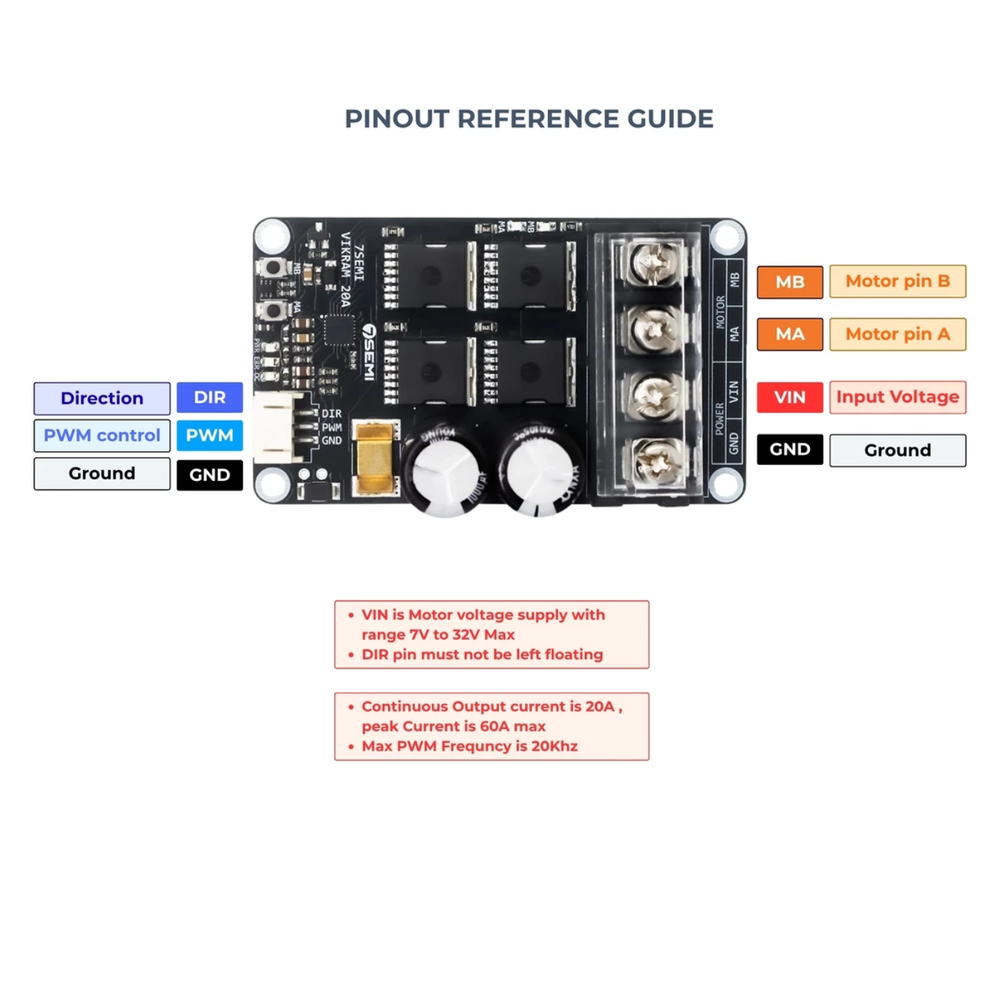

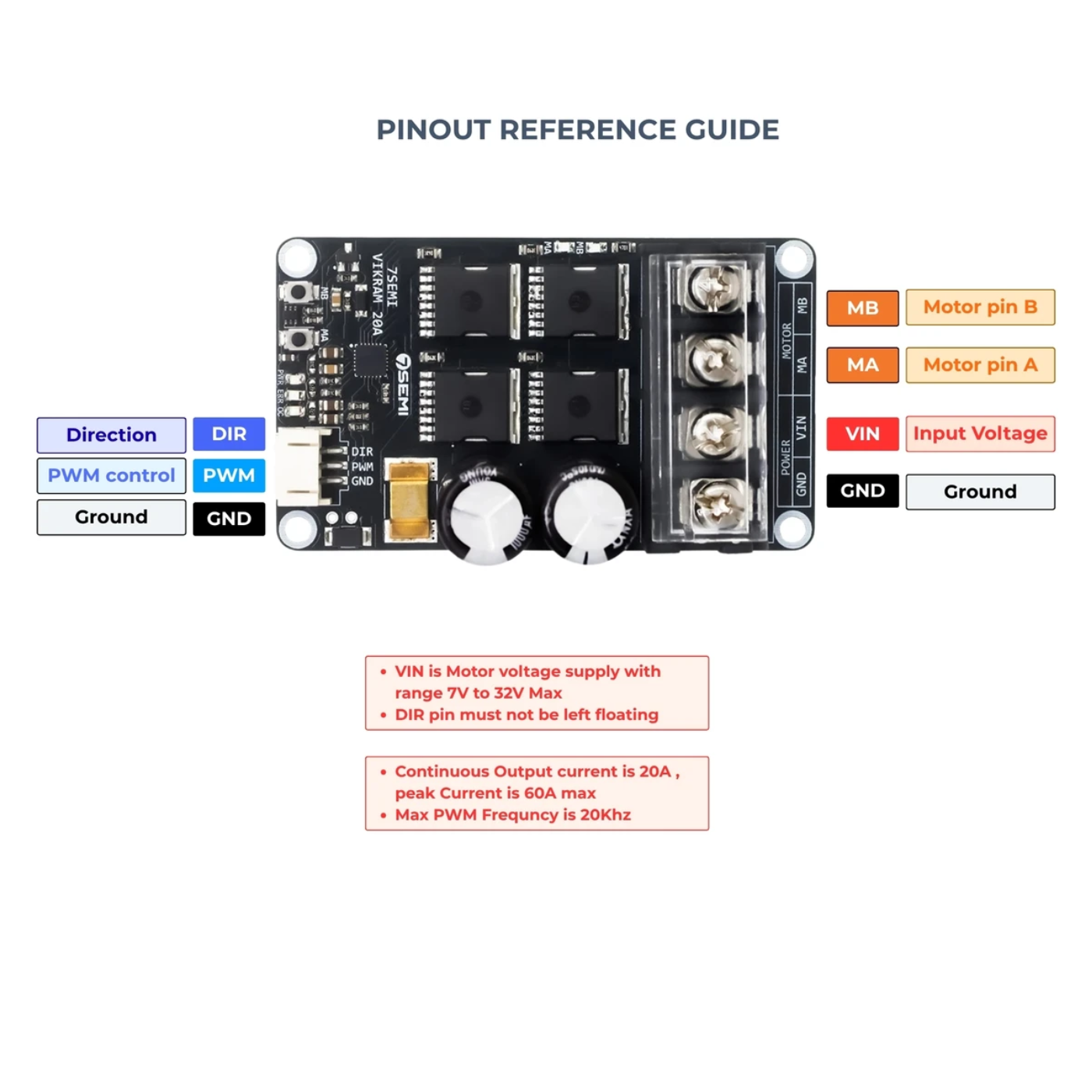

Control per Channel	Direction and PWM
Logic Input	3.3V & 5V DC
Required Supply Voltage	7V to 32V DC

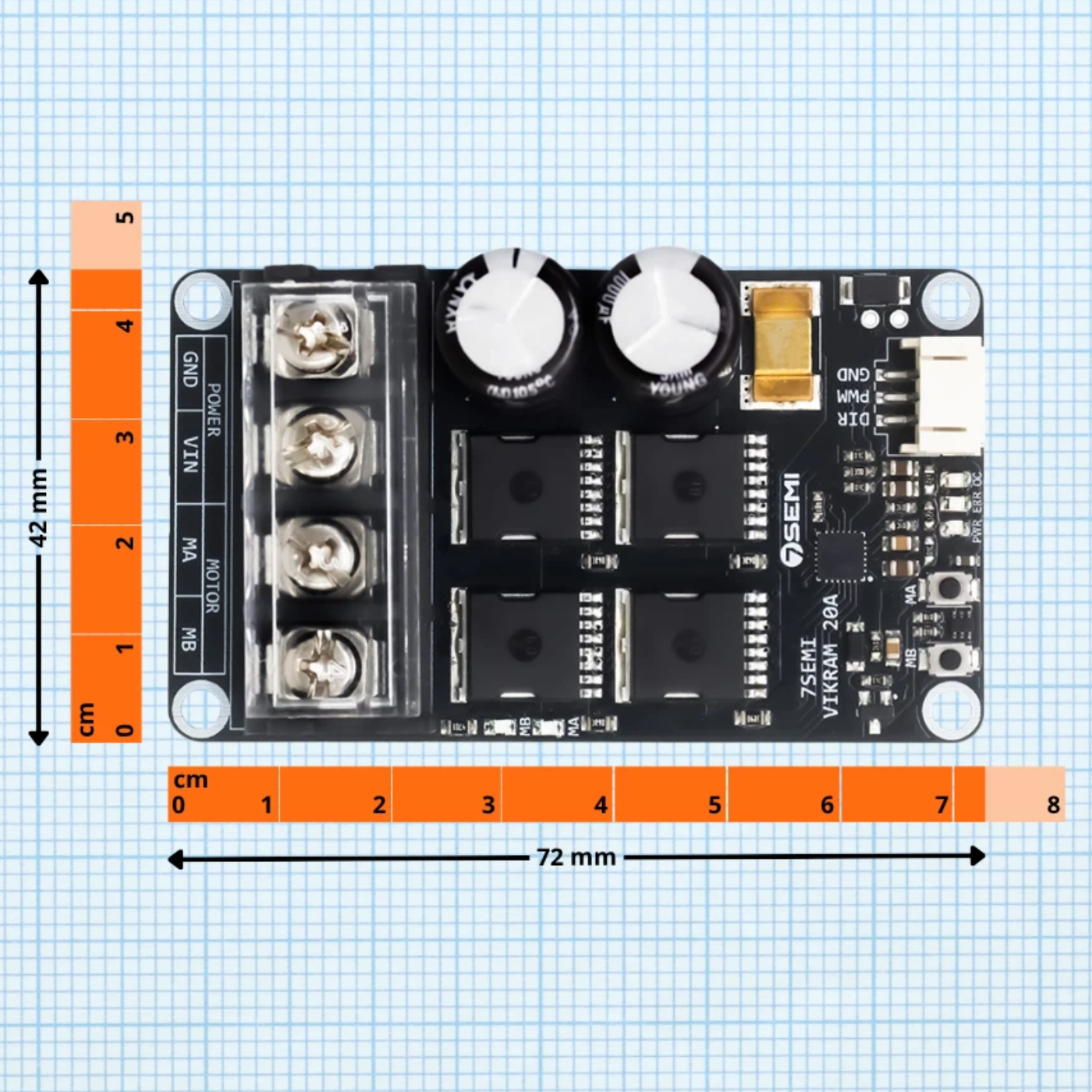

Dimensions	72mm × 42mm × 27.22mm
