Description

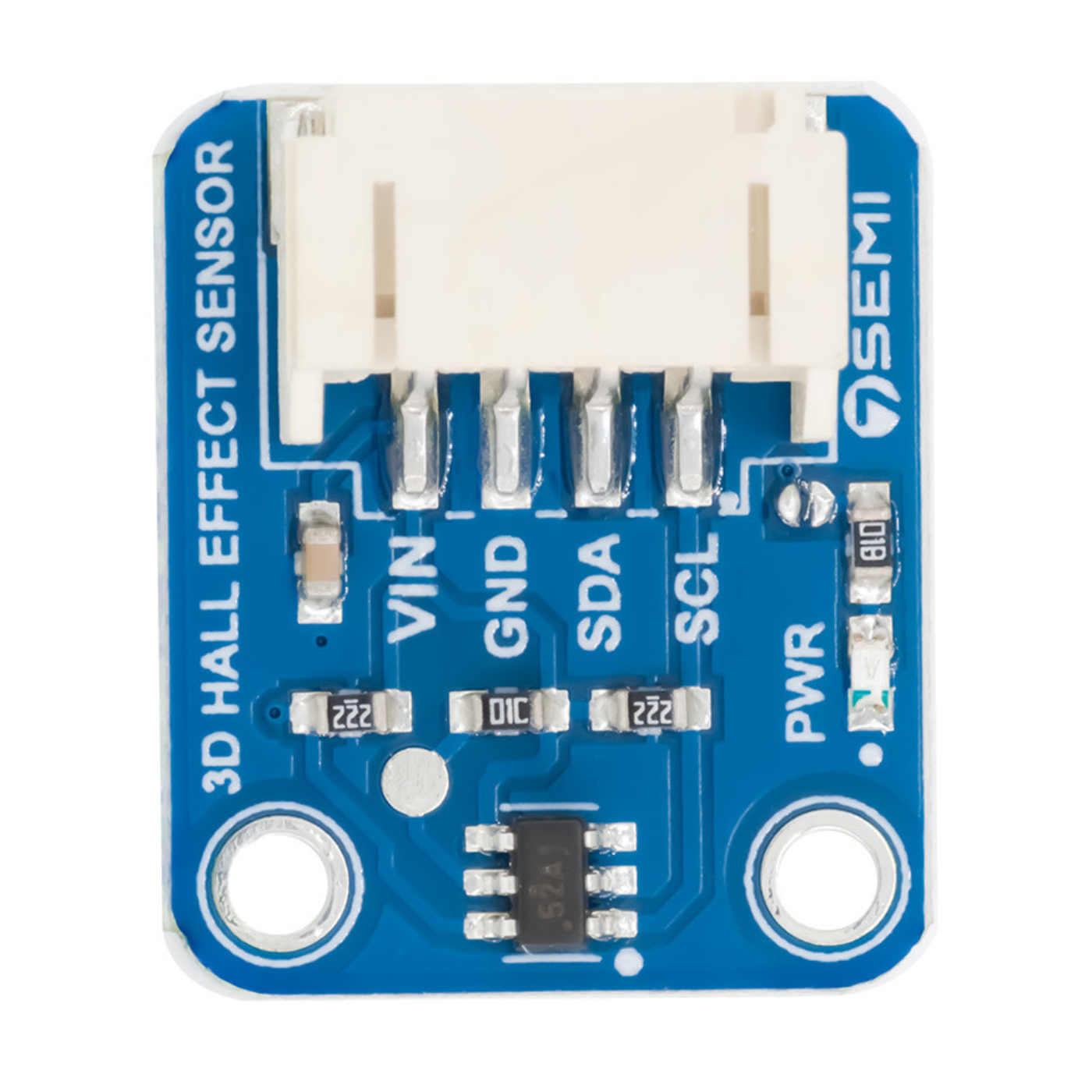

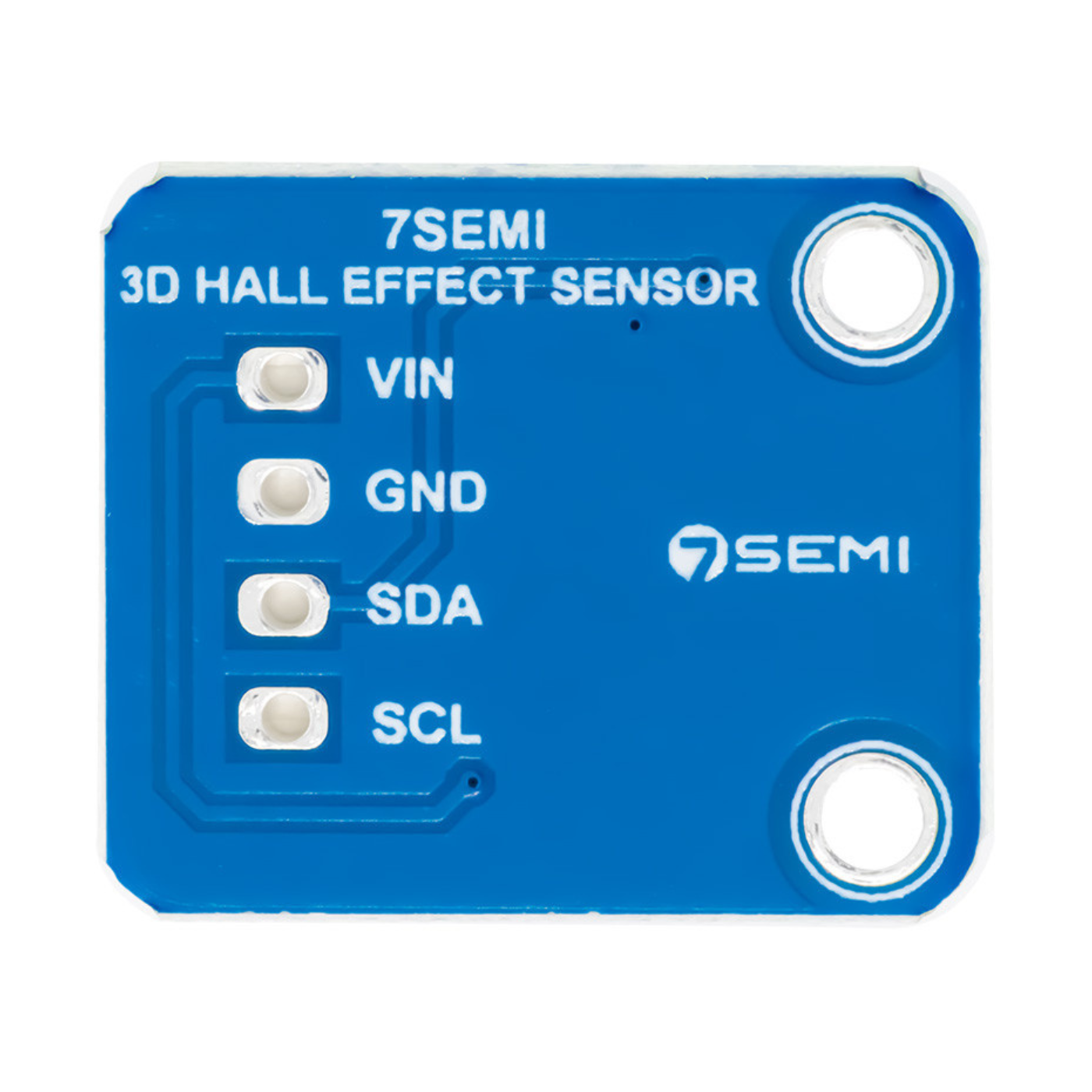

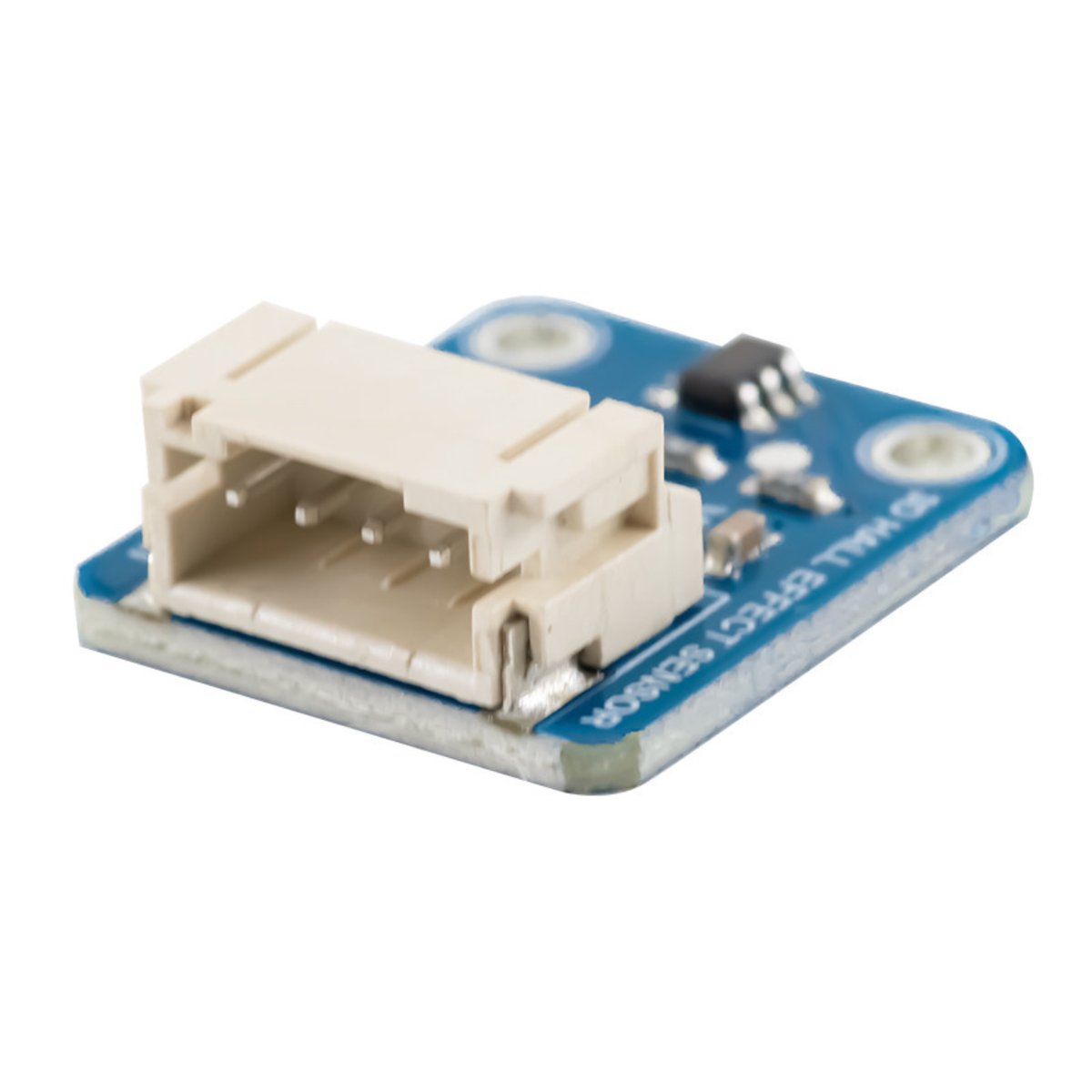

7Semi TMAG5273 4Pin 3D Hall-effect Sensor Breakout Module

The 7Semi TMAG5273 4Pin 3D Hall-effect Sensor Breakout Module is built around the high-performance TMAG5273 3D Hall-effect Sensor from Texas Instruments, designed to measure magnetic fields precisely across the X, Y, and Z axes. It supports a selectable linear magnetic sensing range of ±40 mT or ±80 mT, making it suitable for both low and moderate magnetic field applications.

With an I2C communication interface and a convenient 4-pin JST connector, this module ensures easy integration into embedded systems, robotics, and industrial sensing projects where accurate three-dimensional magnetic field measurement is essential.

Features:

Selectable Magnetic Range at X, Y, or Z axis:

  • TMAG5273x1: ±40mT, ±80mT
  • TMAG5273x2: ±133mT, ±266mT

Precision and efficiency:

  • Interrupt signal based on user-defined magnetic and temperature criteria
  • 5% typical sensitivity drift.
  • Integrated angle CORDIC calculation with gain and offset adjustments.
  • 20kSPS single-axis conversion rate.
  • Configurable averaging of up to 32x for noise reduction.

Improved communication:

  • I2C interface with CRC.
  • Maximum 1-MHz I2C clock speed.
  • Special I2C frame readings for increased throughput.
  • I2C addresses are factory-programmed and can be modified by the user.

Enhanced durability:

  • Integrated temperature correction for different magnet kinds.
  • Built-in temperature sensor
  • Supply voltage: 3.3 volts
  • Operating temperature range: -40C to 125C.
Specifications

Package Includes:

  • 1 x 7Semi TMAG5273 4Pin 3D Hall-effect Sensor Breakout Module

Specifications:

Specification Details
Magnetic Axes X, Y, Z (3-Axis)
Magnetic Range ±40 mT / ±80 mT (Selectable)
Interface I2C
Connector 4-Pin JST
Operating Function Linear 3D magnetic field sensing
