7Semi SHT40I Analog Humidity and Temperature Sensor Breakout - Buy Online in India

7Semi SHT40I Analog Humidity and Temperature Sensor Breakout

Rs 566/-
- 42%
Rs 566/-
Rs 974/-
Save Rs 408/-
🪙
RC REWARDS Earn 5 RC Coins on this order
Incl. GST (No Hidden Charges)
Please hurry! Only 7 left in stock

Why Buy From Robocraze

Free Delivery Above ₹999

Technical Support & Easy Returns

Same-Day Shipping (Order by 3 PM on Business Days)

Earn RC Coins on Every Prepaid Order

COD Available on Order Value Between ₹500 to ₹3,000

SKU: TIFSS0466
  • Compact breakout board based on the Sensirion SHT40I-Analog sensor
  • Measures both humidity and temperature with analog output channels
  • Dedicated HUM and TEM pins for direct ADC interfacing
  • Provides accurate RH/T sensing for embedded electronics projects
  • Ideal for IoT devices, automation systems, and environmental monitoring
  • Easy integration with microcontrollers and development boards
Robocraze Academy Limited Time Offer
7Semi SHT40I Analog Humidity and Temperature Sensor Breakout -Sensors -Temperature Sensor -Robocraze
7Semi SHT40I Analog Humidity and Temperature Sensor Breakout
Rs 974/- Rs 566/-

7Semi SHT40I Analog Humidity and Temperature Sensor Breakout

Rs 974/- Rs 566/-

7Semi SHT40I Analog Humidity and Temperature Sensor Breakout

The 7SEMI SHT40I Analog Humidity and Temperature Sensor Breakout is a compact and reliable sensing module designed for accurate environmental monitoring in embedded systems and IoT applications. Built around Sensirion’s SHT40I-Analog sensor, this breakout board provides two dedicated analog output channels ,HUM for relative humidity measurement and TEM for temperature sensing, allowing direct connection to ADC-enabled microcontrollers and processors.

It's simple analog interface makes it an excellent choice for automation projects, weather monitoring systems, smart devices, and industrial sensing applications where stable and precise RH/T data is required.

Features:

  • Two analog outputs for TEM and HUM
  • Compatible with 5V supplies
  • Excellent precision: ±0.3°C, ±2.5%RH
  • Small-scale PCB design

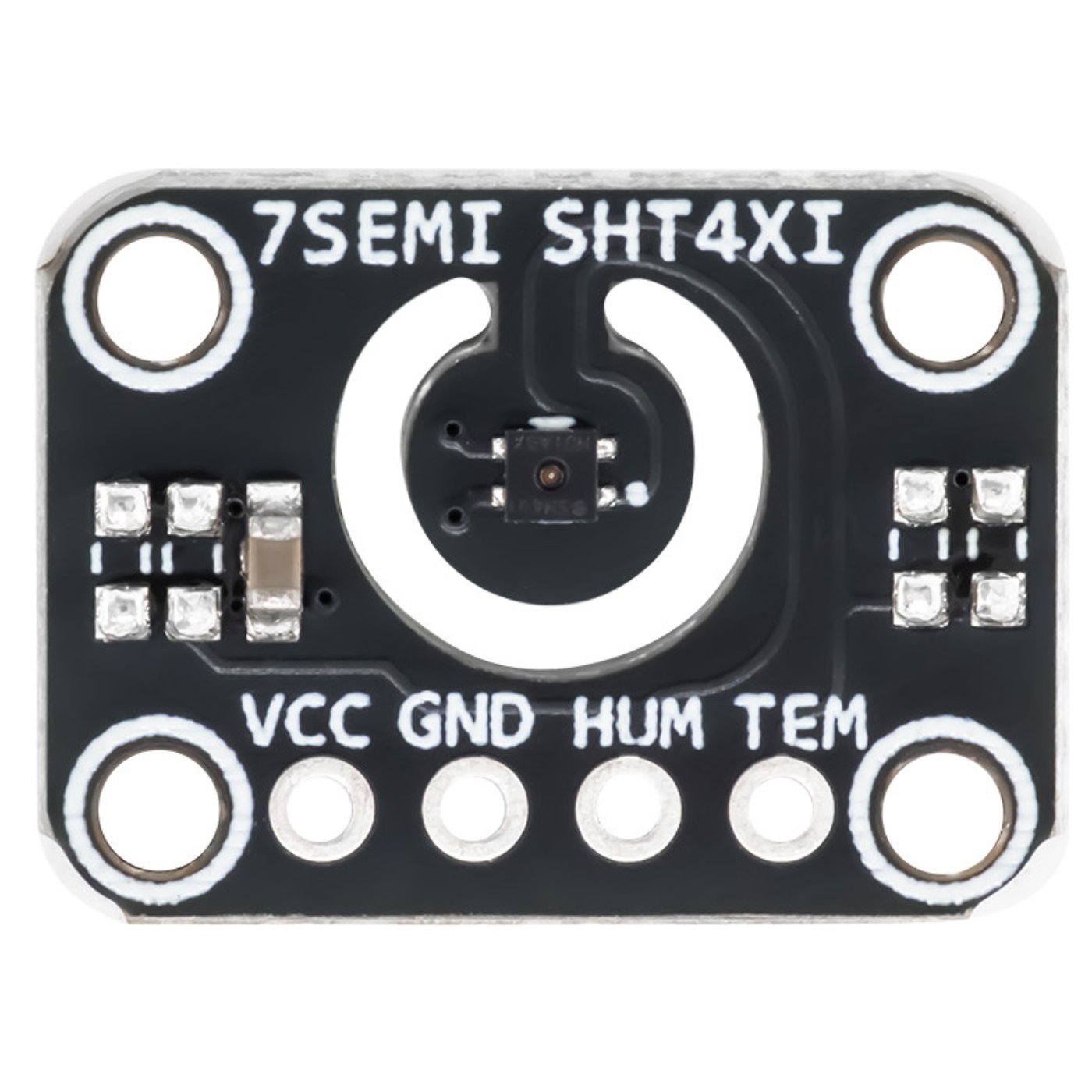

  • 4-pin header: GND, HUM, TEM, and VCC
  • Compatible with Raspberry Pi (with ADC), Arduino, ESP32, and STM32
  • Perfect for IoT nodes, panels, and enclosures

Package Includes:

  • 1 x 7Semi SHT40I Analog Humidity and Temperature Sensor Breakout

Specifications:

Specification Value
Operating Voltage 3.3V
Category Humidity + Temperature Sensor
Recommended Temperature Range -40°C to +125°C
Temperature Accuracy ±0.1°C
Humidity Range 0 to 100% RH
Humidity Accuracy ±1% RH

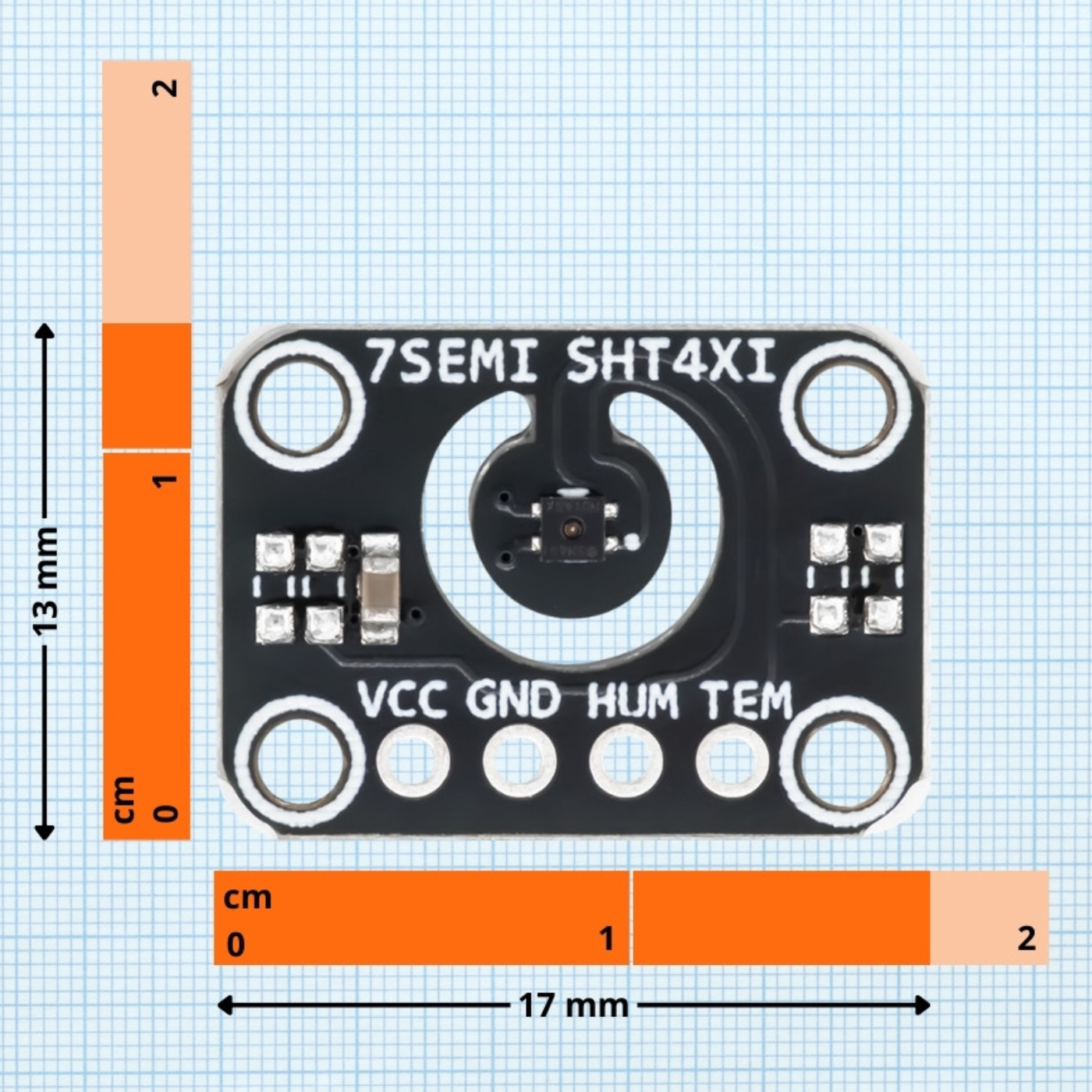

Dimensions 17 × 13 × 2.5 mm

Warranty Coverage:

This product comes with a 6-month manufacturer warranty from the date of purchase, covering manufacturing defects only.


Warranty Void If:

The product shows signs of physical damage, mishandling, exposure to water/moisture, fire, natural calamities, unauthorized repairs, improper storage near heat or direct sunlight, or alteration in any way.
