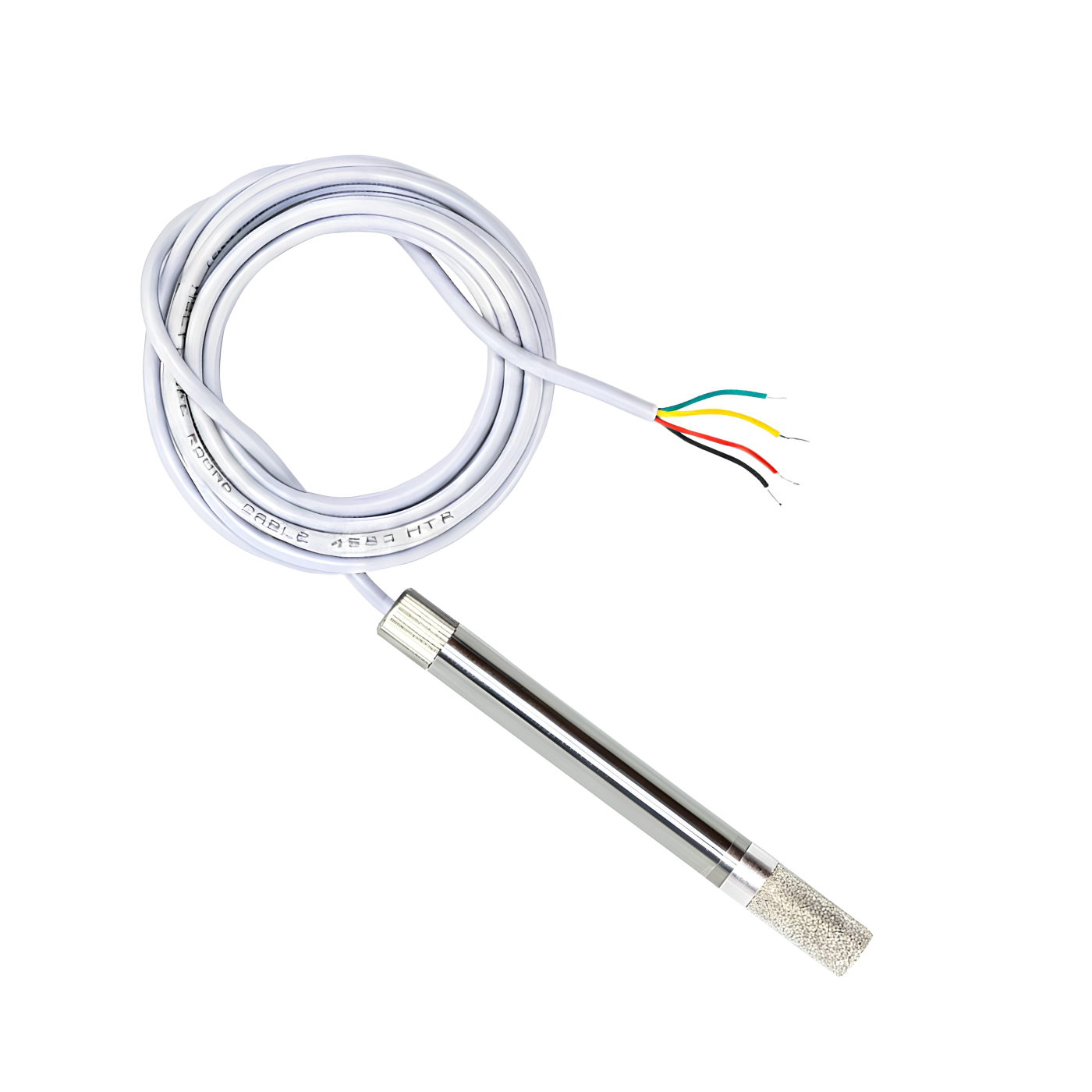

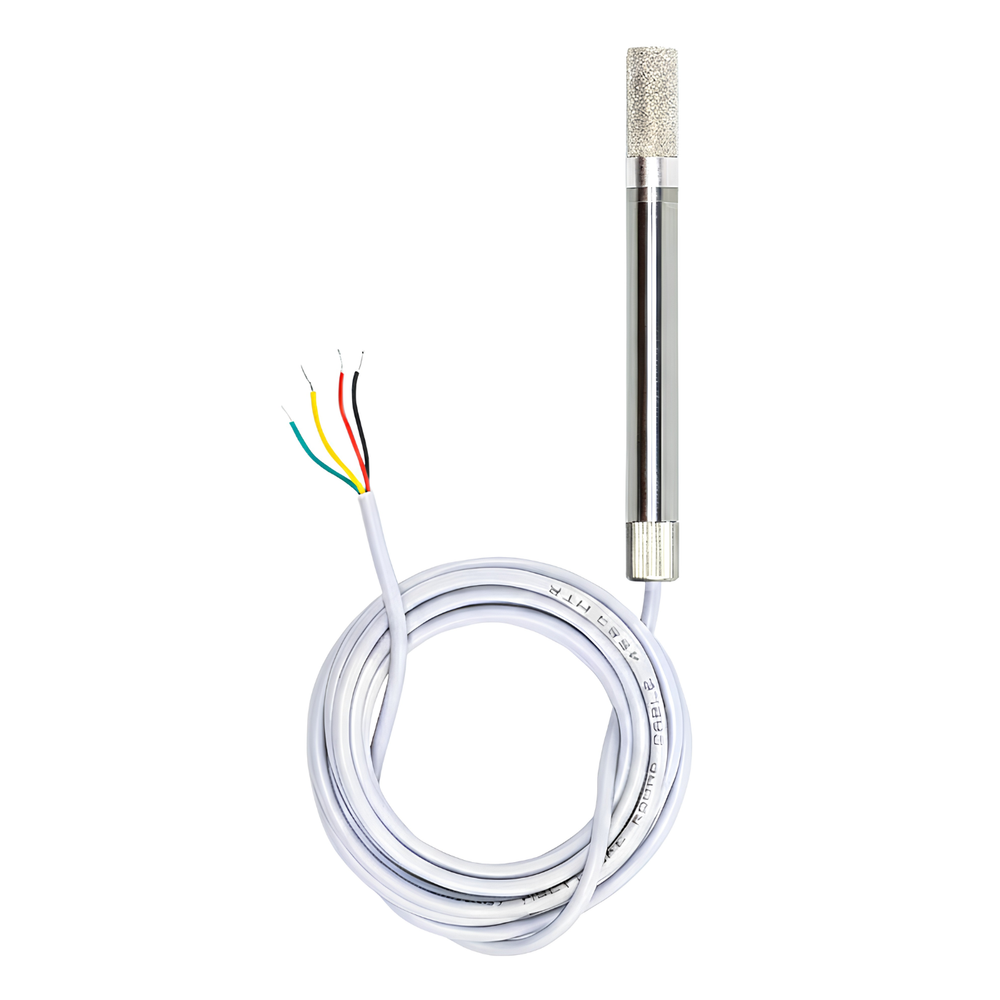

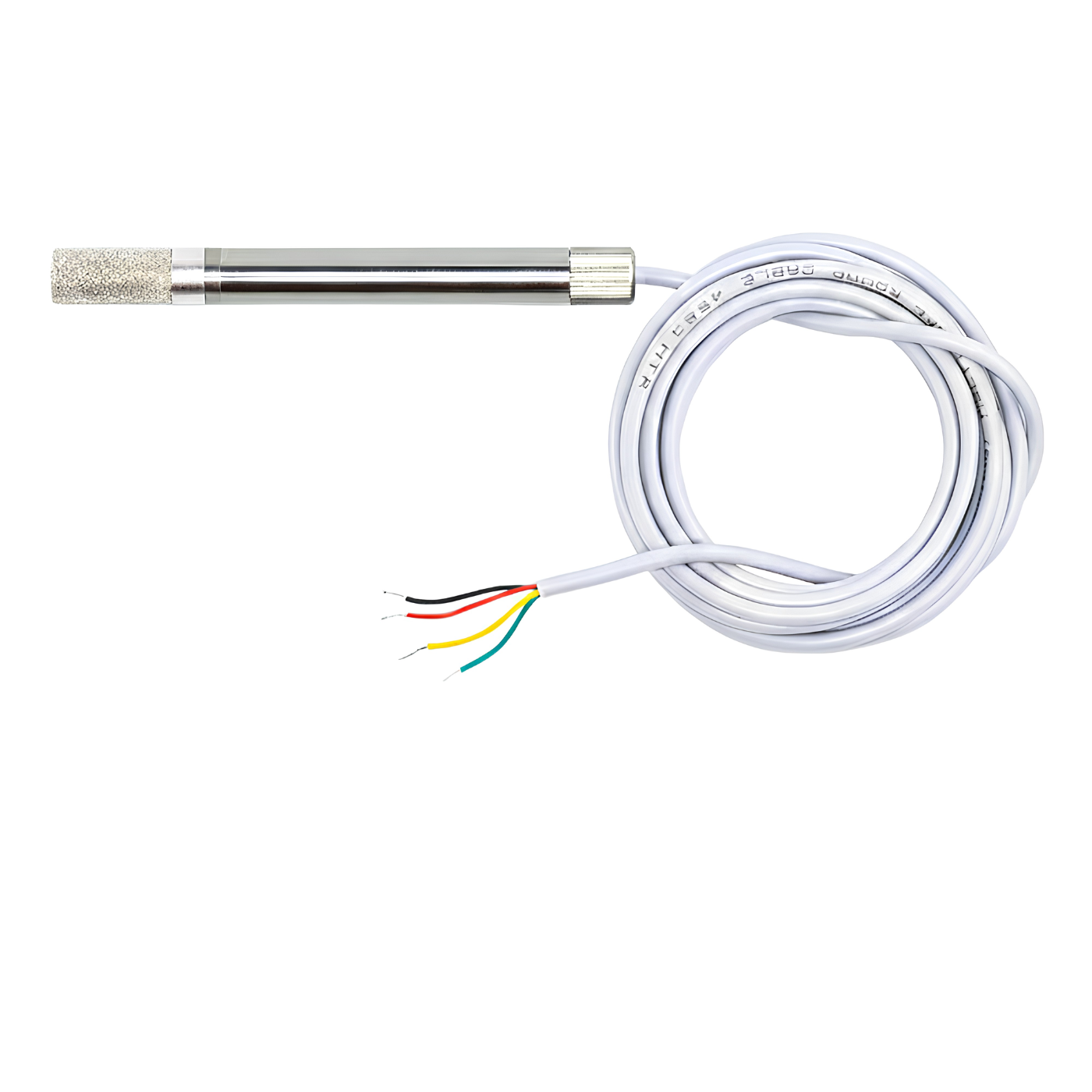

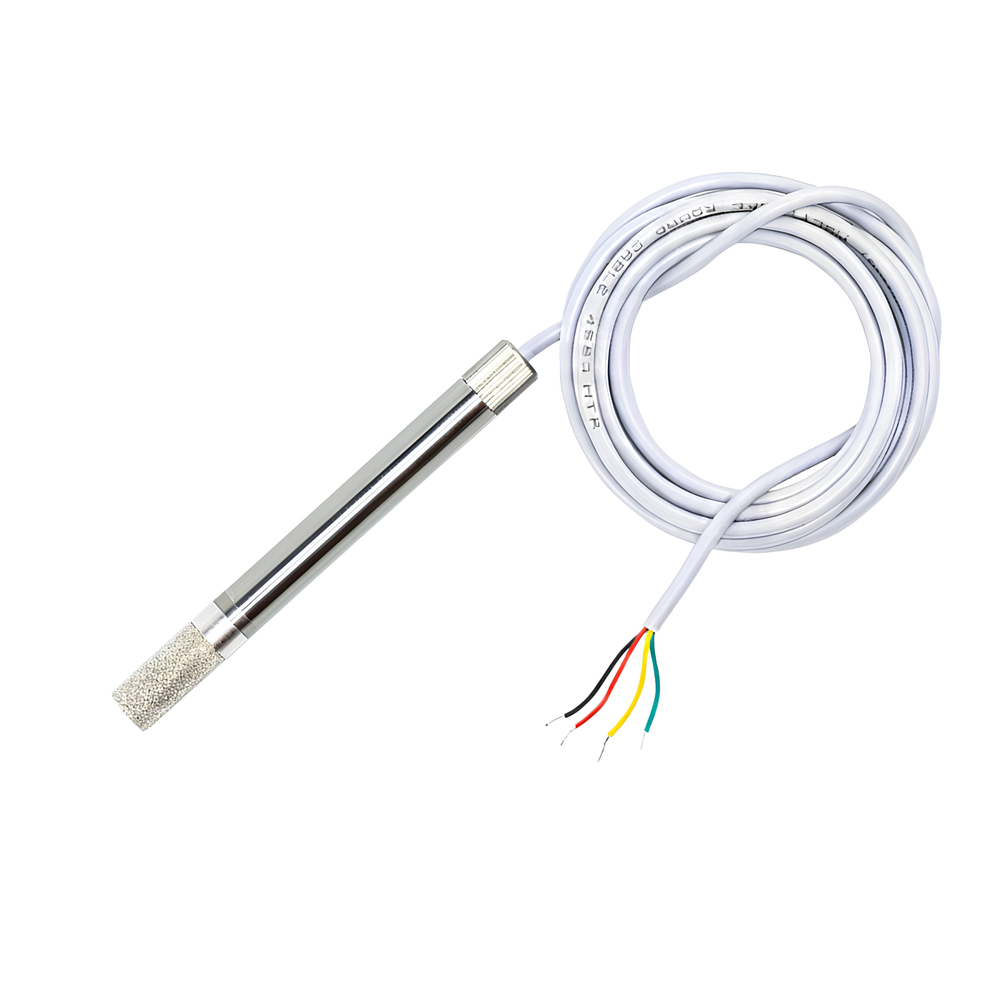

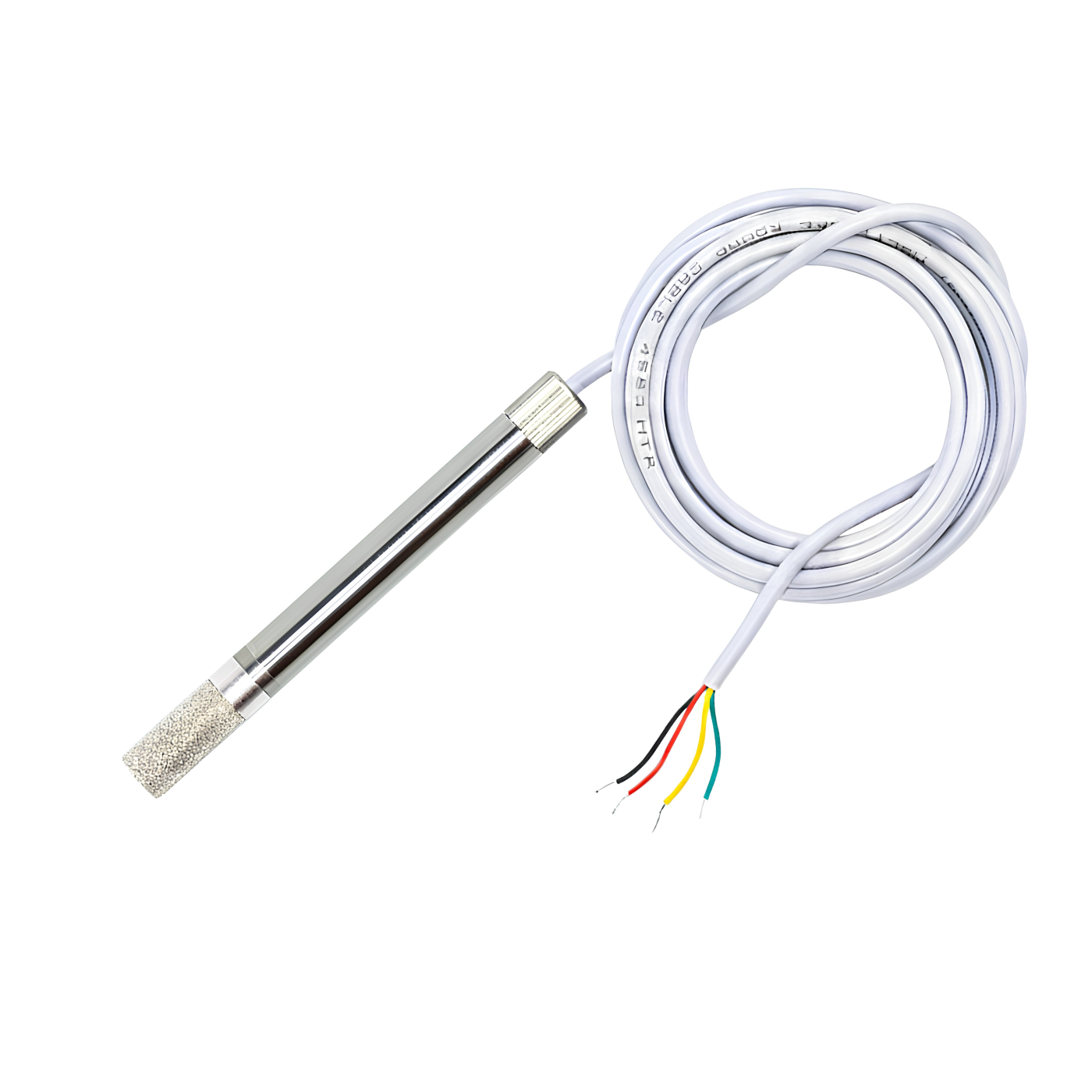

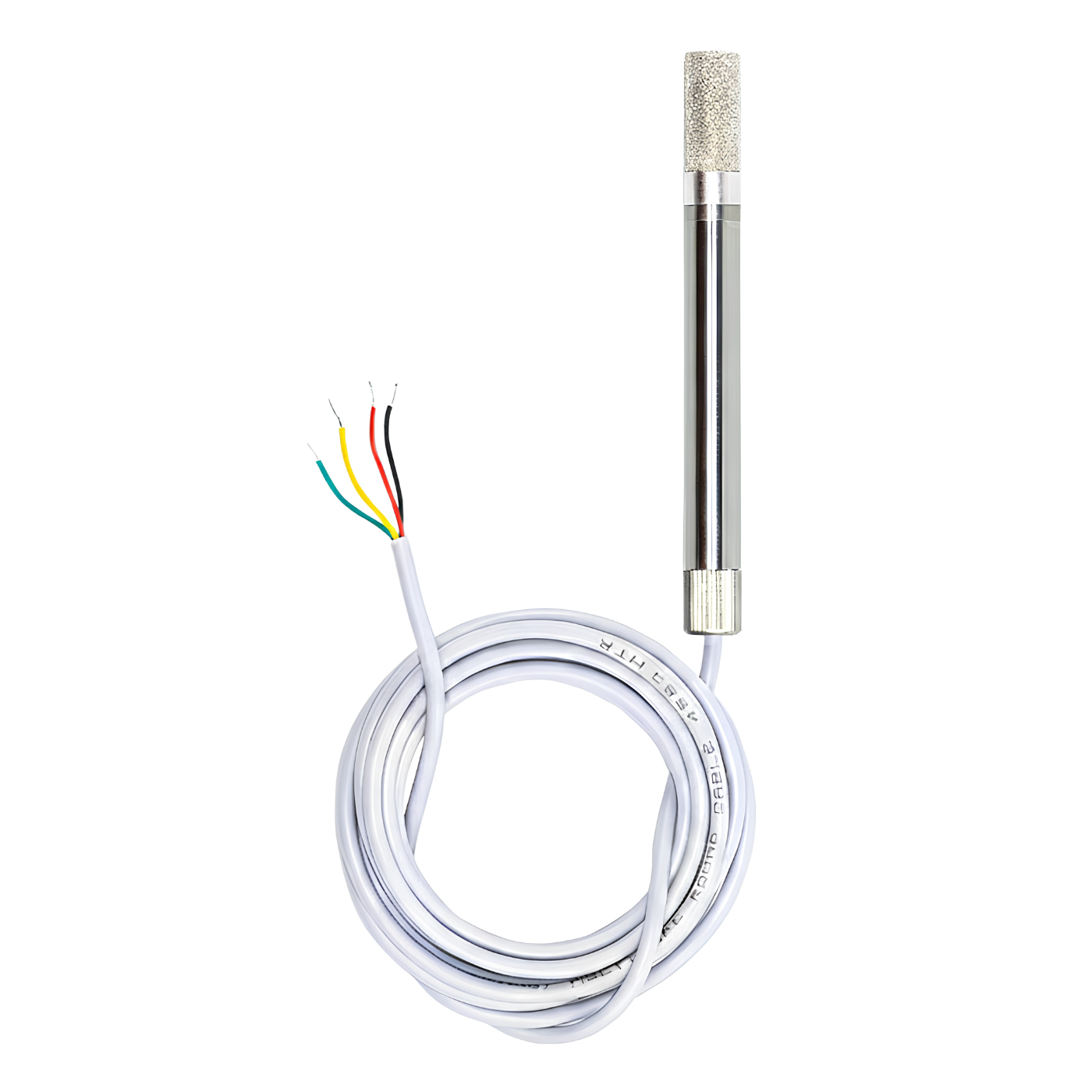

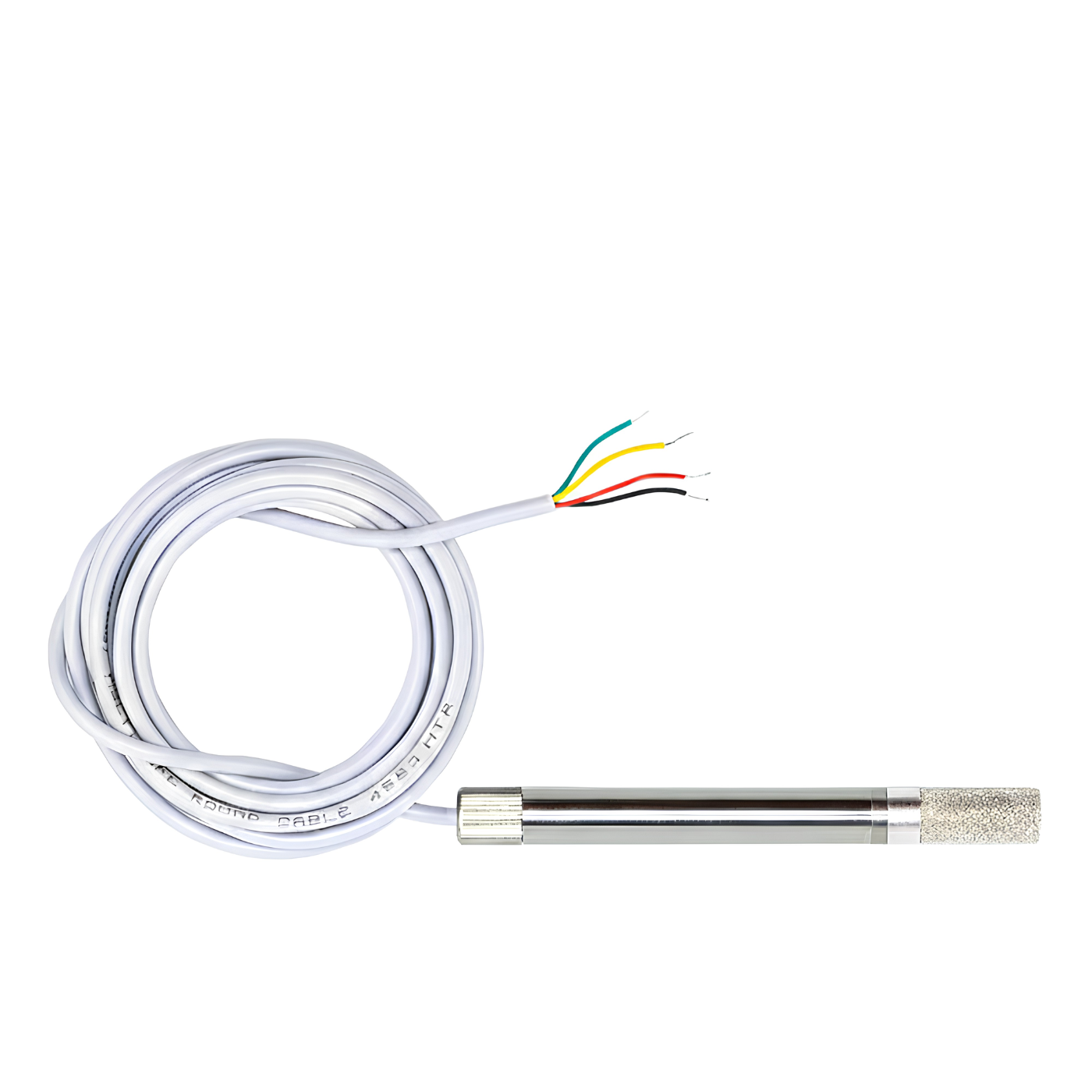

7Semi RS485 IAQ VOC Temperature Humidity Sensor Probe
Let us know!
We'll try to match the price for you
We’ll notify you once the product is back in stock.
Couldn't load pickup availability
The 7Semi RS485/MODBUS RTU Industrial Environmental Probe is designed for industrial environmental monitoring by measuring air quality, volatile organic compounds (VOC), temperature, and humidity. Built with a digital sensing core, the probe provides stable and consistent measurements for long-term monitoring applications. Its sealed probe construction with a breathable, dust-proof design helps maintain reliable performance in demanding environments.
The probe communicates using the industry-standard RS485 Modbus RTU protocol, enabling seamless integration with PLCs, SCADA systems, IoT gateways, microcontrollers, and building automation systems. Operating from a wide 9–36V DC input range, it is suitable for industrial control panels, remote monitoring systems, HVAC installations, agricultural monitoring nodes, and environmental monitoring stations. Software-configurable Modbus address and baud rate simplify deployment across different automation systems.
The sensor measures VOC concentrations from 0 to 1000 ppm and provides both two 16-bit raw VOC signals and a processed VOC Index ranging from 0 to 500. Temperature and humidity measurements are delivered with high accuracy and fast response times, making the probe suitable for continuous indoor environmental monitoring and industrial air quality applications. The four-wire interface simplifies installation while ensuring reliable communication over RS485 networks.
The 7Semi RS485 Industrial Environmental Probe is suitable for HVAC systems, indoor air quality monitoring, building automation, industrial automation, smart agriculture, remote data logging, and environmental monitoring applications. Its rugged probe design, industrial communication interface, and fast sensor response make it an effective solution for monitoring critical environmental conditions.
• The 7Semi RS485 Industrial Environmental Probe measures air quality, VOC, temperature, and humidity in a single industrial sensor.
• It communicates using the standard RS485 Modbus RTU protocol for reliable industrial data transmission.
• The sensor measures VOC concentrations from 0 to 1000 ppm.
• It provides a processed VOC Index output ranging from 0 to 500.
• Two 16-bit raw digital VOC signals are available for application-specific processing.
• The sensor operates from a wide 9–36V DC power supply for industrial installations.
• Temperature measurements offer an accuracy of ±0.1°C.
• Humidity measurements provide an accuracy of ±1% RH with a measurement range of 0–100% RH.
• The VOC response time is less than 10 seconds for responsive environmental monitoring.
• Humidity response time is 4 seconds for quick measurement updates.
• A rugged probe with breathable, dust-proof protection is designed for long-term operation.
• The four-wire interface includes VCC, GND, RS485 A, and RS485 B connections for straightforward integration.
• Software-configurable Modbus address and baud rate support flexible deployment across industrial networks.
• The probe includes a 2-meter cable for convenient installation in monitoring applications
| Brand | 7Semi |
| Product Type | RS485/MODBUS RTU Industrial Environmental Probe |
| Communication | RS485 Modbus RTU |
| Input Voltage | 9–36 V DC |
| Cable Length | 2 m |
| VOC Sensor Output | Two digital 16-bit raw signals |
| Processed VOC Output | 0 to 500 VOC Index |
| VOC Measurement Range | 0 to 1000 ppm |
| VOC Response Time | < 10 s |
| Humidity Range | 0 to 100% RH |
| Humidity Accuracy | ±1% RH |
| Humidity Response Time | 4 s |
| Temperature Accuracy | ±0.1°C |
| Weight | 100 g |
| Protection | Breathable, dust-proof |
| Target Gas | Air Quality |
This product comes with a 6-month manufacturer warranty from the date of purchase, covering manufacturing defects only.
The product shows signs of physical damage, mishandling, exposure to water/moisture, fire, natural calamities, unauthorized repairs, improper storage near heat or direct sunlight, or alteration in any way.
