7Semi Raspberry Pi GPIO Pinout Reference Card & Guide

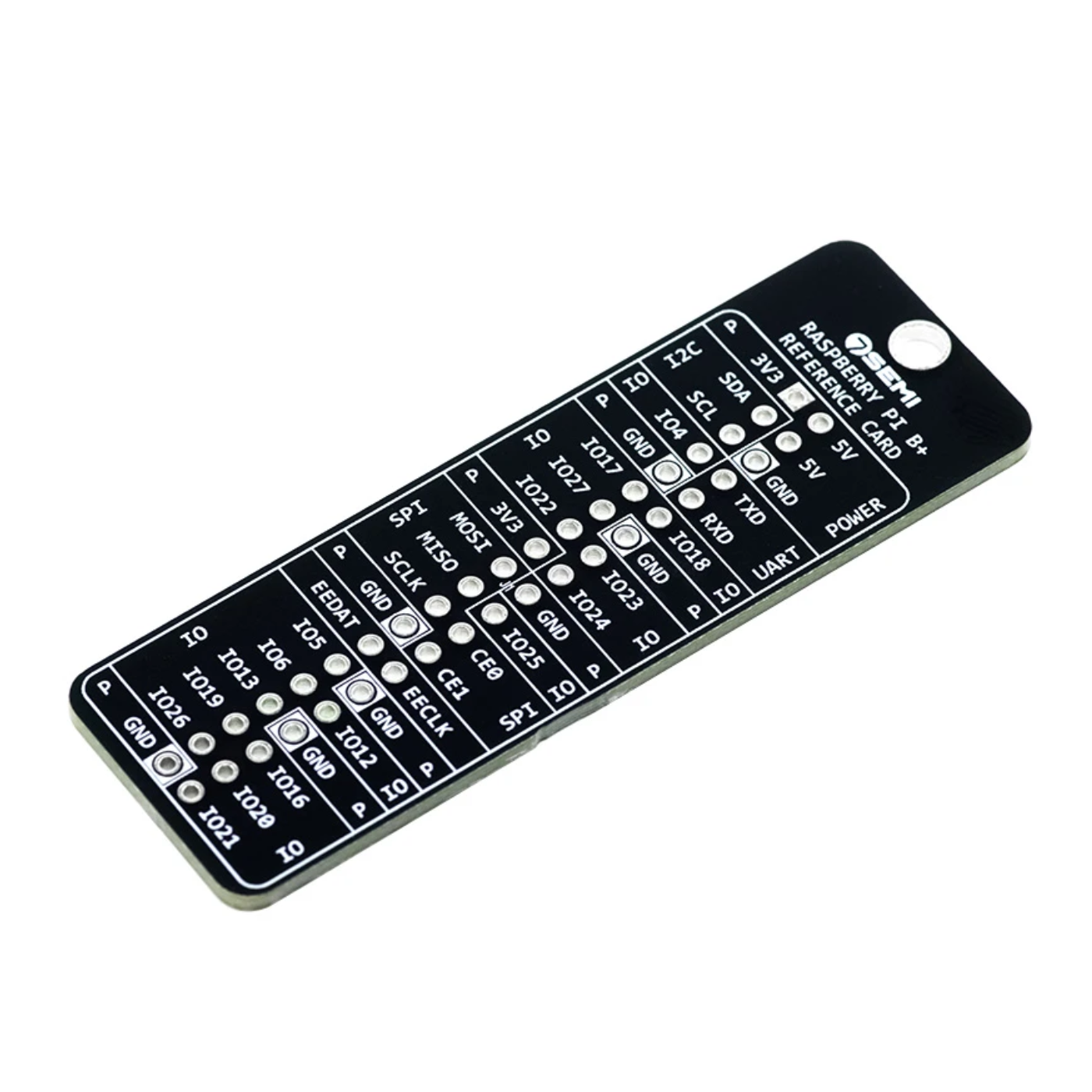

The 7Semi Raspberry Pi GPIO Pinout Reference Card & Guide is a compact and practical Raspberry Pi GPIO reference designed to make pin identification quick and easy. It provides clearly labeled GPIO pin numbers, power pins, and commonly used interfaces such as SPI, I2C, and UART, helping you understand Raspberry Pi pin functions at a glance.
Instead of repeatedly checking datasheets or online pinout diagrams, you can keep this handy reference card beside your workbench while building and testing projects. Its simple layout makes it suitable for beginners learning Raspberry Pi GPIO pins as well as experienced makers working on prototyping, sensor connections, electronics projects, and debugging.
Features:

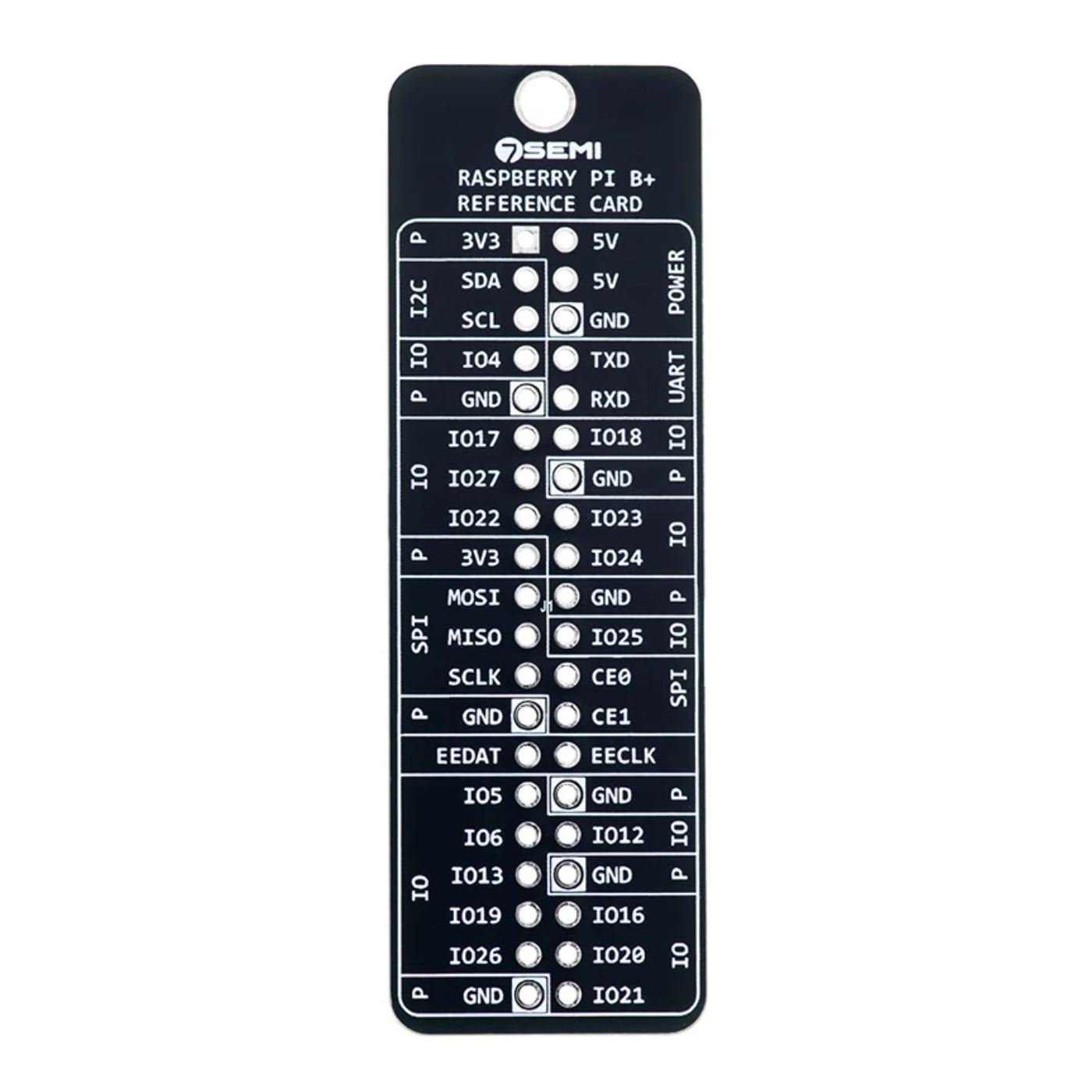

- Complete GPIO Pinout: All Raspberry Pi GPIO pins and functionalities are clearly displayed.
- Interface Labels: Contains information about SPI, I2C, UART, power, and ground pins.
- Easy to Read Layout: A straightforward layout for rapid comprehension and reference.
- Compact Size: Easy to store on your workbench, it is small and portable.
- Beginner-Friendly: Prevents wiring errors for novice users.
- Quick Debug Tool: Reduces testing and troubleshooting time.
- Robust PCB Design: robust and long-lasting for regular use
