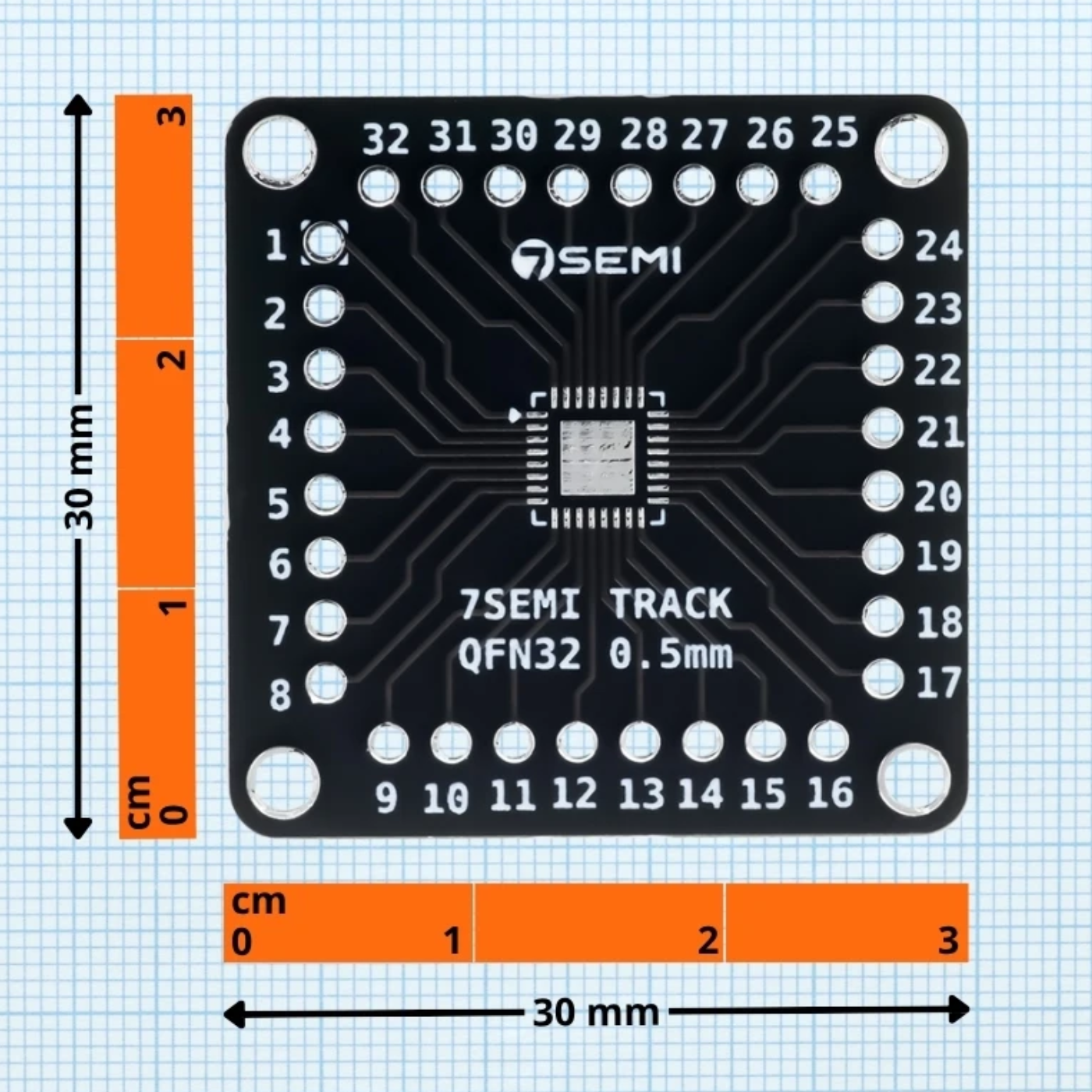

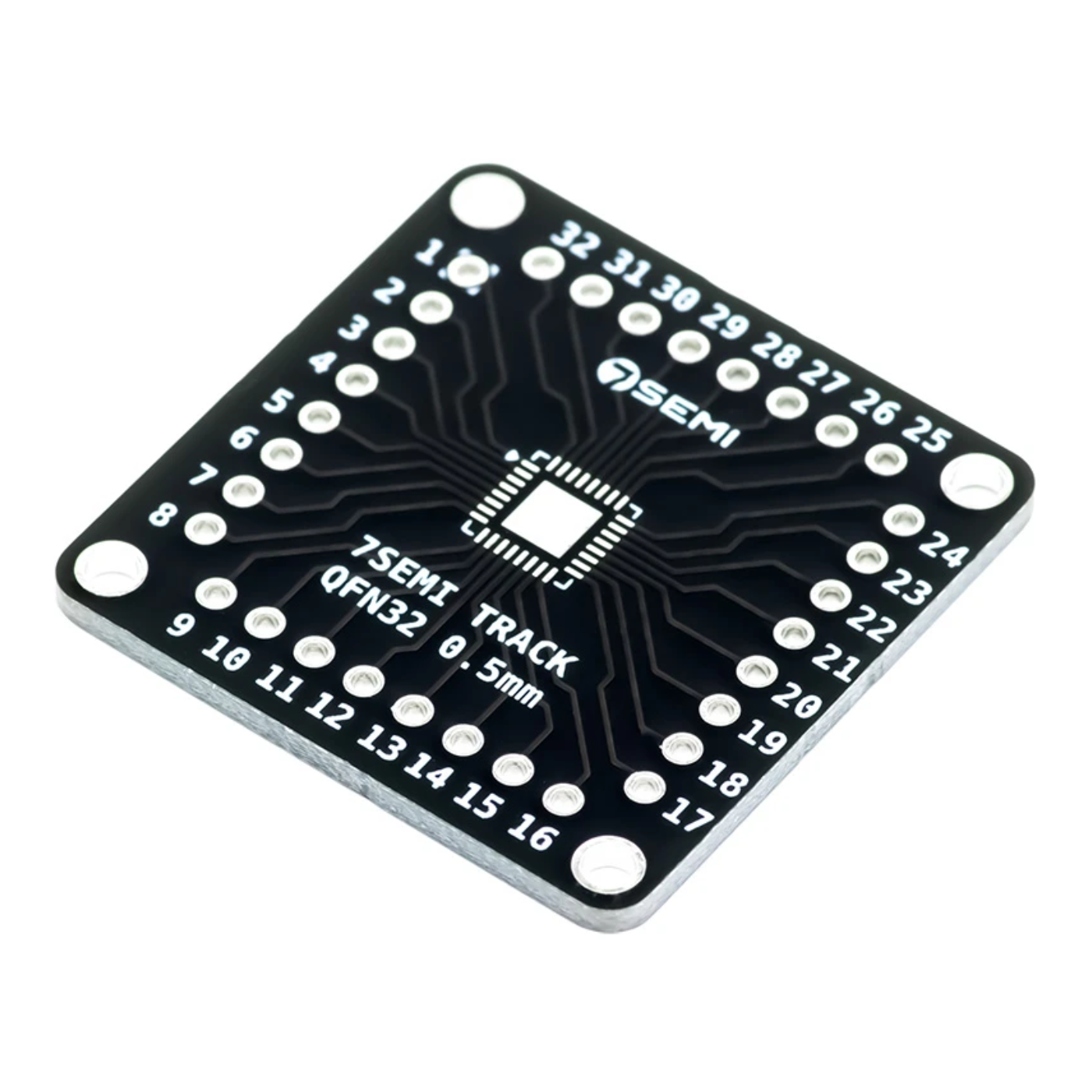

7Semi QFN32 Adapter Board 0.5mm & 0.65mm SMD to DIP Converter for STM, AVR & ESP Prototyping
The 7Semi QFN32 Adapter Board 0.5mm & 0.65mm SMD to DIP Converter makes prototyping with compact QFN32 ICs much easier by converting them into a standard 2.54mm DIP footprint. With support for both 0.5mm and 0.65mm pitch QFN32 packages, this SMD adapter board provides flexibility when working with different microcontrollers, interface ICs, and power-management devices.
It can be used for STM32, AVR, ESP32 and other compatible QFN32 ICs, allowing convenient connections to breadboards and conventional prototyping hardware. Clear pin markings, organized PCB routing, and a sturdy board design help simplify wiring, testing, and debugging.
Whether you're developing a new circuit, evaluating an IC, or experimenting with embedded electronics, this QFN32 breakout board is a practical solution for faster and more convenient SMD IC prototyping without immediately designing a custom PCB.
Note: This adapter board features dual-side footprints to support pitch variants 0.5mm & 0.65mm . Please note that only one side can be used at a time. Using both sides simultaneously is not recommended, as it may lead to incorrect connections or short circuits. Always ensure that only the intended side is populated and connected during use.
Features:

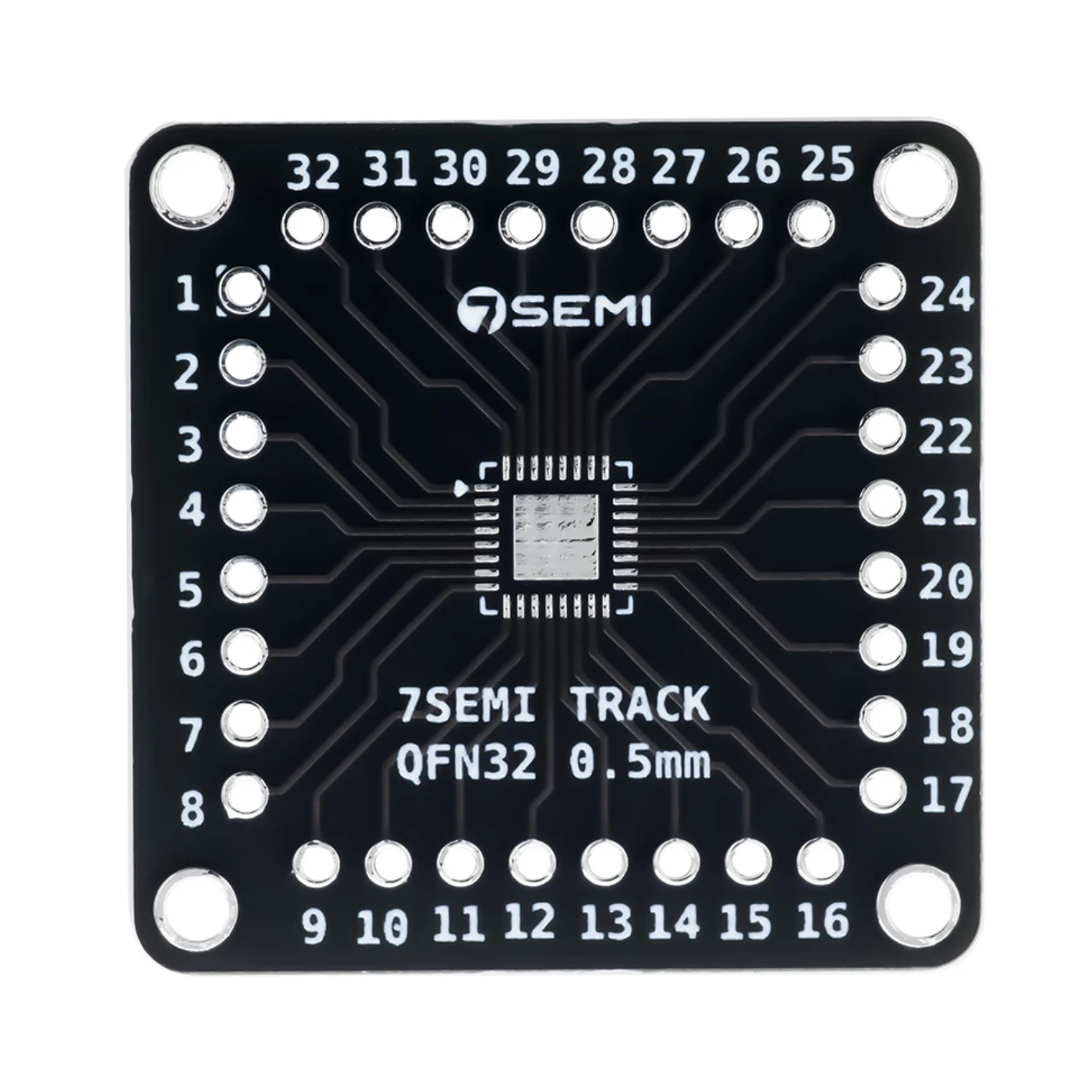

- Supports QFN-32 IC packages having a pitch of 0.5 mm on one side.

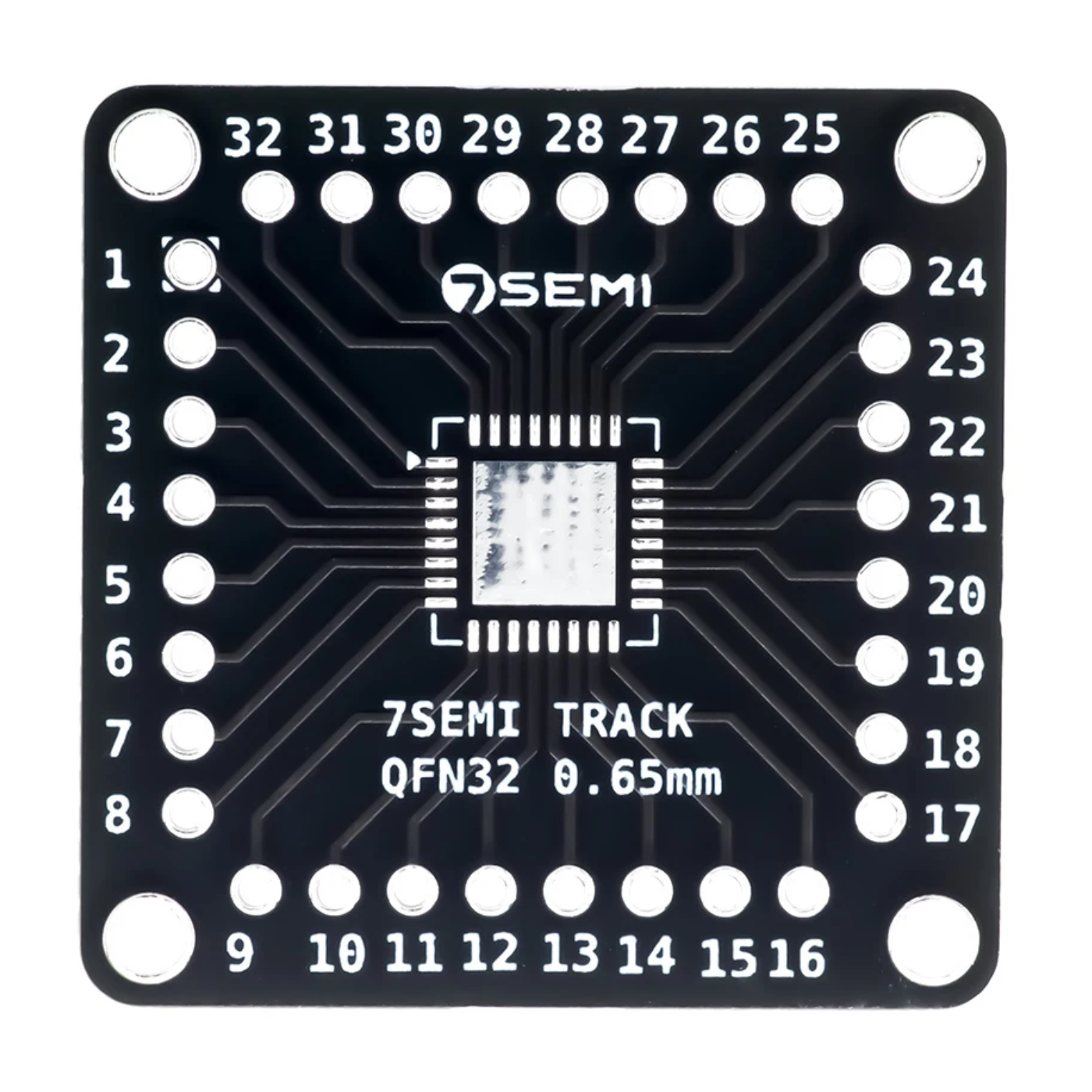

- QFN-32 IC packages with a pitch of 0.6 mm are supported (other side).
- SMD packaging conversion to the common 2.54mm DIP format
- Compatible with breadboards for simple prototyping
- Wider IC compatibility through dual-side usability
- Pin 1 identification and clear pin numbering
- Robust solder pads for dependable connections
- Saves time by doing away with the necessity for a custom PCB
