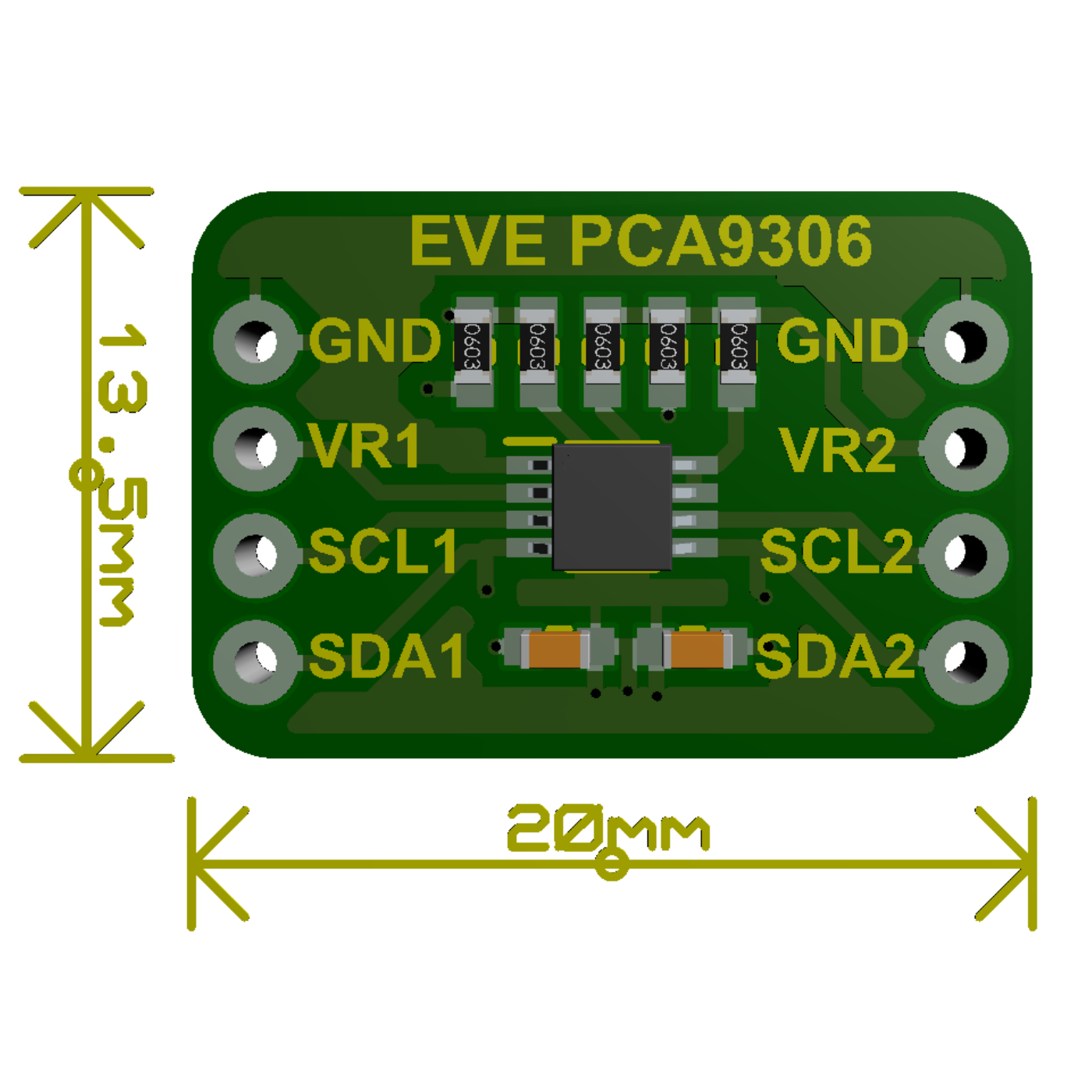

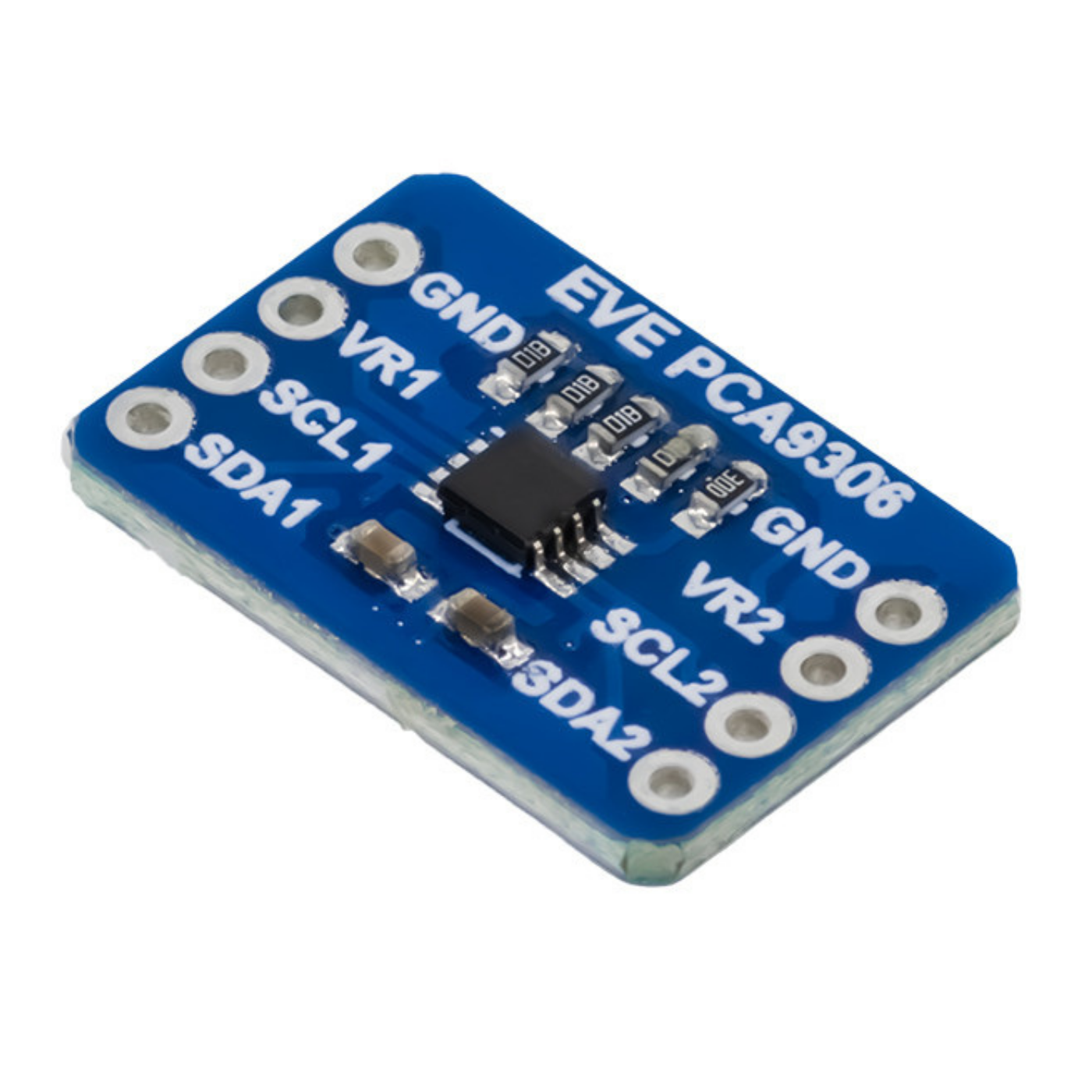

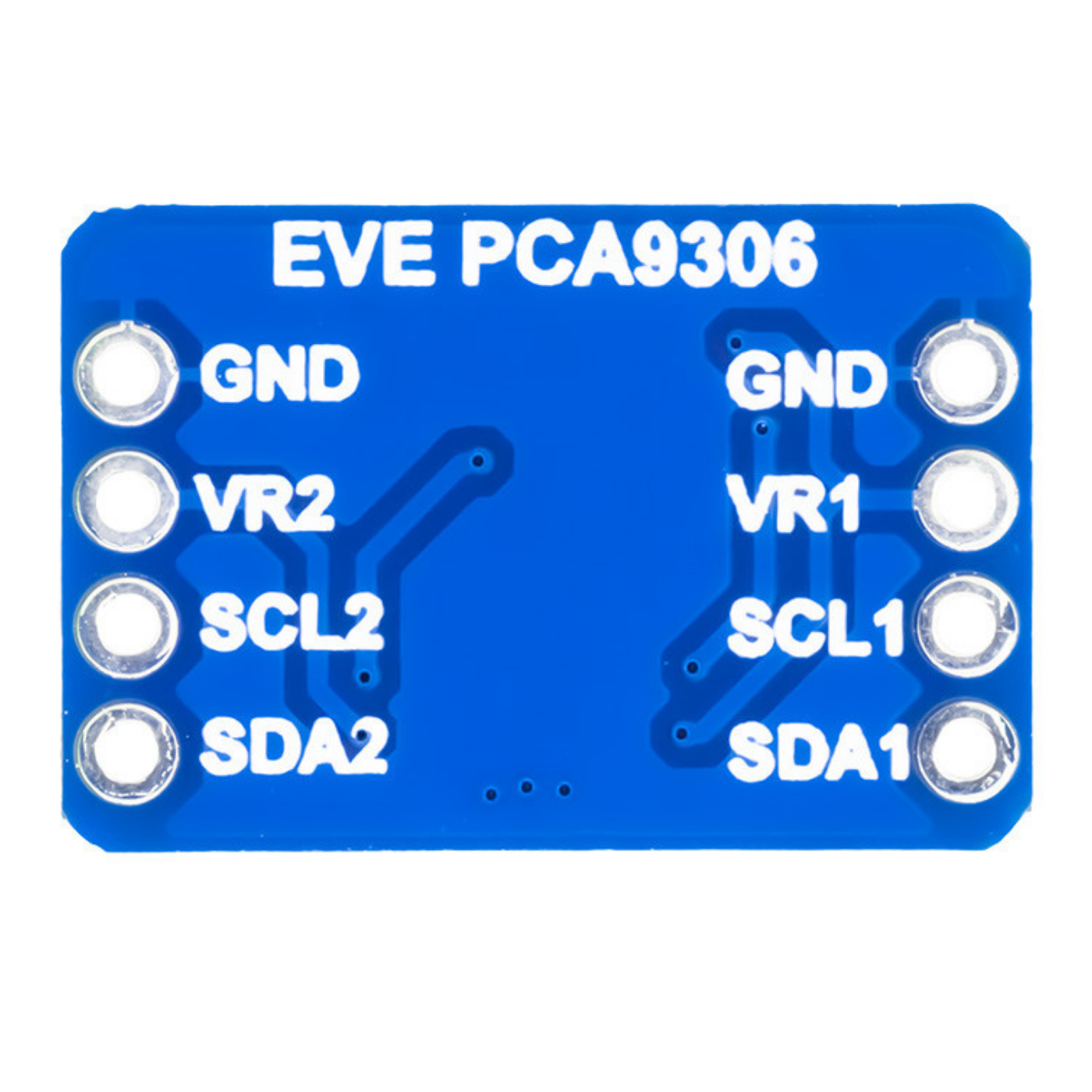

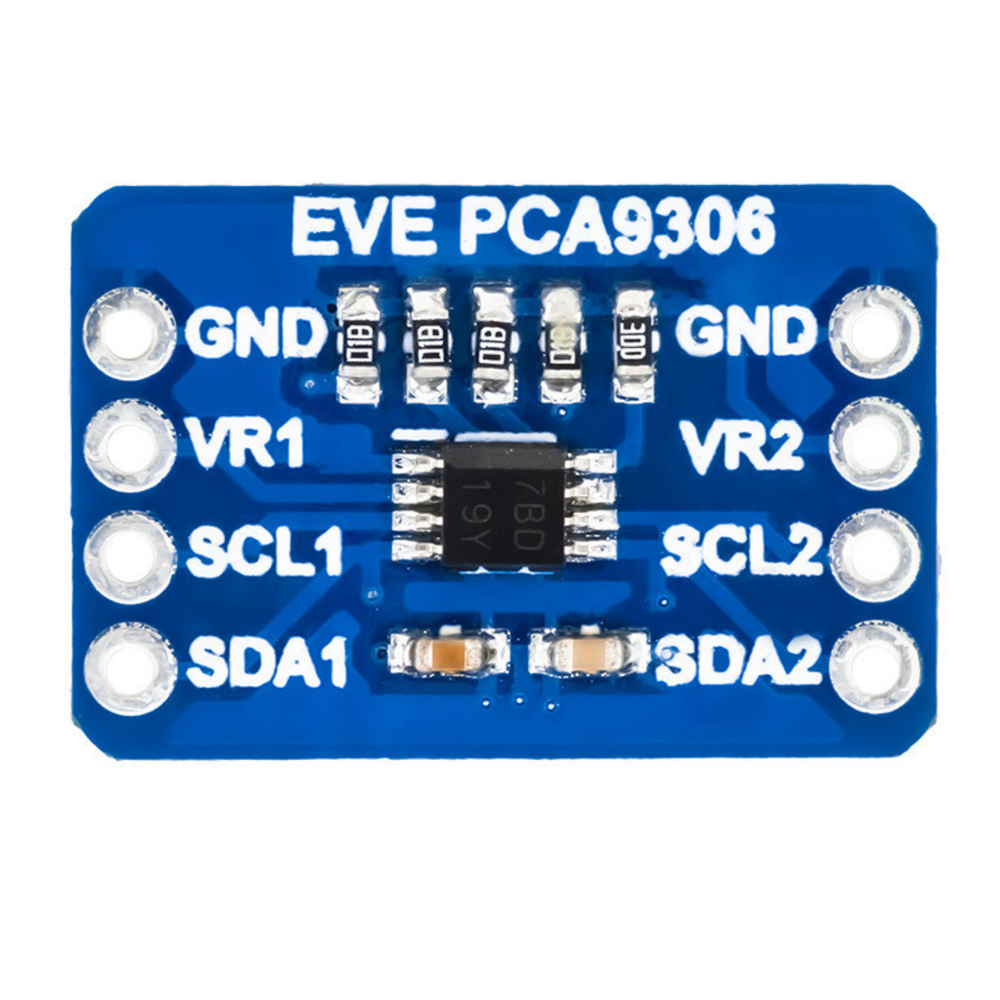

7Semi PCA9306 I2C Bidirectional Voltage Level Translator Breakout Board

The 7Semi PCA9306 I2C Bidirectional Voltage Level Translator Breakout Board is a compact and efficient PCA9306 voltage level translator designed to safely interface I2C and SMBus devices operating at different logic levels. Supporting voltage translation from 1.2V to 5.0V, this board enables seamless communication between low-voltage sensors and higher-voltage microcontrollers without manual direction control.

As a dependable I2C logic level converter, it delivers minimal signal delay and stable bidirectional data flow, making it ideal for robotics, industrial controllers, embedded systems, and DIY electronics projects requiring precise mixed-voltage I2C communication.

Allowable Voltage Level Translation

The breakout can transfer voltages ranging from 3.3V to 5V.

VREF1 (Low Side)	VREF2 (High Side)
1.2V	1.8V, 2.5V, 3.3V, 5V
1.8V	2.5V, 3.3V, 5V
2.5V	3.3V, 5V
3.3V	5V

Features:

Wide Voltage Range Support: Operates between 1.2V and 5.0V, accommodating a wide range of components.
Dual Bidirectional Channels: Translates both the SDA and SCL lines for complete I2C compatibility.
I2C and SMBus Protocol Support: Fully compatible with regular and fast-mode I2C devices, as well as SMBus peripherals.
No Direction Pins Required: Signal direction is automatically detected for easier design.
Low propagation delay: A delay of less than 1.5ns maintains data integrity at high speeds.
5V Tolerant I/O Ports: Securely links 5V signals to lower voltage devices.
Compact and simple to use: ideal for embedded applications, prototyping, and compact systems.

Specifications

Package Includes:

1 x 7Semi PCA9306 I2C Bidirectional Voltage Level Translator Breakout Board

Specifications:

Interface	I2C and SMBus Compatible
Voltage Range	3.3V and 5V
Direction	Bidirectional

Additional Resources

Powered by the reliable PCA9306 voltage level translator IC for true bidirectional I2C communication
Supports wide operating voltage range from 1.2V to 5.0V on both low- and high-voltage sides
Automatic bidirectional sensing — no direction control pin required
Fully compatible with I2C and SMBus standard-mode and fast-mode devices
Low propagation delay ensures stable and accurate data transfer
Compact breakout board design for easy integration into embedded systems
Ideal I2C logic level converter for microcontrollers, sensors, battery-powered devices, and DIY projects
