7Semi MMC5983MA 3-axis Mini Magnetometer Sensor Breakout Module -Sensors -Magnetic/Vibration Sensors -Robocraze

7Semi BEST PRICE GUARANTEED

7Semi MMC5983MA 3-axis Mini Magnetometer Sensor Breakout Module - Buy Online in India

Name: 7Semi MMC5983MA 3-axis Mini Magnetometer Sensor Breakout Module
Brand: Robocraze
SKU: TIFSS0430
Price: 459 INR
Availability: InStock
Rating: 4.44 (9 reviews)

7Semi MMC5983MA 3-axis Mini Magnetometer Sensor Breakout Module

Rs 459/-

- 15%

Rs 459/-

~~Rs 539/-~~

Save Rs 80/-

Incl. GST (No Hidden Charges)

Please hurry! Only 2 left in stock

Quantity:

Free Delivery Above ₹999

Technical Support & Easy Returns

Same Day Shipping

Earn RC Coins on Purchase

Cash on Delivery

SKU: TIFSS0430

3-axis magnetometer sensor for accurate magnetic field measurement
Measures magnetic fields up to ±8 Gauss with ultra-low noise and high resolution
Uses I2C interface for simple and reliable communication
Low power consumption with fast response time
Compact breakout module for easy integration in embedded systems

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here

First Name *

Last Name *

Email *

Phone *

Company

Materials List

File(s) size limit is 20MB.

Enter the Captcha *

Captcha challenge – enter the characters shown in the image

Reload Captcha

7Semi MMC5983MA 3-axis Mini Magnetometer Sensor Breakout Module

~~Rs 539/-~~ Rs 459/-

Quantity:

7Semi MMC5983MA 3-axis Mini Magnetometer Sensor Breakout Module

~~Rs 539/-~~ Rs 459/-

Description
Specifications
Additional Resources
Shipping & Return

Description

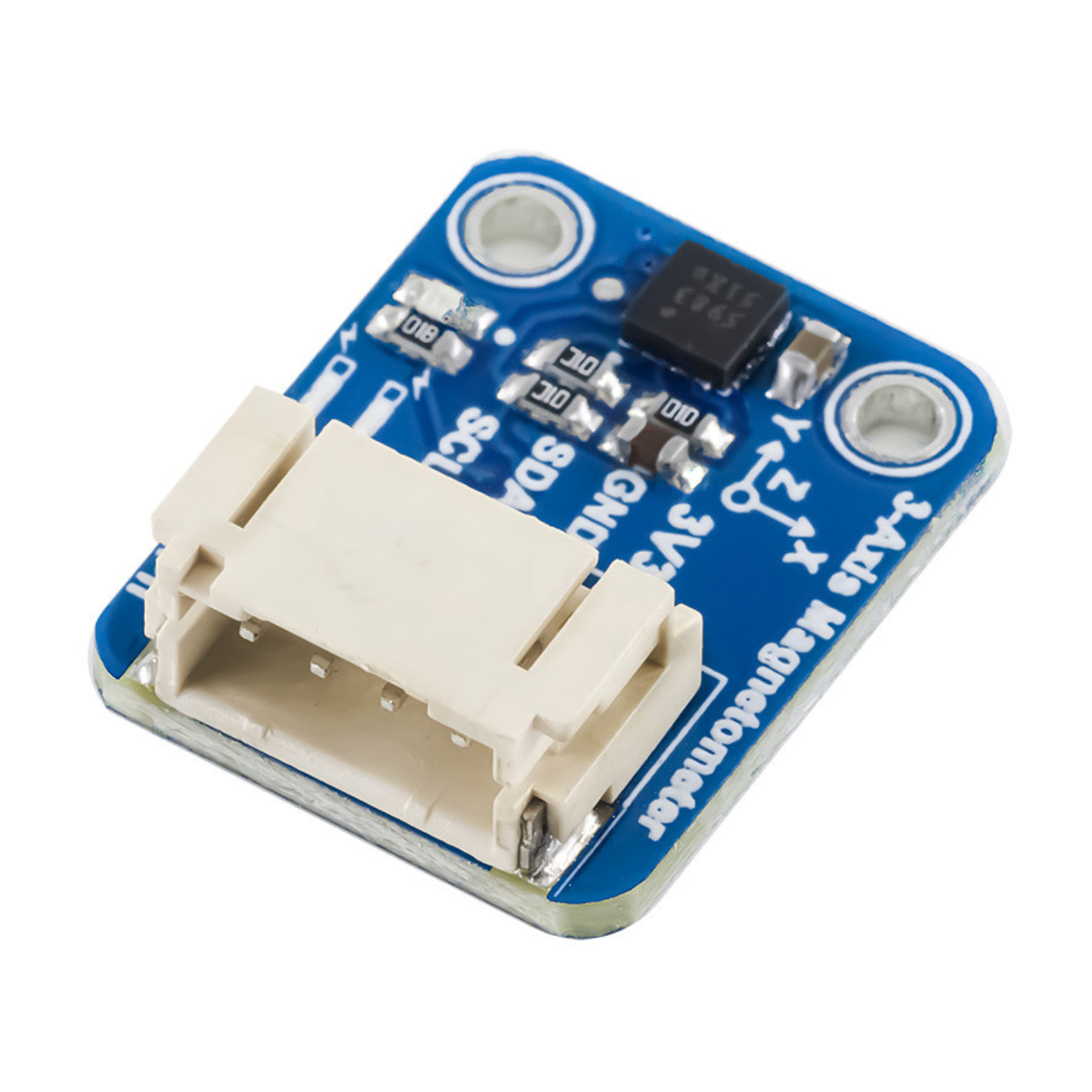

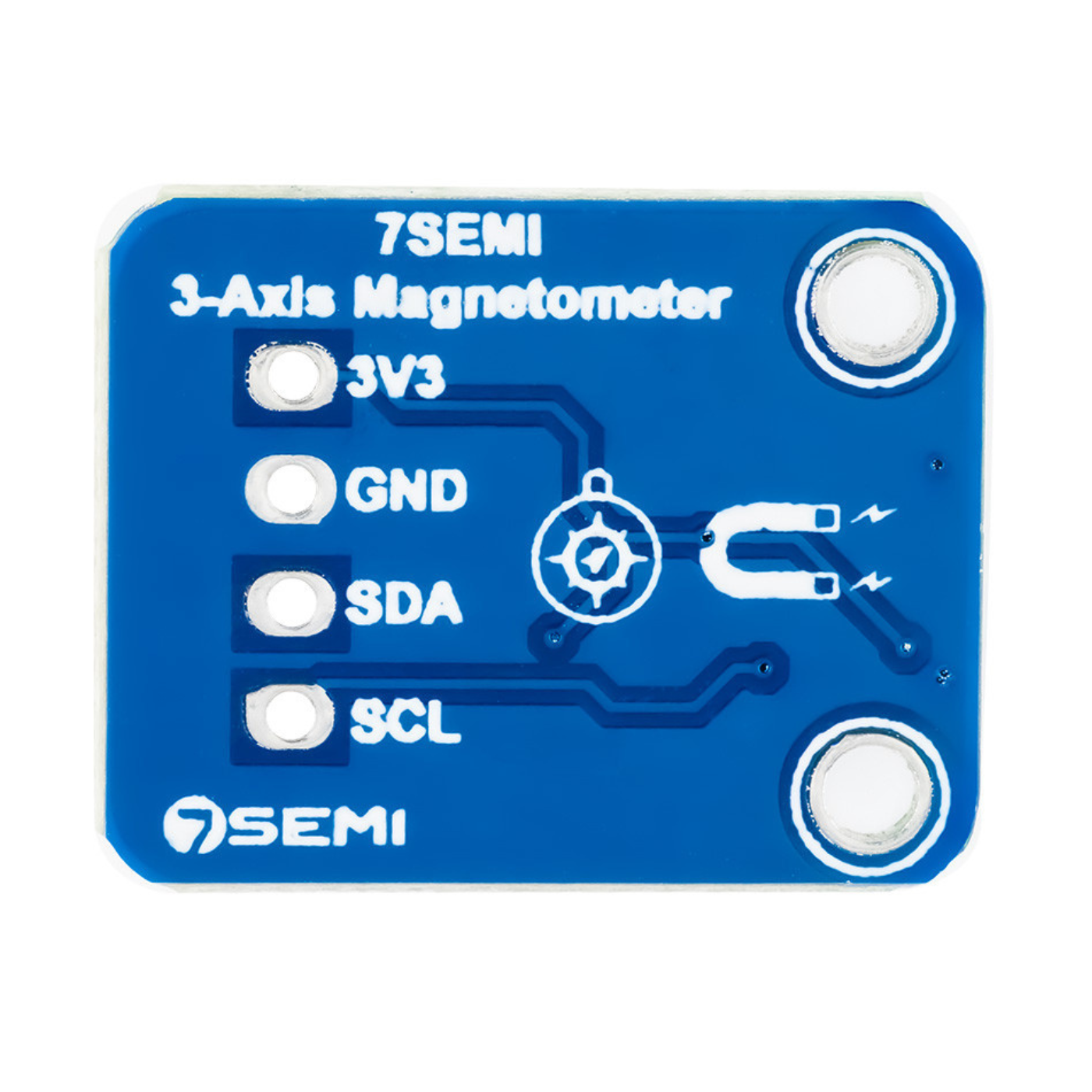

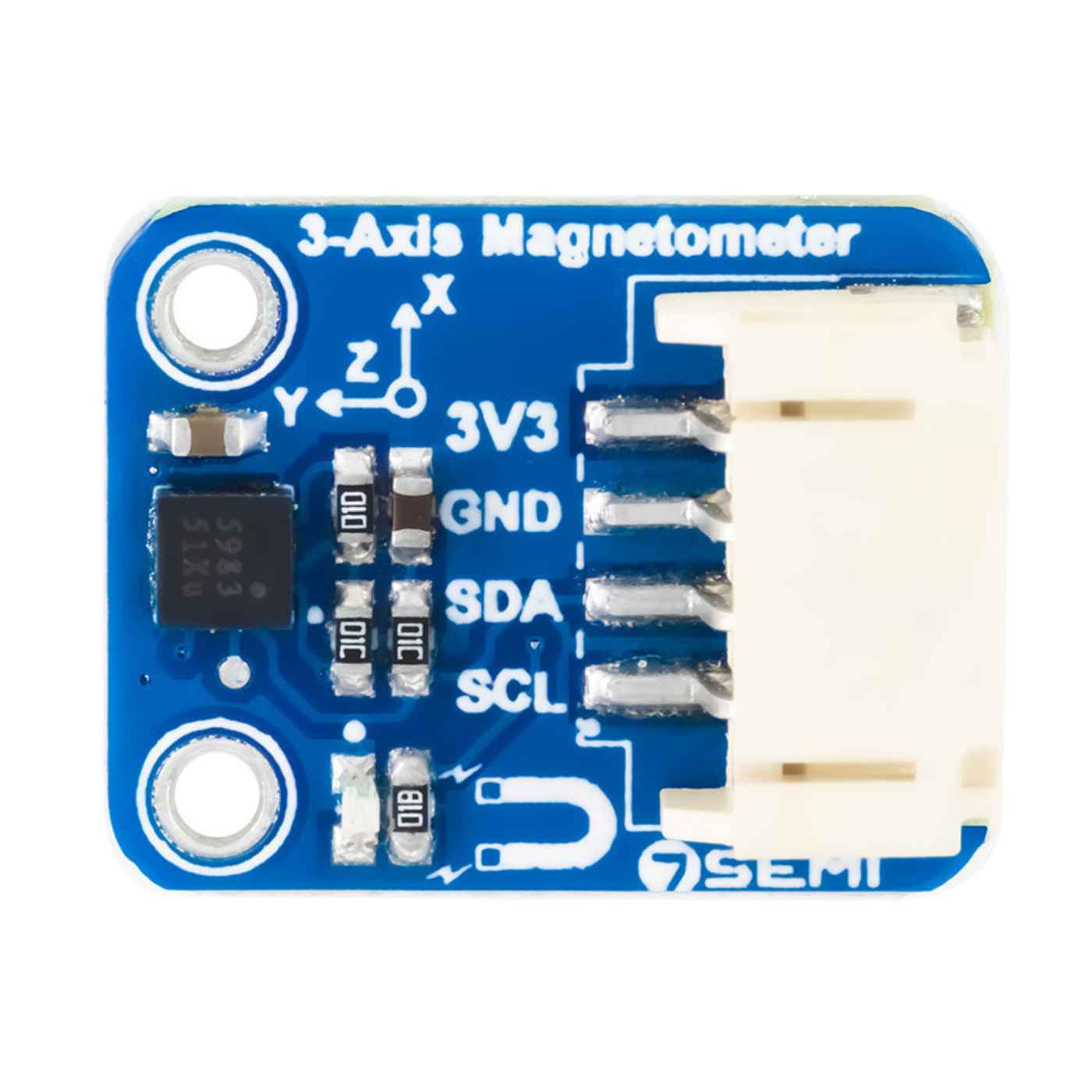

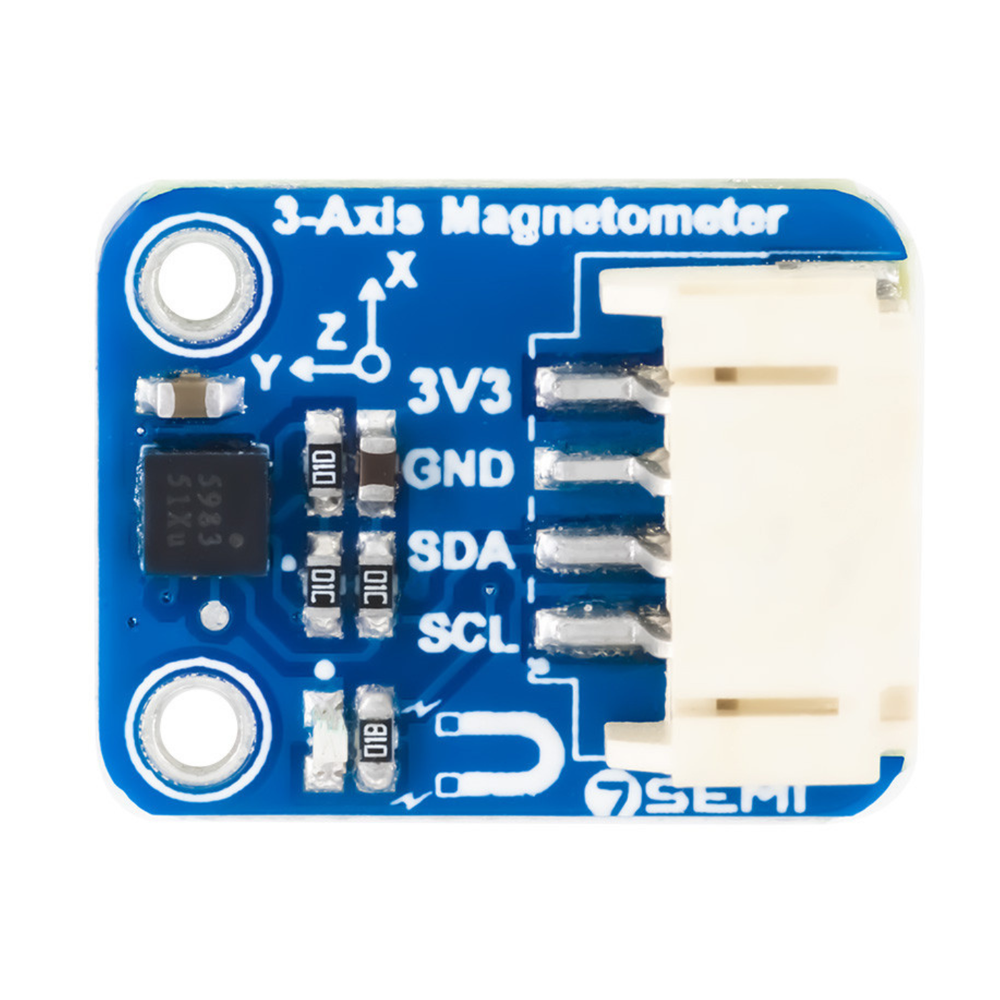

7Semi MMC5983MA 3-axis Mini Magnetometer Sensor Breakout Module

The 7Semi MMC5983MA 3-axis Mini Magnetometer Sensor Breakout Module is a high-precision magnetic sensor designed to measure magnetic fields along three axes with excellent accuracy and stability. It supports a magnetic field range of ±8 Gauss, delivering ultra-low noise and high-resolution output for reliable data.

Communicating through a standard I2C interface, this magnetometer sensor ensures low power operation and fast response, making it ideal for navigation systems, orientation tracking, digital compasses, and magnetic anomaly detection.

Its compact form factor allows seamless integration into space-constrained electronics, IoT devices, and embedded applications where precise magnetic sensing is essential.

Features:

Triple-Axis Magnetic Sensing provides great precision across three axes, with 0.4mG resolution and ±0.5° heading accuracy.
High Dynamic Range and Resolution: ±8G FSR, 18-bit operation for precise measurements.
Built-in Degaussing Circuitry: Effectively eliminates residual magnetization, ensuring consistent performance even when exposed to high external magnetic fields.
Advanced Compensation Features: On-chip sensitivity and temperature compensation ensure consistent readings under changing situations.
Fast I2C Communication: The I2C protocol has a fast mode of up to 400KHz, allowing for easy integration with other devices.
The energy-efficient design consumes only 1µA during power down, making it excellent for power-sensitive applications.
Compact form factor: A small PCB layout with a horizontal 4-pin 2mm pitch JST connection, ideal for space-constrained applications.

Specifications

Package Includes:

1 x 7Semi MMC5983MA 3-axis Mini Magnetometer Sensor Breakout Module

Specifications:

Parameter	Specification
Voltage Supply	3.3V
Interface	I2C
Output Data Rate	Up to 1000Hz
I2C Address	0x30

Additional Resources

MMC5983MA Datasheet
