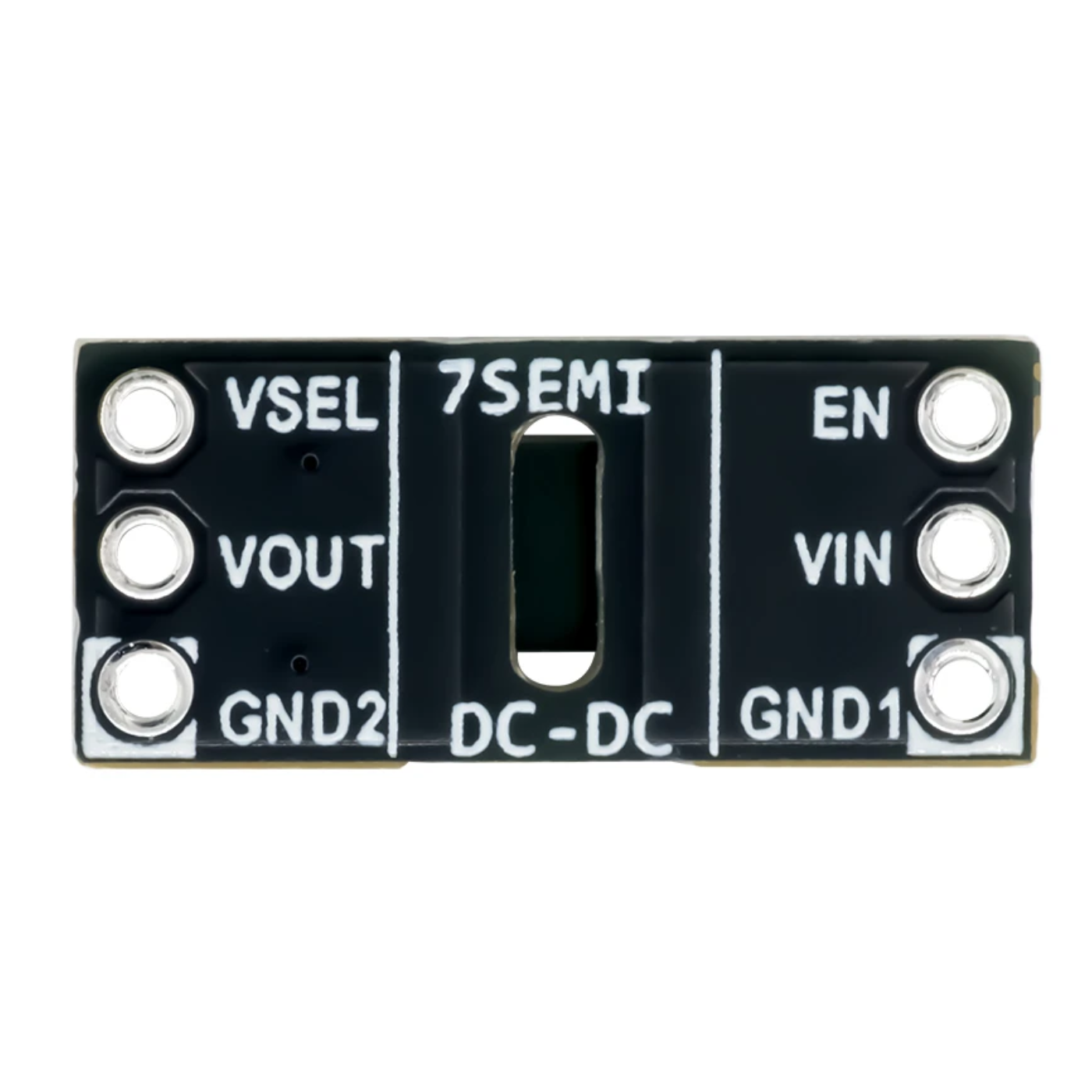

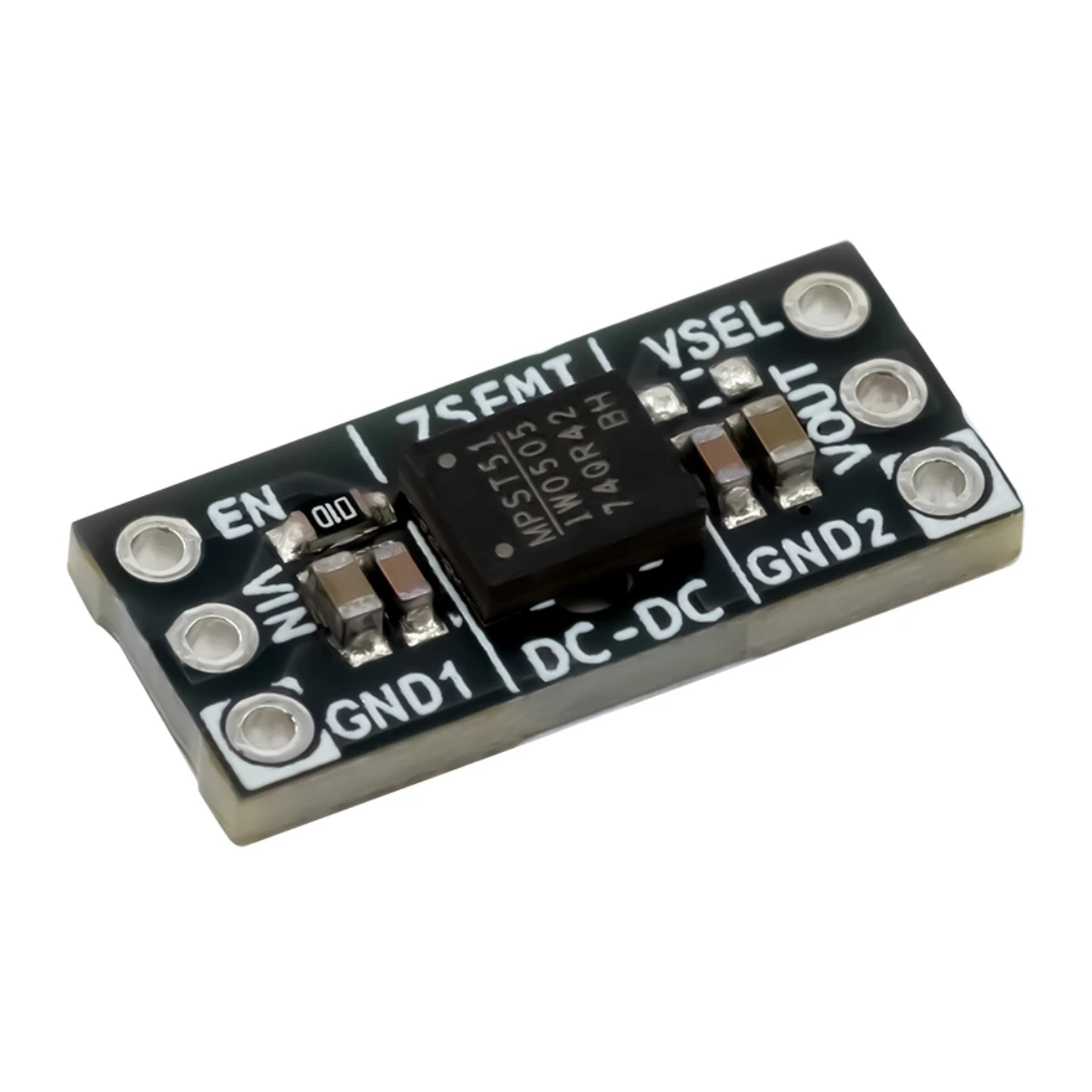

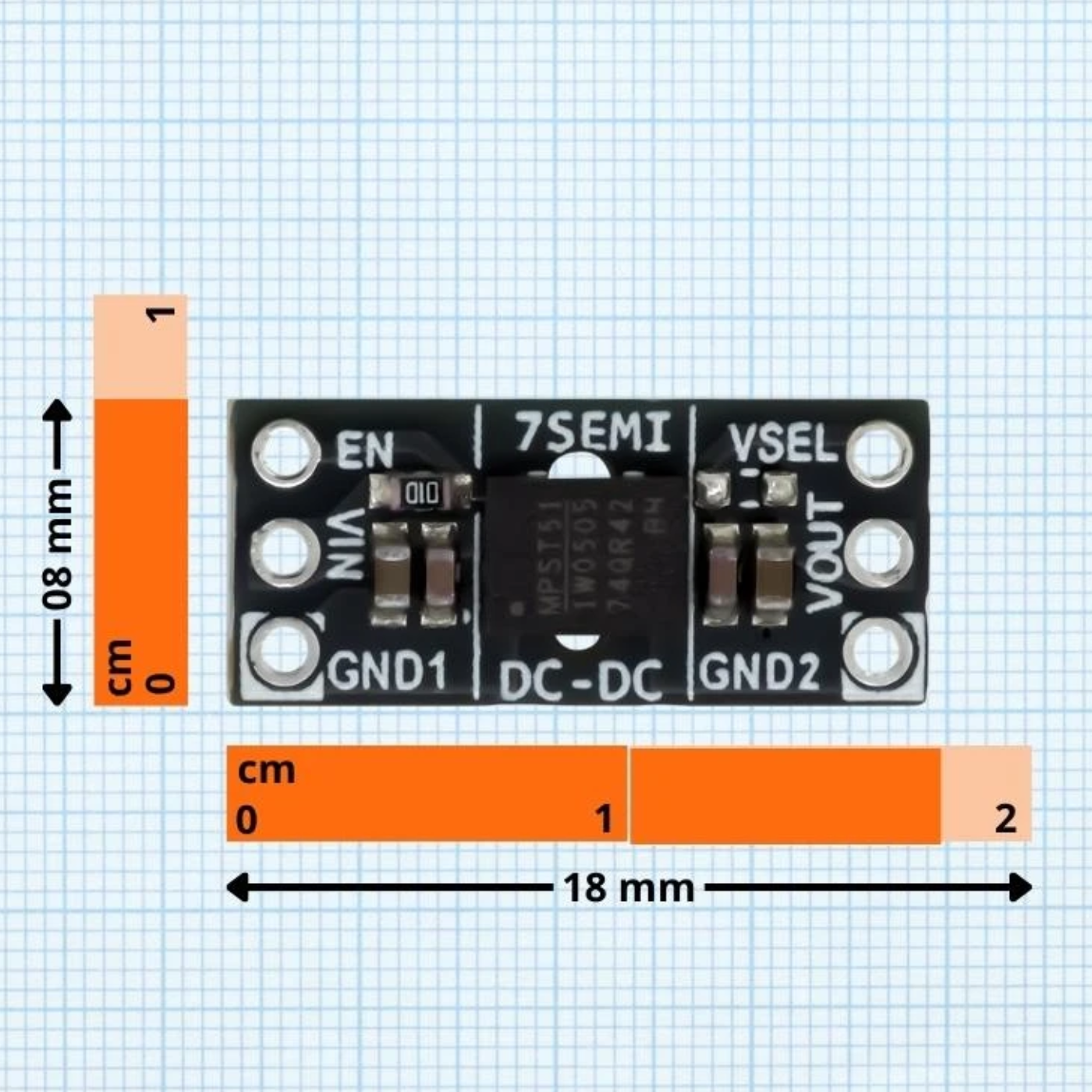

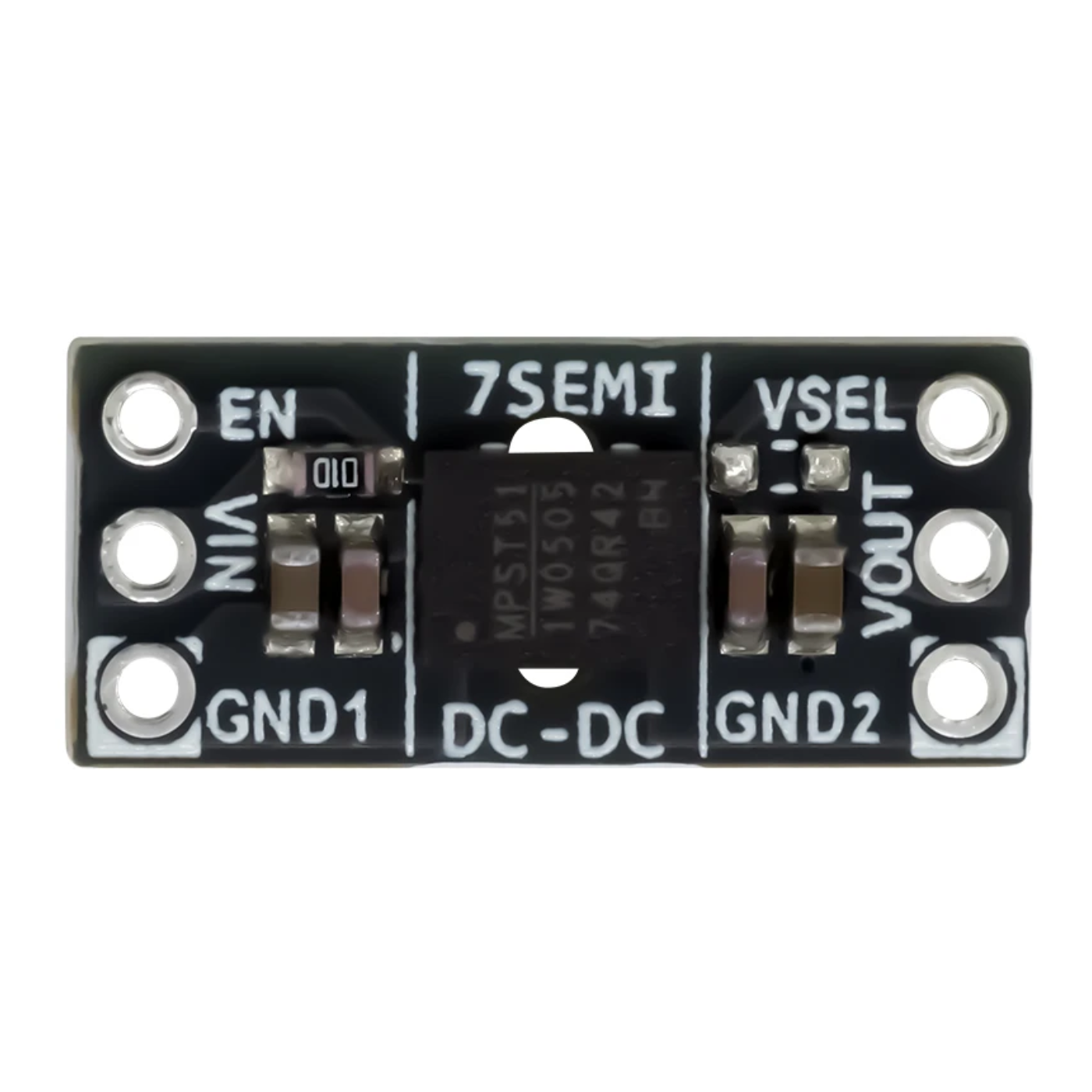

7Semi MIE1W0505 5V 1W Isolated DC-DC Converter Module with 2.5kVRMS Isolation
The 7Semi MIE1W0505 5V 1W Isolated DC-DC Converter Module is a compact and reliable solution for creating an electrically isolated 5V power rail in electronic systems. Designed with up to 2.5kVRMS isolation between the input and output sides, this isolated DC-DC converter helps reduce ground loops, improve noise immunity, and protect sensitive circuits.
Its integrated transformer, power switching stage, and feedback control simplify the design of an isolated power supply without requiring a complex discrete circuit. With a regulated 5V output and 1W power capacity, the module is well suited for isolated power supply applications, RS-485 and RS-422 communication interfaces, CAN bus systems, industrial sensors, digital isolators, data acquisition equipment, and embedded electronics.
Built-in short-circuit and thermal protection further enhance reliability, making the 7Semi MIE1W0505 a practical choice for compact industrial and communication projects.
Features:
- DC-DC power supply module with regulated isolation
- Galvanic isolation between input and output at 2.5 kVRMS
- accepts input voltages between 3 and 5.5 volts.
- controlled output voltage of 5V
- provides an output power of up to 1W.
- 200mA maximum output current at 5V output
- Outstanding performance in load regulation
- Outstanding achievement in line regulation
- Combined feedback control and transformer
- Unlimited support for capacitive loads
- Constant protection against short circuits
- Protection against overheating
- Isolated power architecture with high reliability
- Small solution for embedded and industrial applications
- Ideal for communication interfaces and digital isolation
- aids in lowering interference and ground loop noise
- broad range of operation temperatures
