7Semi LM66200 Dual Ideal Diode Module 1.6V to 5.5V, 2.5A
Let us know!
We'll try to match the price for you
We’ll notify you once the product is back in stock.
For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below
Couldn't load pickup availability

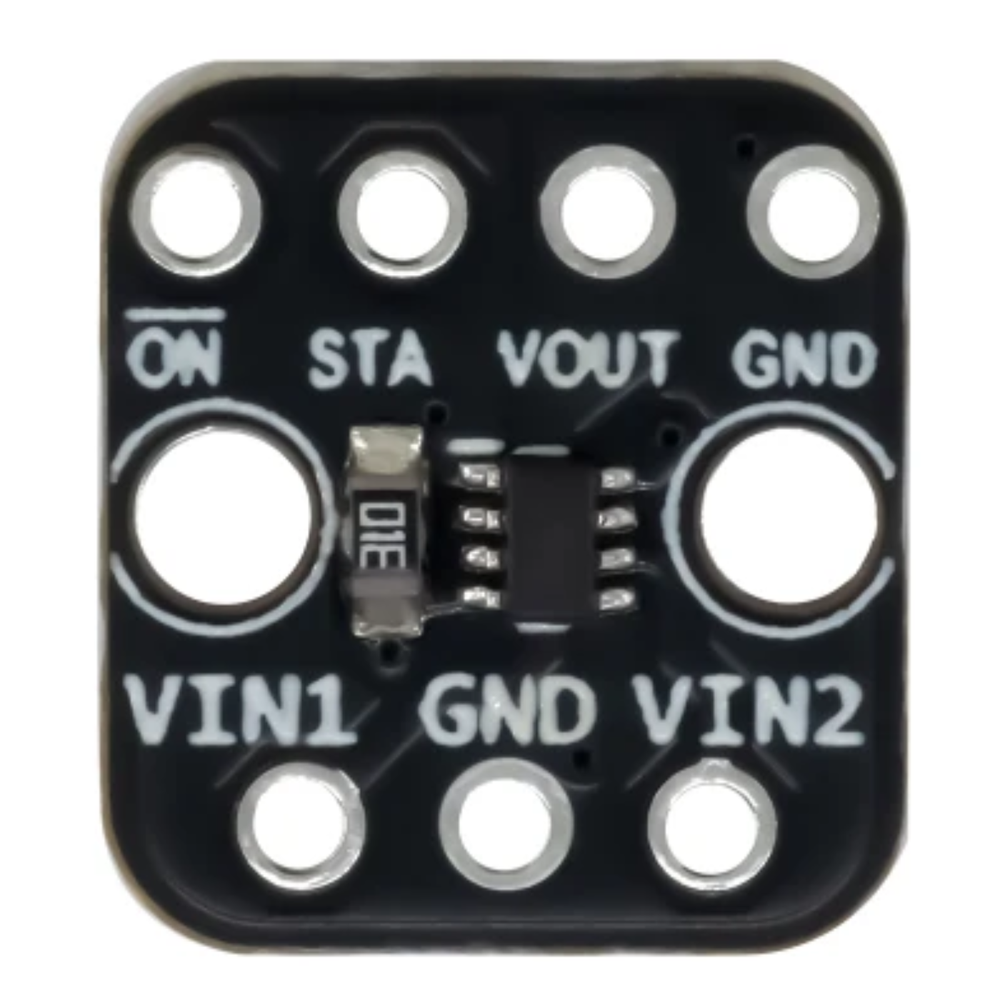

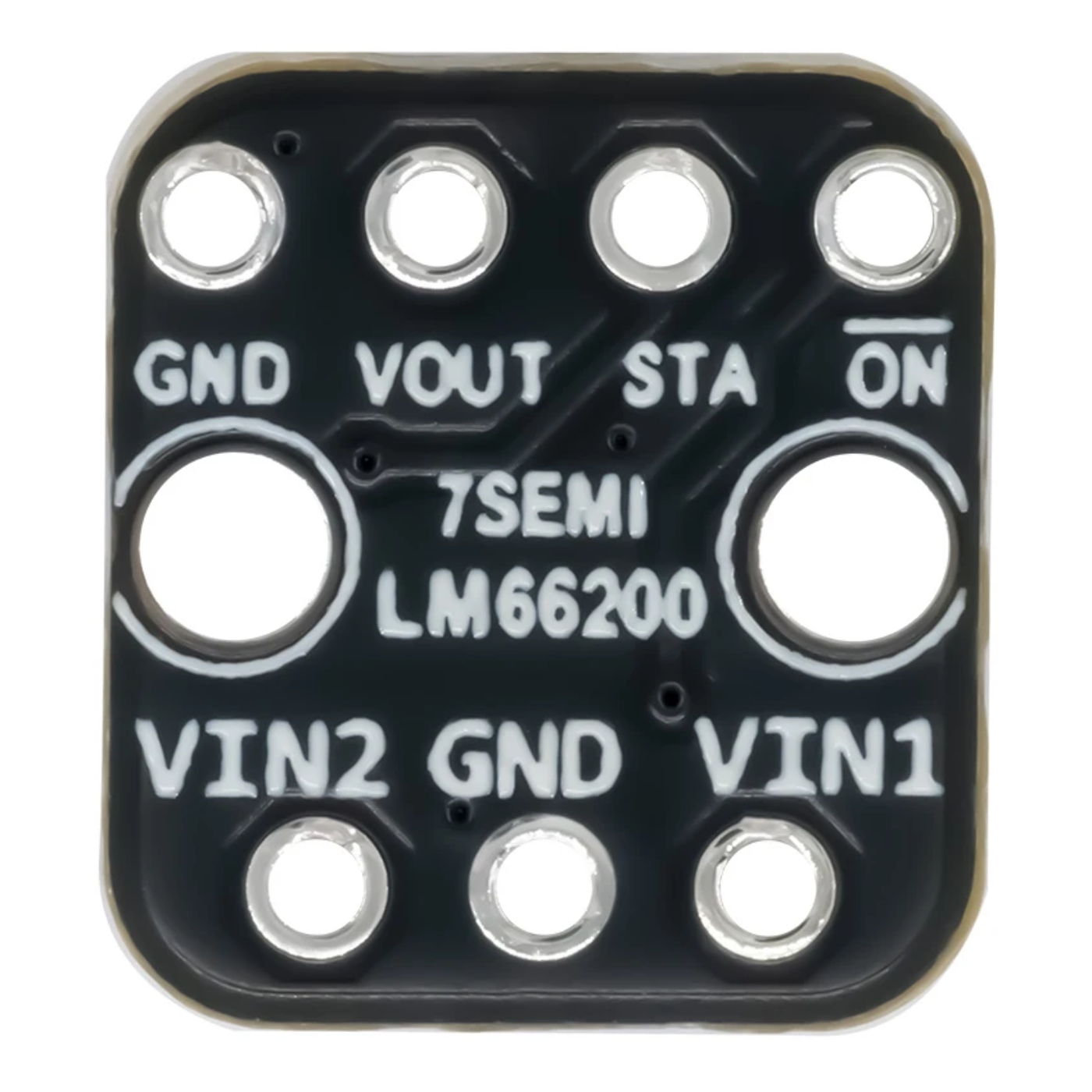

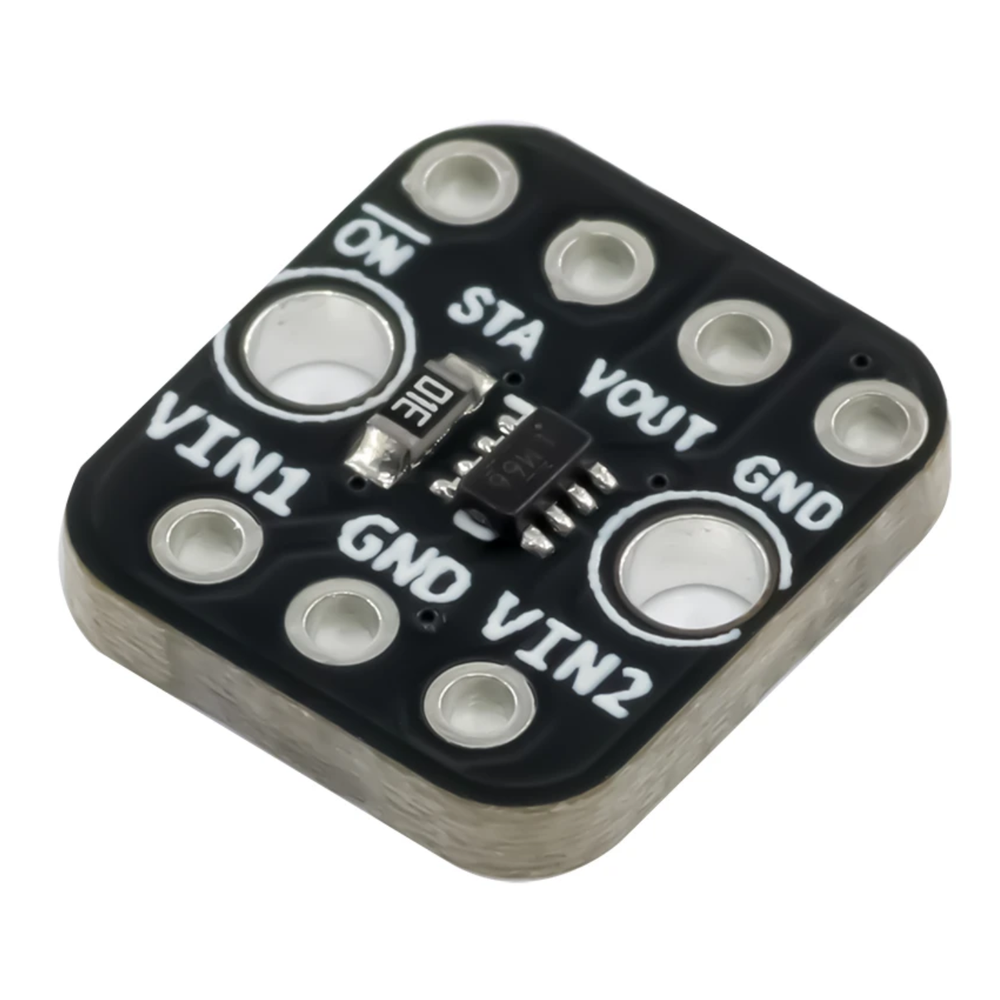

The 7Semi LM66200 Dual Ideal Diode Module is a compact and efficient power management module designed to combine two power sources and automatically switch to the higher-voltage input for a stable and uninterrupted output. With an input voltage range of 1.6V to 5.5V and support for up to 2.5A, it works well with low-voltage battery systems, embedded electronics, and portable devices.
Its MOSFET-based ideal diode circuit provides low-loss power switching with minimal voltage drop compared with conventional diode-based solutions. The module is suitable for dual power supply, battery backup, power source selection, power-path management, and embedded system applications where dependable and efficient power delivery is required.
| Specification | Details |
|---|---|
| IC Used | LM66200 |
| Operating Voltage | 1.6V to 5.5V |
| Operating Temperature | -40°C to 85°C |
| Output Current Rating | 2.5A |
| Slew Rate | 1.3 ms at 3.3V |

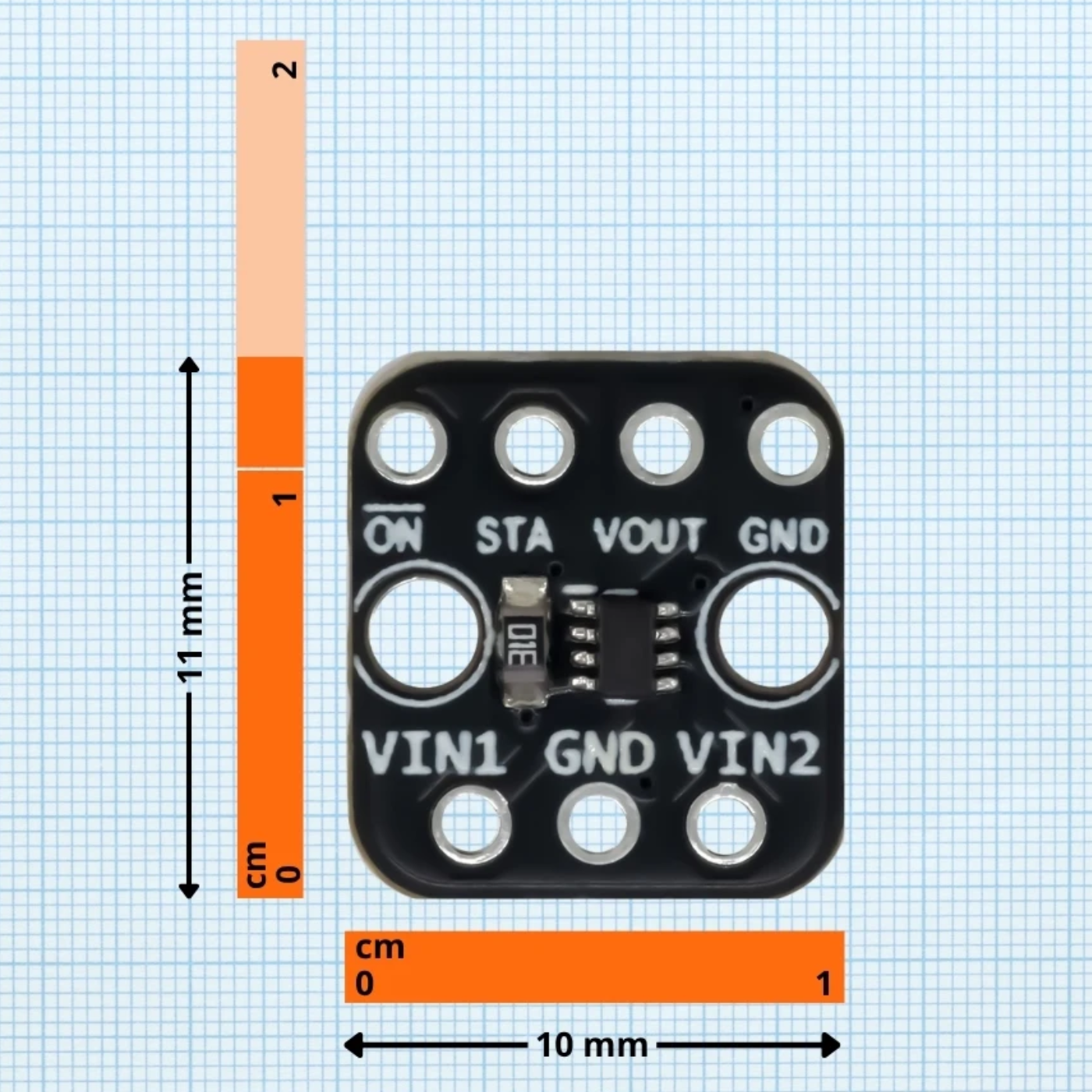

| Dimensions (L × W × H) | 10 × 11 × 2.6 mm |
This product comes with a 6-month manufacturer warranty from the date of purchase, covering manufacturing defects only.
The product shows signs of physical damage, mishandling, exposure to water/moisture, fire, natural calamities, unauthorized repairs, improper storage near heat or direct sunlight, or alteration in any way.
