7Semi ISM330DHCX 6-Axis IMU Sensor Module – Accelerometer & Gyroscope with Qwiic Interface
Let us know!
We'll try to match the price for you
We’ll notify you once the product is back in stock.
For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below
Couldn't load pickup availability

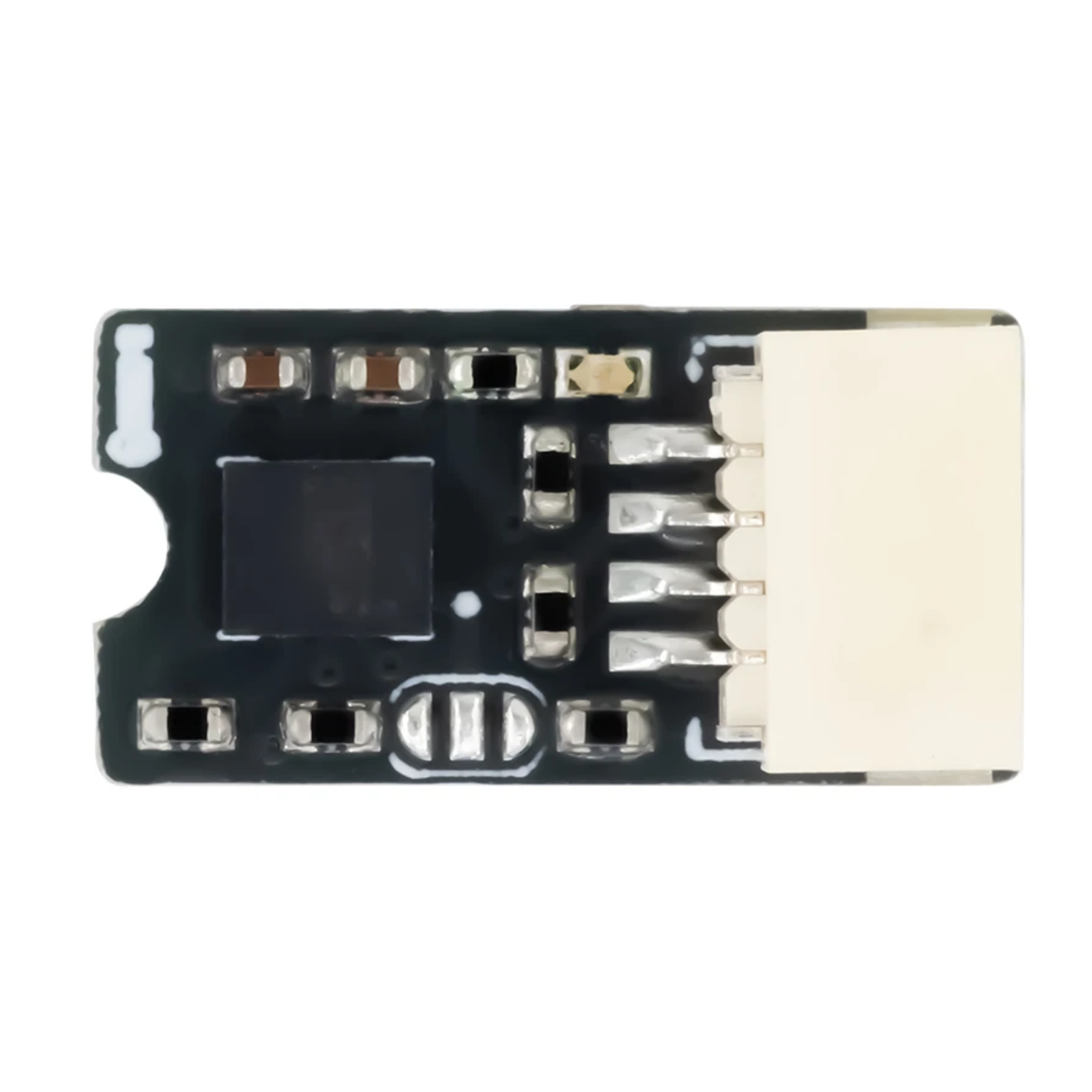

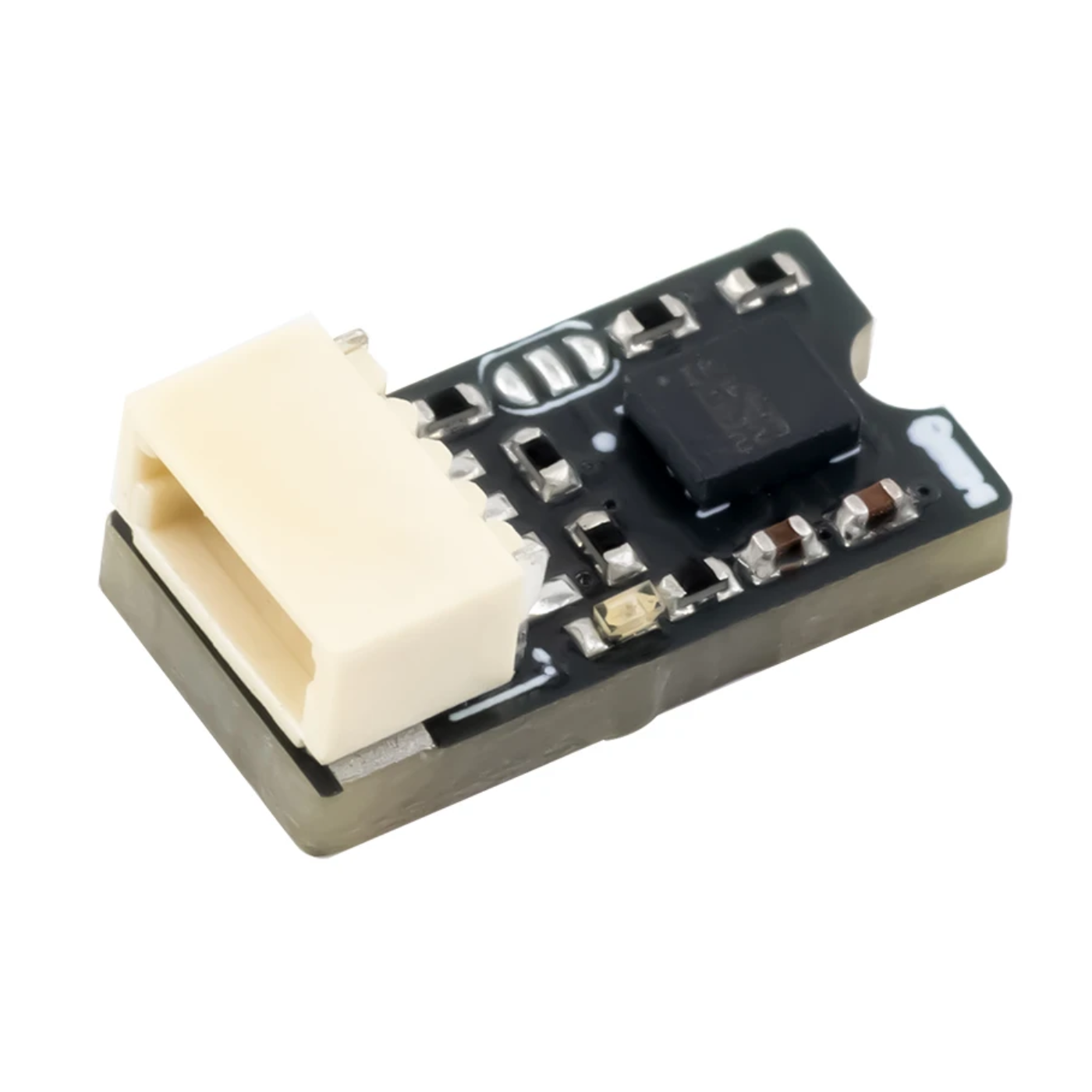

The 7Semi ISM330DHCX 6-Axis IMU Sensor Module is a compact and versatile motion sensing solution built around STMicroelectronics’ ISM330DHCX. It combines a high-performance 3-axis accelerometer and 3-axis gyroscope to detect movement, orientation changes, rotation, and vibrations in real time. With a convenient Qwiic interface and JST-SH connector, the module offers simple plug-and-play connectivity for embedded projects without complicated wiring.
Its small form factor makes it well suited for robotics, drones, wearable devices, IoT motion sensing, gesture detection, vibration monitoring, and industrial IMU applications. Whether you are developing a motion tracking system or adding inertial sensing to a compact electronic project, this 6-axis IMU module provides a practical and easy-to-integrate solution.
| Specification | Details |
|---|---|
| Sensor | ST ISM330DHCX |
| Accelerometer Range | ±2g / ±4g / ±8g / ±16g |
| Gyroscope Range | ±125 / ±250 / ±500 / ±1000 / ±2000 dps |
| Axes | 6-axis (3-axis Accelerometer + 3-axis Gyroscope) |
| Output Data Rate | Up to 6.6 kHz |

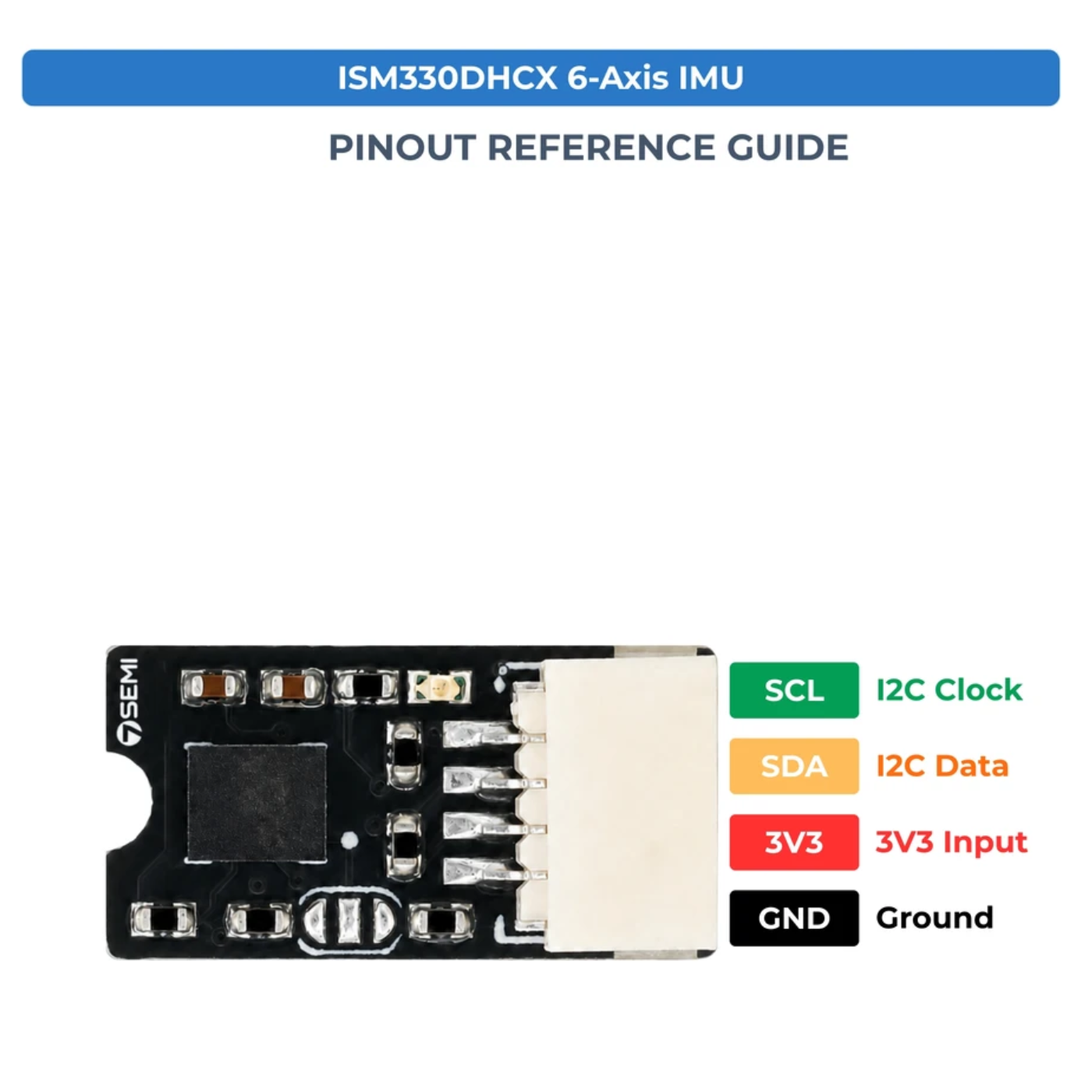

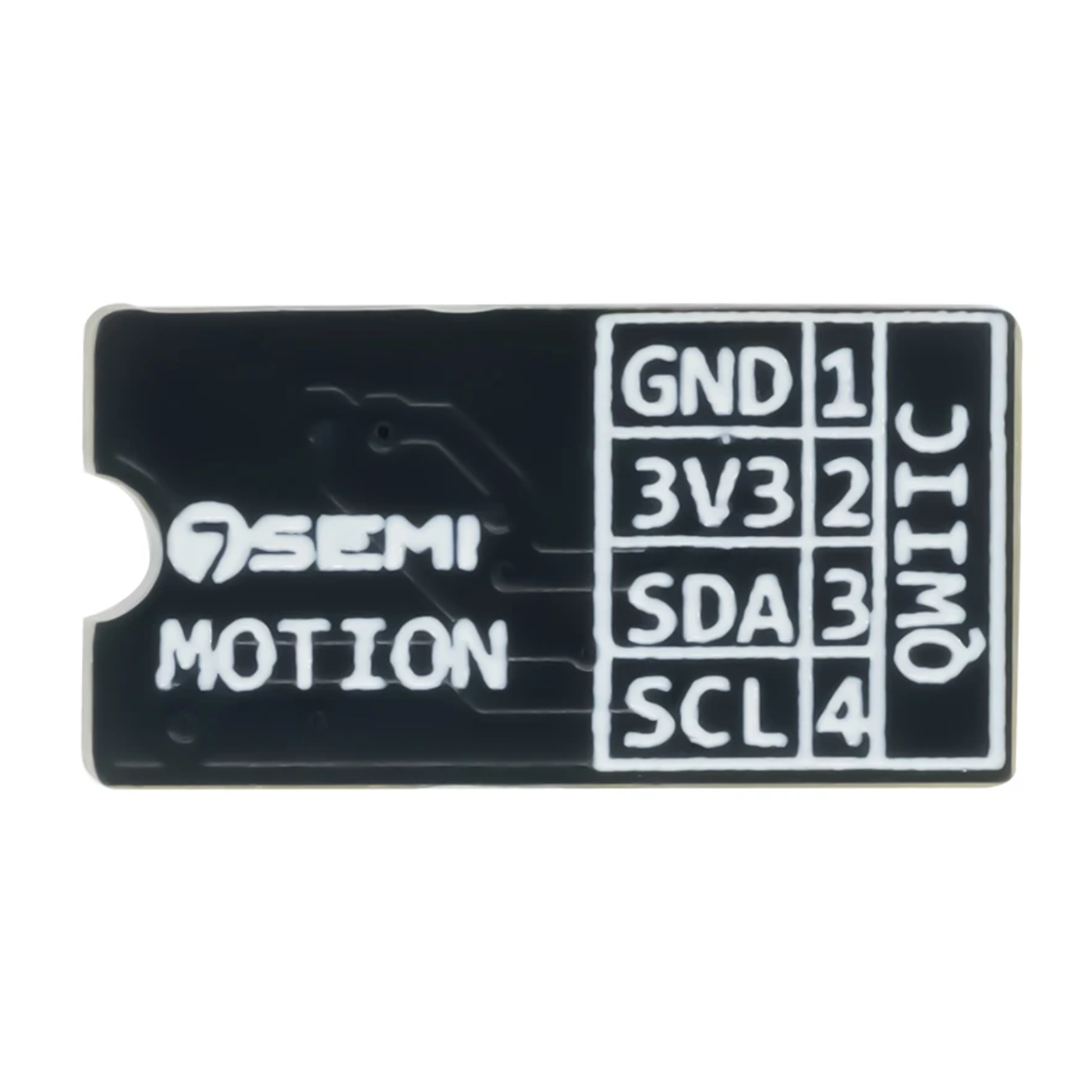

| Interface | Qwiic-compatible |
| Connector | JST-SH |
| Operating Voltage | 3.3 V |
| Power Consumption | Ultra-low-power modes available |

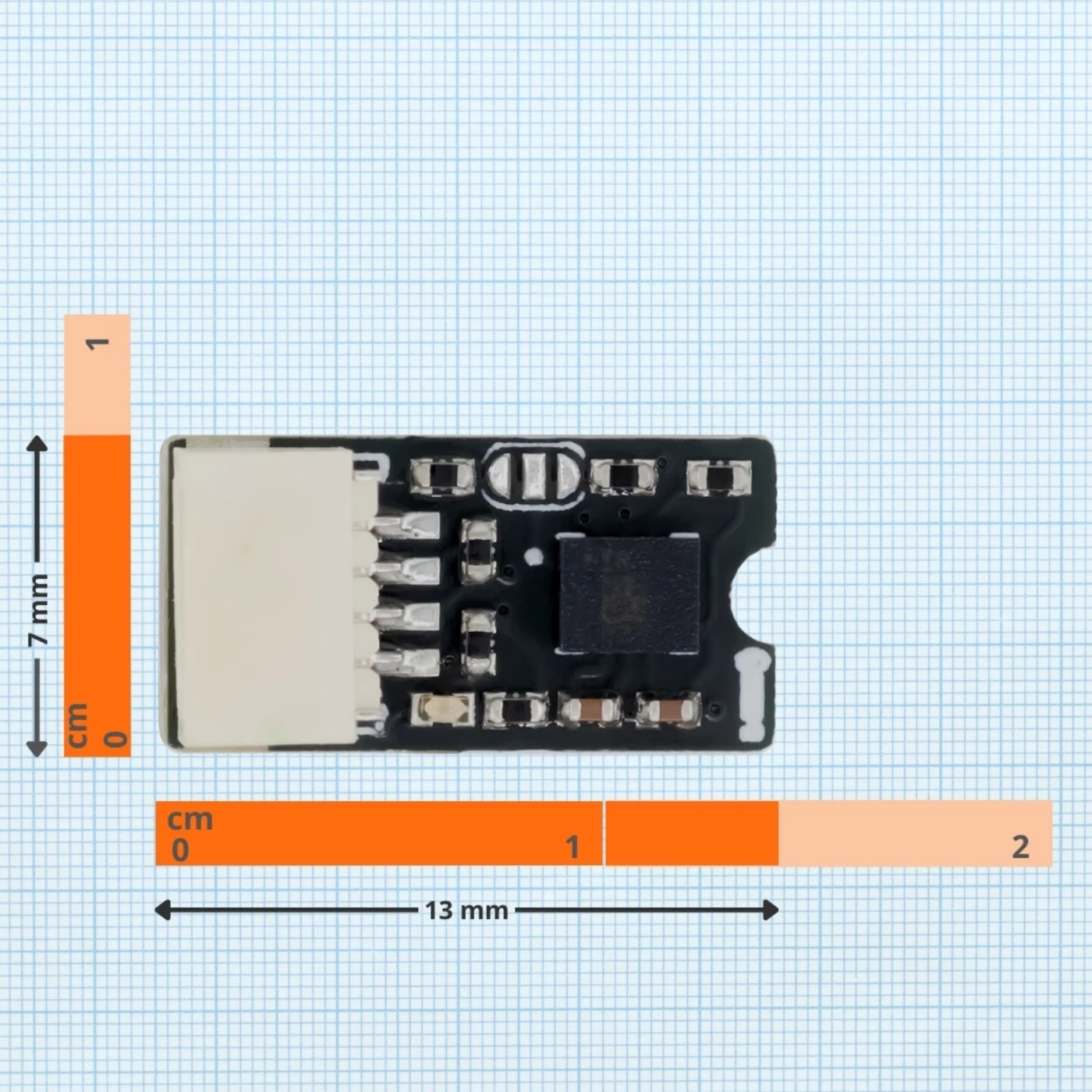

| Dimensions | 13 mm × 7 mm × 4.7 mm |
This product comes with a 6-month manufacturer warranty from the date of purchase, covering manufacturing defects only.
