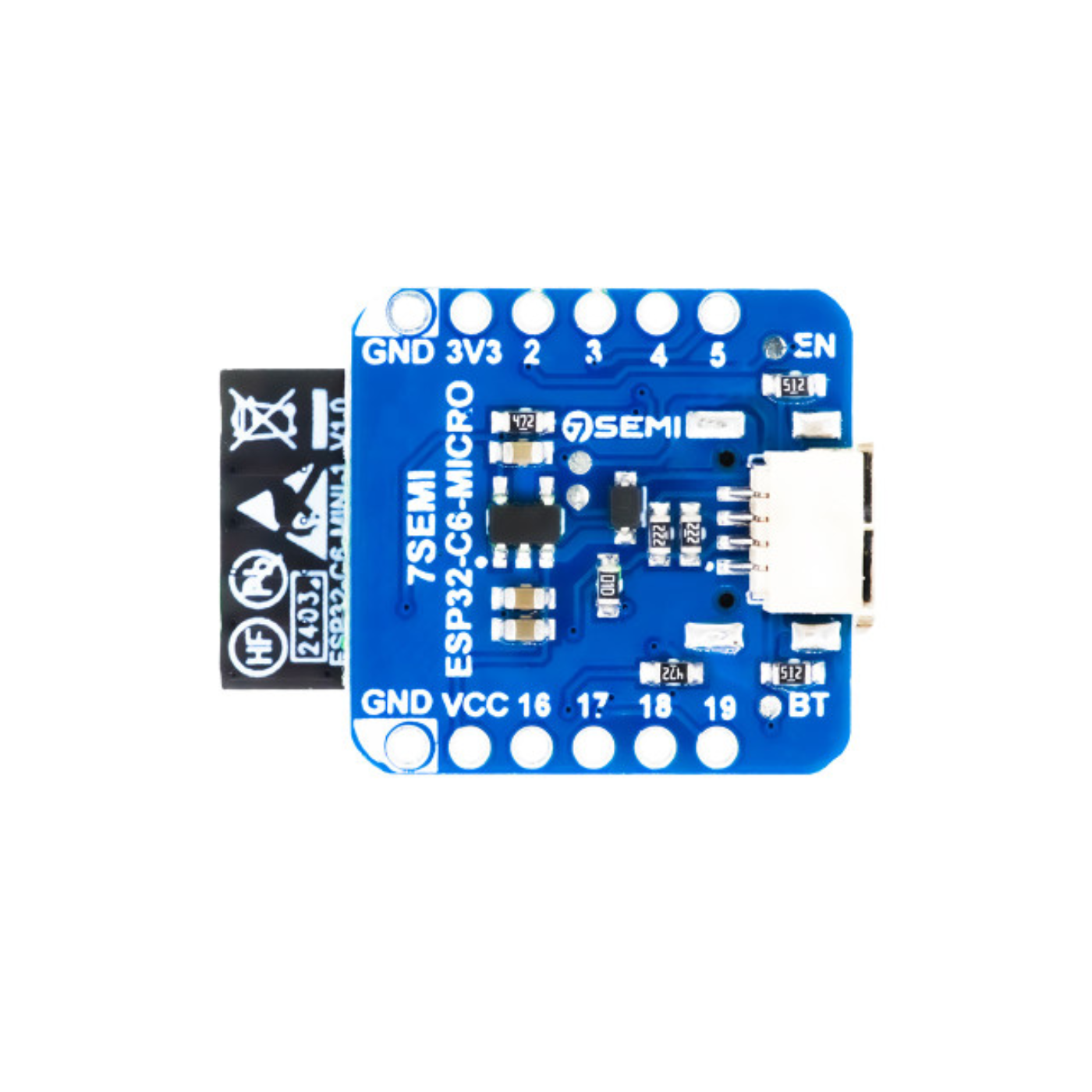

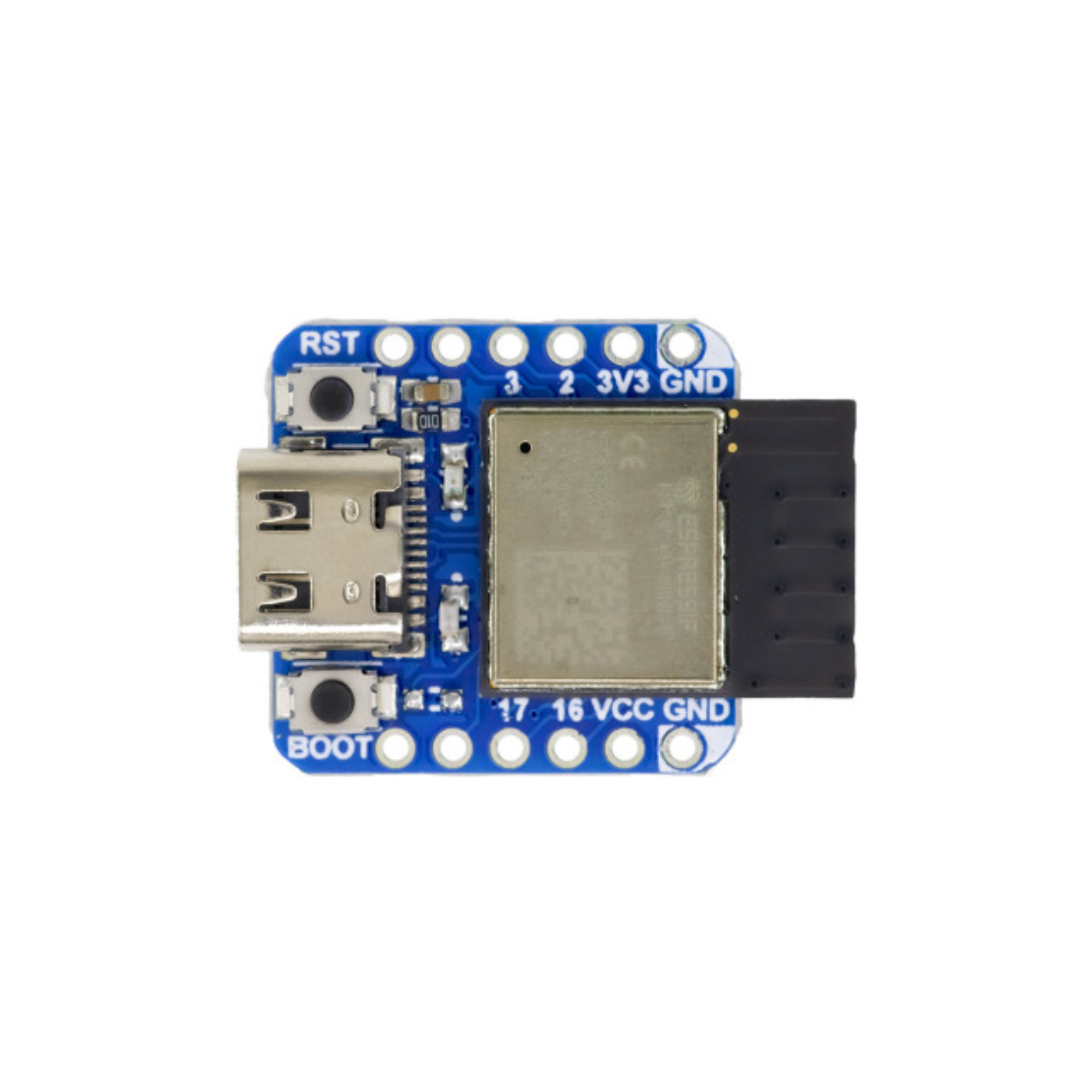

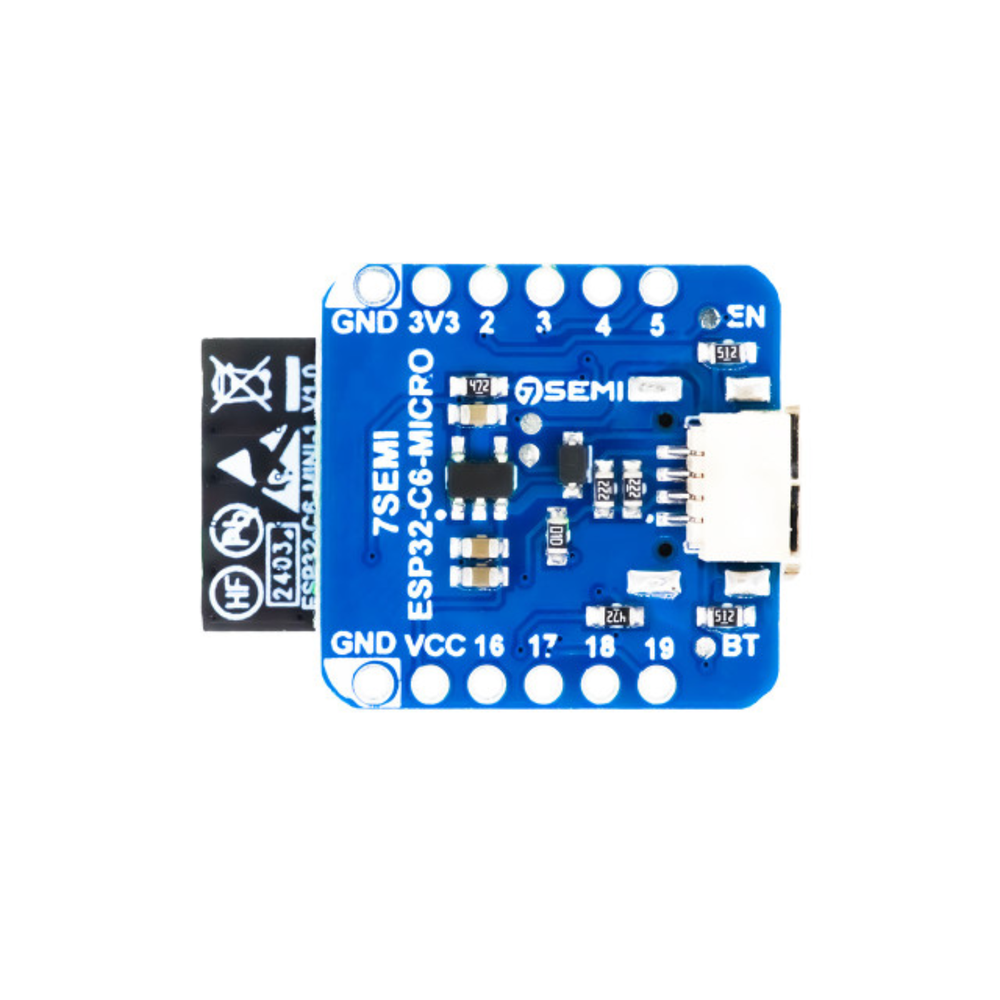

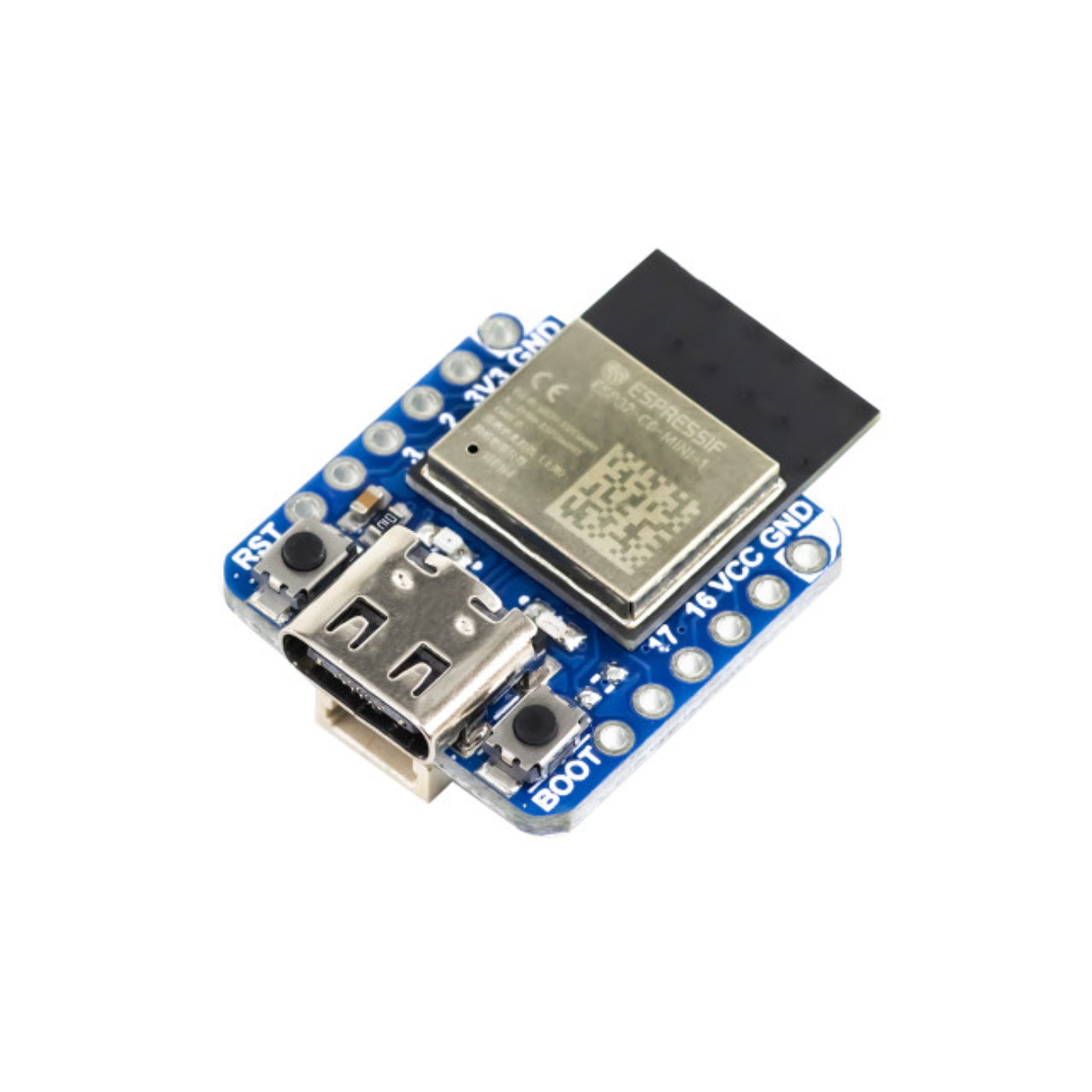

7Semi ESP32-C6 Mini Wifi Development Board Qwiic
Couldn't load pickup availability
The 7Semi ESP32-C6 Mini Wifi Development Board Qwiic is a compact and powerful wireless development board built around the modern ESP32-C6 chipset. It brings together fast Wi-Fi connectivity and flexible input/output options in a small Qwiic-compatible form factor, making it easy to use in projects that need smart communication and control.
This board supports Wi-Fi 6 and Bluetooth/BLE connectivity, along with plenty of programmable pins for sensors, modules, and other components. With its Qwiic connector, you can plug in compatible accessories without soldering, simplifying prototyping and expanding your project quickly. Whether you’re building IoT devices, smart sensors, or remote controls, this ESP32-C6 board delivers reliable performance and effortless integration.
| Module | ESP32-C6 MINI-1 |
|---|---|
| Processor | 32-bit RISC-V Single-Core Microprocessor |
| GPIO | 23 Multifunctional GPIO (most peripherals on any pin) |
| ADC | Up to 7 × 12-bit ADC Channels |
| UART | Up to 2 UART Channels (with flow control) + 1 Low Power UART |
| USB | USB Serial |
| I2C | 1 I2C Channel + 1 Low Power I2C Channel |
| PWM | LED PWM |
| I2S | 1 I2S Channel |
| Flash Memory | 4 MB |
| Wireless Connectivity | 2.4 GHz WiFi 6, Bluetooth 5 LE, Zigbee & Thread (802.15.4) |
| Antenna | PCB Antenna |
| Matter Support | Matter-compatible |
| Form Factor | Qwiic Form-Factor |
| Board Dimensions | 1" × 1" |
| Mounting | Four Mounting Holes |
| Pins | 8 PTH Pins |
| USB Connector | USB-C |
| Battery Connector | 2-pin JST for LiPo Battery (not included) |
| Qwiic Connector | 4-pin Qwiic Connector |
| Battery Charger IC | MCP73831 |
| Charging Rate | 213 mA @ 3.3V |
