7Semi EG800AK-CN LTE Cat 1 USB Cellular Modem
Let us know!
We'll try to match the price for you
Couldn't load pickup availability

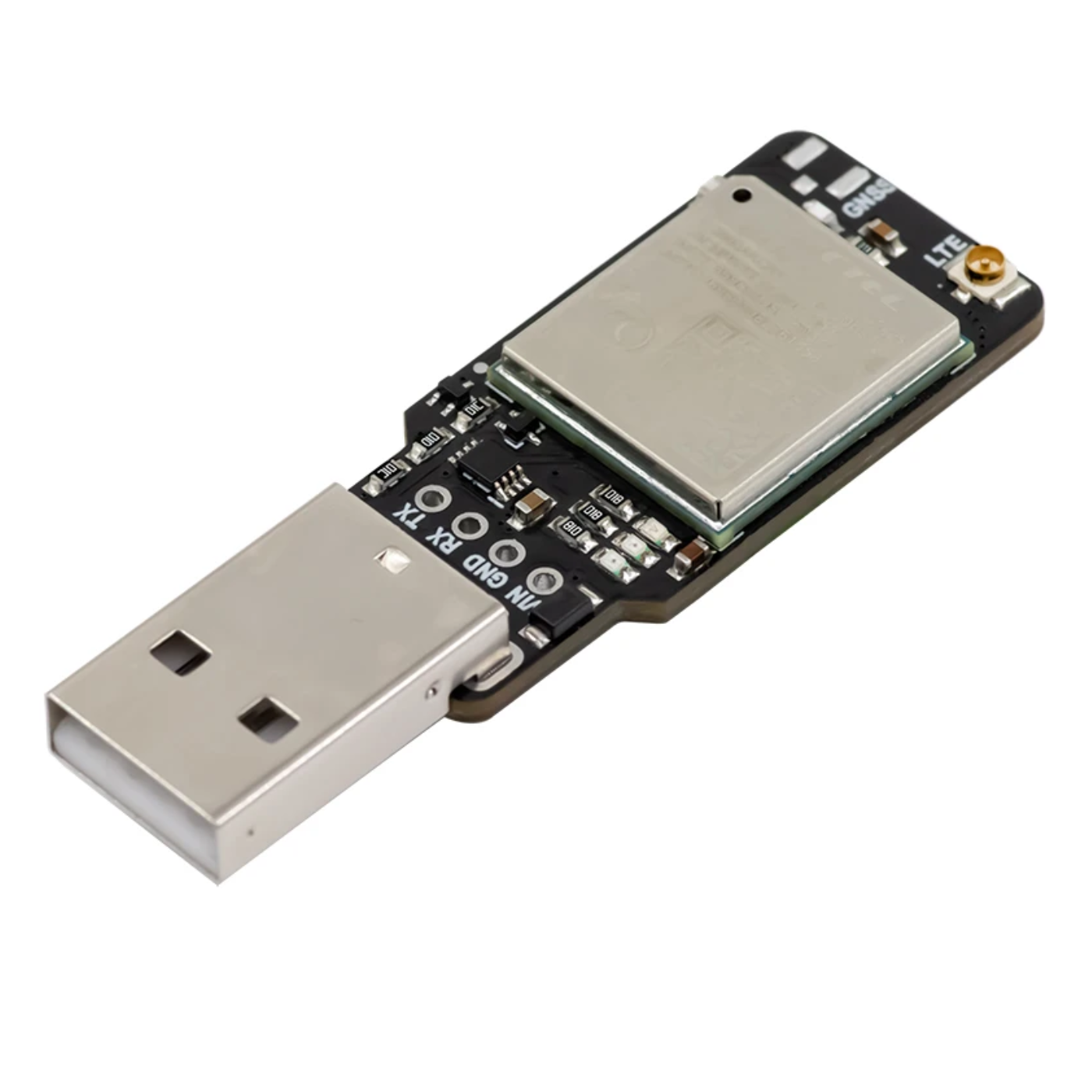

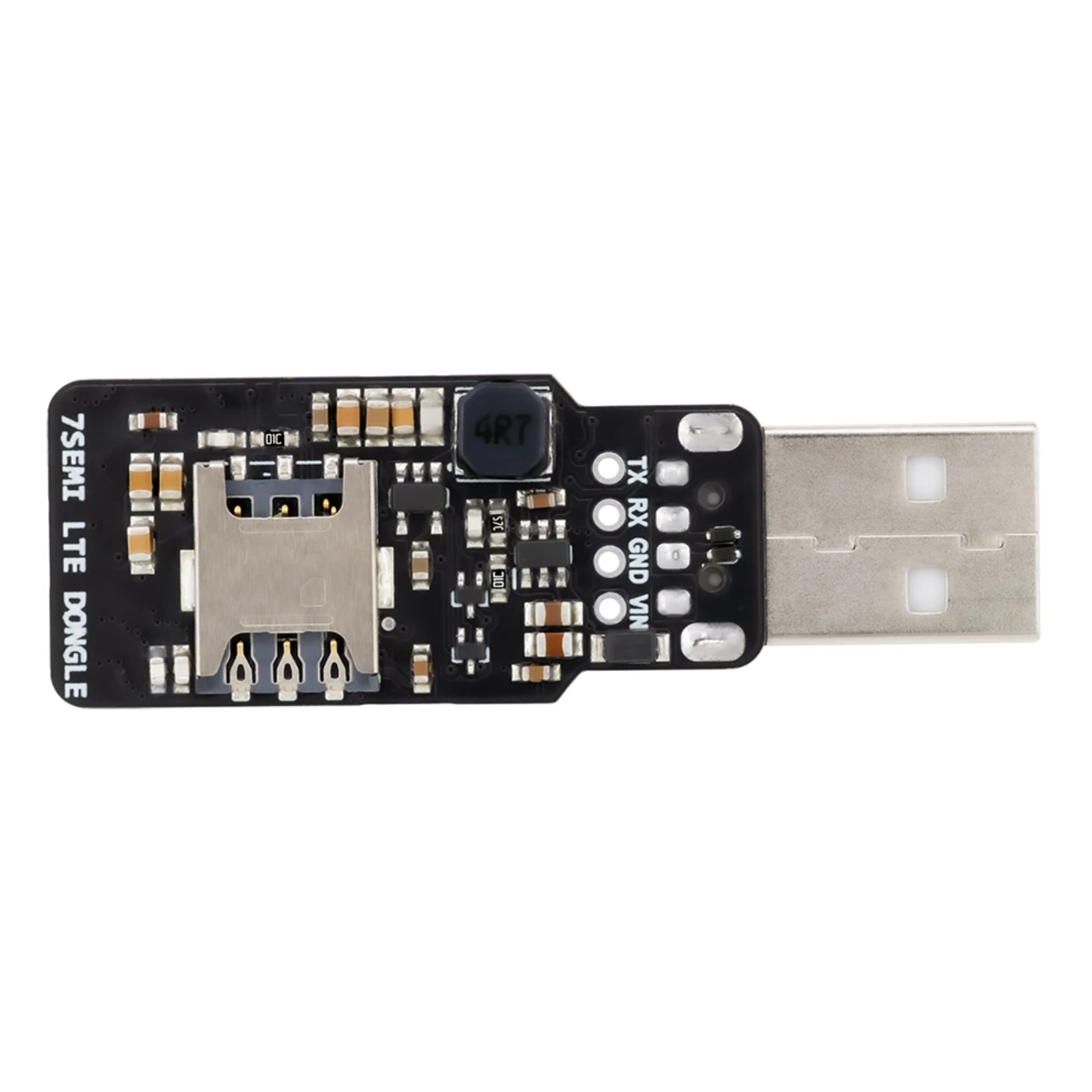

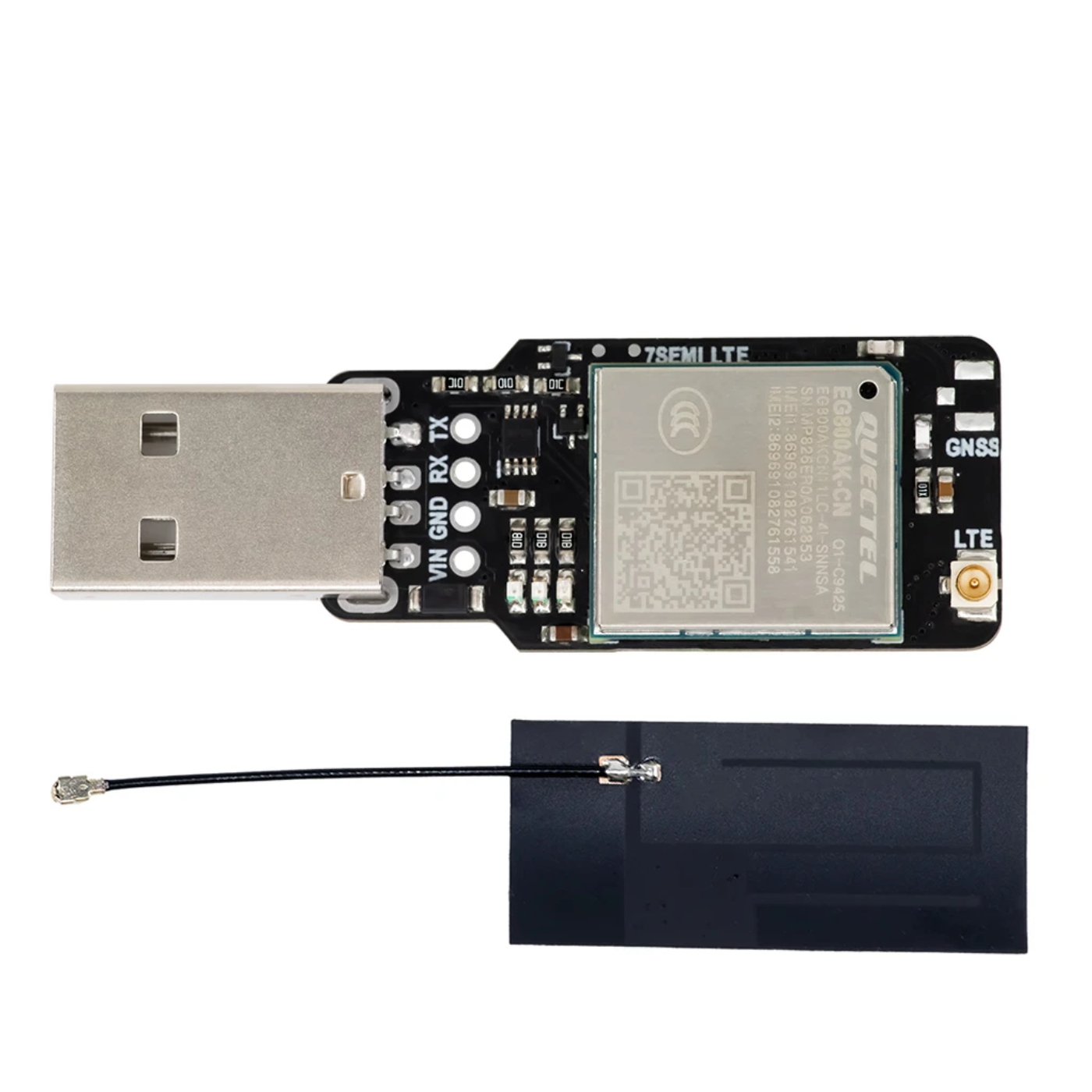

The 7Semi EG800AK-CN LTE Cat 1 USB Cellular Modem is a compact and convenient solution for adding 4G LTE connectivity to IoT devices, embedded systems, and industrial applications. Built around the Quectel EG800AK-CN LTE Cat 1bis modem, it features a USB Type-A interface, Nano SIM card slot, external LTE antenna connector, and UART breakout pins for flexible communication and development. With download speeds of up to 10 Mbps and upload speeds of up to 5 Mbps, this USB cellular modem is suitable for remote monitoring, telemetry, industrial automation, data logging, and other cellular IoT projects.
It also supports AT commands for modem configuration and testing, making it useful for developers working with Arduino, ESP32, STM32, and other compatible platforms. Whether you're prototyping a connected device or building an industrial communication system, this 7Semi 4G LTE USB modem offers a practical way to establish cellular data connectivity where Wi-Fi or wired networks may not be available.
| Category of Product | LTE Communication Modem |
| LTE-FDD Bands | B1, B3, B5, B8 |
| LTE-TDD Bands | B34, B38, B39, B40, B41 |
| Maximum Upload Speed | 5 Mbps |
| Maximum Download Speed | 10 Mbps |
| USB Supported | USB Type-A |
| Communication Interface | UART |
| Operating Voltage | 5V via USB Type-A; 5V–26V via VIN pin |
| Operating Temperature | -30°C to 75°C |

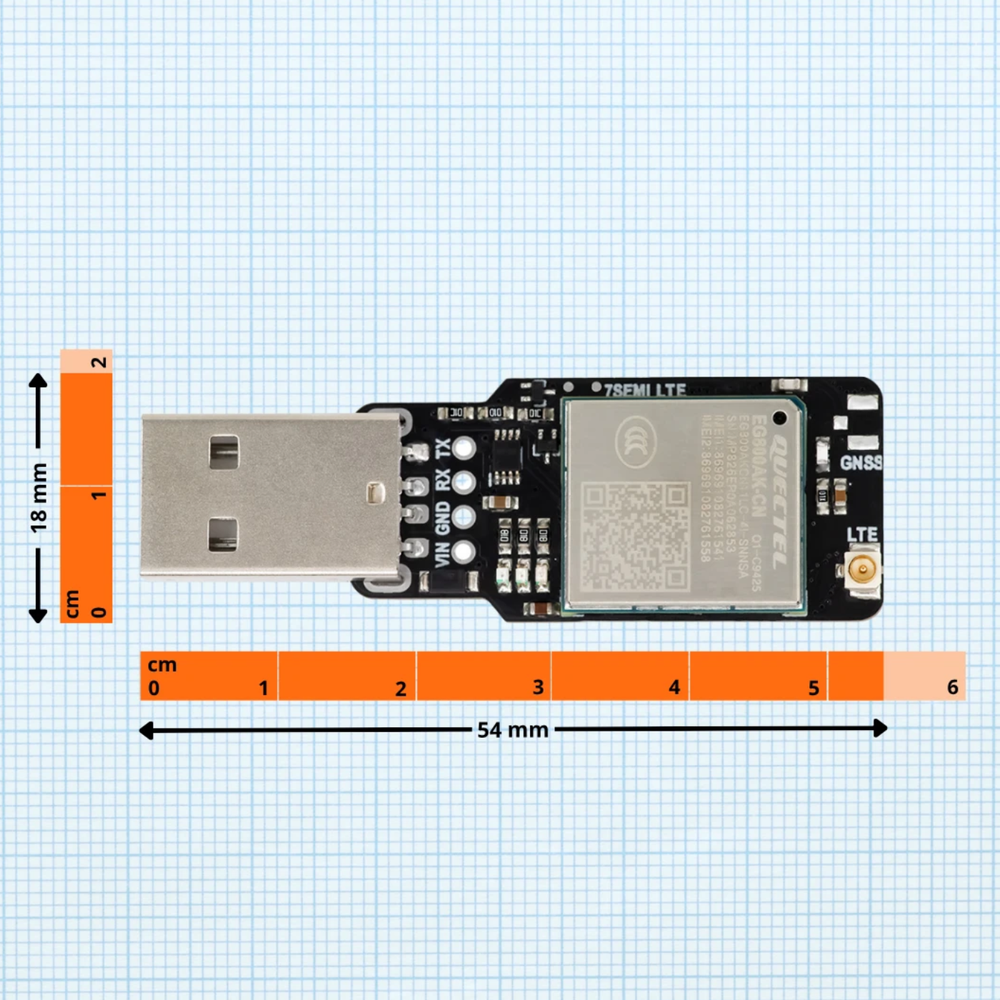

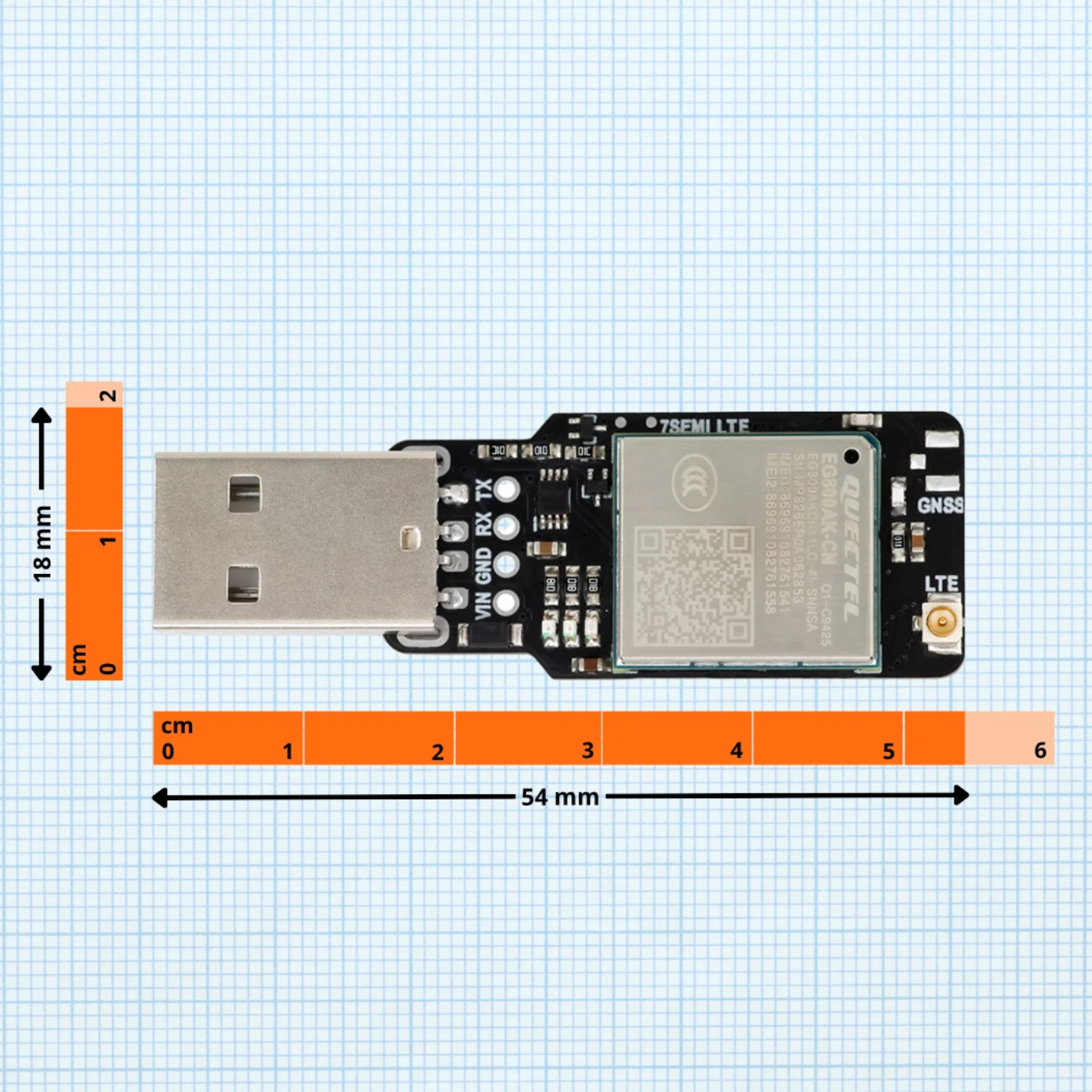

| Dimensions | 54 mm × 18 mm × 7.91 mm |
| GNSS Support | Not available |
This product comes with a 6-month manufacturer warranty from the date of purchase, covering manufacturing defects only.
The product shows signs of physical damage, mishandling, exposure to water/moisture, fire, natural calamities, unauthorized repairs, improper storage near heat or direct sunlight, or alteration in any way.
