7Semi EG800AK-CN 4G LTE Cellular Communication Module
Let us know!
We'll try to match the price for you
Couldn't load pickup availability

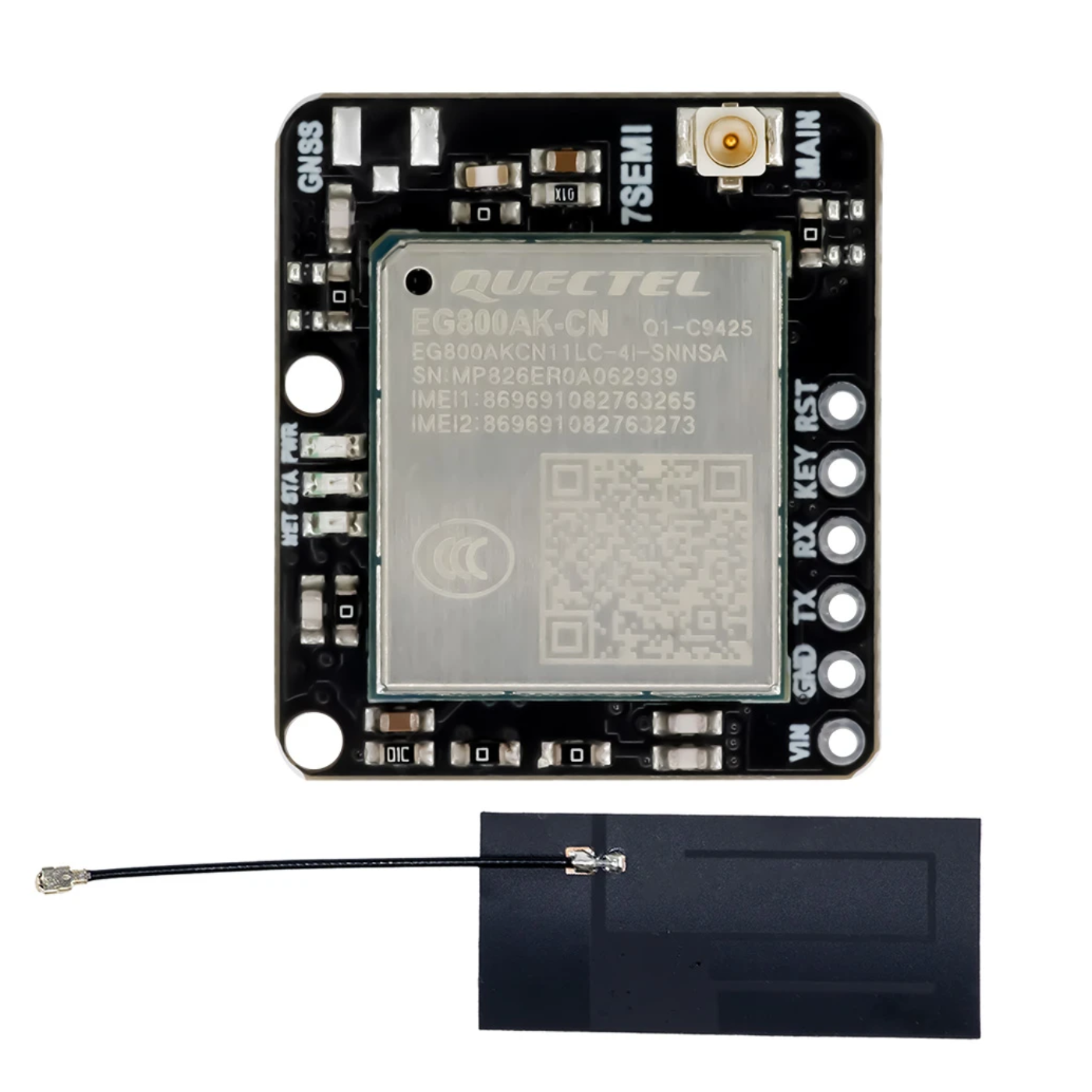

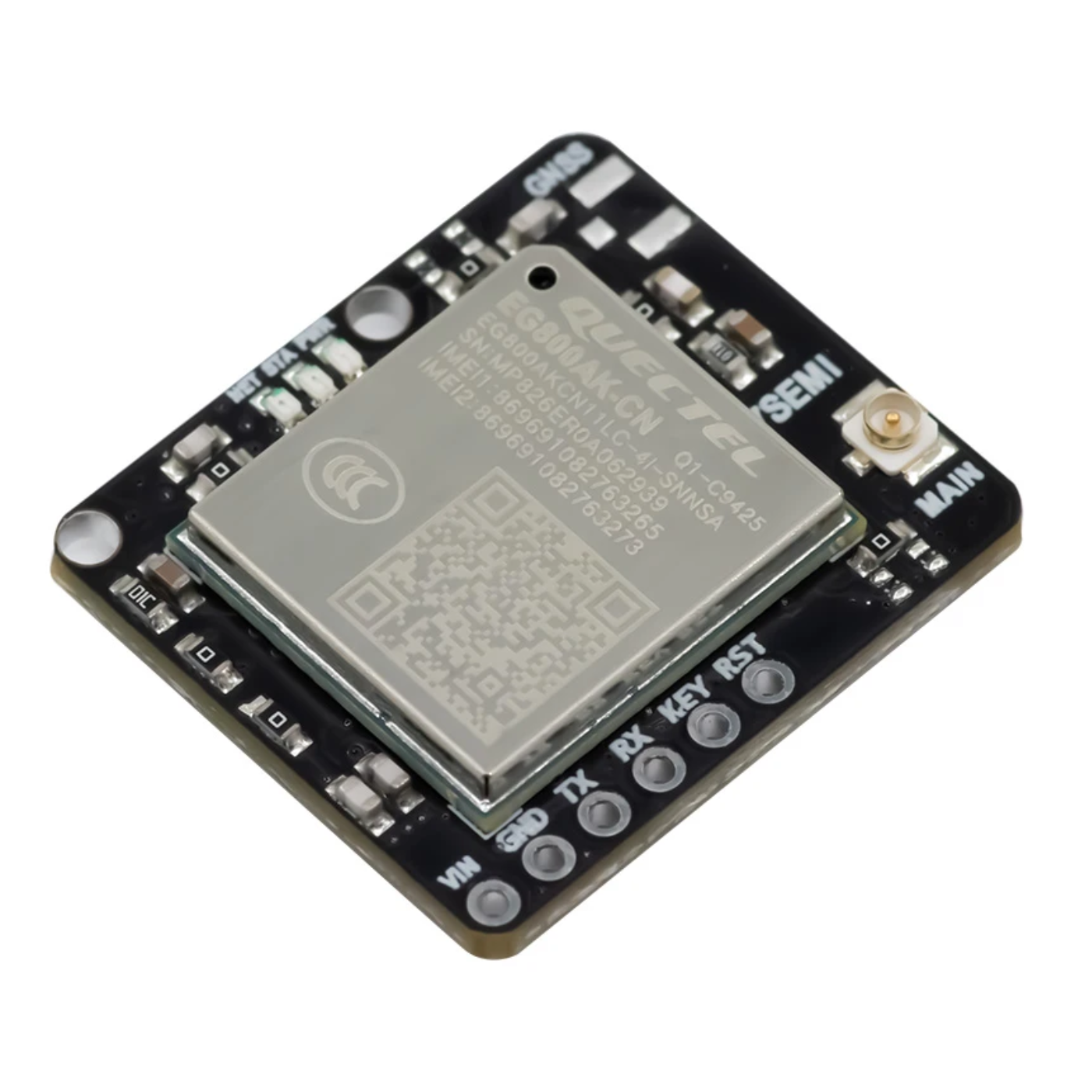

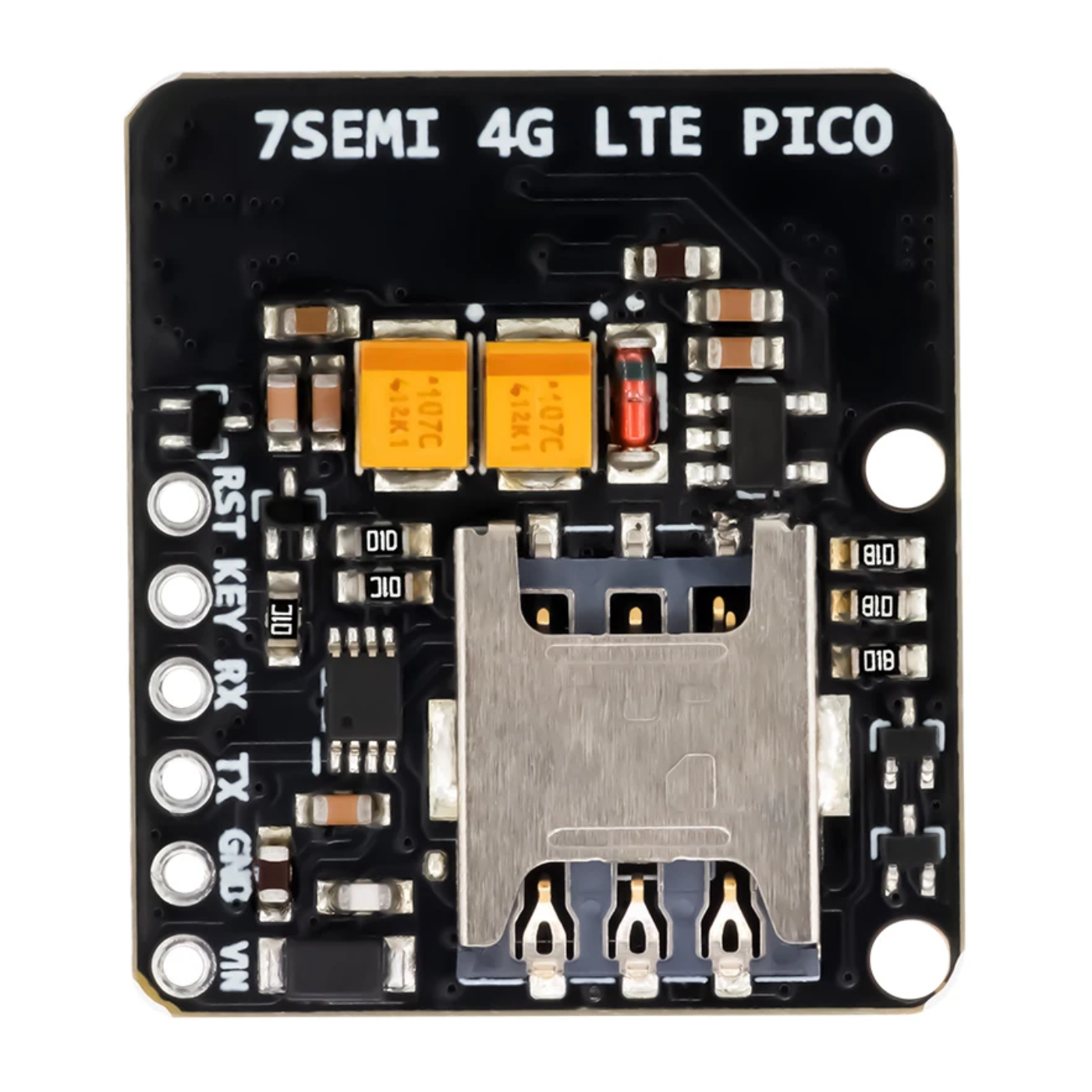

The 7Semi EG800AK-CN 4G LTE Cellular Communication Module is a compact wireless communication solution designed to add reliable cellular connectivity to IoT devices and embedded systems. Built around the Quectel EG800AK-CN LTE Cat 1 bis modem, this module supports download speeds of up to 10 Mbps and upload speeds of up to 5 Mbps. It features an onboard Nano SIM card slot, a U.FL/IPEX antenna connector, and a UART interface for convenient integration with platforms such as ESP32, STM32, RP2040, Raspberry Pi, and Linux systems.
With support for communication protocols including MQTT, HTTP, HTTPS, TCP, and UDP, it is suitable for remote monitoring, smart metering, industrial automation, telemetry, and other machine-to-machine (M2M) applications. Its compact design and low-power operation make this 4G LTE IoT module a practical choice for projects that require dependable wireless data transmission beyond the reach of Wi-Fi networks.
| Category of Product | LTE Communication Module |
| Operating Voltage | 3.4V to 4.2V DC (Typical: 3.8V) |
| Current Rating | Power-Off: 5.58 µA; Sleep Mode: 0.40 mA; Idle: 8.845 mA |
| Operating Temperature | -30°C to 75°C |
| Frequency Bands – LTE-FDD | B1, B3, B5, B8 |
| Frequency Bands – LTE-TDD | B34, B38, B39, B40, B41 |

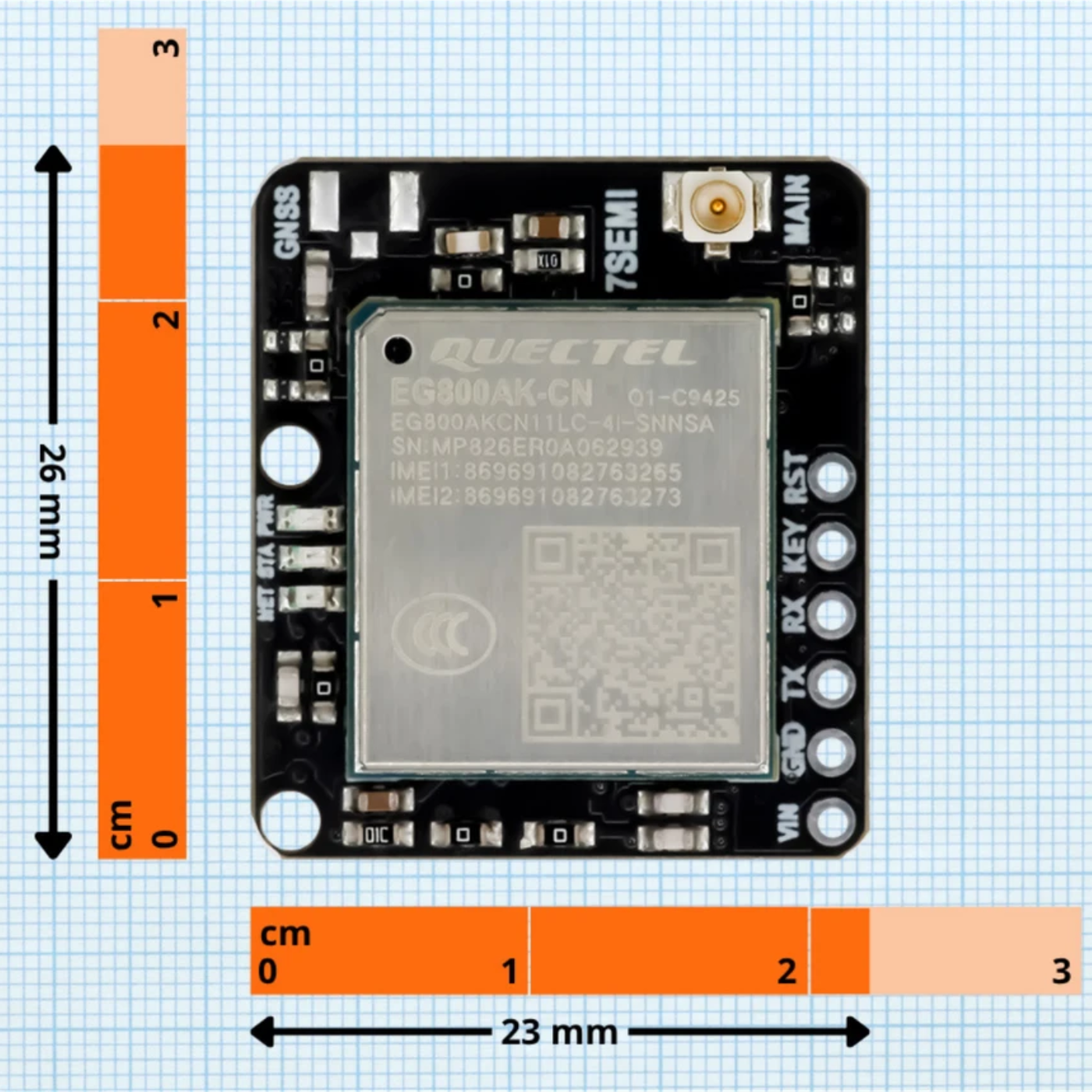

| Dimensions | 26 mm × 23 mm × 5.98 mm |
| GNSS Support | Not available |
This product comes with a 6-month manufacturer warranty from the date of purchase, covering manufacturing defects only.
The product shows signs of physical damage, mishandling, exposure to water/moisture, fire, natural calamities, unauthorized repairs, improper storage near heat or direct sunlight, or alteration in any way.
