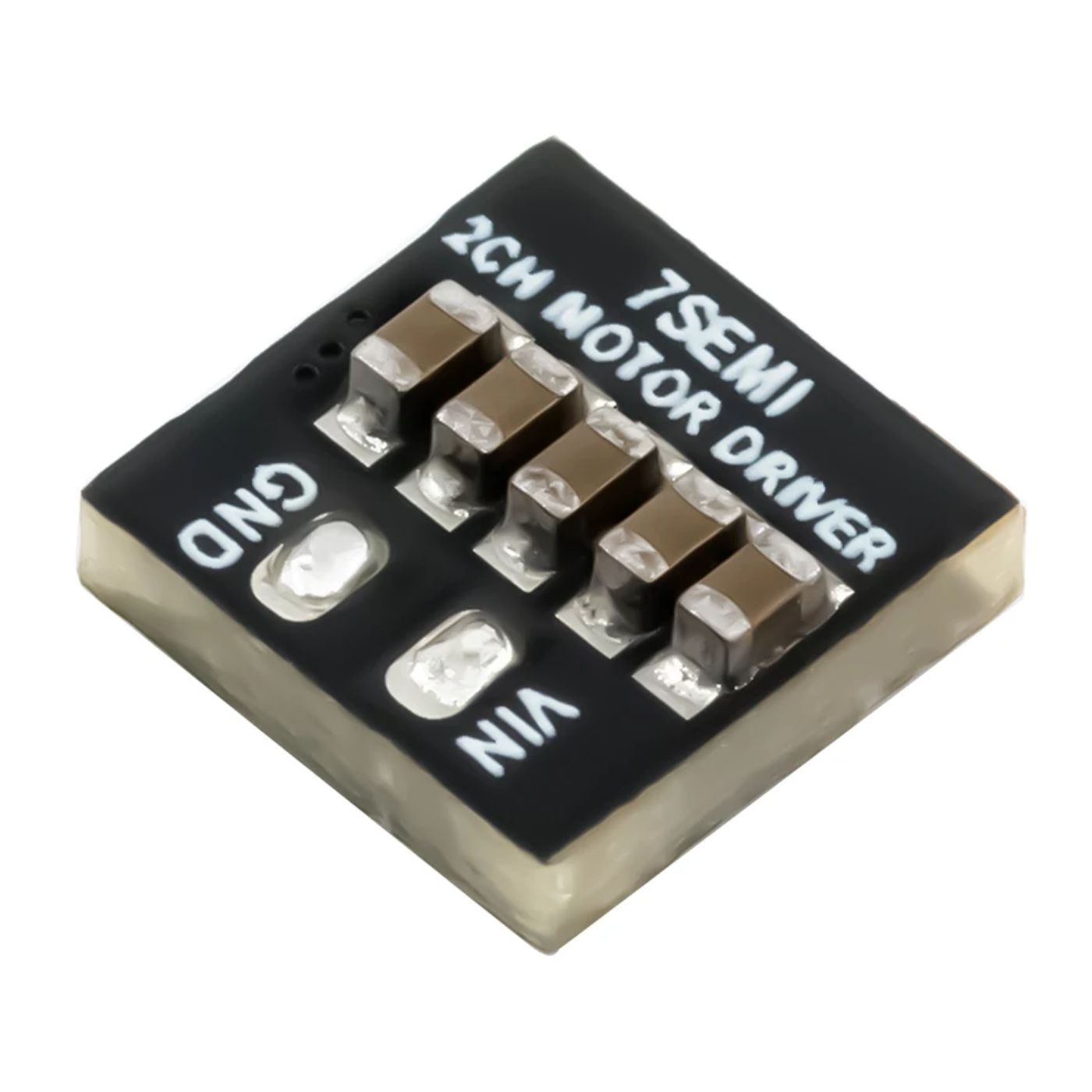

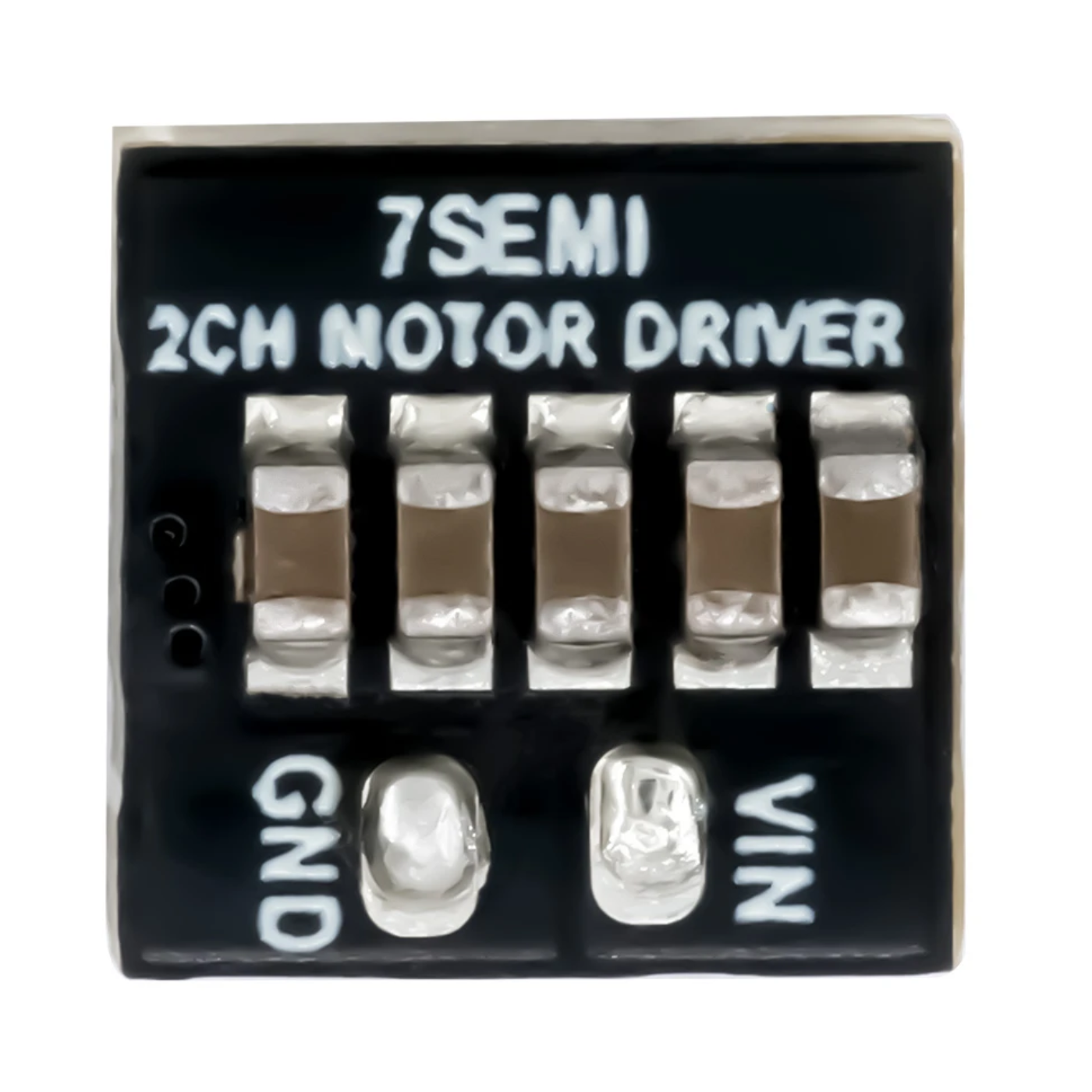

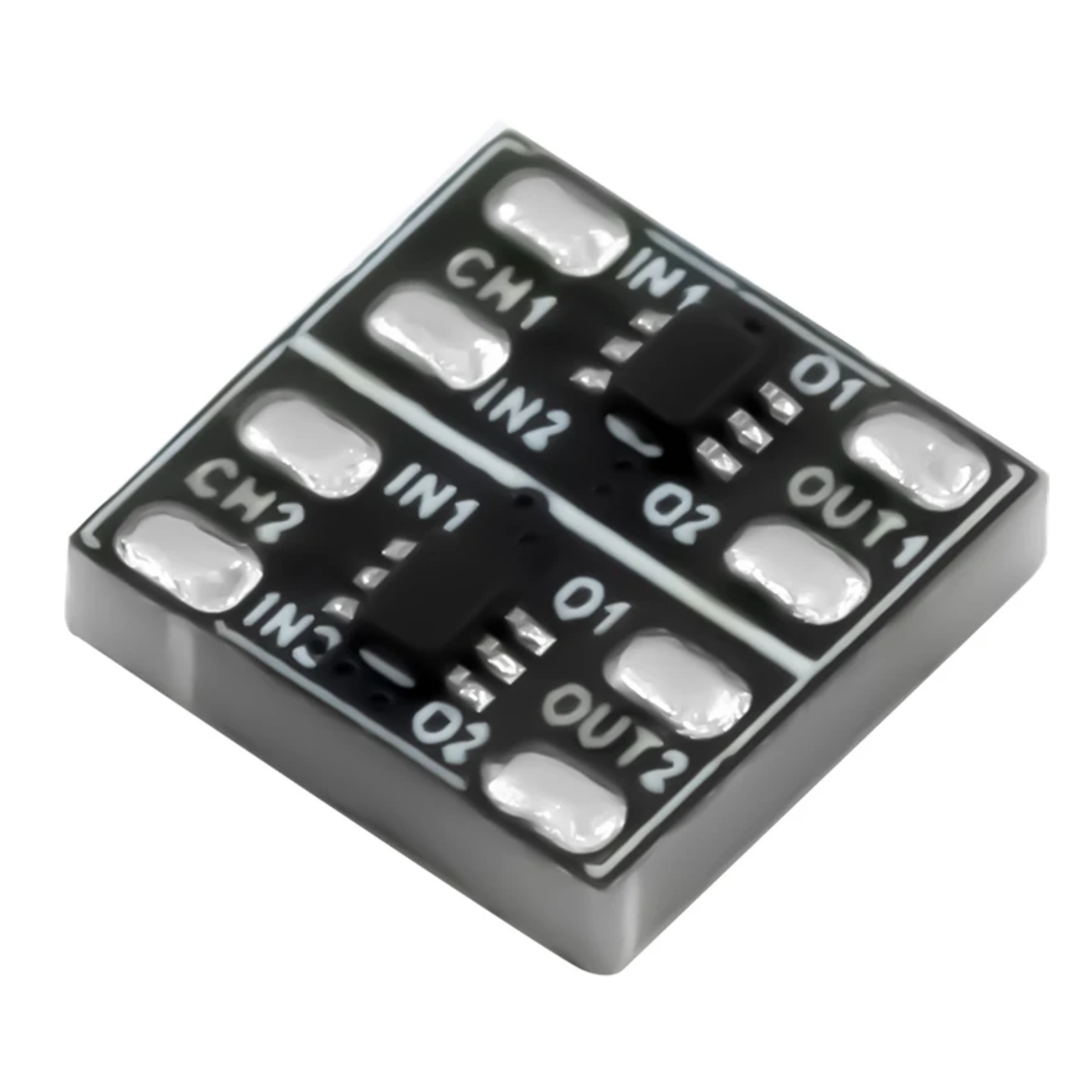

7Semi DRV8210 1A 1.65V–11V Dual Channel Motor Driver Nano Breakout
The 7Semi DRV8210 1A 1.65V–11V Dual Channel Motor Driver Nano Breakout is a compact motor driver module designed for controlling small DC motors and bipolar stepper motors in space-constrained projects. Based on the DRV8210 and featuring a dual H-bridge configuration, it allows independent bidirectional control of two DC motors or control of a single bipolar stepper motor using simple input signals.
With a 1.65V to 11V operating voltage range and up to 1A output current, this dual motor driver is well suited for low-voltage robotics, embedded systems, automation projects, and portable electronics. Its Nano breakout design keeps the circuit compact while providing an easy interface for popular development platforms such as Arduino, ESP32, STM32, and Raspberry Pi.
Whether you're developing a small robot, motorized mechanism, or prototype automation system, this DRV8210 motor driver breakout provides a practical and space-saving motor control solution.
Features:
- Dual Channel Motor Driver: Manage two DC motors separately
- Forward and reverse motor control is made possible by the H-Bridge Architecture.

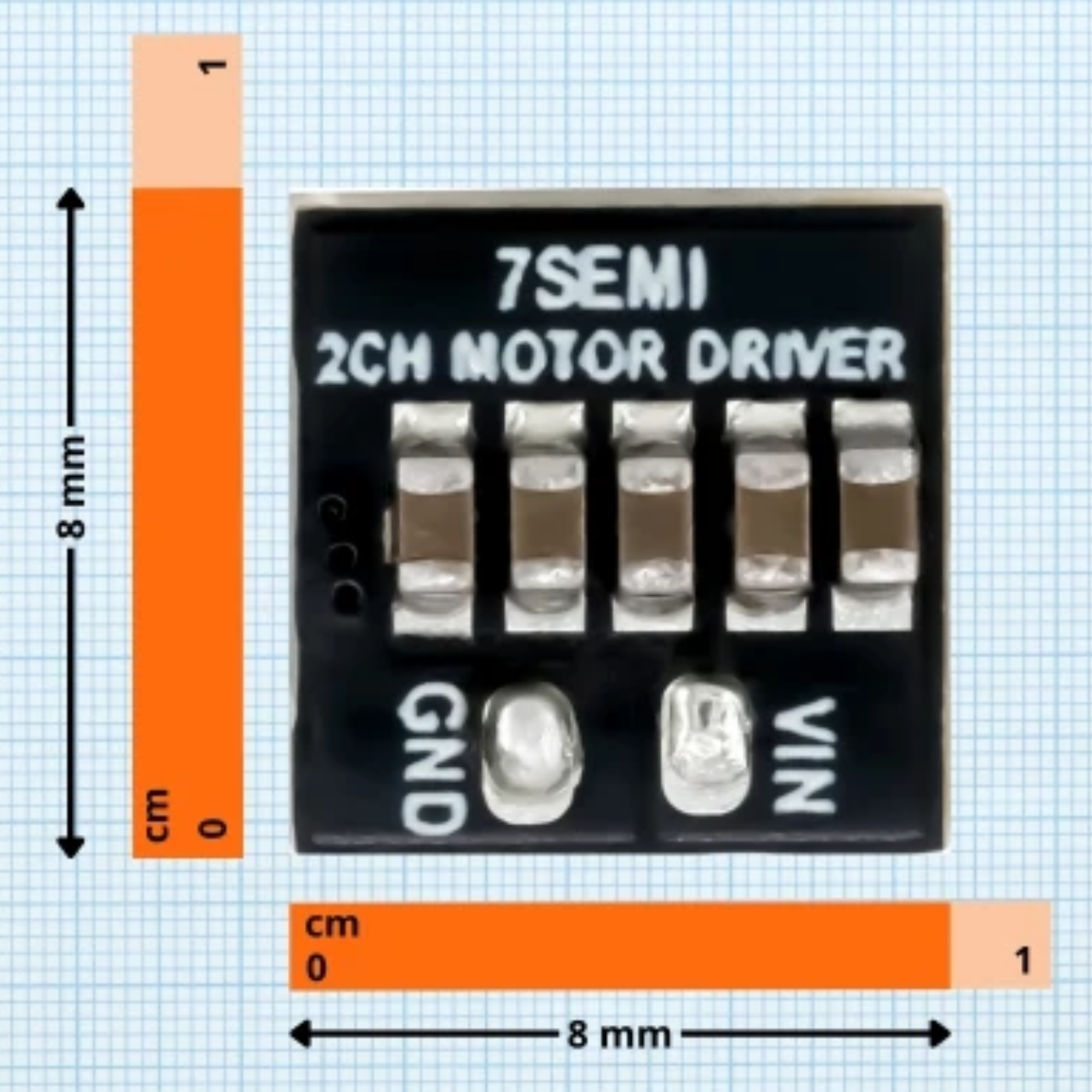

- Compact Nano Design: Perfect for applications with limited space
- Simple Control Interface: Microcontroller integration is simple.
- Effective Power Management: Designed to minimize power loss
- Quick switching response and seamless motor performance
- Circuit design is made simpler by requiring fewer external components.
- Suitable for embedded systems, it operates steadily and dependably.
