7Semi Bright LED Module for Arduino & ESP32 Projects
Let us know!
We'll try to match the price for you
We’ll notify you once the product is back in stock.
Couldn't load pickup availability

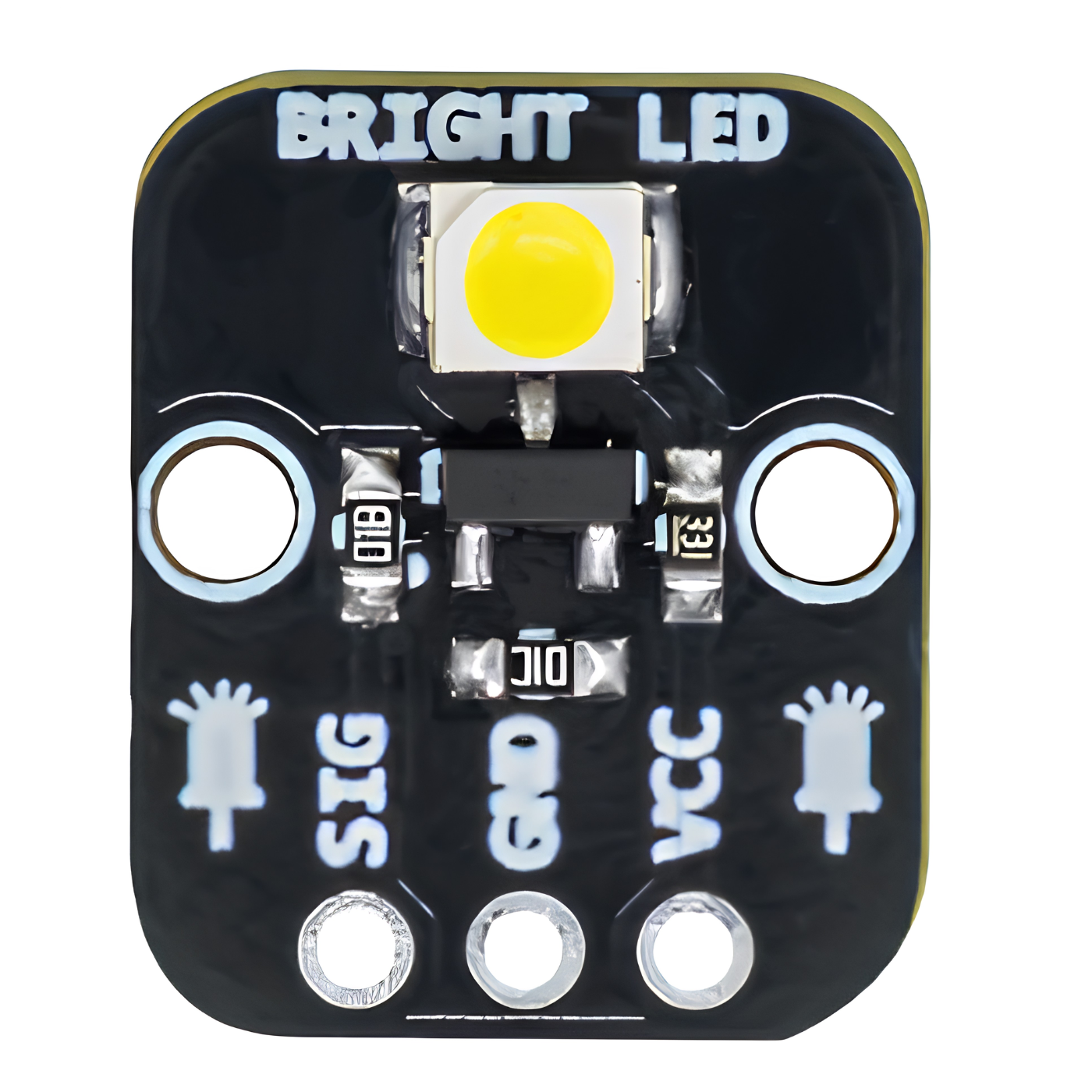

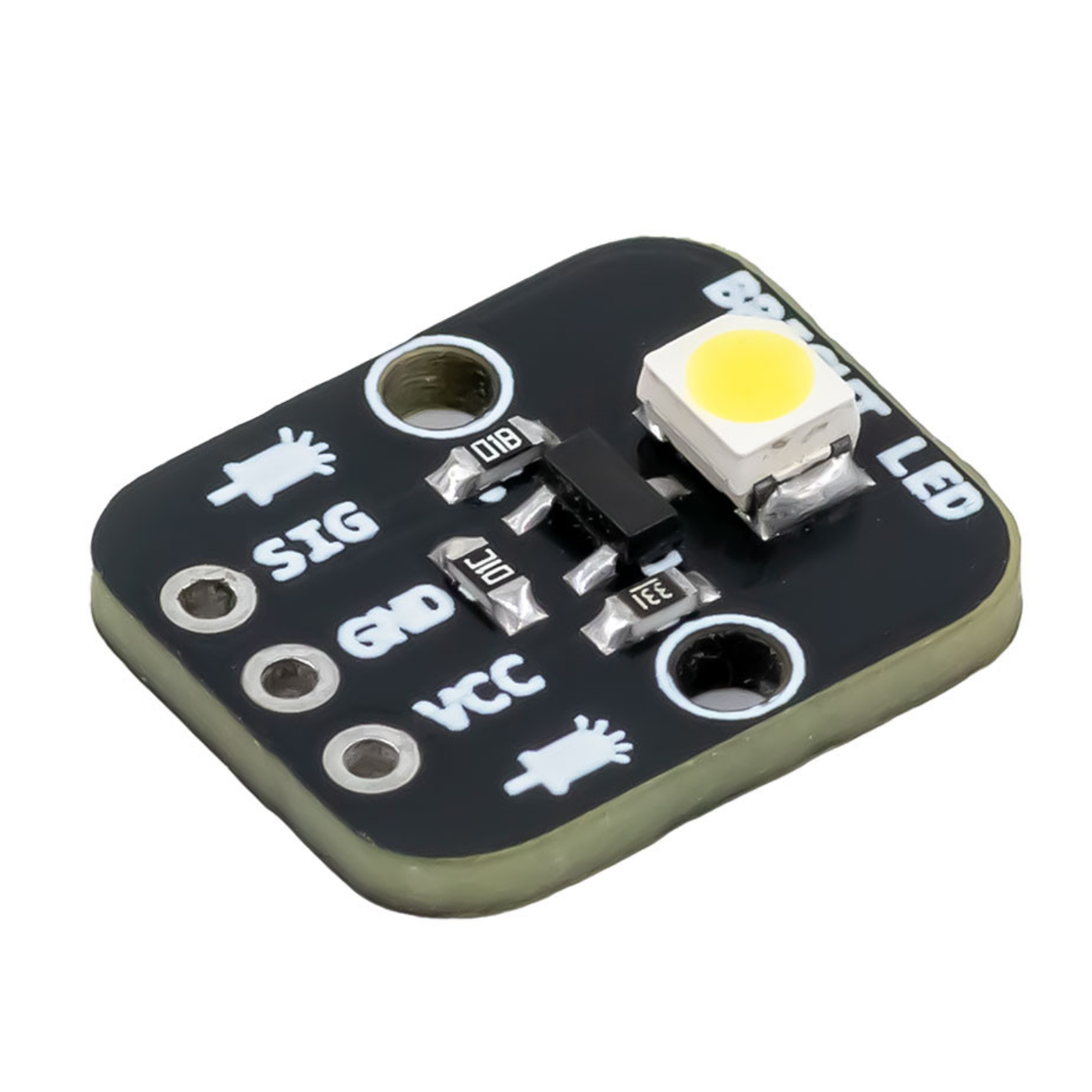

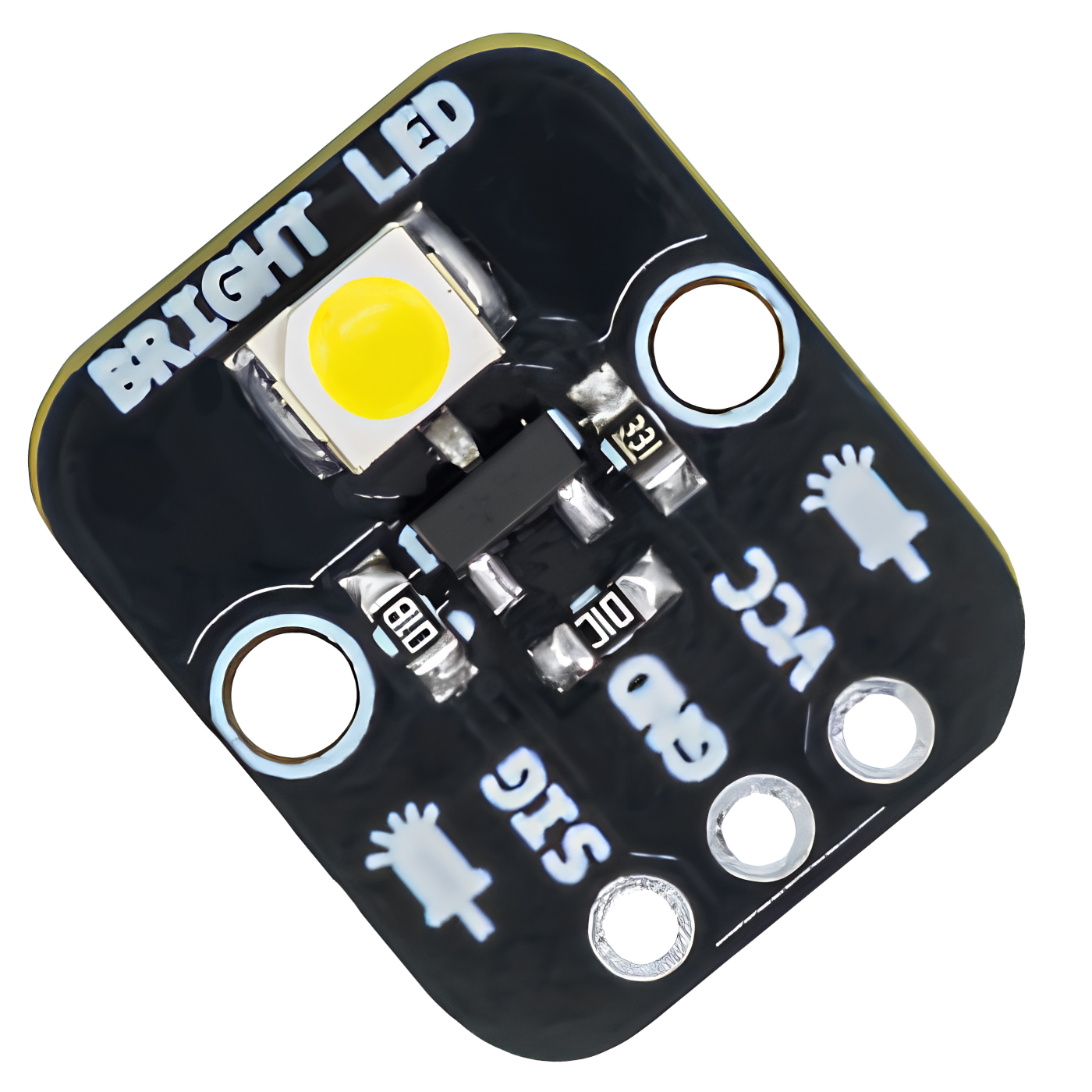

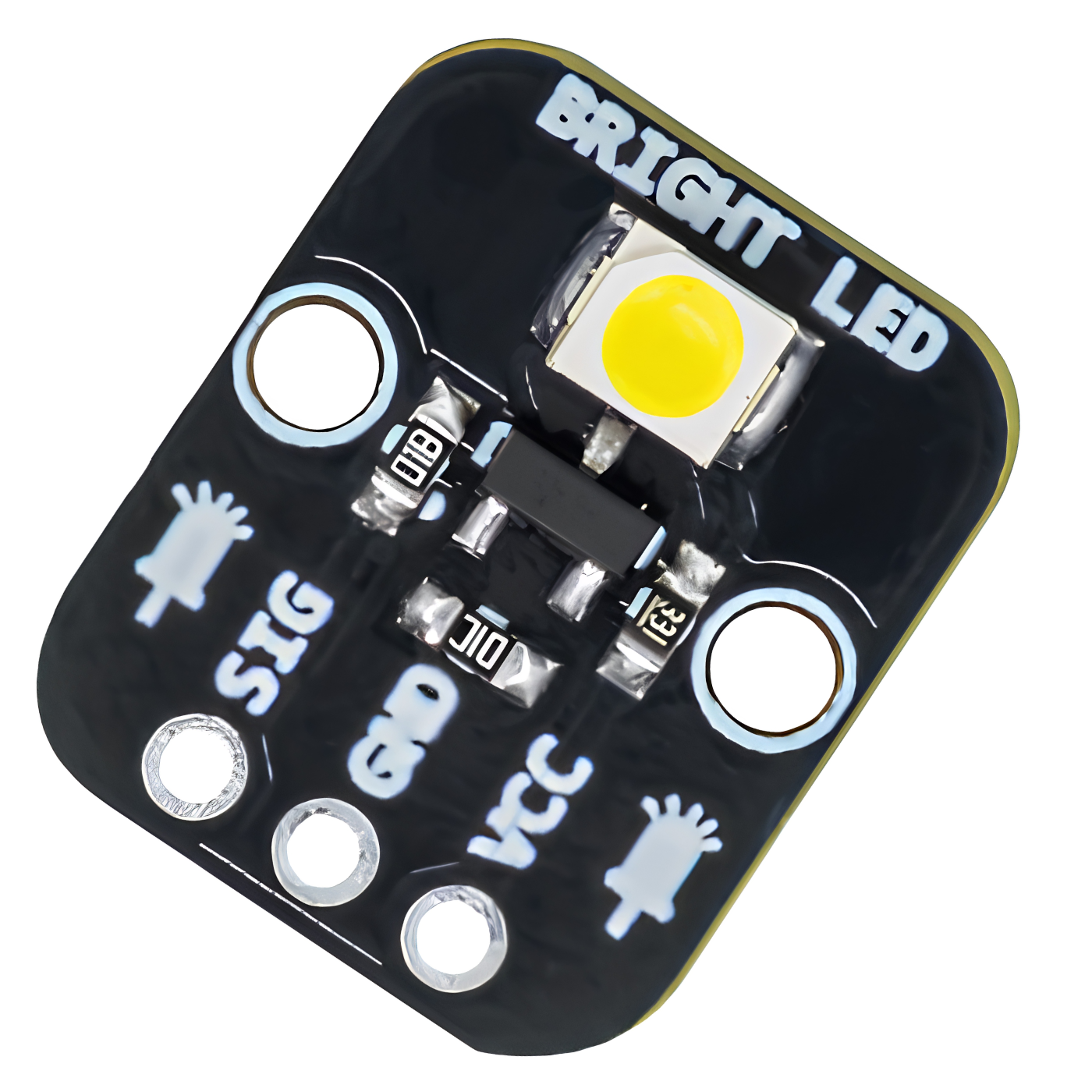

The 7Semi Bright LED Module is a compact LED indicator board designed to provide clear visual feedback in embedded systems, DIY electronics, and educational projects. It features a high-brightness white SMD LED along with an onboard resistor and transistor driver, allowing simple and reliable integration into a wide range of electronic applications.

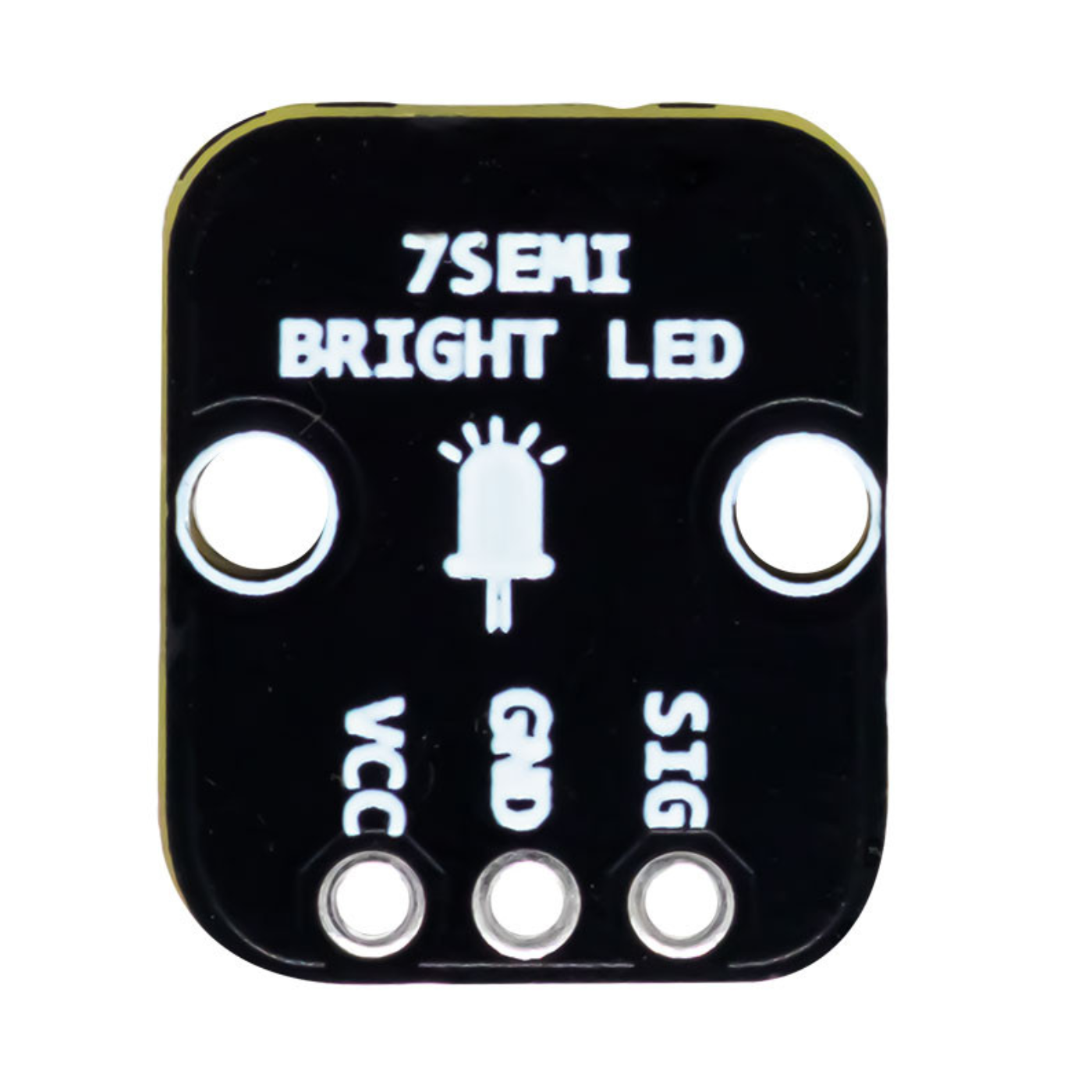

Designed for easy interfacing, the module uses a standard 3-pin connection consisting of Signal, Ground, and VCC. It is compatible with both 3.3V and 5V logic levels, making it suitable for use with popular development platforms including Arduino, ESP32, STM32, and Raspberry Pi. Its plug-and-play design simplifies wiring and enables quick integration during prototyping and testing.
The compact PCB is suitable for breadboards, custom PCBs, and embedded systems where space is limited. Whether used for system status indication, visual alerts, diagnostics, or educational demonstrations, the 7Semi Bright LED Module provides a simple solution for adding high-visibility LED indication to electronic projects.
• Features a high-brightness white SMD LED for clear visual indication.
• Includes an onboard resistor and transistor driver for microcontroller interfacing.
• Uses a standard 3-pin interface with Signal, Ground, and VCC connections.
• Compatible with both 3.3V and 5V logic levels.
• Designed for plug-and-play integration into embedded projects.
• Compact PCB is suitable for breadboards and custom circuit boards.
• Supports direct control from GPIO pins through an active HIGH input.
• Compatible with Arduino, ESP32, STM32, and Raspberry Pi platforms.
• Suitable for system status indication and visual feedback applications.
• Can be used for automation systems, sensor nodes, and embedded electronics.
• Well suited for educational electronics and rapid prototyping.
• Compact construction allows integration into space-constrained designs.
| Parameter | Value |
| Brand | 7Semi |
| Product Type | Bright LED Module |
| LED Type | SMD Bright White LED (1210 Package) |
| Operating Voltage | 3.3V to 5V |
| Control Interface | SIG, GND, VCC |
| Logic Compatibility | 3.3V and 5V |
| Onboard Components | Resistor and Transistor Driver |
| Input Type | Active HIGH |
| Board Dimensions | Approx. 14.70mm × 12mm |
| Board Weight | 0.5g |
This product comes with a 6-month manufacturer warranty from the date of purchase, covering manufacturing defects only.
The product shows signs of physical damage, mishandling, exposure to water/moisture, fire, natural calamities, unauthorized repairs, improper storage near heat or direct sunlight, or alteration in any way.
