7Semi BNO055 + BMP585 10DOF Orientation Sensor Module - Accelerometer, Gyroscope, Magnetometer & Barometer
Let us know!
We'll try to match the price for you
We’ll notify you once the product is back in stock.
For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below
Couldn't load pickup availability
The 7Semi BNO055 + BMP585 10DOF Orientation Sensor Module combines a BNO055 9-axis IMU with a high-precision BMP585 barometric pressure sensor to provide comprehensive motion, orientation, and altitude data. The built-in sensor fusion of the BNO055 sensor module processes accelerometer, gyroscope, and magnetometer readings to provide useful outputs such as Euler angles, quaternions, gravity vectors, and linear acceleration.
The BMP585 adds accurate atmospheric pressure sensing for applications that require altitude measurement and barometric data. With a simple I²C interface and 3.3V logic, this 10DOF IMU sensor can be easily connected to Arduino, Raspberry Pi, and other compatible development platforms. It is well suited for drone flight controllers, robotics, navigation systems, AHRS projects, IoT devices, and industrial monitoring applications.
| Specification | Details |
|---|---|
| Voltage Required | 3.3V |
| Operating Temperature | -40°C to 70°C |
| Axis / FOV | 10DOF |
| Communication Method | SPI / I²C |
| Accelerometer Range | ±2g, ±4g, ±8g, ±16g |
| Gyroscope Range | ±125°/s, ±250°/s, ±500°/s, ±1000°/s, ±2000°/s |
| Magnetometer Range | 800 µT |

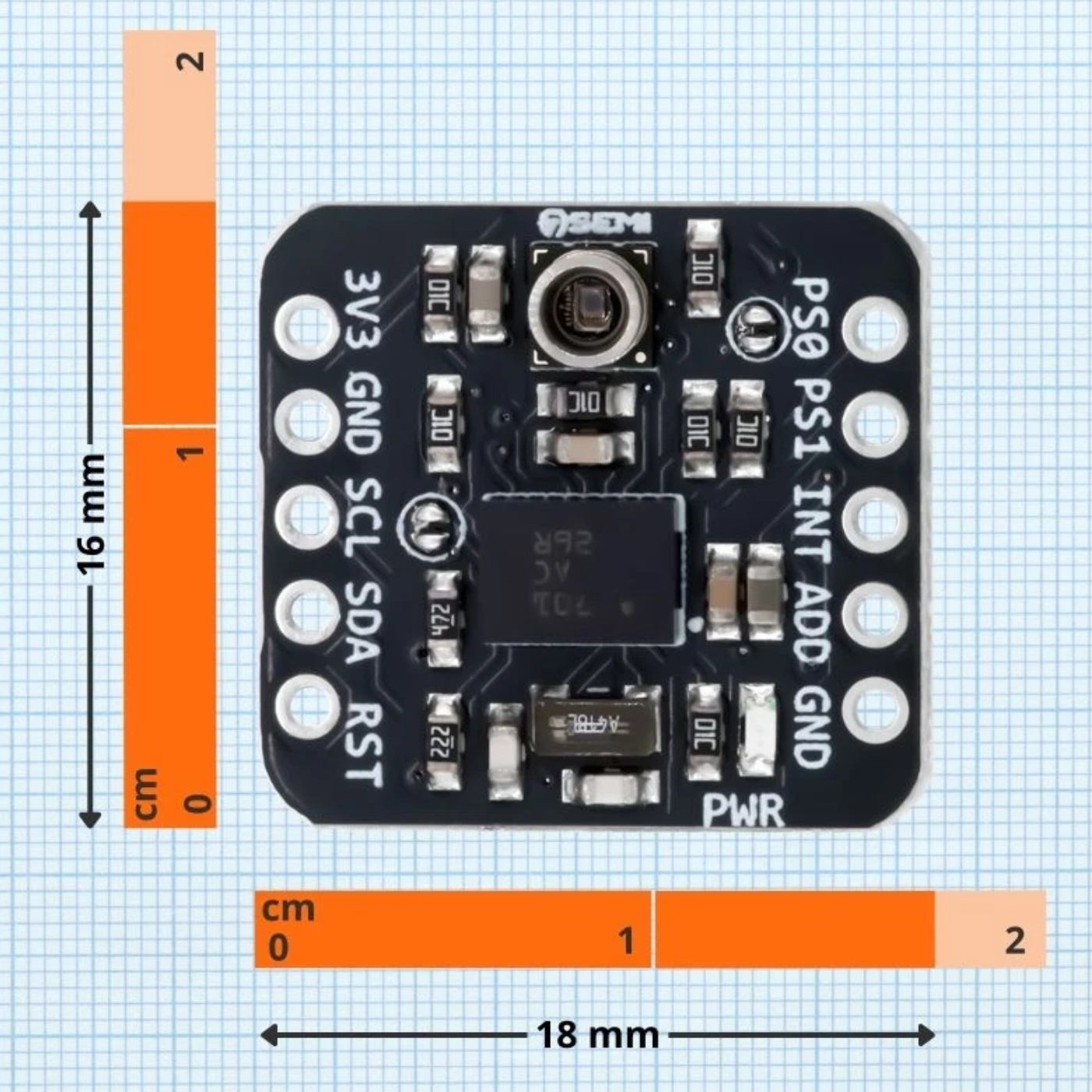

| Dimensions | 18 × 17 × 5.5 mm |
