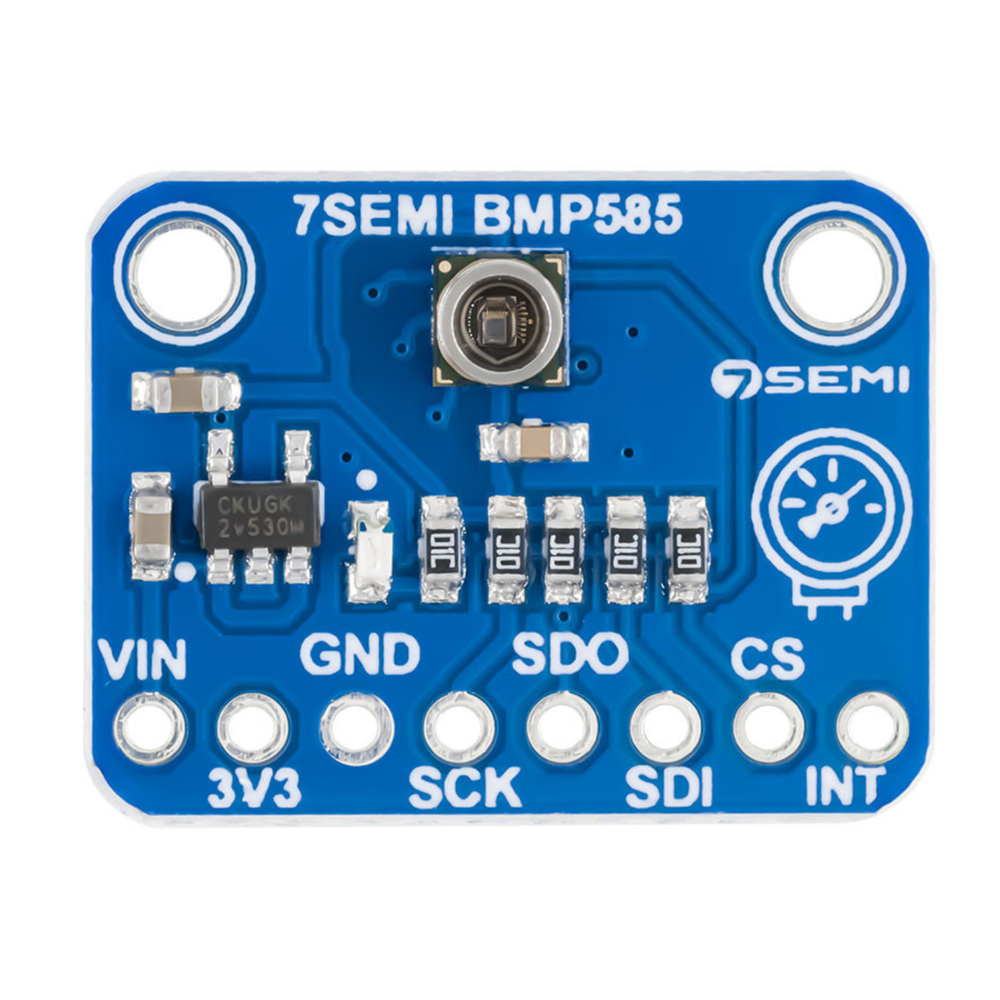

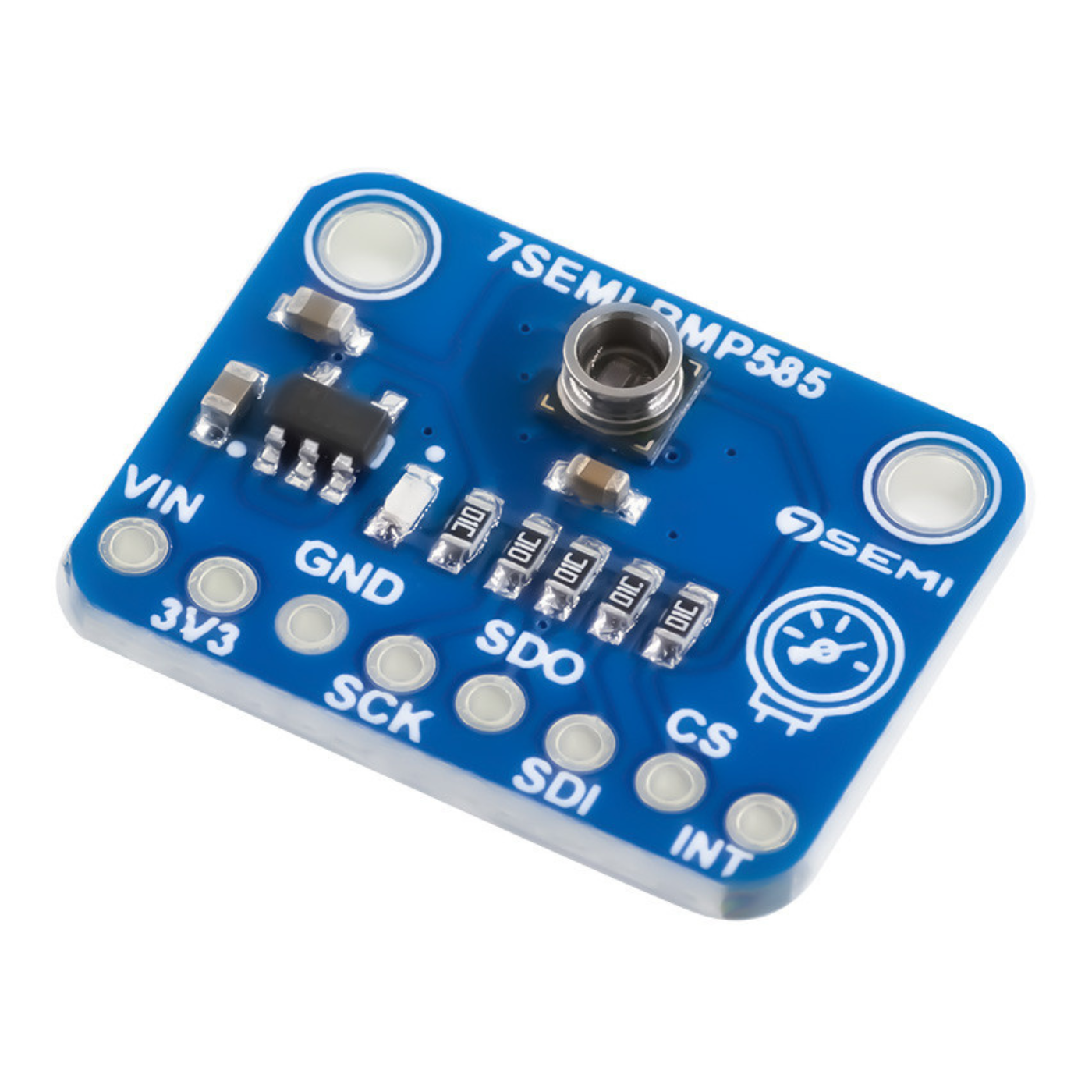

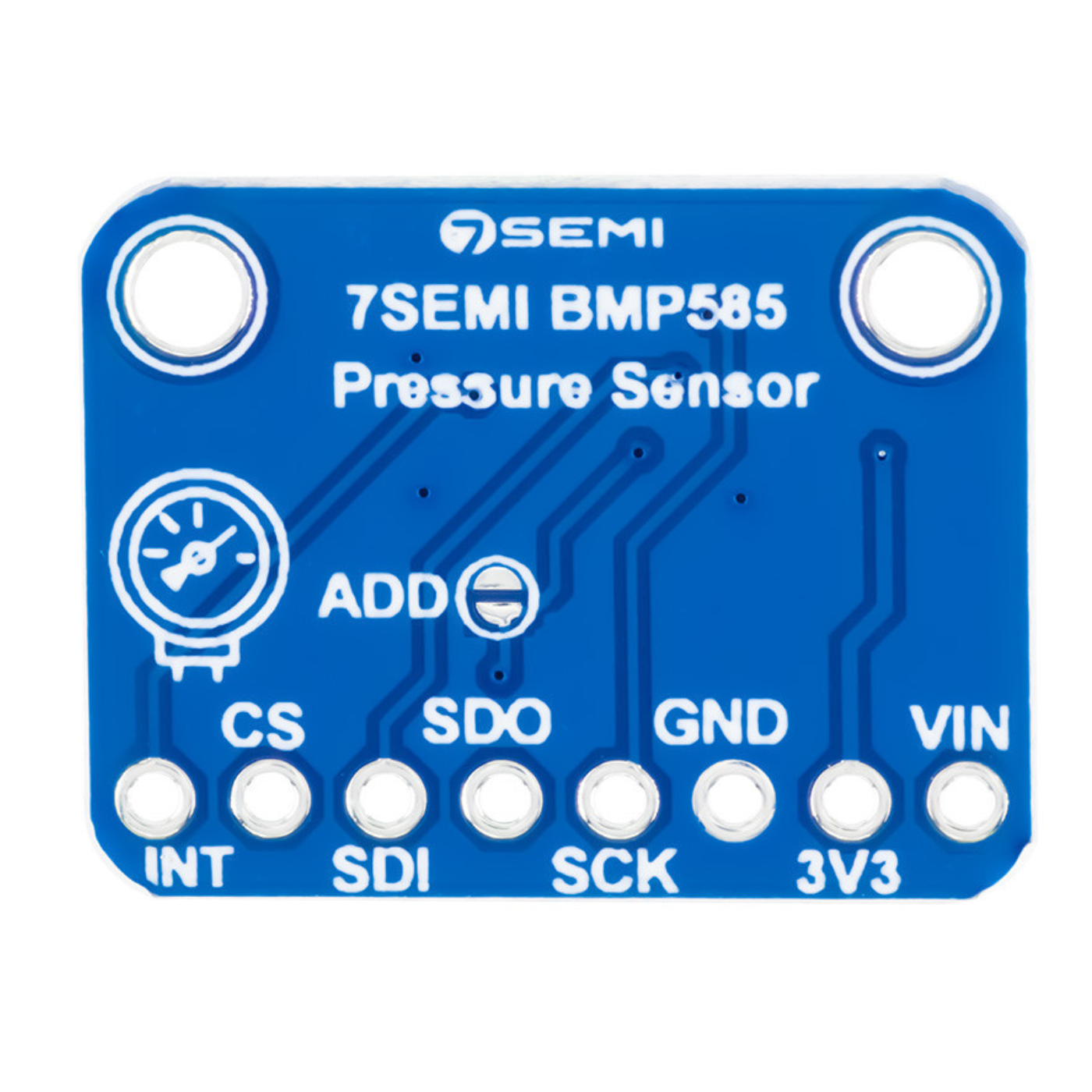

7Semi BMP585 I2C Pressure Sensor Breakout Module
The 7Semi BMP585 I2C Pressure Sensor Breakout Module is a high-precision sensor designed to measure atmospheric pressure with exceptional accuracy, covering a range of 300–1250 hPa. This BMP585 Pressure Sensor combines low power consumption with compact design, making it perfect for mobile devices, battery-powered systems, and IoT projects.
With both I2C and SPI interface support, it can be easily integrated into various electronics projects, enabling applications such as altimetry, weather monitoring, indoor navigation, and environmental sensing. Its reliable performance ensures accurate readings in real-time, making it an essential component for makers and engineers seeking precise pressure measurement.
Features:
- Exceptional pressure sensing resolution at 1/64 Pa and accuracy of ±0.5 hPa provide highly precise data.
- Wide Pressure and Temperature Range: Measures pressure from 30 to 125 kPa and temperature from -40°C to 85°C, ensuring versatility in a variety of applications.
- Flexible Data Communication: Compatible with both I2C (up to 1MHz) and SPI (up to 12MHz) protocols, allowing enabling easy integration into a variety of systems.
- Programmable features include variable oversampling, a FIFO buffer (stores up to 32 samples), low-pass filtering, and 6 bytes of user-programmable non-volatile memory.
- Energy-Efficient Operation: Provides five operational modes with minimal power usage (1.5µA in Deep Standby and 260µA peak during measurements).
- Compact Design: A small breakout board with pin spacing of 0.1" allows for simple soldering and connecting.
