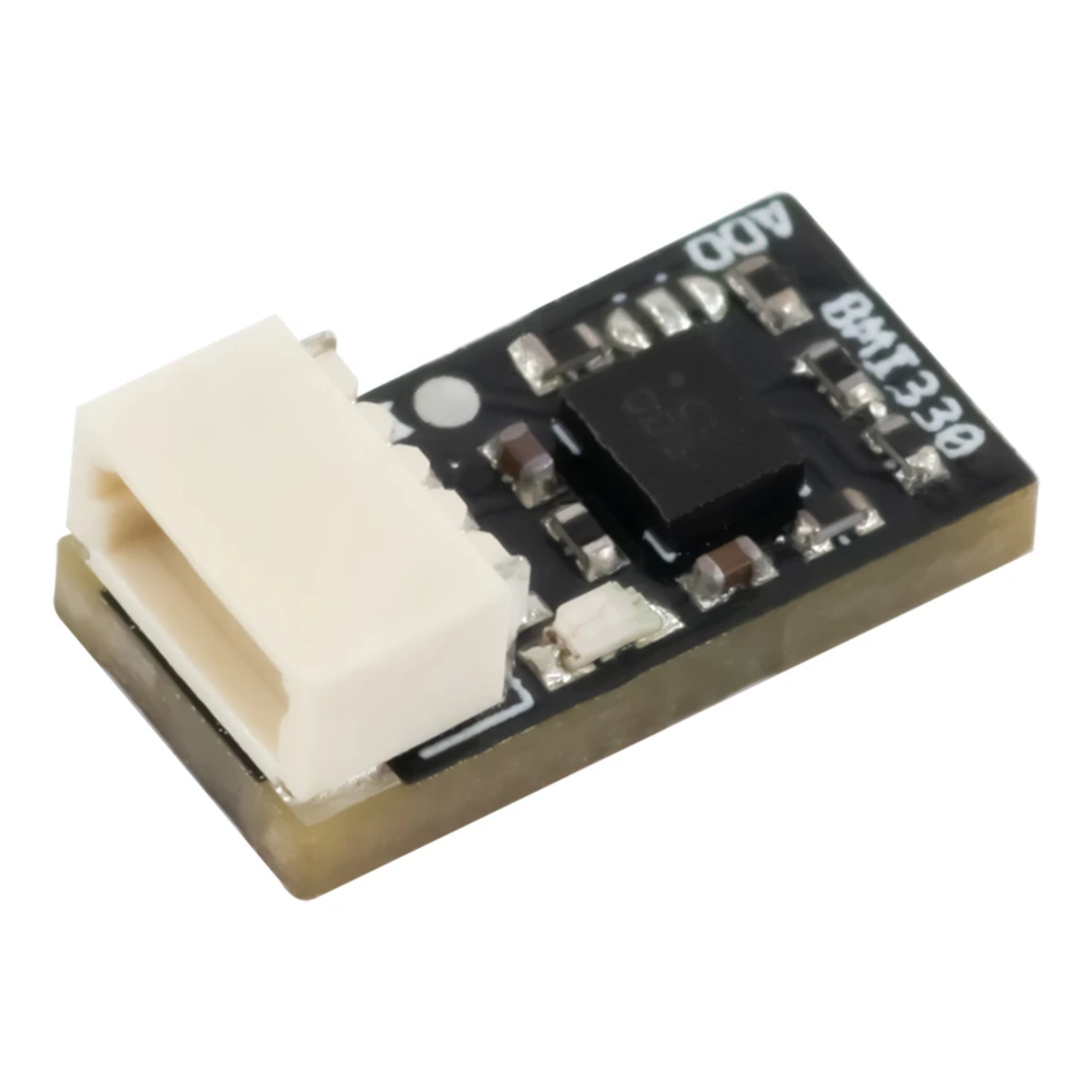

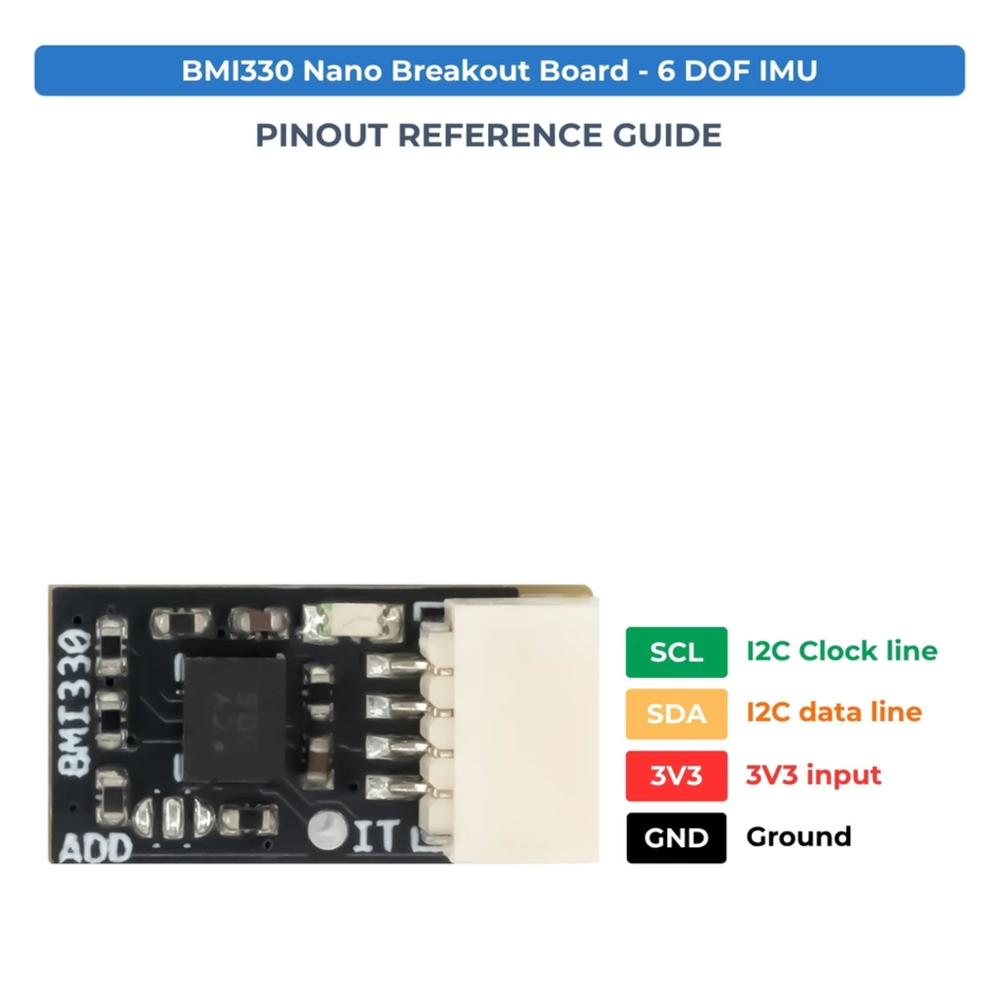

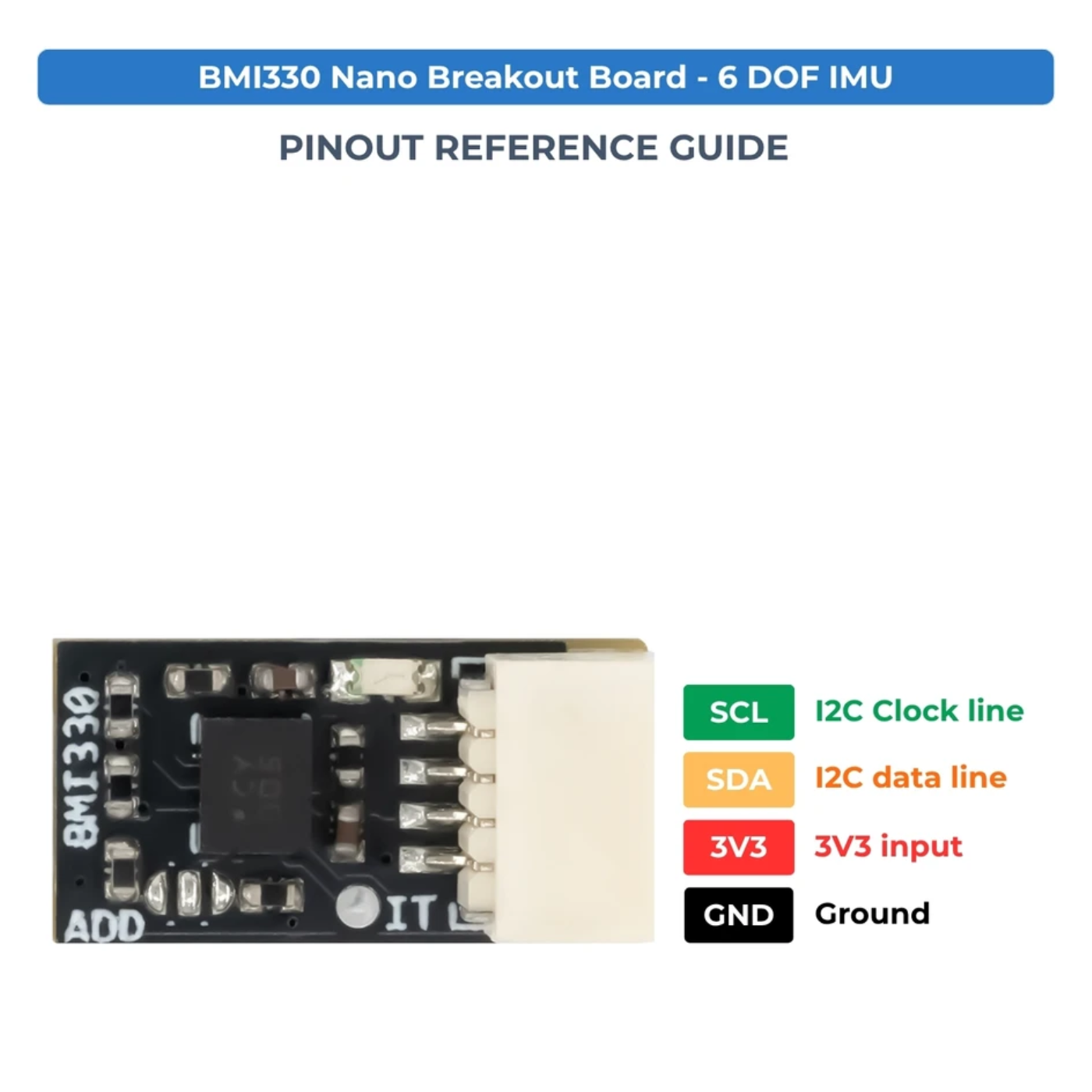

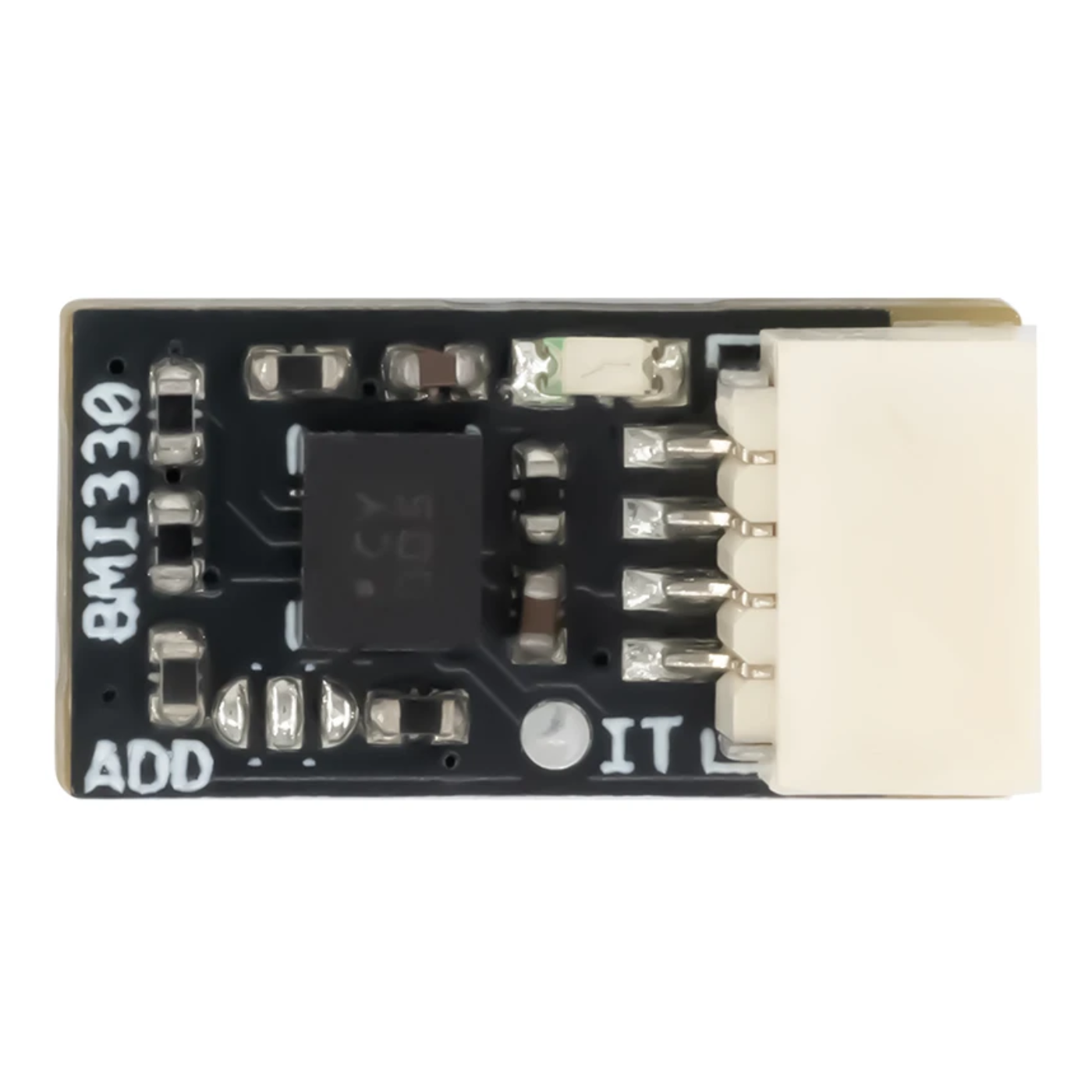

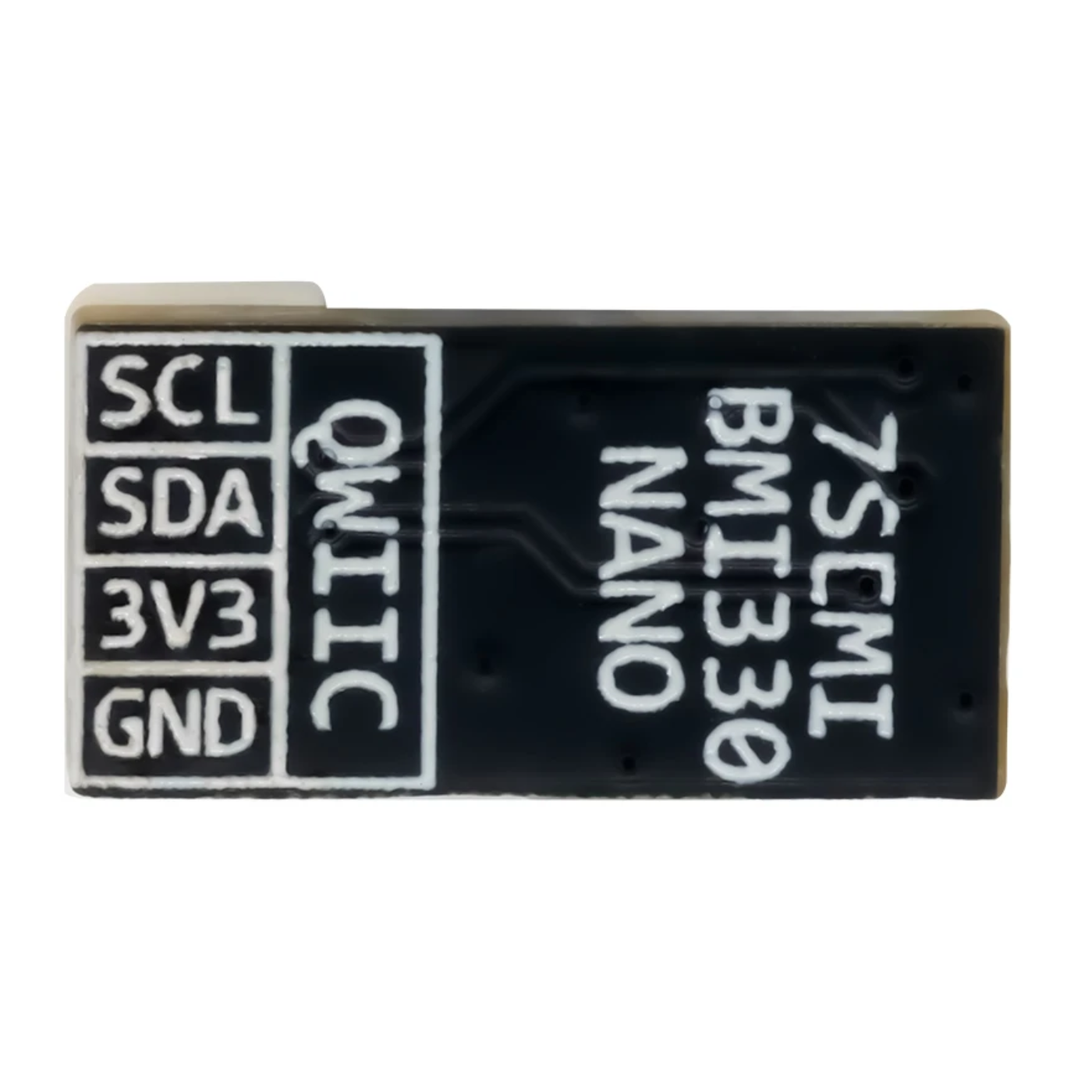

The 7Semi BMI330 6-Axis IMU Nano Module is a compact motion sensing board based on Bosch’s BMI330 sensor, combining a 3-axis accelerometer and 3-axis gyroscope to provide reliable data for motion, rotation, and orientation tracking. It supports a Qwiic-compatible I²C interface for convenient plug-and-play connections, while breakout pads provide SPI communication for applications that require greater interface flexibility.
With its compact design and low power consumption, this BMI330 IMU module is well suited for robotics, drones, wearable electronics, motion tracking, embedded systems, and industrial monitoring applications. Whether you are building a motion sensor project, robotic system, orientation tracker, or IoT device, the 7Semi BMI330 provides a practical solution for integrating precise 6-axis motion sensing into your hardware.
| Specification | Details |
|---|---|
| Operating Voltage | 3.3V |
| Operating Temperature | -40°C to 70°C |
| Axis / FOV | 6-Axis |
| Communication Interface | I²C |
| Gyroscope Range | ±125 / ±250 / ±500 / ±1000 / ±2000 dps |
| Accelerometer Range | ±2g / ±4g / ±8g / ±16g |

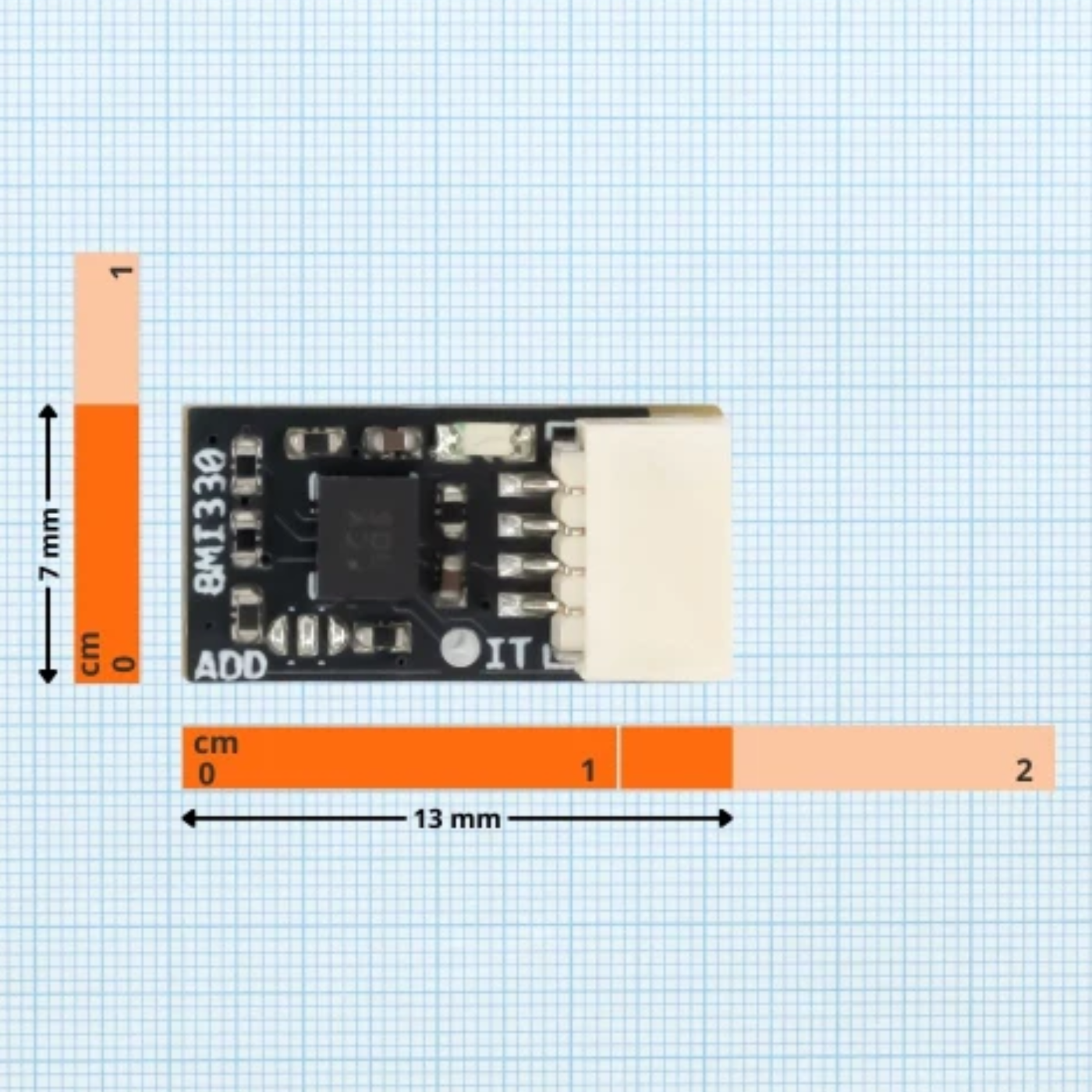

| Dimensions | 13 × 7 × 4.3 mm |
