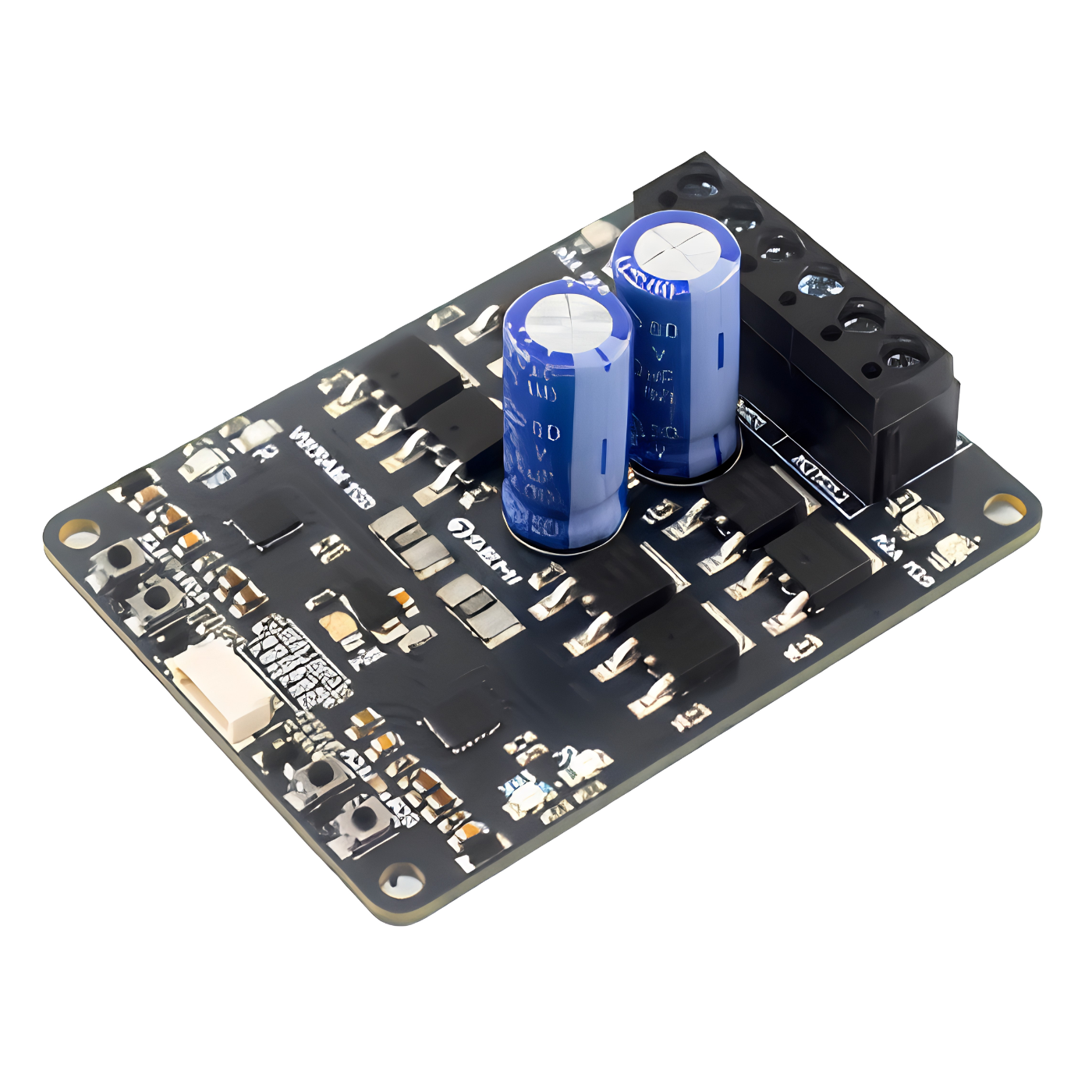

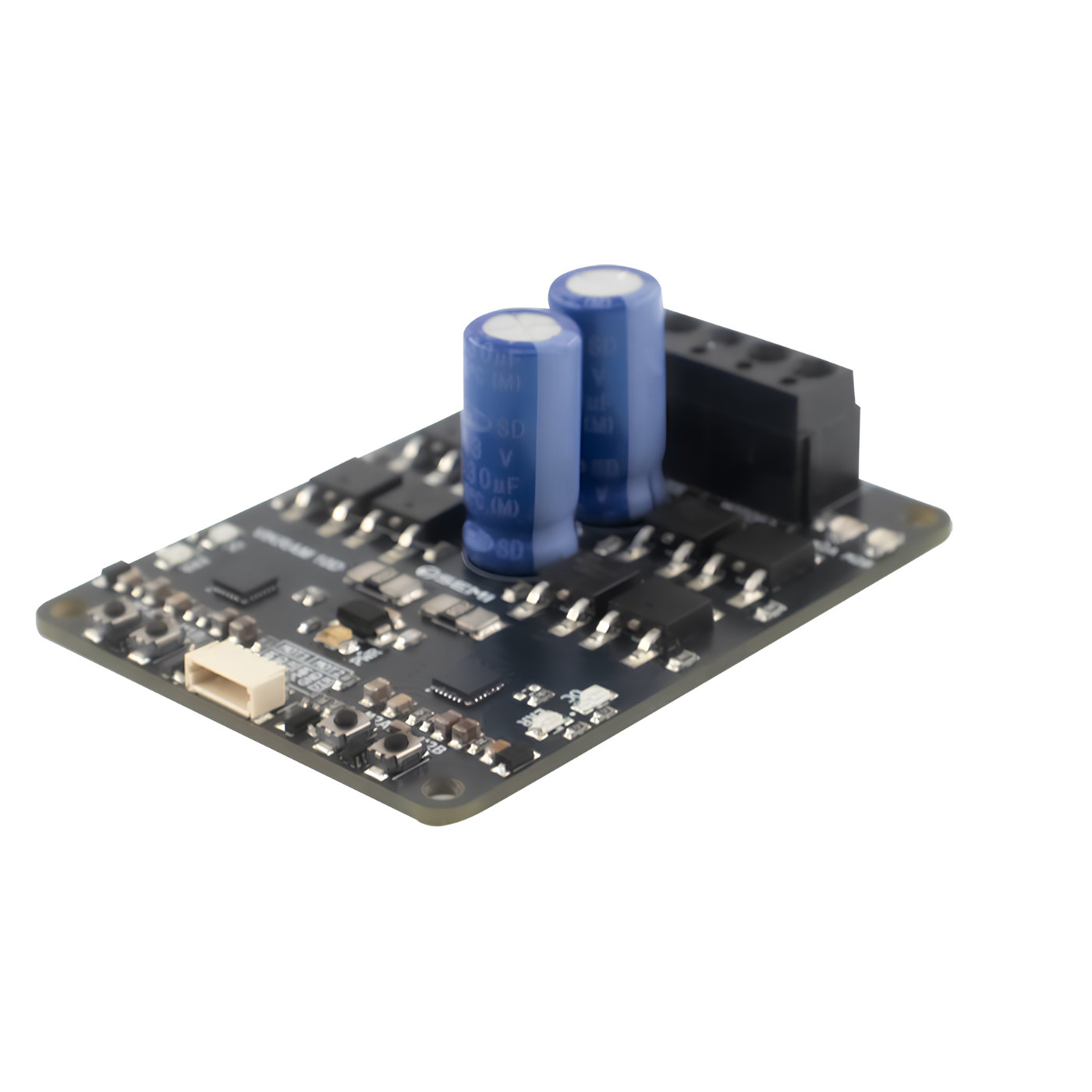

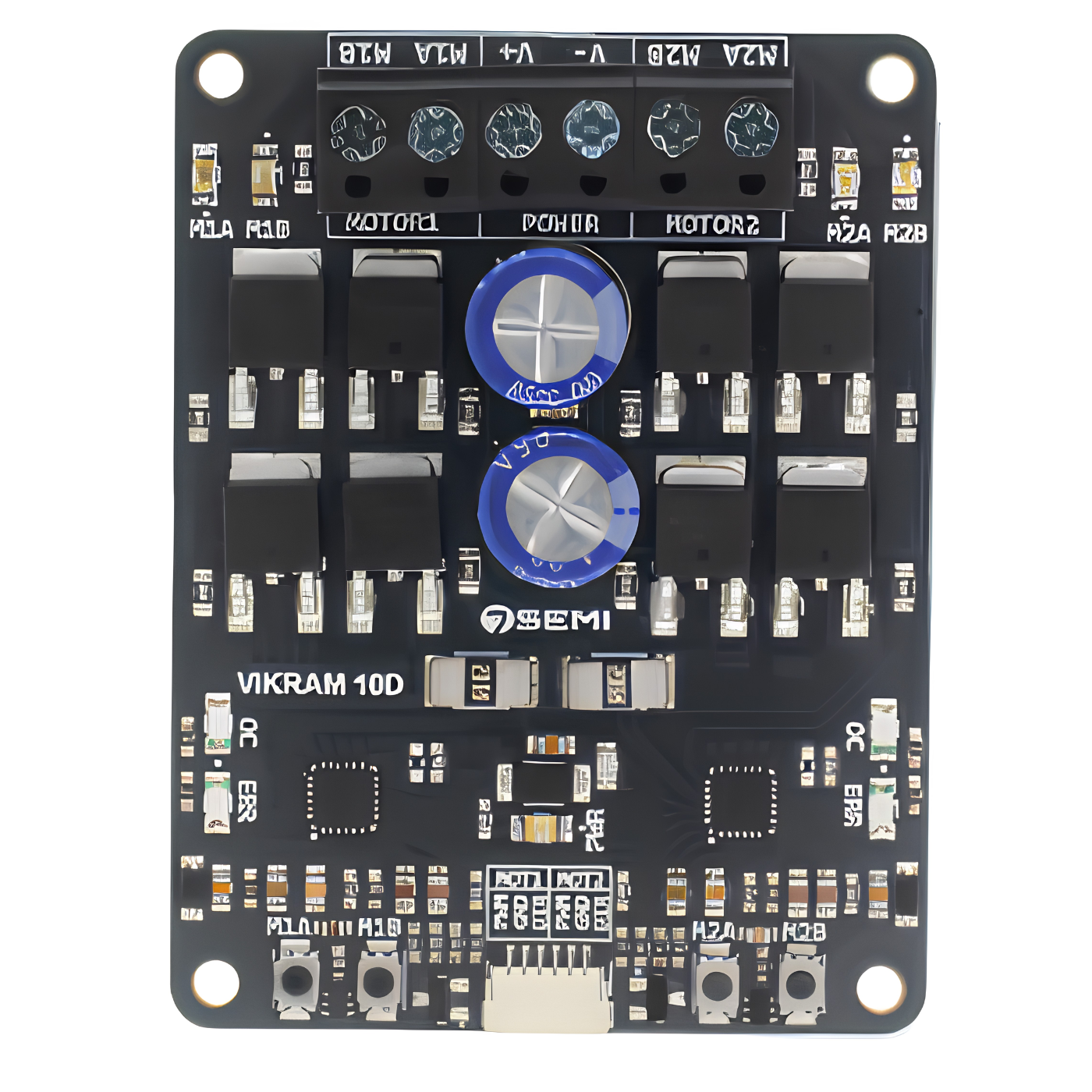

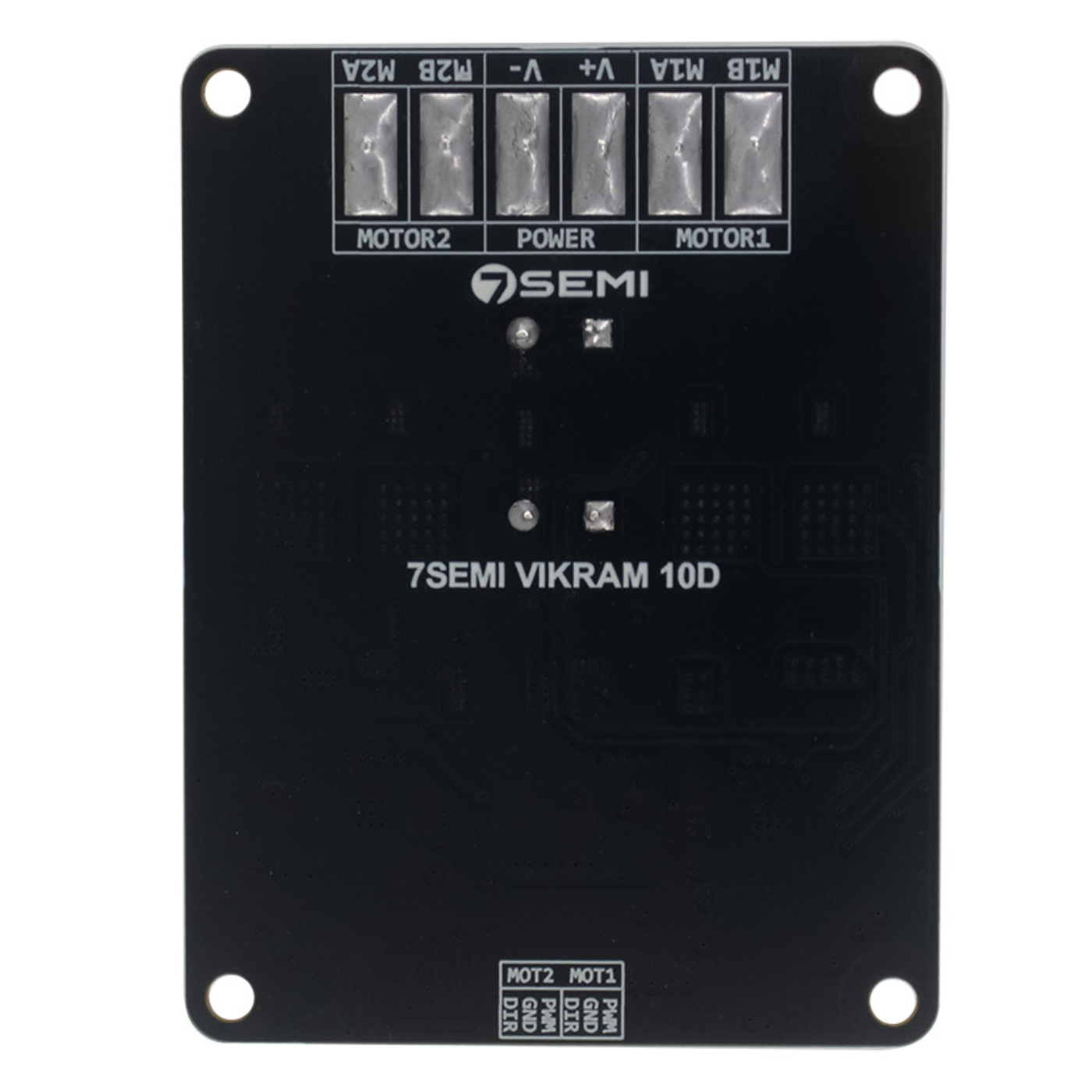

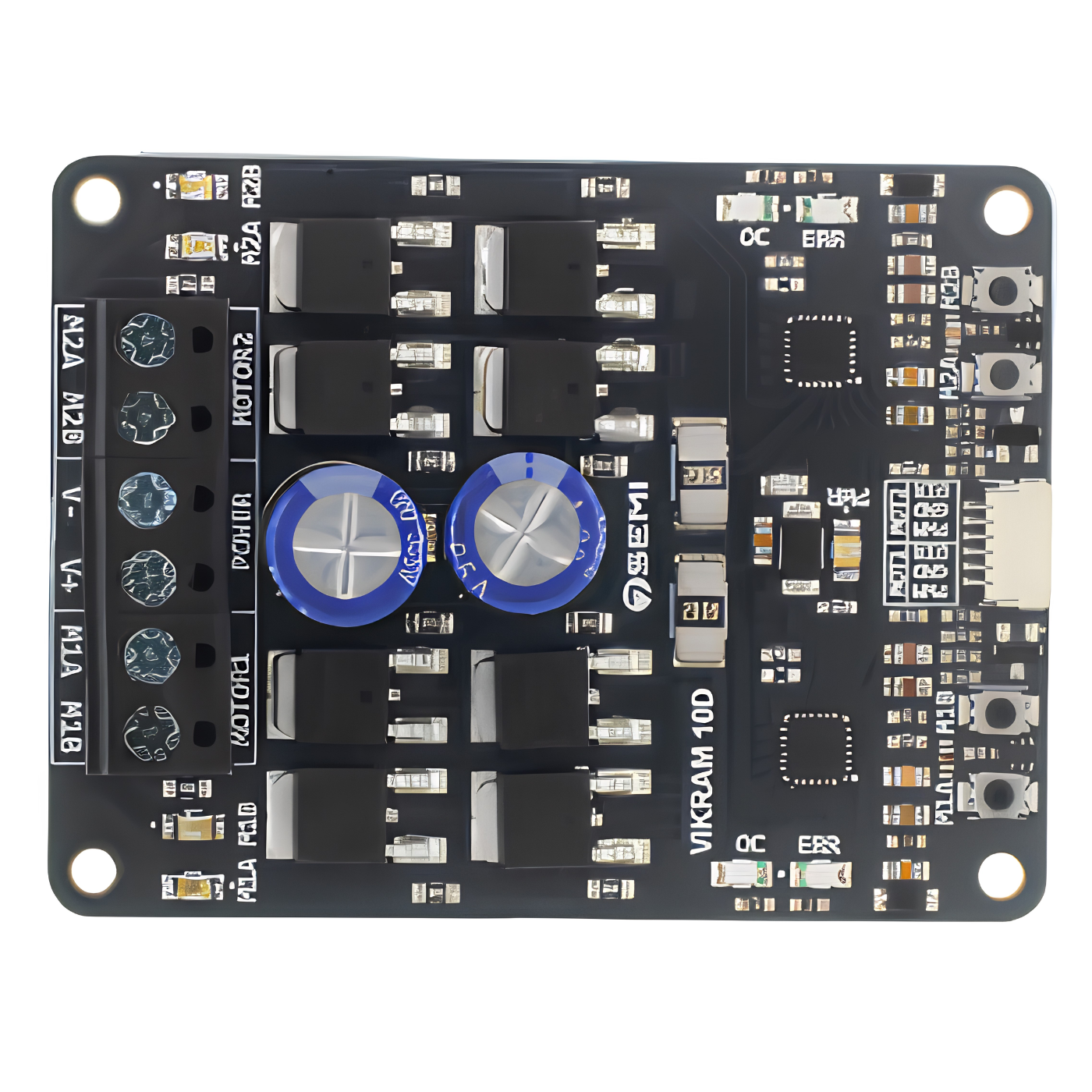

7Semi 10A Dual Channel DC Motor Driver 5V–30V VIKRAM-3010D
Let us know!
We'll try to match the price for you
We’ll notify you once the product is back in stock.
Couldn't load pickup availability
The 7Semi VIKRAM 3010D dual-channel DC motor driver is designed for applications that need reliable high-current motor control with flexible voltage support. It operates from 5V to 30V DC input and delivers up to 10A continuous current per channel, making it suitable for demanding robotics, AGVs, automation systems, and motor-driven machinery.
This dual-channel DC motor driver gives smooth control over two DC motors independently. It supports forward and reverse motion, braking, and PWM-based speed control for precise motor performance. With support for 1.8V, 3.3V, and 5V logic input, it can be integrated easily with modern microcontrollers, development boards, and embedded control systems.
The board is built for stable operation in high-load environments. Strong screw terminals provide secure motor and power connections, while onboard capacitors help manage sudden current variation during motor startup and load changes. Built-in thermal shutdown and overcurrent protection add an extra layer of safety for long-term use in industrial and robotic setups.
| Parameter | Value |
| Brand | 7Semi |
| Model | VIKRAM-3010D |
| Product Type | Dual Channel DC Motor Driver |
| Input Voltage Range | 5V–30V DC |
| Continuous Current per Channel | 10A |
| Number of Channels | 2 |
| Supported Motor Type | DC Motor |
| Direction Control | Forward / Reverse |
| Speed Control | PWM |
| Braking Function | Yes |
| Logic Input Support | 1.8V, 3.3V, 5V |
| Protection Features | Thermal Shutdown, Over Current Protection |
| Connection Type | Screw Terminal |
| Status Indication | LED |
| Recommended Applications | Robotics, AGV, Industrial Automation |
This product comes with a 6-month manufacturer warranty from the date of purchase, covering manufacturing defects only.
The product shows signs of physical damage, mishandling, exposure to water/moisture, fire, natural calamities, unauthorized repairs, improper storage near heat or direct sunlight, or alteration in any way.
