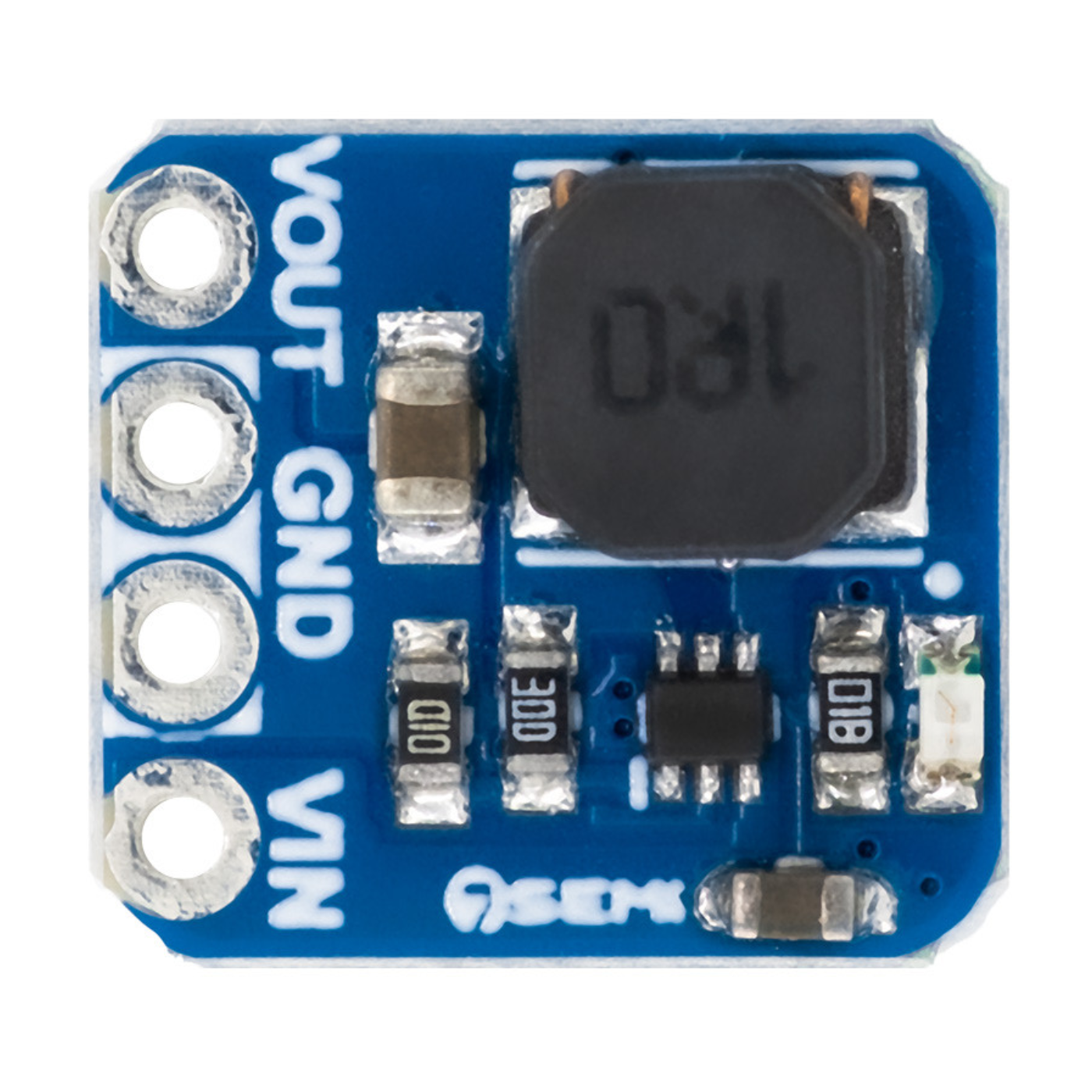

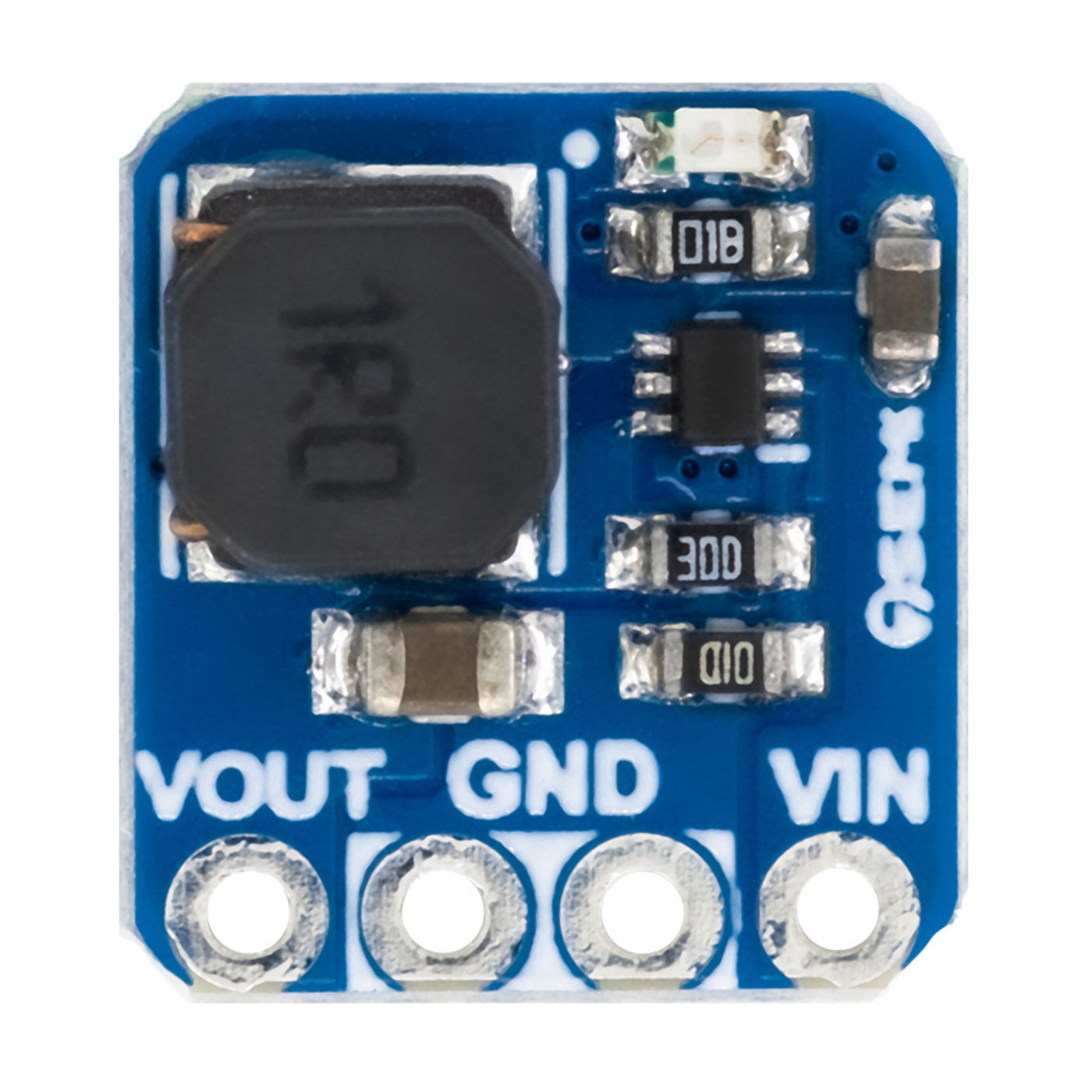

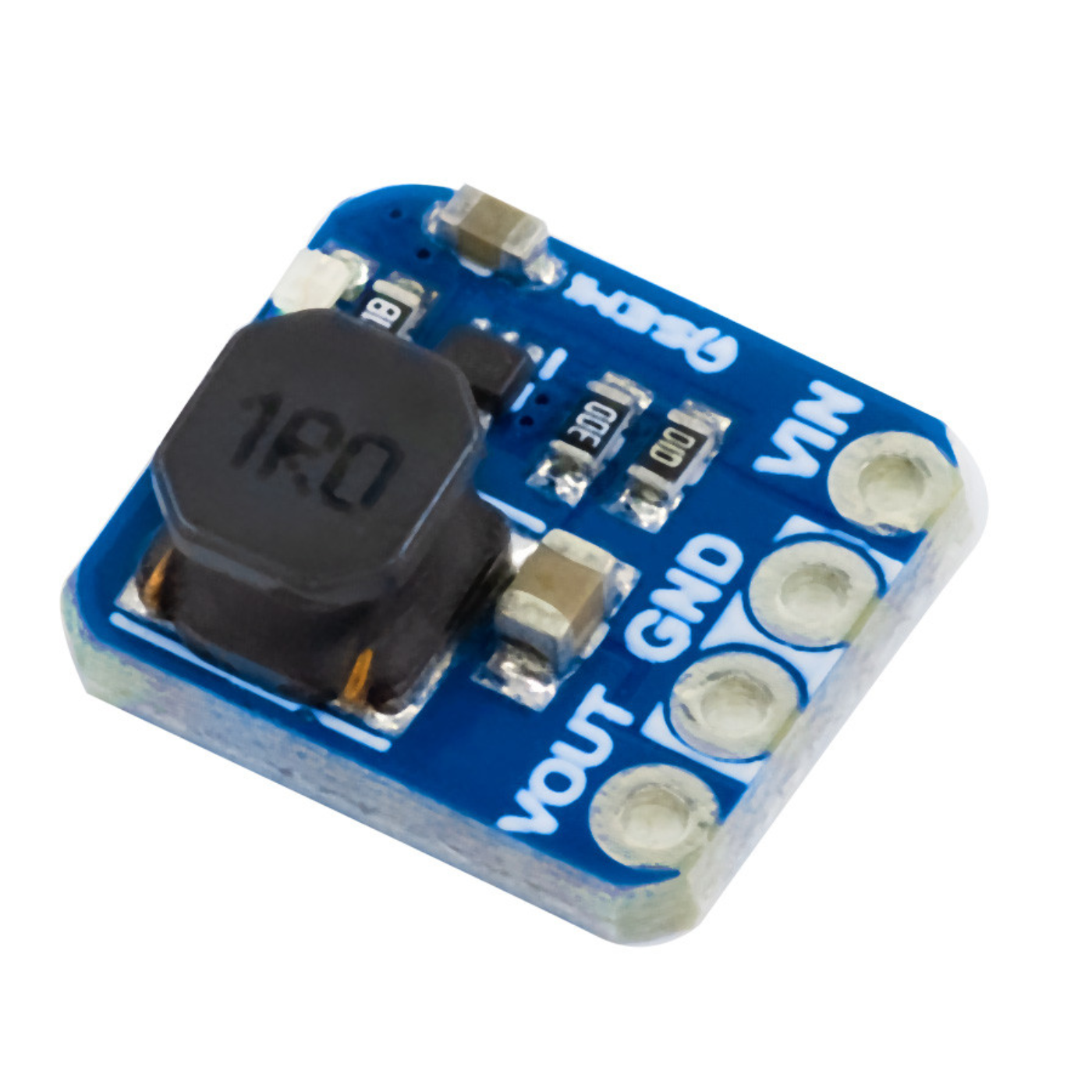

7Semi 1.8V 2A Mini Buck Converter Breakout Board with AP61201 Step Down Regulator
Let us know!
We'll try to match the price for you
Couldn't load pickup availability
The 7Semi 1.8V 2A Mini Buck Converter Breakout Board is a compact and efficient DC-DC step-down power module designed using the AP61201 synchronous buck converter IC. It converts an input voltage ranging from 4V to 7V into a stable fixed 1.8V output while delivering up to 2A continuous current. With its miniature form factor and reliable voltage regulation, the module is suitable for powering sensitive low-voltage electronics, embedded systems, communication modules, and microcontroller-based applications.
Engineered for efficient power management, the converter utilizes Force Pulse Width Modulation (FPWM) operation for improved efficiency, stable switching performance, and reduced power loss. Operating at a switching frequency of 1.3MHz, the board enables compact circuit design while maintaining excellent output stability and low ripple. Its lightweight and easy-to-integrate breakout design makes it an ideal solution for IoT devices, robotics projects, portable electronics, and DIY prototyping applications requiring reliable 1.8V power delivery.
| Parameter | Details |
|---|---|
| Product Name | 7Semi 1.8V 2A Mini Buck Converter Breakout |
| Converter IC | AP61201 |
| Converter Type | Synchronous Buck Converter |
| Input Voltage | 4V to 7V |
| Output Voltage | 1.8V Fixed |
| Output Current | 2A Continuous |
| Switching Frequency | 1.3MHz |
| Operation Mode | Force PWM (FPWM) |

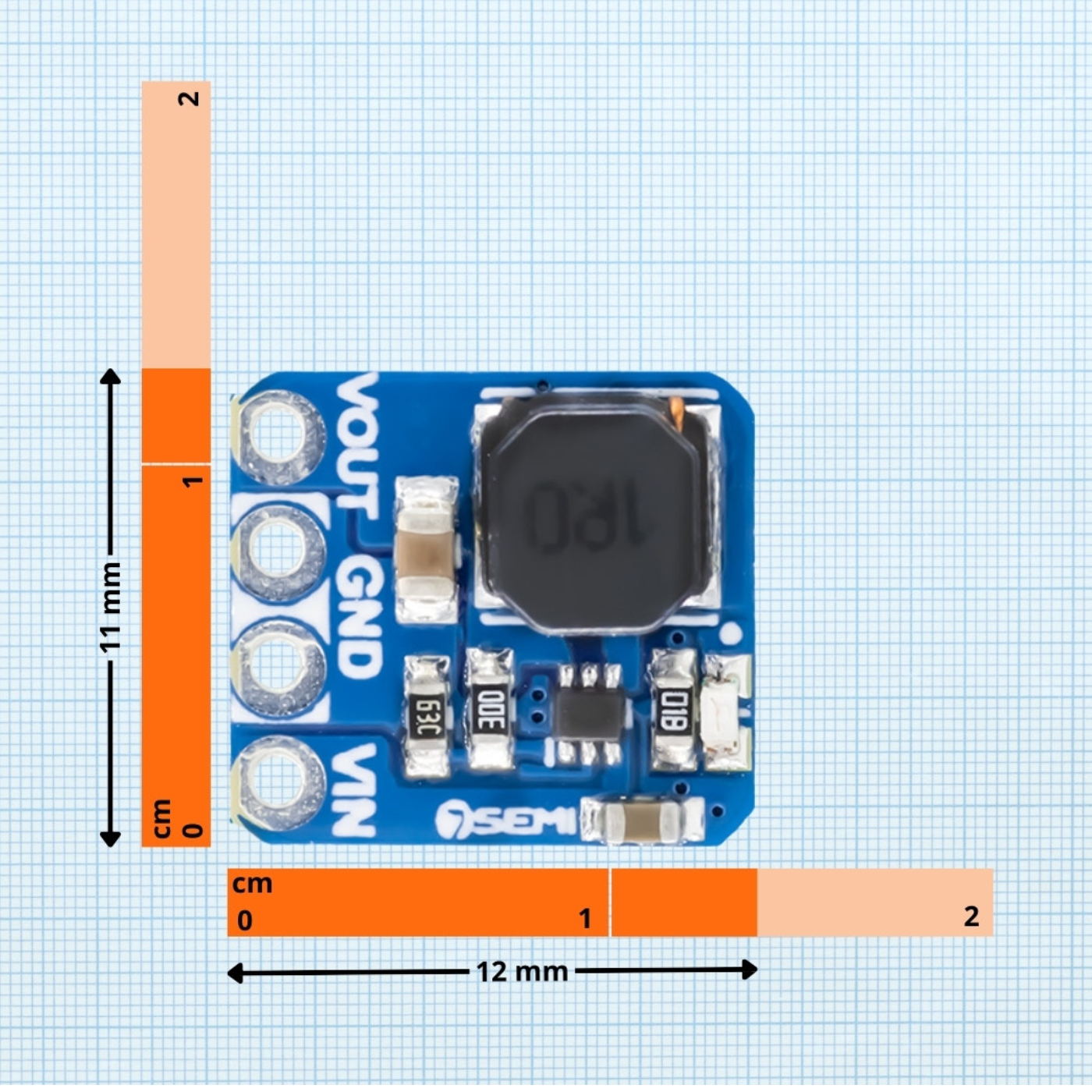

| Dimensions | 12 x 11 x 5.4 mm |
| Applications | Embedded Systems, IoT, Robotics, DIY Electronics |
