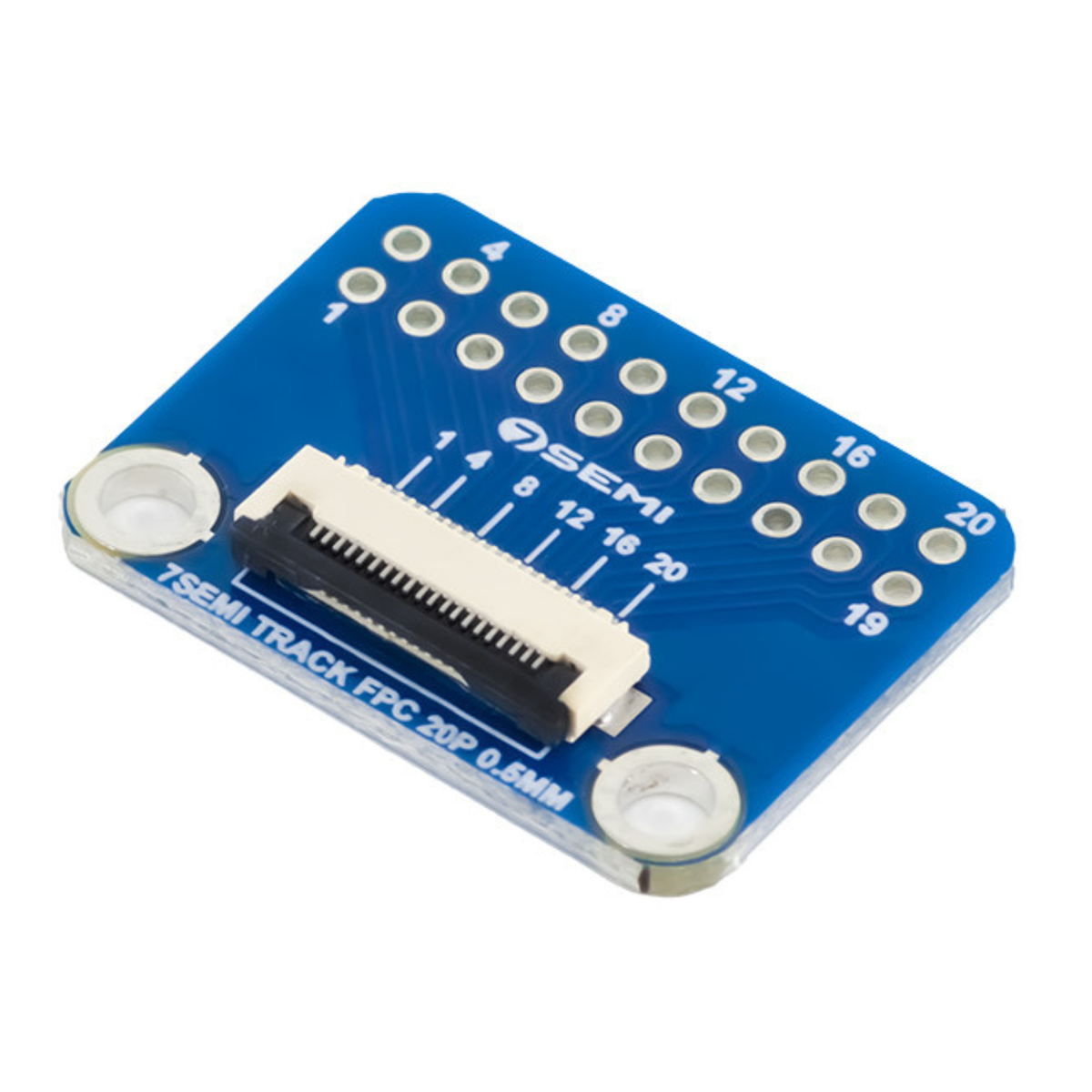

The 7Semi 0.5 mm FFC FPC Connector Breakout Board (20 Pin) is designed to make working with fine-pitch flat cables simple and dependable. Built around a 20-pin FPC connector with an exact 0.5 mm pitch and 2 mm height, it provides stable signal breakout from FFC/FPC cables to standard 0.1" headers.

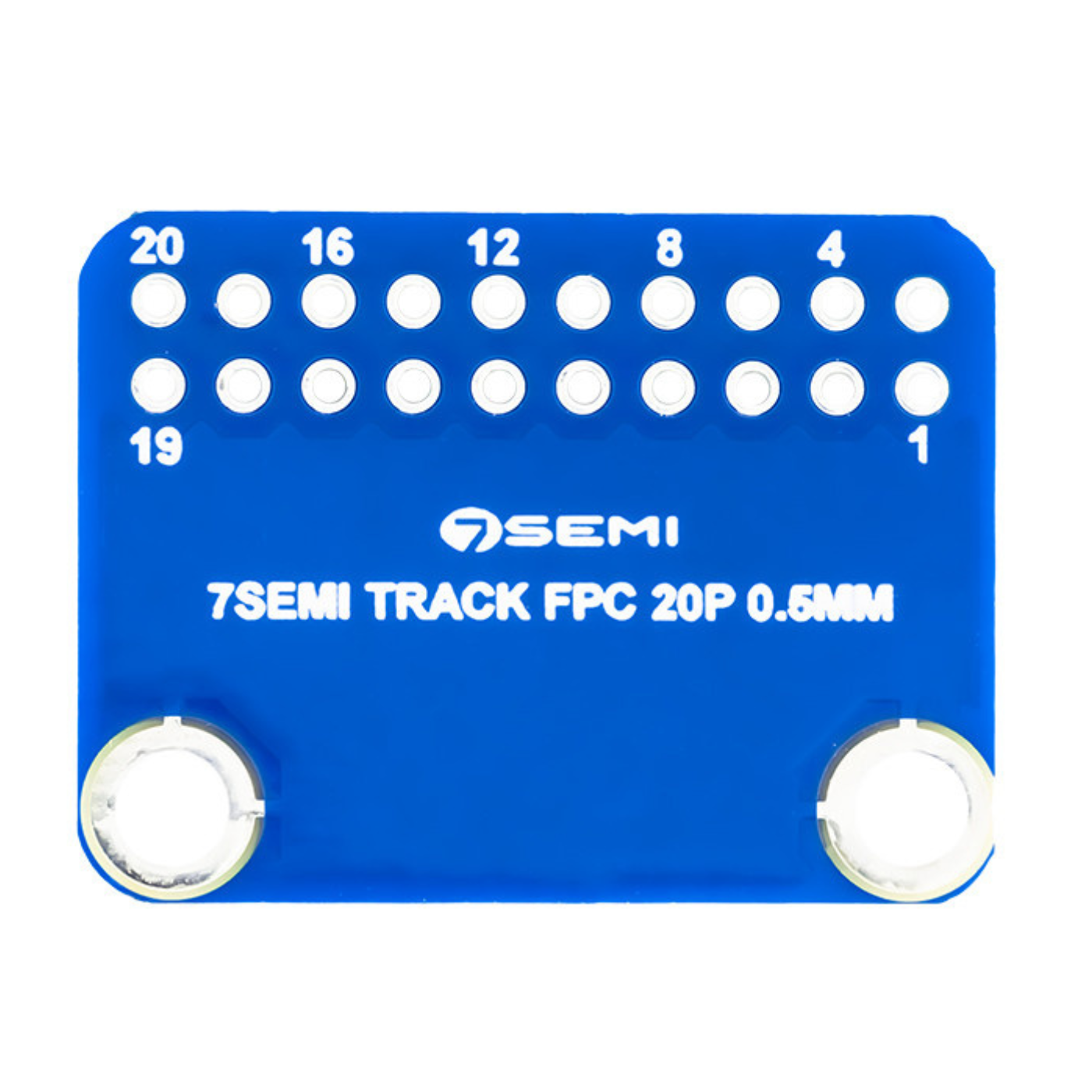

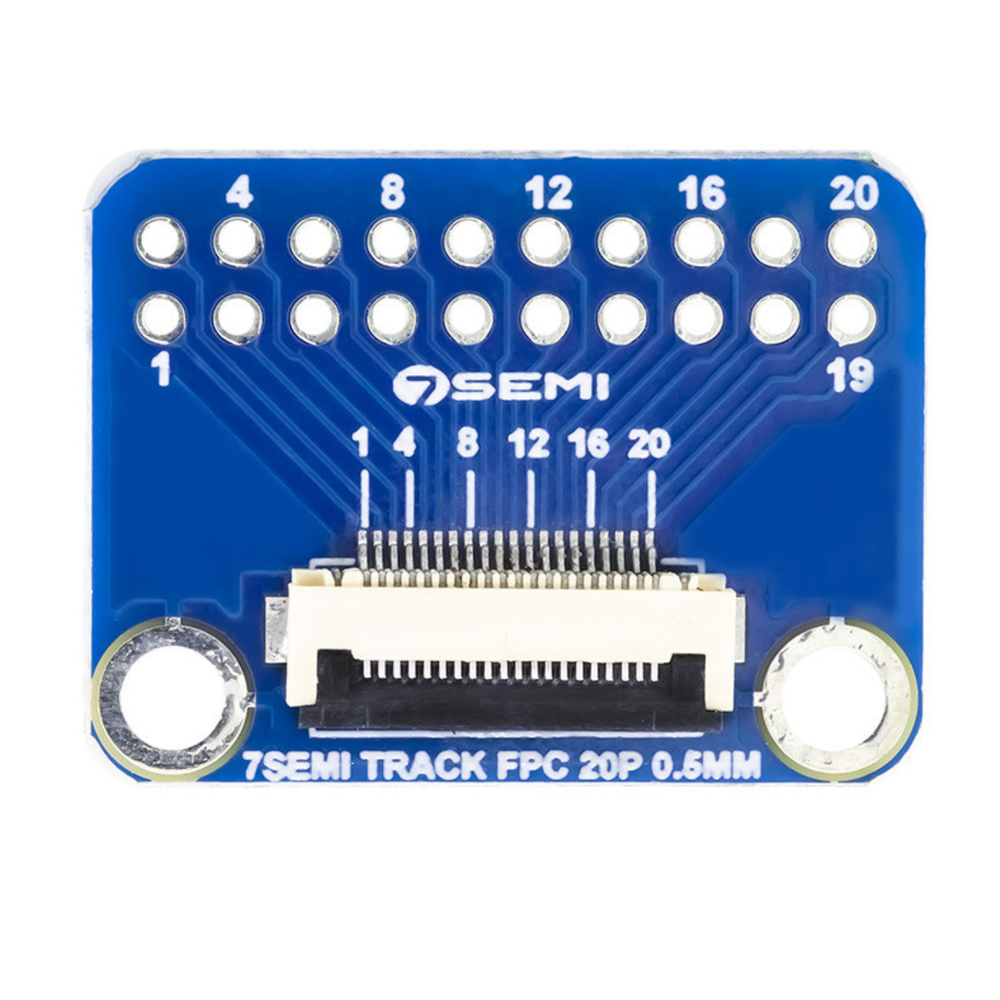

The front-flip, bottom-contact SMT connector ensures firm cable retention and long-term durability, while the breadboard-friendly pin layout allows fast testing without extra adapters. With clearly marked pin numbers, this breakout board reduces wiring mistakes and supports efficient prototyping in electronics, IoT, and embedded system projects.
| Category | Parameter | Specification |
|---|---|---|
| Footprint Dimensions | Body Size | 13 mm × 5.7 mm |
| Pitch | 0.5 mm | |
| Connector Mounting PAD 1 | 3 mm × 2.2 mm | |
| Connector Mounting PAD 2 | 11 mm × 2.2 mm | |

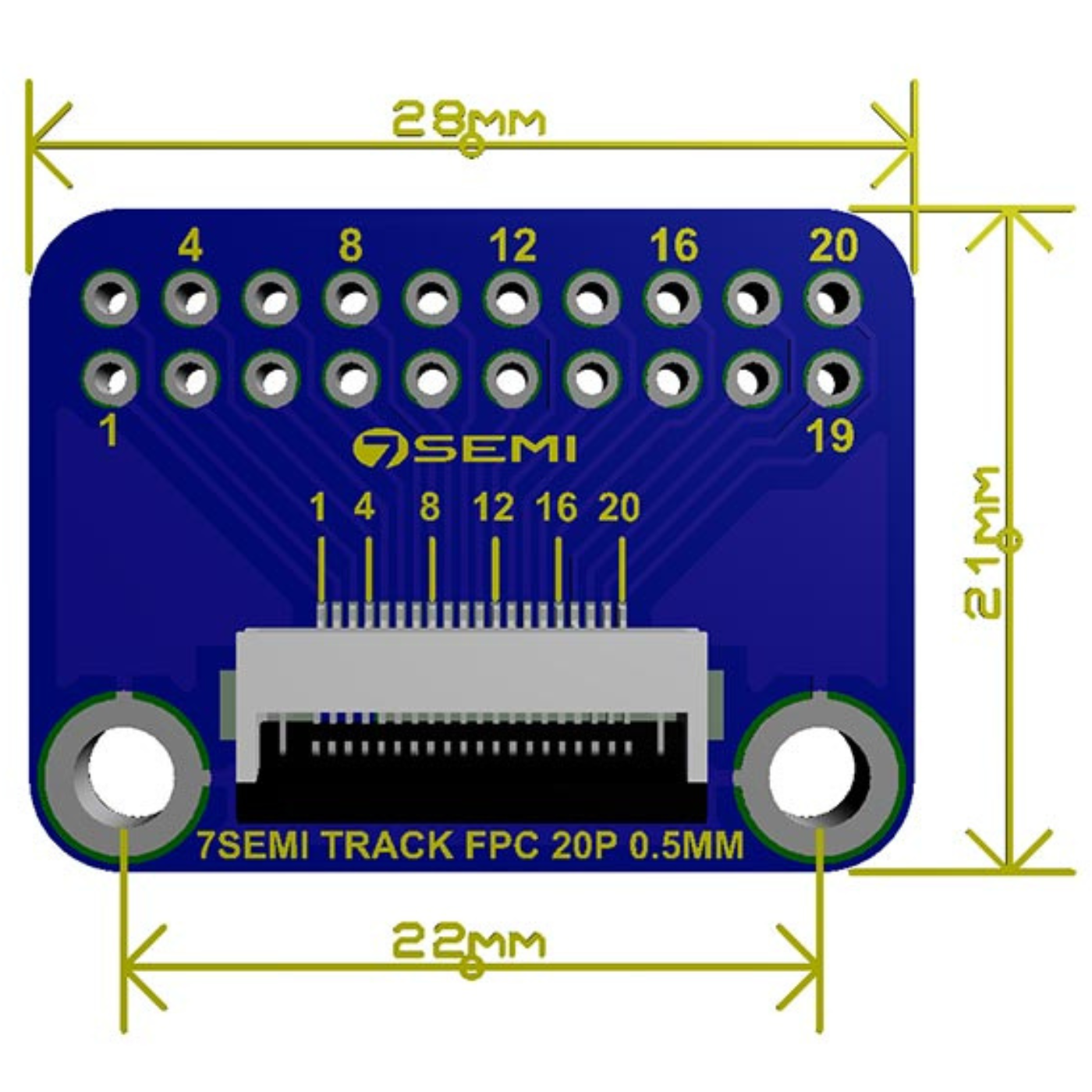

| Board Dimensions | Board Size (L × W) | 28 mm × 21 mm |
| Board Thickness | 1.6 mm | |
| Through Hole Spacing (X Axis) | 2.54 mm (40 mil) | |
| Through Hole Spacing (Y Axis) | 2.54 mm (40 mil) | |
| Side Hole & Pad | 1 mm (Drill) / 2 mm (Pad) | |
| PCB Mounting Through Hole | 3.2 mm (Drill) / 5 mm (Pad) | |
| Board Specification | PCB Copper Layers | 2 Layers |
| Surface Finish | HAL (Hot Air Leveling) | |
| Material | FR4 | |
| Finished Copper Thickness | 1 oz (35 µm) | |
| Maximum Trace Length | < 14 mm | |
| No. of Pins / Through-Holes | 20 |
