- Contains four independent non-inverting buffer gates
- 3-STATE outputs for bus interface applications
- Low impedance output when enabled, high impedance when disabled
- Suitable for driving bus lines without external resistors
- DIP-14 package for easy through-hole mounting

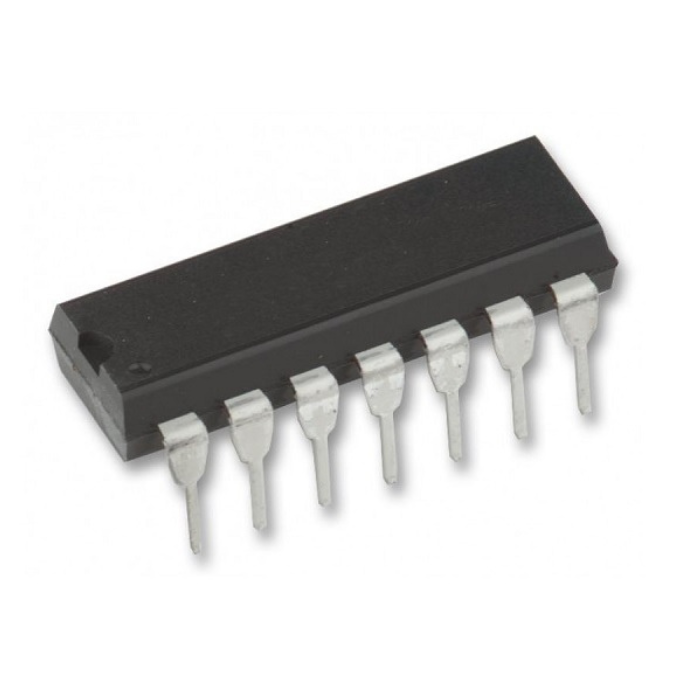

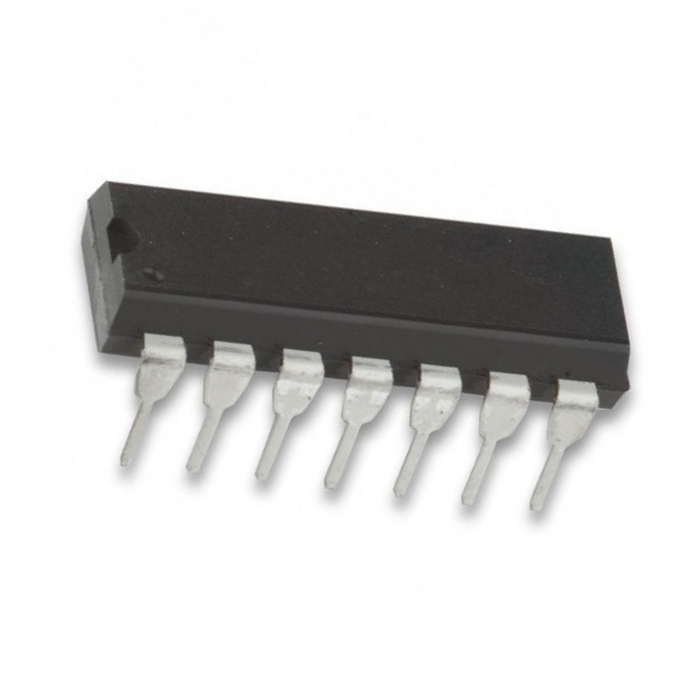

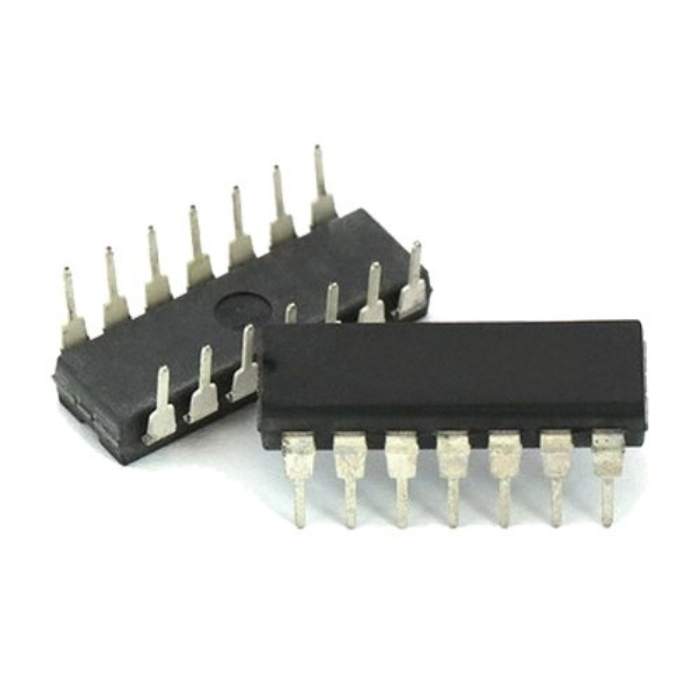

74LS125 Quad Tri-State Buffer IC DIP-14 Package
The 74LS125 Quad Tri-State Buffer IC DIP-14 Package is a versatile logic device that integrates four independent non-inverting buffers, each featuring a 3-STATE output.
As a tri state buffer IC 74125, it delivers low impedance characteristics when enabled, providing strong drive capability to bus lines without the need for external resistors.
When disabled, both output transistors are turned off, presenting a high-impedance state that effectively isolates the device from the bus.
This design minimizes bus contention by ensuring the disable time is shorter than the enable time, making it ideal for high-performance digital systems and bus-oriented applications.
Features:
- Quad non-inverting buffer gates
- 3-state output for bus line applications
- High drive capability with low output impedance
- High impedance state when disabled
- Safe enable/disable timing to prevent bus conflicts
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
Found a better price?
Let us know!
We'll try to match the price for you
Package Includes:
- 1 x 74LS125 Quad Tri-State Buffer IC DIP-14 Package
Specifications:
| Parameter | Specification |
|---|---|
| Input Supply Voltage (VDC) | 7V |
| Operating Temperature (°C) | 0 to 70 |
| Storage Temperature (°C) | -65 to 150 |
