60PCS Waterproof Solder Seal Heat Shrink Butt Wire Connector Terminals Copper
60PCS Waterproof Solder Seal Heat Shrink Butt Wire Connector Terminals Copper
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Waterproof Protection: Hot Melt Adhesive & Solder inside creates a durable seal, preventing corrosion.
- Fast & Easy Operation: No crimping needed; strip wires, insert into solder sleeve, apply heat for a secure connection.
- No Slip Wire Contact: Tubing reduces, melted solder flows, ensuring a strong hold without wires slipping.
- Easy Identification: Different colors for different sizes; transparent sleeve for precise inspection.
- Wide Application: Ideal for marine, aviation, automobile applications, maintenance operations, and wiring projects.
60PCS Waterproof Solder Seal Heat Shrink Butt Wire Connector Terminals Copper
The Electrical Waterproof Solder Seal Heat Shrink Splice Wire Sleeve comes in Red, Yellow, White, and Blue. It is used to connect multiple wires together securely. This product is a good option instead of crimping, welding, or using traditional twist-on-style connectors.
The special wire fixtures and controlled soldering technology used in this sleeve ensure a reliable electrical connection.
Steps for use:
- Select the right size of connectors for the wires.
- Insert the wires into the Waterproof Solder Seal Heat Shrink splice.
- Heated directly with a hot gun make the solder melt and flow through the stripped wires.
Features:
- Waterproof Protection – Hot Melt Adhesive & Solder inside the insulated polyolefin tubing creates a durable waterproof seal between the wire and the connector; and prevents any corrosion.
- Fast & Easy Operation – No need to crimp, just strip your wires, insert them into the solder sleeve, and apply heat to finish the connection. Using a heat gun to heat until the heat shrink tube wrap terminal.
- No Slip Wire Contact – When heat is applied, tubing reduces in size and melted solder flows through the stripped wires; ensure strong holding and avoid wires slipping out from the terminal.
- Easy Identification – Different Colors for Different Sizes of the Solder Seal Wire Connectors; easy to identify and pick up for use. The transparent sleeve provides precise inspection when stripping and inserting wires inside.
- Wide Application – This Solder Seal Electrical Heat Shrink Butt Terminals kit is widely used for marine, aviation; and automobile applications, maintenance operation, and other wiring projects.
- Starting temperature of solder melt: 138℃
- Minimum full recovery temperature: 160℃
Heat shrink solder butt connector test

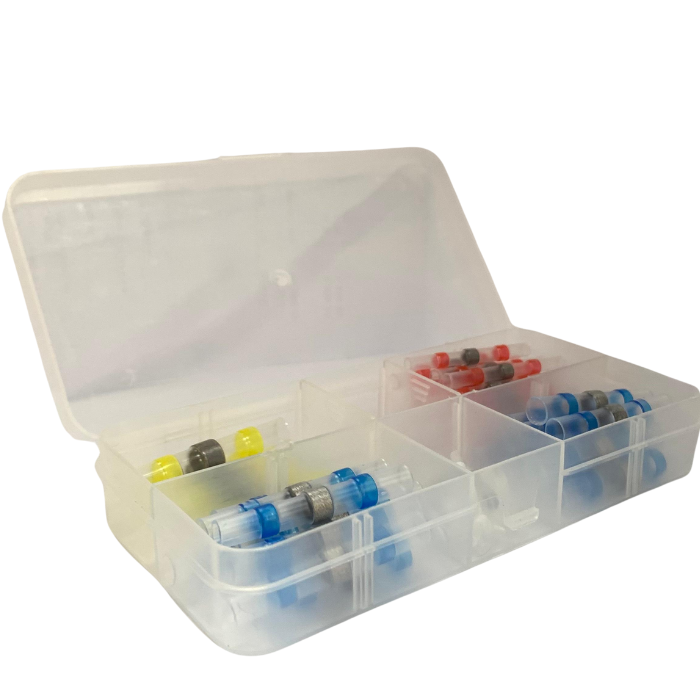

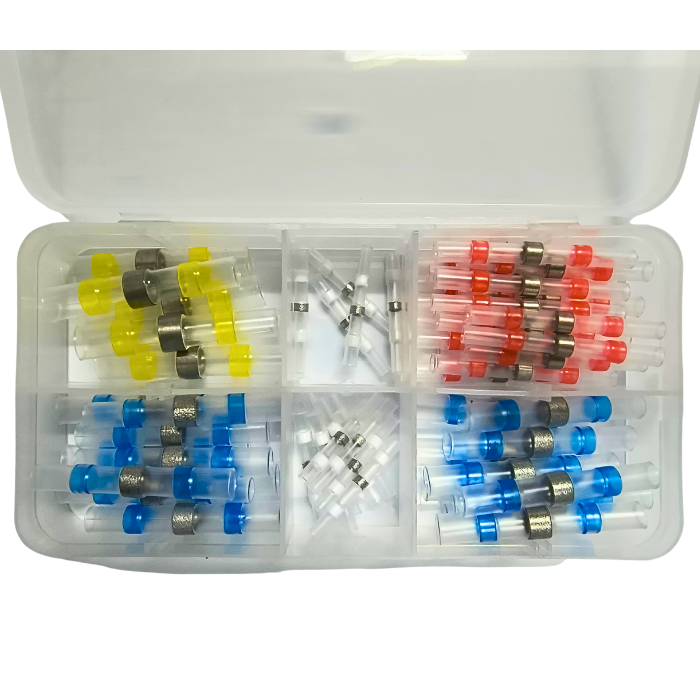

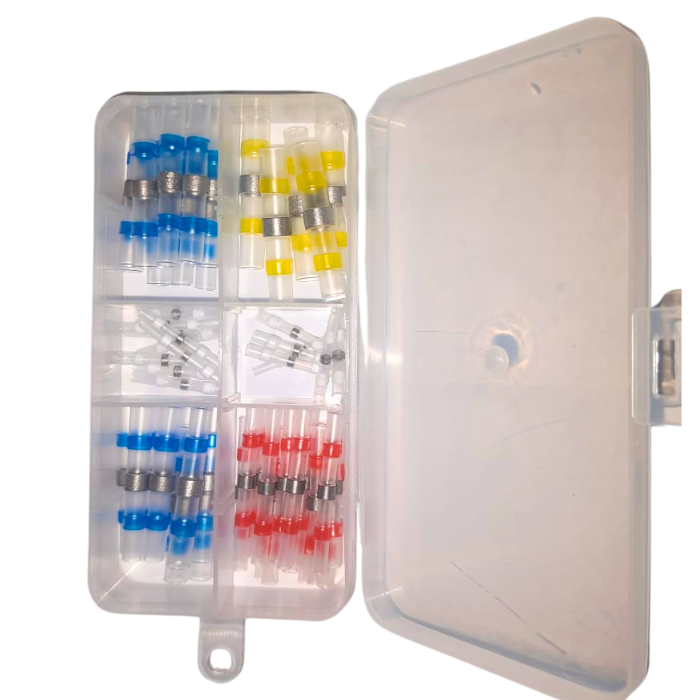

Package Includes:
- 20 x Red Shrink Connectors
- 20 x Blue Shrink Connectors
- 15 x White Shrink Connectors
- 5 x Yellow Shrink Connectors
Specifications:
| Pack Quantity (Pcs.) |
60 |
|---|---|
| Net weight (gm) |
50 |
| Shipping Weight | 0.06 kg |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
Found a better price?
Let us know!
We'll try to match the price for you
1. What is solder seal wire connectors?
Solder seal wire connectors, also called solder seal butt connectors. are comprised of a transparent heat shrink tube housing a low-temperature solder ring at its center. Surrounding the solder ring are colored rings of heat-activated adhesive on each side.
These adhesive rings, differentiated by colors, serve to indicate the compatible wire sizes that can be effectively utilized with the connector. Upon heating, the solder melts, creating a secure and durable connection while the heat-activated adhesive seals the joint, providing insulation and protection against environmental elements."
2. How do you install solder seal wire connectors?
To set up solder seal wire connectors, start by getting the wires ready. Remove the insulation from the ends of the wires you want to connect, making sure there's enough bare wire showing. Then, put the prepared wires into the solder seal connector, making sure they reach the center solder ring. Use a heat gun to heat up the connector evenly until the solder inside melts and goes through the stripped wires.
Let the connector cool down completely. Check the connection to make sure the solder covers all the exposed wires well. If you have it, slide heat shrink tubing over the soldered part and heat it to make a tight seal. Finally, check the connection to make sure it's reliable by using a multimeter or testing its function.
3. Are solder seal connectors waterproof?
Yes, solder seal connectors are waterproof. Solder seal wire connectors typically come with an IP67 water-resistant rating. Once heated, they shrink, creating a tight seal that prevents water from penetrating, thus minimizing the risk of short circuits. This design stops rust and makes sure the connectors work well in different situations, even if they get wet.
4. What is the Solder Seal Heat Shrink Butt Wire Connector used for?
These solder seal butt connectors offer a dependable way to connect several wires securely, without needing to crimp, weld, or use old-fashioned twist-on connectors.
