- This is the 60 RPM single shaft BO motor
- This BO motor capability to absorb shock and vibration as a result of elastic compliance.
- This BO motor ability to operate with minimum or no lubrication, due to inherent lubricity.
- The relatively low coefficient of friction.
- The Operating Voltage is 3V to 12V
- Rated Speed(After Reduction): 60 RPM
- This single-shaft BO motor is lightweight

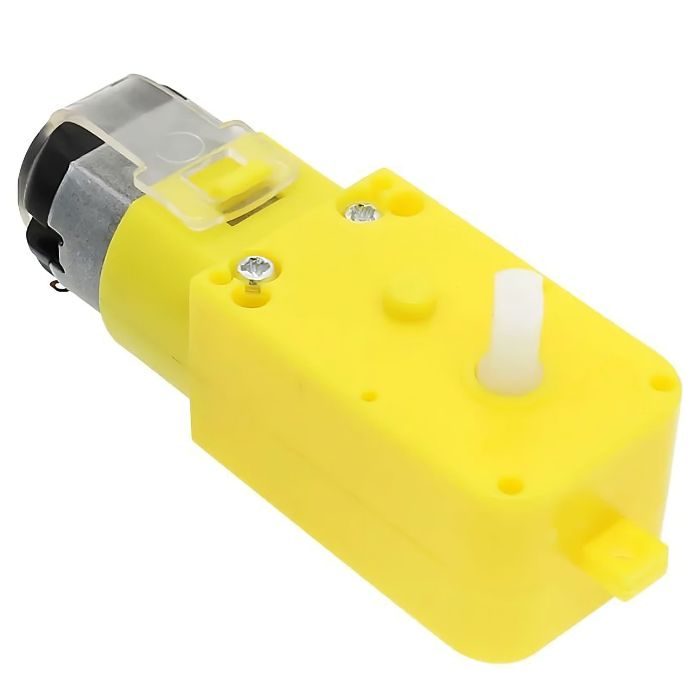

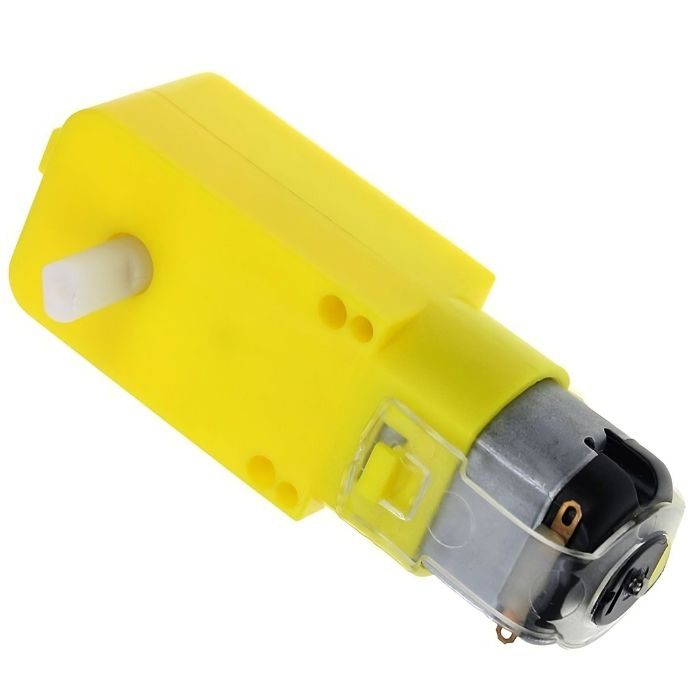

60 RPM- STRAIGHT SINGLE SHAFT
This is the 60 rpm straight single shaft BO motor, which gives good torque and rpm at lower operating voltages, It is the biggest advantage of these BO motors. Small shaft with matching wheels gives an optimized design for your application or robot. Mounting holes on the body & light weight makes it suitable for in-circuit placement.
This BO motor is the low-cost geared DC Motor. It is an alternative to our metal gear DC motors. It comes with an operating voltage of 3-12V and is perfect for building small and medium robots. This BO motor is ideal for DIY enthusiasts. This motor set is inexpensive, small, easy to install, and ideally suited for use in a mobile robot car. If you want to use this 60 rpm straight single shaft BO motor in your projects , for that you will need few essential components like batteries , switches , wires , soldering tools and wheels.
Features:
- Operating Voltage: 3 to 12V DC.
- Shaft Length: 8.5 mm.
- Shaft Diameter: 5.5 mm (D-type).
- No Load Current: 40-180mA.
- Rated Speed: 60 RPM.
- Output Torque: 1 kg-cm.
- Size: 55 x 48 x 23 mm.
- Weight: Approximately 30 grams.
- Cost-Effective: Made using an injection-molding process, which reduces costs.
- Lightweight: Low density and low inertia.
- Durability: Capable of absorbing shock and vibration due to elastic compliance.
- Lubrication: Can operate with minimal or no lubrication.
- Friction: Low coefficient of friction.
- Corrosion-Resistant: Eliminates the need for plating or protective coatings.
- Quiet Operation: Designed for quiet performance
Applications:
- Robotics: Used in small and medium-sized robots for movement and control.
- DIY Projects: Ideal for hobbyists and DIY enthusiasts building various mechanical projects.
- Mobile Robot Cars: Commonly used in two-wheel drive (2WD) platforms for mobile robots.
- Conveyor Belts: Suitable for small conveyor belt systems requiring moderate speed and torque.
- Windmill Projects: Can be used in educational and small-scale windmill projects.
- Toy Cars: Perfect for powering toy cars and other small vehicles.
- Line Follower Robots: Used in line-following robots that require precise control at lower speeds.
Package Includes:
- 1 x 60 RPM- Straight Single Shaft BO motor
Specifications:
| Operating Voltage (VDC) | 3V - 12V |
| Shaft Length (mm) | 8.5 |
| Shaft Diameter (mm) | (Double D-type) 5.5 |
| No Load Current (mA) | 40-180mA. |
| RPM | 60 |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
People Also Buy
300 RPM STRAIGHT SINGLE SHAFT
Regular price
Rs. 57
Regular price
Rs. 74
Sale price
Rs. 57
Unit price
per
Incl. GST (No Hidden Charges)
Sale
Red BO Wheel + 100 RPM Single Shaft BO Motor - Set of 4 | Robotics Science Project
Regular price
Rs. 186
Regular price
Rs. 271
Sale price
Rs. 186
Unit price
per
Incl. GST (No Hidden Charges)
Sale
4WD Four Wheel Drive Kit - A Smart Robot Car with Chassis
Regular price
Rs. 489
Regular price
Rs. 741
Sale price
Rs. 489
Unit price
per
Incl. GST (No Hidden Charges)
Sale
Found a better price?
Let us know!
We'll try to match the price for you
1. What is the rpm of Bo motor?
- The RPM of this BO motor is 60, this is a single-shaft bo motor which gives good torque.
2. What is a Bo motor?
- Bo motor (Battery Operated) is a lightweight DC geared motor that produces high torque and rpm at low voltages. Excellent for battery-powered lightweight robots.
3. What is the operating voltage range for this motor?
- The 60 RPM Single Shaft BO Motor operates within a voltage range of 3 to 12V DC.
4. What is the no-load current of this motor?
- The no-load current for this motor ranges from 40 to 180mA.
5. What applications is this motor suitable for?
- This motor is ideal for small to medium-sized robotics projects, such as mobile robot cars. It provides good torque and RPM at lower operating voltages, making it suitable for various DIY and educational projects.
