- 2-Channel Solid-State Relay
- Rated output load: 100V ~ 240V AC (50Hz/ 60Hz) 2A per channel
- Rated input voltage: 5V
- Triggered at High level
- Separate LEDs showing the status of each Solid-State Relay

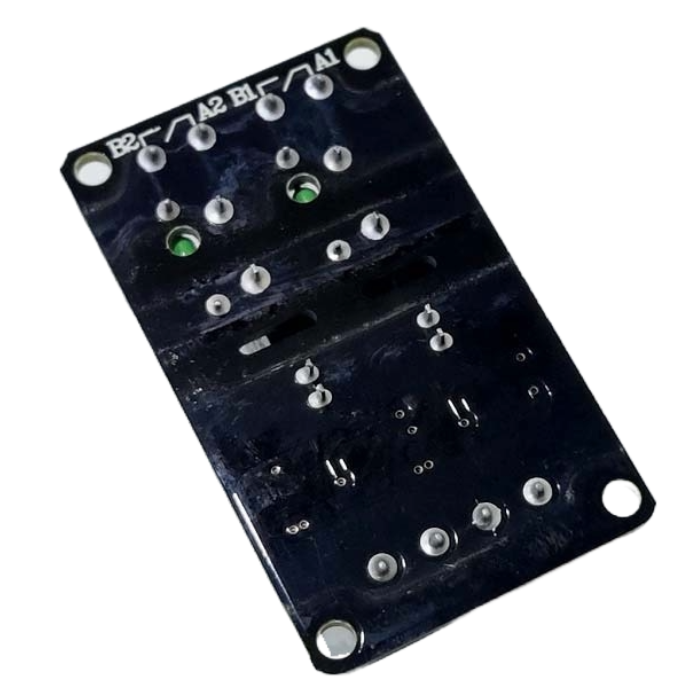

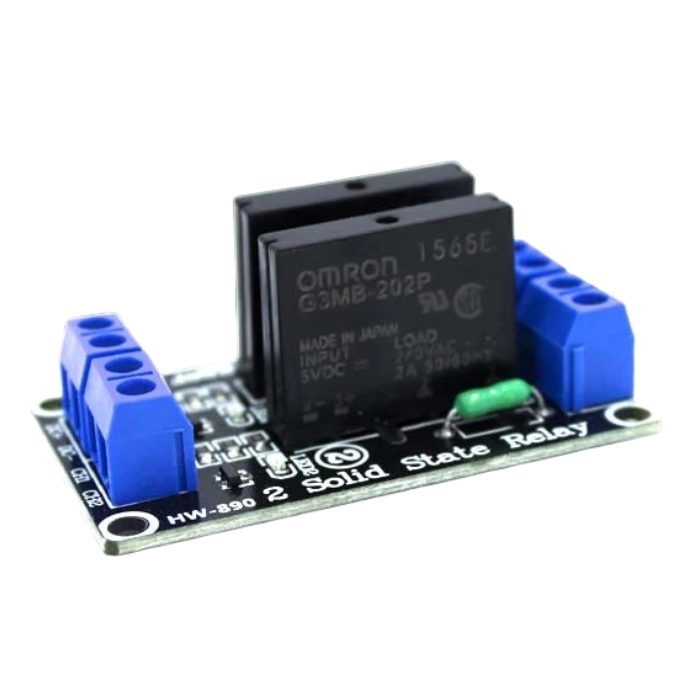

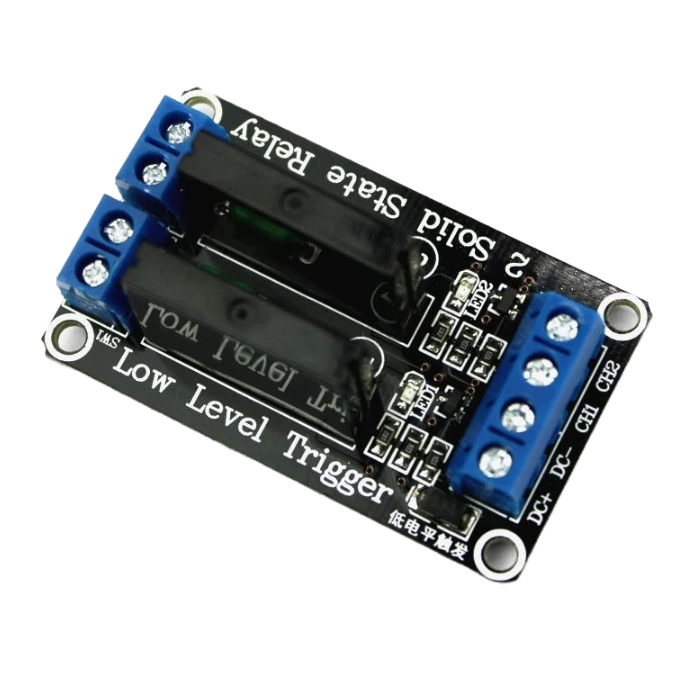

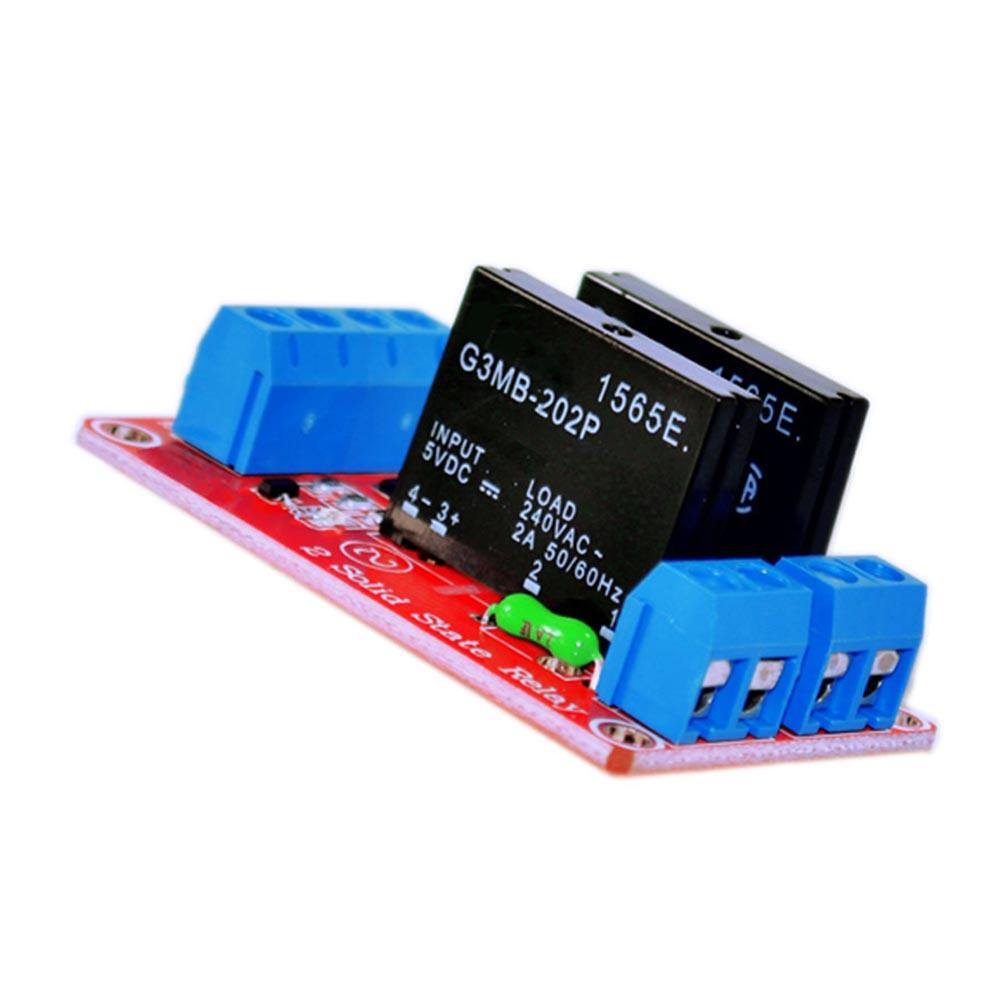

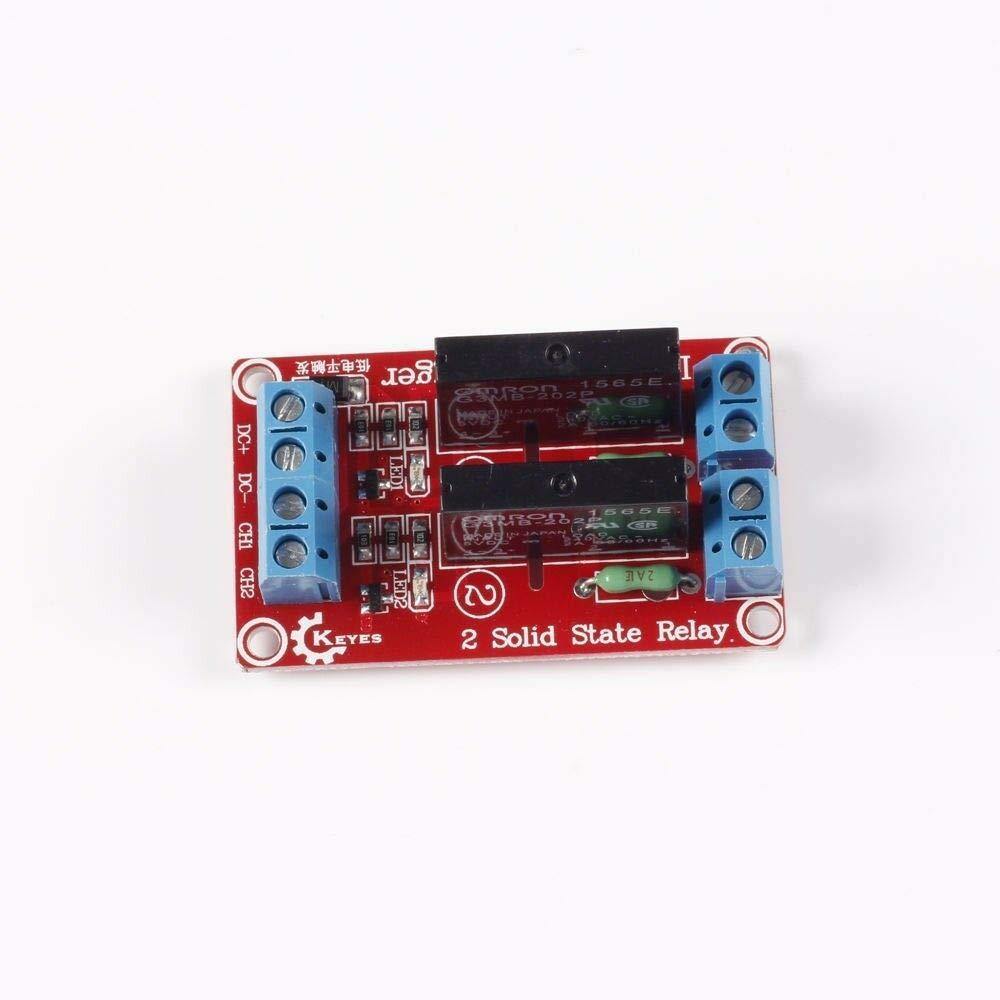

5V 2 CHANNEL SOLID STATE RELAY
5V 2-Channel Solid-State Relay is somewhat similar to that of a mechanical relay & the difference is that there is no moving contact in a Solid-State Relay. Here we make use of a Phototrriac coupler to turn it ON and OFF. It finds its application in AC circuits as a TRIAC has got only limited applications in DC.
Solid-state relays do have several advantages over mechanical relays. One such advantage is that they can be switched by a much lower voltage and at a much lower current than most mechanical relays. Also, because there are no moving contacts, solid-state relays can be switched much faster and for much longer periods without wearing out.
- 1 x 2 Channel Solid State Relay
|Rated output load||100V ~ 240V AC|
|Rated input voltage||5V|
|Dimensions||3 x 2 x 1cms|
