Name: 470K 16mm Rotary Pot(Pack of 5)
Brand: Robocraze
SKU: TIFCB1254
Price: 83 INR
Availability: InStock
Rating: 5.0 (2 reviews)

470K 16mm Rotary Pot(Pack of 5)

Rs. 83; ~~Rs. 98~~; Rs. 83
Unit price: per

Incl. GST (No Hidden Charges)

Please hurry! Only 14 left in stock

Quantity:

SKU: TIFCB1254

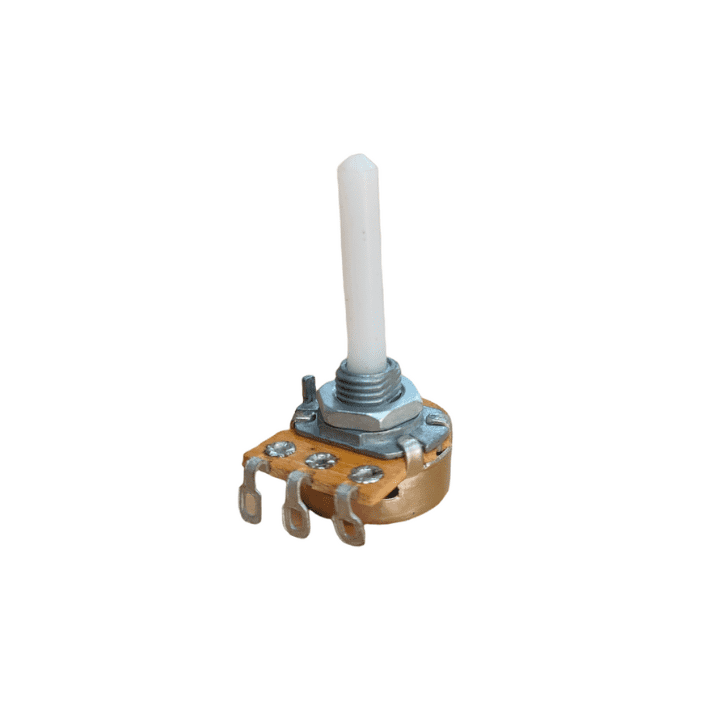

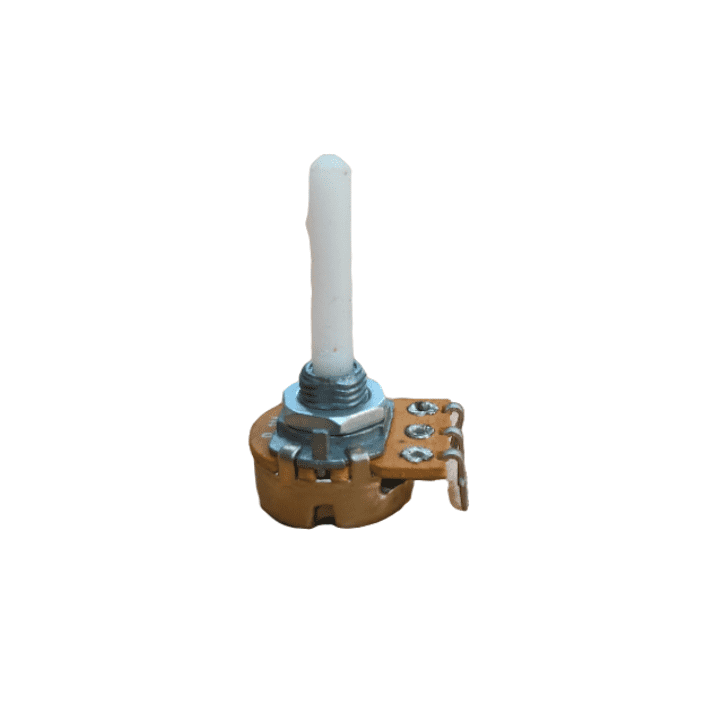

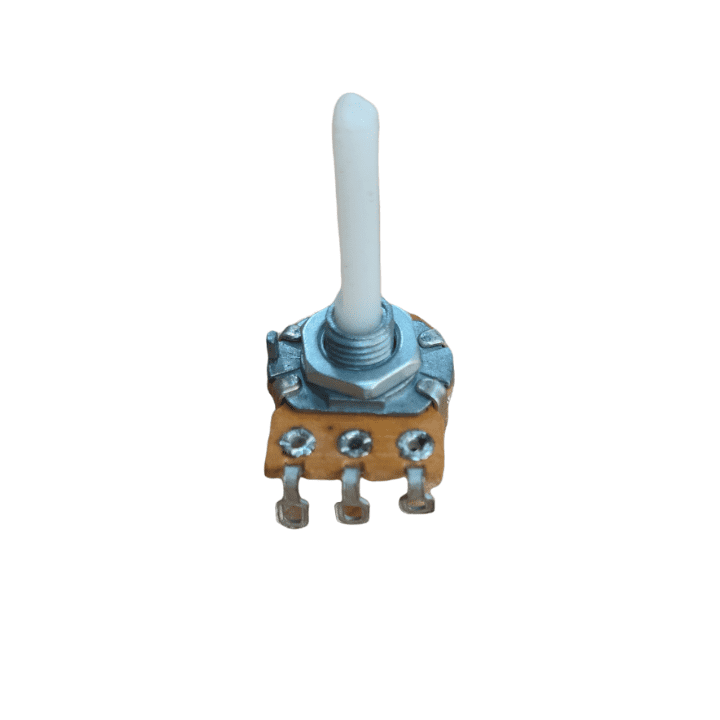

This is a 16mm size 470k ohm rotary potentiometers (plastic shaft).
It has a tolerance of 20%.
Turn the pot and the resistance changes. Connect vcc to an outer pin, gnd to the other, and the center pin will have a voltage that varies from 0 to Vcc depending on the rotation of the pot.
This is used for adjusting various parameters like voltage, current, etc. in an electronic circuit.

BEST COUPON

RC100

COPY CODE

When you shop for ₹ 2,500 required. Applicable at Checkout.
*Coupons are not applicable on Original Boards and Kits

Why Buy From Robocraze

Free shipping on Orders Above Rs 999/-

Technical Support & Easy Returns

Same Day Shipping

Earn RC Coins on Every Purchase

Cash on Delivery Available

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here

First Name *

Last Name *

Email *

Phone *

Company

Materials List

File(s) size limit is 20MB.

Enter the Captcha *

Captcha challenge – enter the characters shown in the image

Reload Captcha

470K 16mm Rotary Pot(Pack of 5)

~~Rs. 98~~ Rs. 83

Quantity:

470K 16mm Rotary Pot(Pack of 5)

~~Rs. 98~~ Rs. 83

Description
Specifications
Shipping & Return

Description

470K ohm 16mm Rotary Pot Variable Potentiometer

Potentiometers are very useful in changing the electrical parameters of a system. It is a single turn 470K Potentiometer with a rotating knob. These potentiometers are also commonly called as a rotary potentiometer or just POT in short. A potentiometer knob can also be used along with this POT for aesthetic purposes.

This is a carbon track, single turn, adjustable resistances, of value 470KOhm Knob potentiometer. It is meant for mounting on panel and is supplied complete with a knob. The knob is affixed on the plastic spindle of the potentiometer and turns the spindle which changes the resistance. The variation of resistance is linearly proportion to the degree of rotation. Potentiometer, in electronic parlance, is a manually variable resistance. Because its most common consumer application is for controlling volume/tone of sound in broadcast receivers, it is loosely referred to as "volume" or ''tone''. It is not a meter with scale and needle. Potentiometers look different depending on size, power handled, application, value and type of material used. There is, however, a common feature-there is wiper which sweeps over a length of resistive material. The two ends of the resistive material as also the wiper are available to the user as electrical terminations. The user gets a variable resistance between the wiper and the two ends.

Also check 16mm size 250K ohm rotary potentiometer (plastic shaft) sold by Robocraze. It has a tolerance of 20%. The potentiometer is designed for adjusting various parameters like voltage and current in electronic circuits.

Specifications

Package Includes:

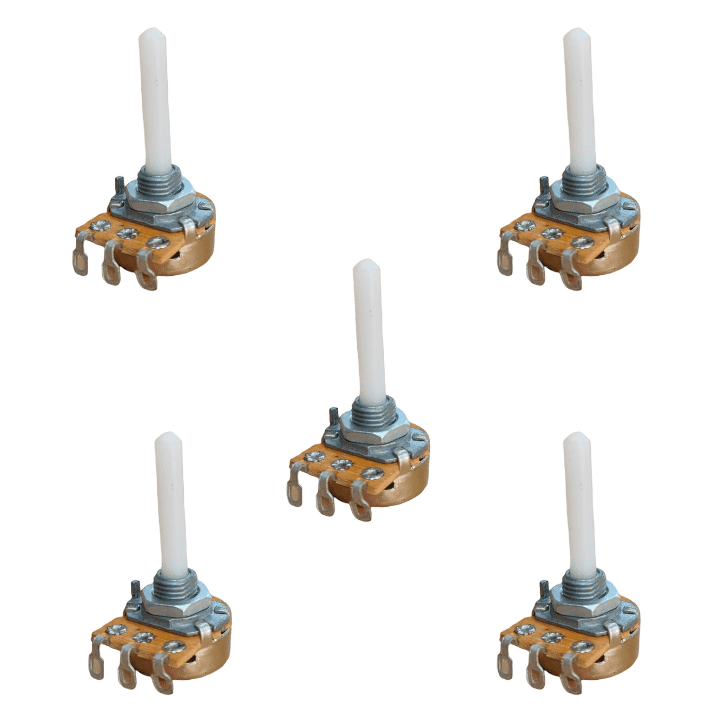

5 x 470K ohm 16mm Rotary Pot Variable Potentiometer

Specifications:

Resistance (?)	470k
Total rotational angle	300° ± 5°
Withstand voltage	for 1 minute or more at AC 500V
Total resistance tolerance	± 20% (more than 1M? ± 30%)
Length	16mm
