4-Pins DIP Momentary Square Tactile Push Button Switch 10 Pieces - 6x6x8mm
4-Pins DIP Momentary Square Tactile Push Button Switch 10 Pieces - 6x6x8mm
Low stock: 9 left
Regular price
Rs. 28
Regular price
Rs. 34
Sale price
Rs. 28
Unit price
per
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Couldn't load pickup availability
BEST COUPON FOR YOU
FLAT ₹ 100/- OFF
RC100
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Through-hole design.
- High operating force (1.5N or 2.5N) suited to automotive equipment requirements
- Used in the fields of electronic products, household appliances and more.
- This light touch switch is waterproof, prevent oil, anti-pollution, anti-static interference.
- Compact and lightweight, easy to carry and dismantling.
- Good electrical conductivity.
4-Pins DIP Momentary Square Tactile Push Button Switch 10 Pieces - 6x6x8mm

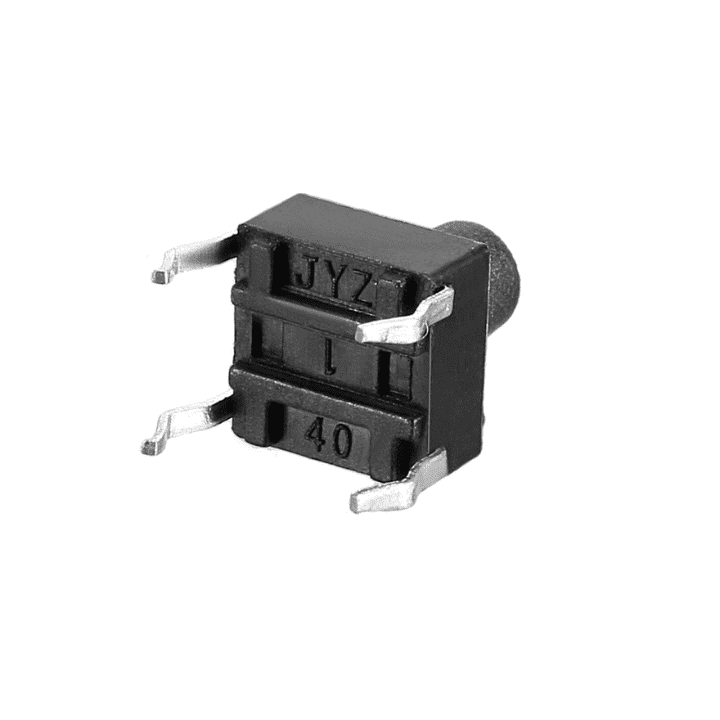

6x6x8mm Tactile 4 Pin Push Button Switch is widely used as a standard input buttons on electronic projects. These work best when you mount it on PCB but can also be used on a solderless breadboard for temporary connections in prototypes. The pins are normally open (disconnected) and when the button is pressed they are momentarily closed and complete the circuit.
This tact switch also offers reliable dome contact technology and strong tactile feedback, with multiple operating forces to choose from. Applications include telecommunications, consumer electronics, audio/visual, medical devices, testing/instrumentation, and computer/peripherals.
Package Includes:

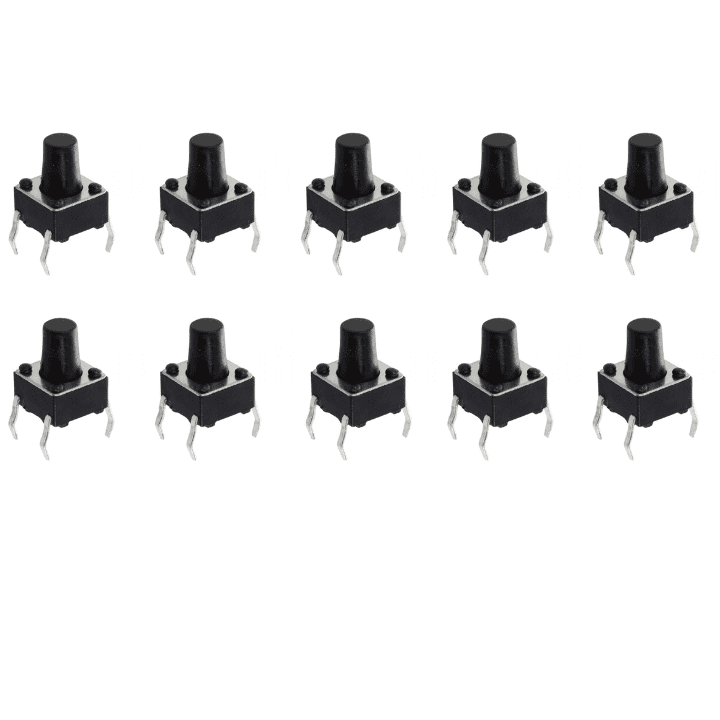

- 10 x 4-Pins DIP Momentary Square Tactile Push Button Switch
Specifications:
| Operating Voltage (VDC) |
12 |
| Max. Operating Current (mA) |
50mA |
| On/Off Function |
Push to ON |
| Switch Type |
Momentary |
| Contact Type |
Through-hole |
| Contact Material |
Brass |
| Contact Resistance |
50mΩ |
| Insulation Resistance (MΩ) |
100 |
| Operating Temperature Range (°C) |
-20 to 70 |
| Operation Force |
1.56 +/- 0.5 N |
| Operation Stroke |
0.25+0.2/-0.1mm |
| Body Material |
Plastic |
| Mech. & Electrical Lifecycle |
50000 |
| Protection Standard |
IP65 |

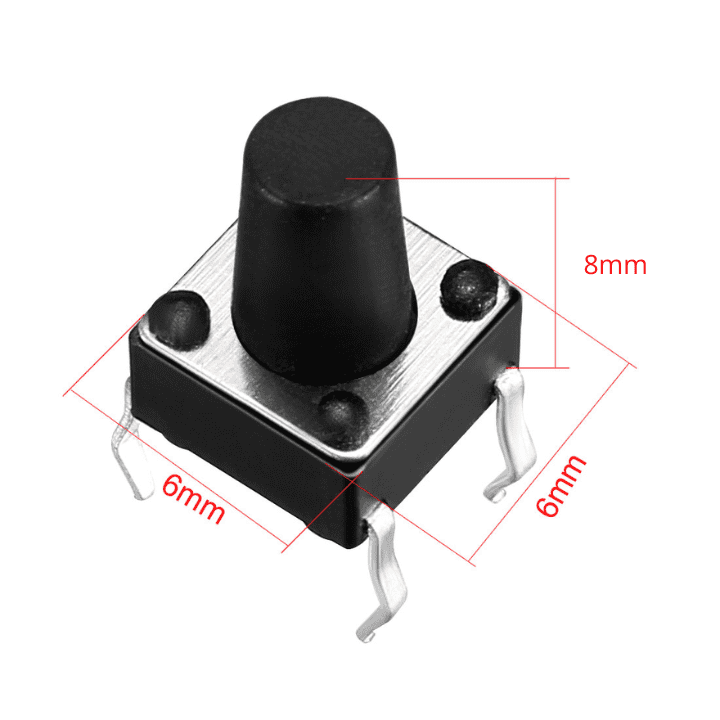

| Dimensions (mm) |
6x6x8 |
| Weight (gm) |
1 (approx) (each) |
