3A 250V AC SPST ON-OFF Round Rocker Switch
3A 250V AC SPST ON-OFF Round Rocker Switch
Regular price
Rs. 20
Regular price
Rs. 24
Sale price
Rs. 20
Unit price
per
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Couldn't load pickup availability
BEST COUPON FOR YOU
FLAT ₹ 100/- OFF
RC100
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits

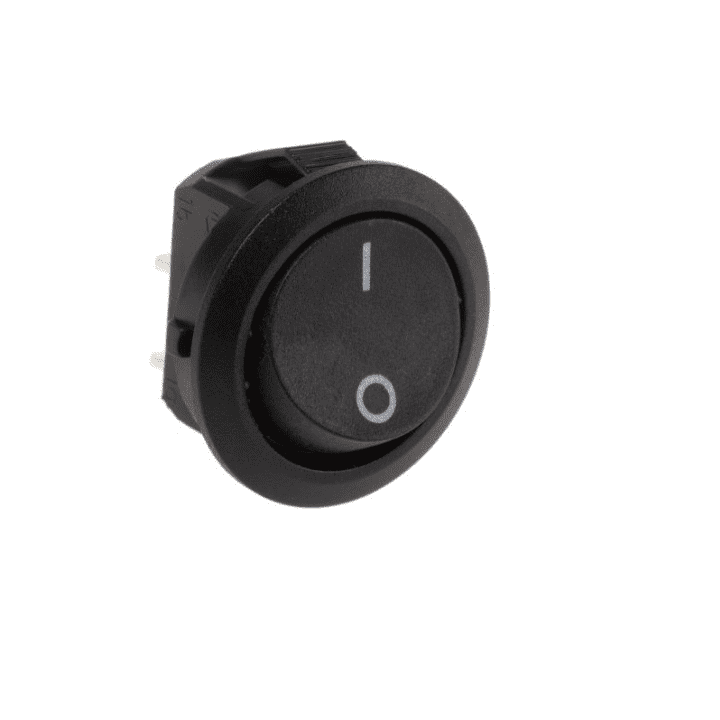

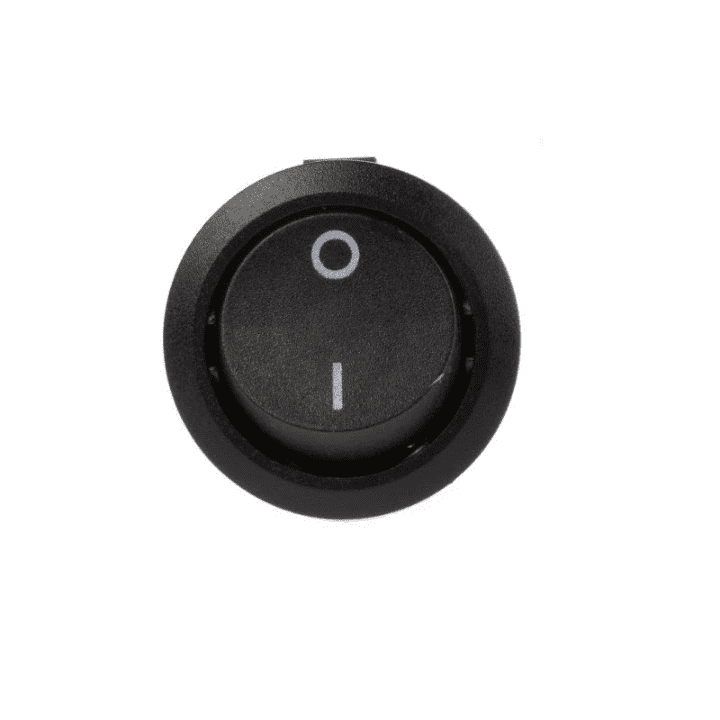

- Positions Marked on the rocker: I, O (On and Off) for easy identification
- Long Switching Life: 50000-100000 cycles
- Easy installation, No Screws or Nuts required
- Used widely for on/off power control, car, motorcycle, boat, some machines, water dispenser, etc.
3A 250V AC SPST ON-OFF Round Rocker Switch
This is a basic On/Off SPST Rocker Switch for your projects. No screws required, it simply clips into place. This is a two-pin switch that is easy to use, simply cut one of the two power wires and solder each of the ends to the unit.

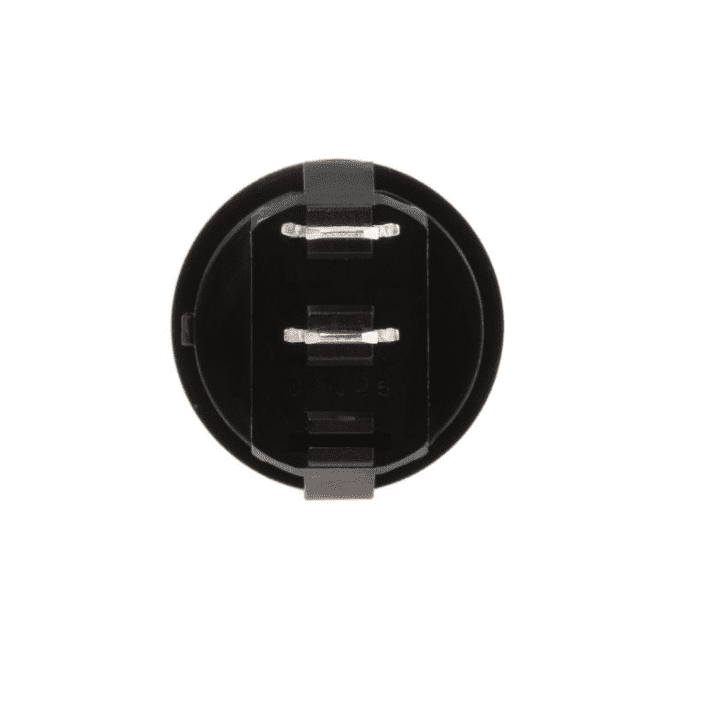

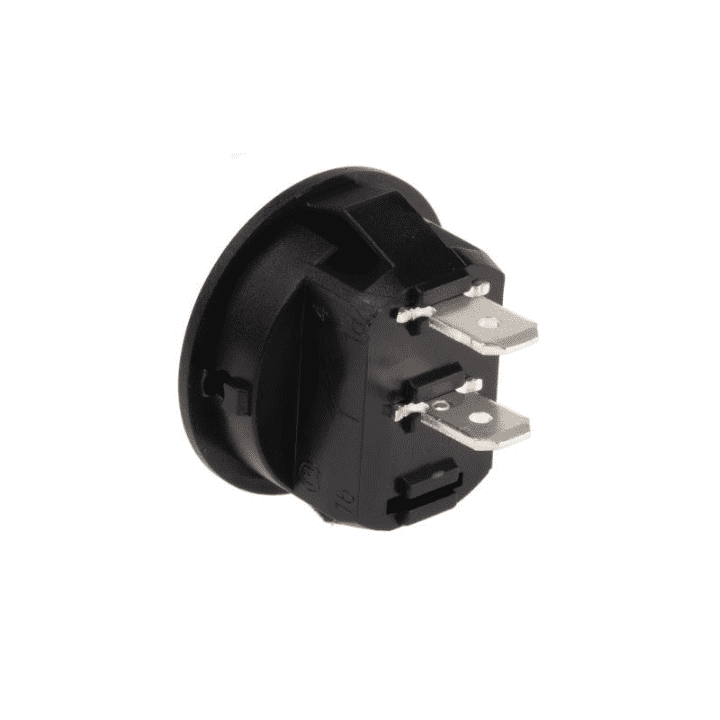

This 3A 250V AC KCD1-108 On-Off Rocker Switch is perfect for controlling power to electronic circuits, robots, etc. We have carefully selected the best On/Off Rocker Switch with a high load rating and the perfect size to for all general-purpose On/Off applications. This rocker switch has two positions – one on position and another off position. The rocker switch stays in the one till it is pressed and changed to the other position. It has two large pins on the backside to which wires can be soldered and connected to your circuit.
The KCD1-108 On/Off Rocker Switch is the simplest and easiest power control switch for your project. It comes with tabs on the top and bottom which secure it onto an enclosure without the need for any screws. On and Off positions are clearly marked which help users identify the current switch position during usage.
This switch is great to turn on/off and control DC Motors in Robotics, Car and Motorcycle DC Motors, DC Motors in Industrial Machines, Water Dispensers, etc. We have sourced the best switch with a high load rating of 3A at 250VAC which should be suitable for most applications.
- Switching Mode: ON-OFF
- Structure: SPST
Package Includes:
- 1 x 3A 250V AC KCD1-108 Rocker Switch
Specifications:
| Rating |
Max 3A up to 250V AC |
| Toggle Mode |
ON-OFF |
| Structure |
SPST |
| Actuator Shape |
Round |
| Panel Cut-Out |
15 x 13 mm (Diameter x H) |
| Colour |
Black |
| Material |
Plastic & Metal |
| Switching Life |
50000-100000 Cycles |
| Contact Resistance |
50mΩ |
| Insulation Resistance |
≥100mΩ |
| Withstand Voltage |
1500Vac |
| Length (mm) |
16.3 x 15 |
| Weight (gm) |
3 |
