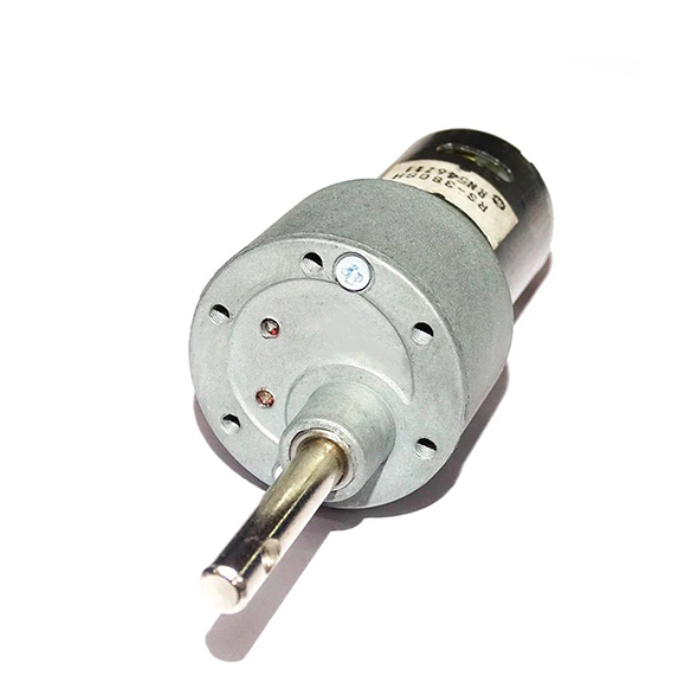

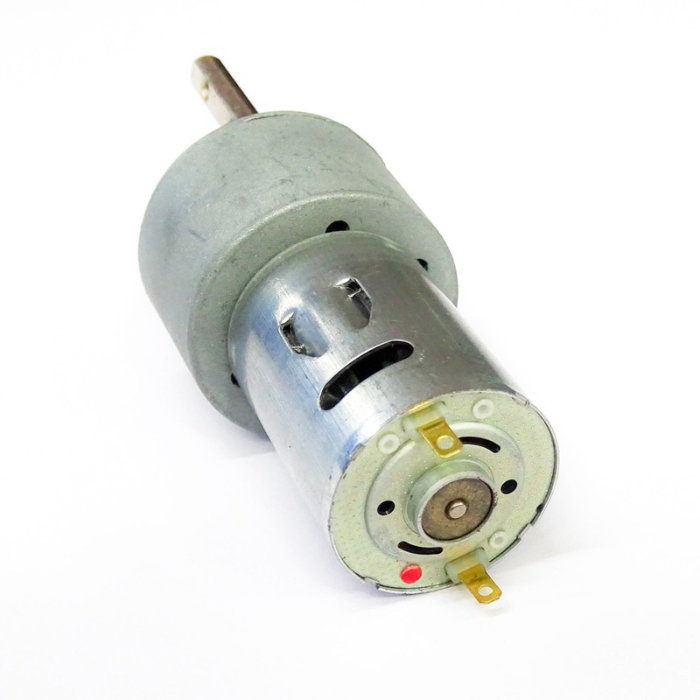

30 RPM 12V DC Johnson Geared Motor (Grade B)
Let us know!
We'll try to match the price for you
Couldn't load pickup availability
This 30 RPM 12V DC Johnson Geared Motor (Grade B) is a reliable and affordable choice for projects that demand a balance of torque and performance.
Equipped with a high-quality metal gearbox, this Johnson geared motor delivers a powerful torque of 9.4 kg-cm at 30 RPM when powered by a 12V DC supply.
Designed with a side shaft (off centered), it features metal bushes to reduce wear and ensure long-term durability, making it ideal for mechanical and robotic applications.
While it is labeled as "Grade B," this motor still offers excellent functionality at a lower price compared to Grade A variants. With six M3 mounting holes and a shaft hole for improved coupling, this DC motor is easy to integrate into various setups.
The 30 rpm gear motor performs efficiently across a voltage range of 6V to 18V, making it a versatile component for both hobby and professional use.
Whether you’re working with automation systems, DIY robots, or custom machines, this 30 rpm DC motor from the Johnson motors lineup is a dependable choice for your toolkit.
| Specification | Details |
|---|---|
| Item Type | Johnson Geared Motor |
| Rated Torque | 9.4 kg-cm |
| Stall Torque | 37.6 kg-cm |
| Operating Voltage (VDC) | 6 ~ 18 |
| Nominal Voltage | 12V |
| Rated Speed | 30 RPM |
| Base Motor Rated RPM | 18000 |
| No-Load Current | 300 mA |
| Load Current Max | 900 mA |
| Material | Metal |
| Shaft Diameter | 6 mm |
| Shaft Length | 25 mm |
| Gearbox Diameter | 37 mm |
| Motor Diameter | 27 mm |
| Motor Length | 68 mm |
| Weight | 179 g |
