3.5 Inch SPI TFT LCD Touch Display Module

3.5 Inch SPI TFT LCD Touch Display Module – ILI9488 Driver, 480×320 Resolution

Rs 1,029/-
- 31%
Rs 1,029/-
Rs 1,499/-
Save Rs 470/-
🪙
RC REWARDS Earn 10 RC Coins on this order
Incl. GST (No Hidden Charges)
Please hurry! Only 0 left in stock

We’ll notify you once the product is back in stock.

Free Delivery Above ₹999

Technical Support & Easy Returns

Same-Day Shipping (Order by 3 PM on Business Days)

Earn RC Coins on Every Prepaid Order

COD Available on Order Value Between ₹500 to ₹3,000
SKU: TIFDP0139
  • 3.5-inch SPI TFT LCD Touch Display with a crisp 480×320 resolution for clear graphics and text.
  • Built with the reliable ILI9488 TFT LCD driver for smooth display performance.
  • Supports 65K colors, delivering vibrant and detailed visuals.
  • SPI interface makes it easy to connect with Arduino, Raspberry Pi, ESP32, and other compatible development boards.
  • Integrated touchscreen enables interactive controls for embedded and DIY projects.
  • Suitable for graphical user interfaces, monitoring systems, control panels, and IoT projects.

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here
+91

File(s) size limit is 20MB. Max 3 files.

Select Categories
CAPTCHA
Reload Captcha
Robocraze Academy Limited Time Offer
3.5 Inch SPI TFT LCD Touch Display Module – ILI9488 Driver, 480×320 Resolution -Displays -LCD Display -Robocraze
3.5 Inch SPI TFT LCD Touch Display Module – ILI9488 Driver, 480×320 Resolution
Rs 1,499/- Rs 1,029/-
3.5 Inch SPI TFT LCD Touch Display Module – ILI9488 Driver, 480×320 Resolution -Displays -LCD Display -Robocraze
3.5 Inch SPI TFT LCD Touch Display Module – ILI9488 Driver, 480×320 Resolution -Displays -LCD Display -Robocraze
3.5 Inch SPI TFT LCD Touch Display Module – ILI9488 Driver, 480×320 Resolution -Displays -LCD Display -Robocraze
3.5 Inch SPI TFT LCD Touch Display Module – ILI9488 Driver, 480×320 Resolution -Displays -LCD Display -Robocraze

3.5 Inch SPI TFT LCD Touch Display Module – ILI9488 Driver, 480×320 Resolution

Rs 1,499/- Rs 1,029/-
Description

3.5 Inch SPI TFT LCD Touch Display Module – ILI9488 Driver, 480×320 Resolution

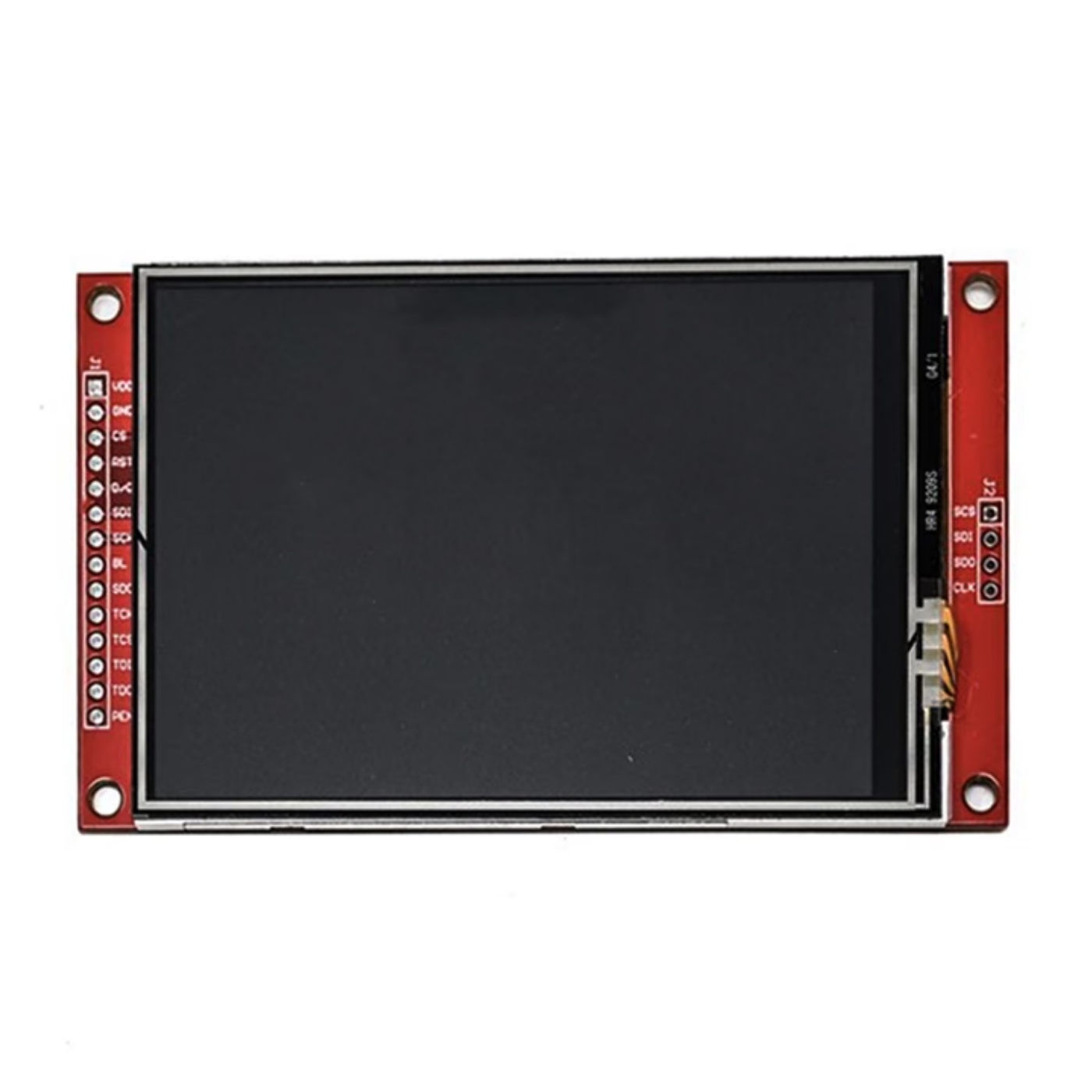

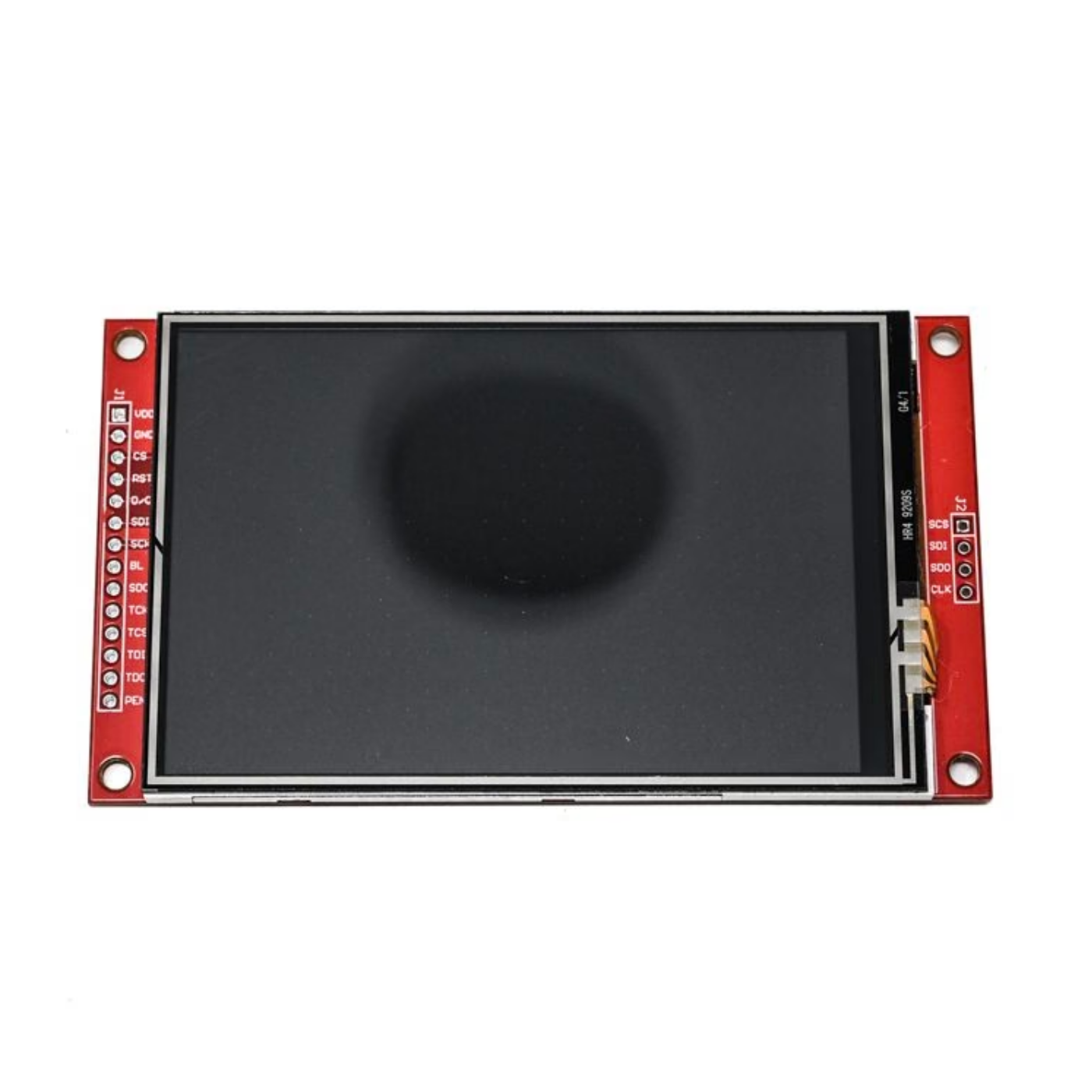

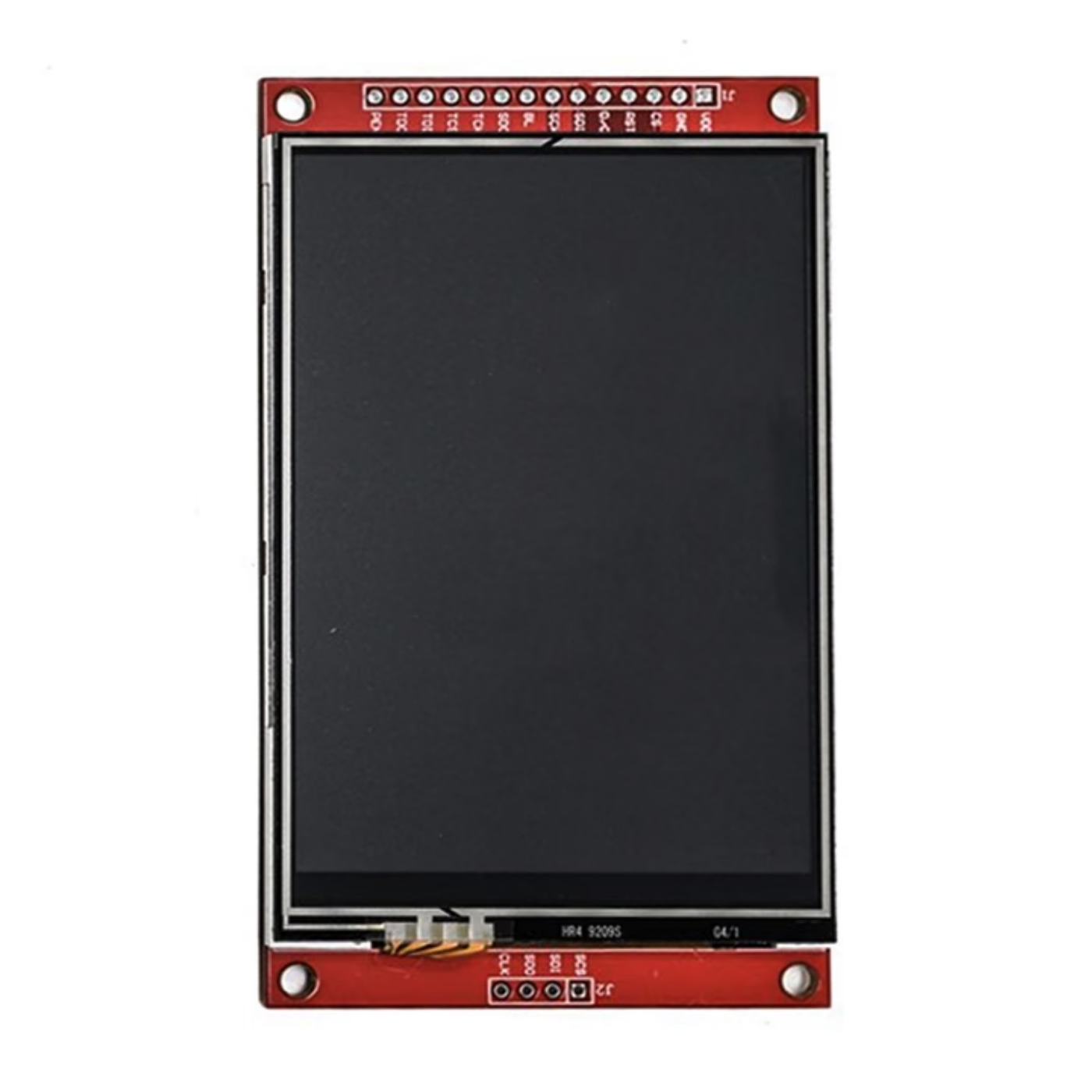

The 3.5 Inch SPI TFT LCD Touch Display Module is a practical and versatile screen for embedded electronics, DIY, and interactive projects. Powered by the ILI9488 driver, it delivers a 480×320 resolution with support for up to 65K colors, providing clear text, colorful graphics, and responsive visual output.

Its SPI interface allows convenient integration with popular development boards such as Arduino, ESP32, and Raspberry Pi, while the built-in touchscreen adds an easy way for users to interact directly with the application. Whether you're building a compact graphical user interface (GUI), IoT dashboard, control panel, data monitor, or custom embedded device, this 3.5-inch TFT LCD touch display offers a compact and user-friendly solution.

Features:

  • Driver IC: ILI9488, 16.7 million colors, single-chip SoC for TFT touch displays.
  • Display Size: 3.5 inches, 480x320 resolution for clear pictures.
  • Color Support: 65K colors for bright and detailed presentations.
  • Interface: 4-wire SPI for easy integration and low IO.

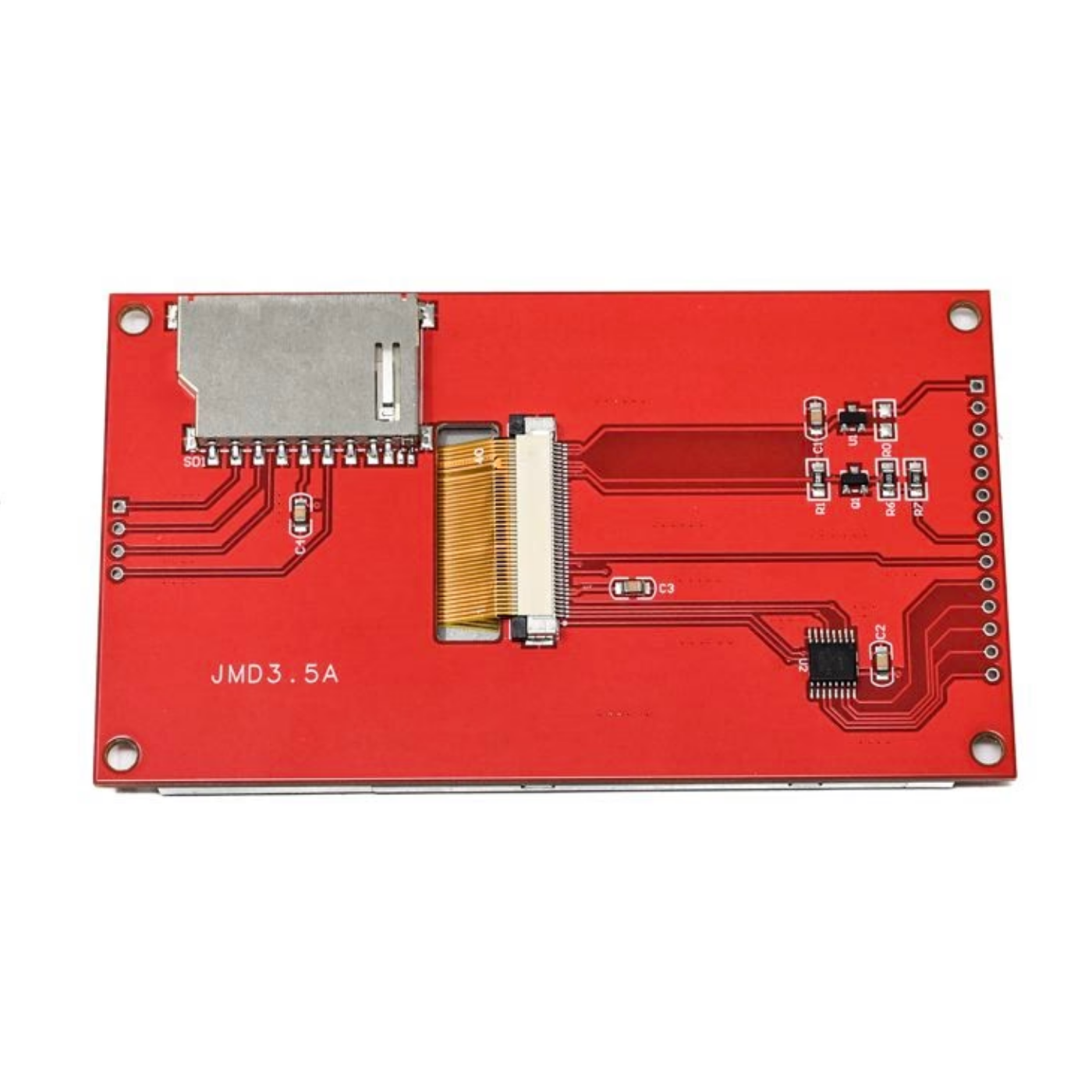

  • SD Card Slot: Easily expands storage capacity.
  • Temperature range is -20℃ to 60℃, making it suited for a variety of situations.
  • Power Supply: VCC 3.3V to 5V, logic IO 3.3V TTL.
  • Compact Size: Active area 48.96 x 73.44 mm; module size 56.34 x 98 mm.
Specifications

Package Includes:

  • 1 x 3.5 Inch SPI TFT LCD Touch Display Module – ILI9488 Driver, 480×320 Resolution

Specifications:

Specification Details
Display Resolution (Pixel) 320 × 480
Color Depth 262K, 65K
Display Type TN
Screen Display TFT-LCD Screen
Display Driver ILI9488
Power Supply Voltage DC 5V–2A
Buttons BOOT Button and Reset Button
Active Area (mm) 48.96 × 73.44 mm (W × H)
